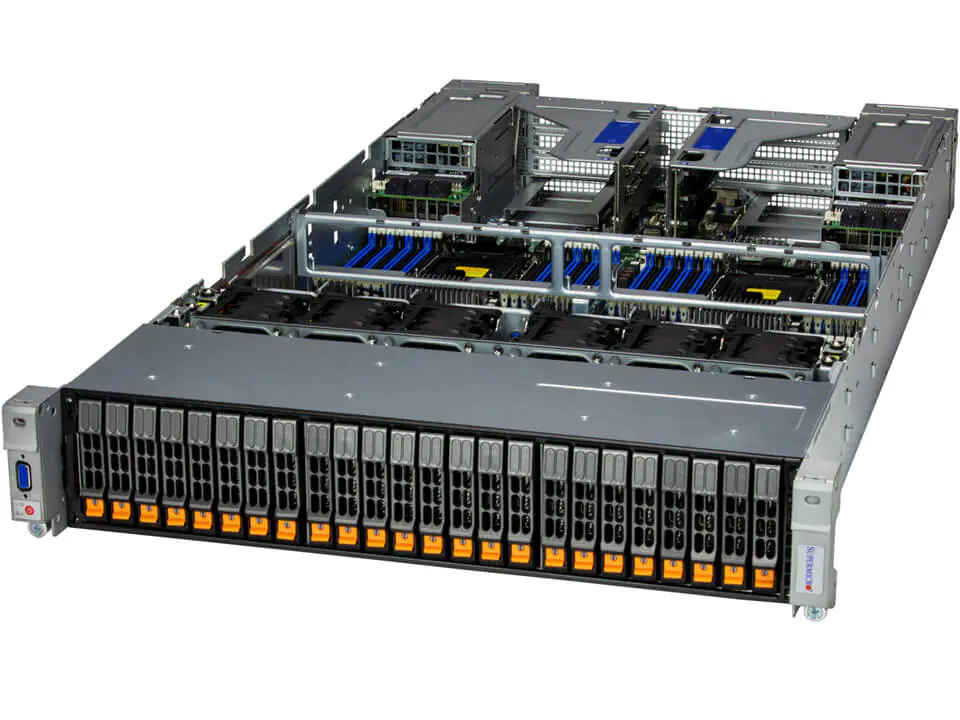

Supermicro SuperServer SYS-241E-TNRTTP
Supermicro SuperServer SYS-241E-TNRTTP - imagine 2
Supermicro SuperServer SYS-241E-TNRTTP - imagine 3
Supermicro SuperServer SYS-241E-TNRTTP - imagine 4
Supermicro SuperServer SYS-241E-TNRTTP - imagine 5
Supermicro SuperServer SYS-241E-TNRTTP - imagine 6
, , ,

Supermicro SuperServer SYS-241E-TNRTTP

Favorite
Compara

2U 4-socket system with 64 DIMMs and 24 NVMe/SAS/SATA drive bays

Pretul afisat contine TVA (21%).

SuperServer SYS-241E-TNRTTP

2U 4-socket system with 64 DIMMs and 24 NVMe/SAS/SATA drive bays

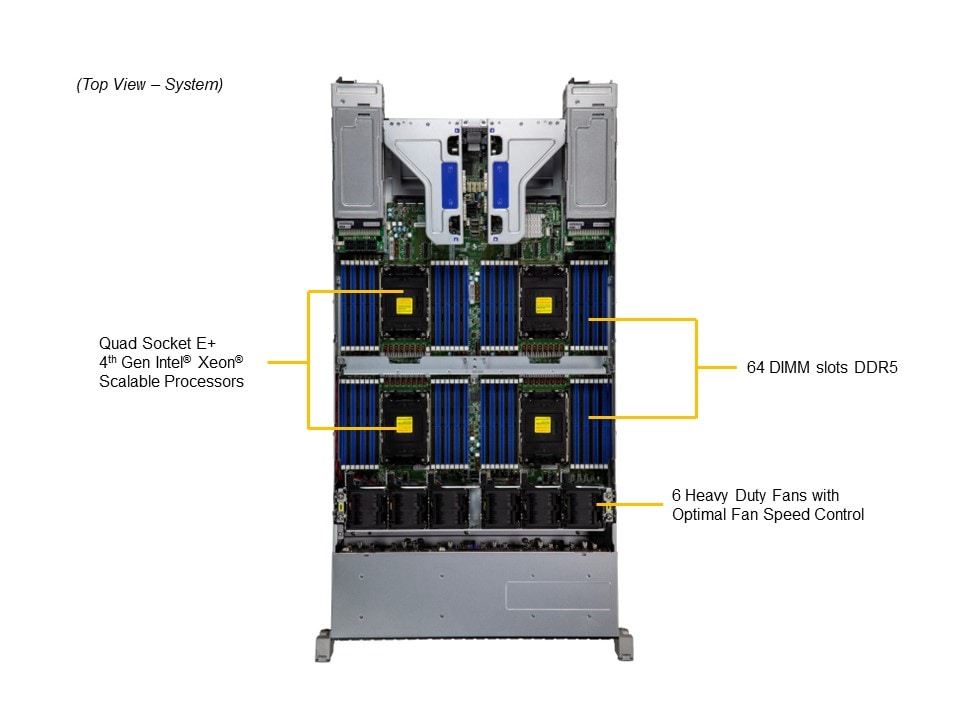

Key Features

  1. Quad Socket E (LGA-4677) 4th Generation Intel® Xeon® Scalable processors
  2. 64 DIMM Slots; Up to 8TB DDR5-4800MHz ECC RDIMM/RDIMM-3DS
  3. Optional PCIe configurations up to 8 PCIe slots with support for two double-width GPU/Accelerator cards
  4. Flexible networking options with 2 AIOM networking slot (OCP NIC 3.0 compatible)
  5. 24x 2.5″ Hot-swap NVMe/SATA/SAS Hybrid Drive bays (Default with 8 SATA drive bays); 2x M.2 NVMe/SATA; Optional RAID support via storage add-on card
  6. 6 heavy duty fans w/ optimal fan speed controlLiquid cooling solution is available-please contact your Supermicro sales rep for more info.
  7. 6 heavy duty fans w/ optimal fan speed control
  8. Liquid cooling solution is available-please contact your Supermicro sales rep for more info.

Specifications

Product SKUs
  • SuperServer SYS-241E-TNRTTP

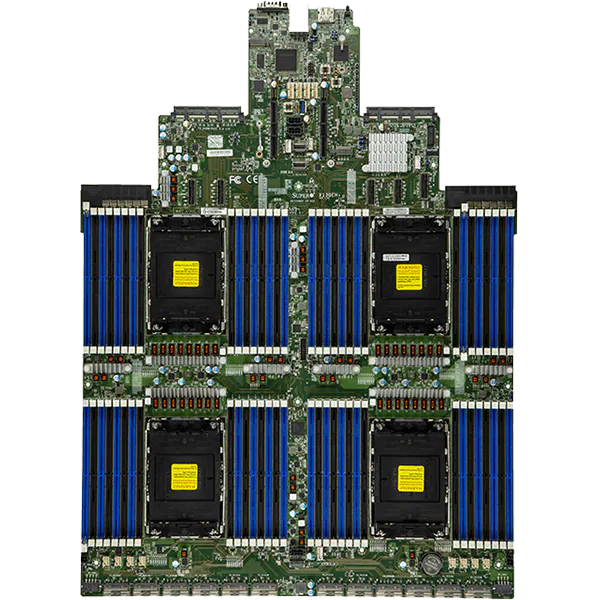

Motherboard
  • Super X13QEH+
Processor
CPU
  • Quad Socket E (LGA-4677)
  • 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports 165W – 250W TDP CPUs (Air Cooled)
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
  • NVIDIA PCIe: RTX A6000
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe
System Memory
Memory
  • Slot Count: 64 DIMM slots
  • Max Memory (2DPC): Up to 8TB ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
  • 2 USB 2.0 ports(front)
Video
  • 1 VGA port
  • 1 DisplayPort port
Serial
  • 1 COM port(Rear)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-241E-TNRTTP
  • Super X13QEH+
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-218HTS-R3K2AWP
Dimensions and Weight
Height
  • 3.5″ (87.9 mm)
Width
  • 17.3″ (438.4 mm)
Depth
  • 33.4″ (849.3 mm)
Package
  • 9.75″ (H) x 26.5″ (W) x 43.5″ (D)
Weight
  • Gross Weight: 71.5 lbs (32.43 kg)
  • Net Weight: 45.5 lbs (20.64 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off
  • UID
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)

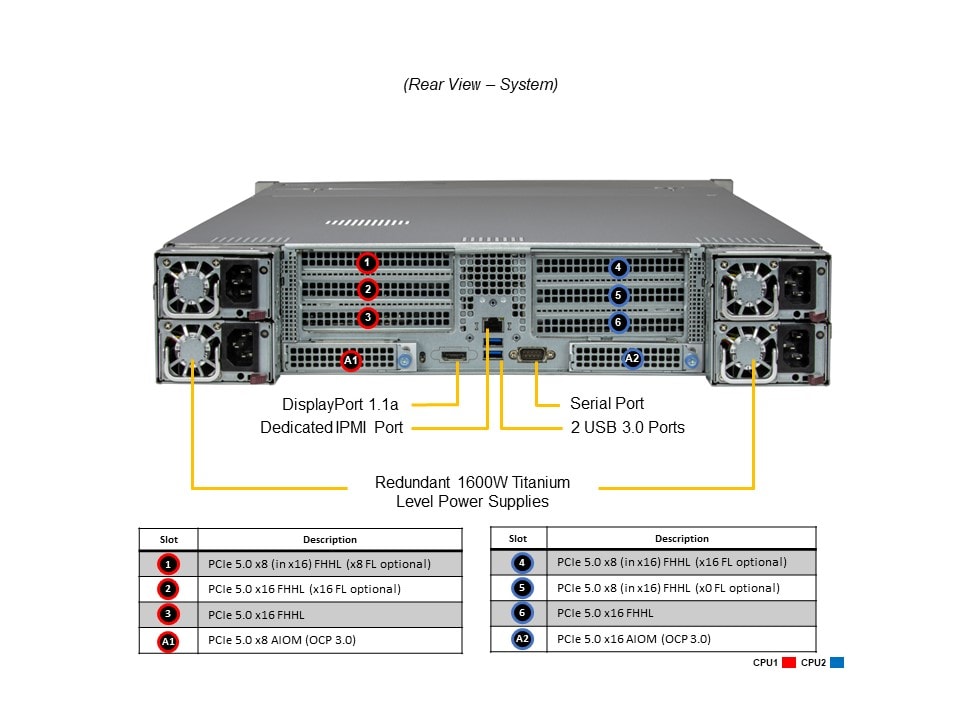

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x8 FHHL slots 3 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 3 PCIe 5.0 x8 FHHL slots
  • 3 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option A2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)

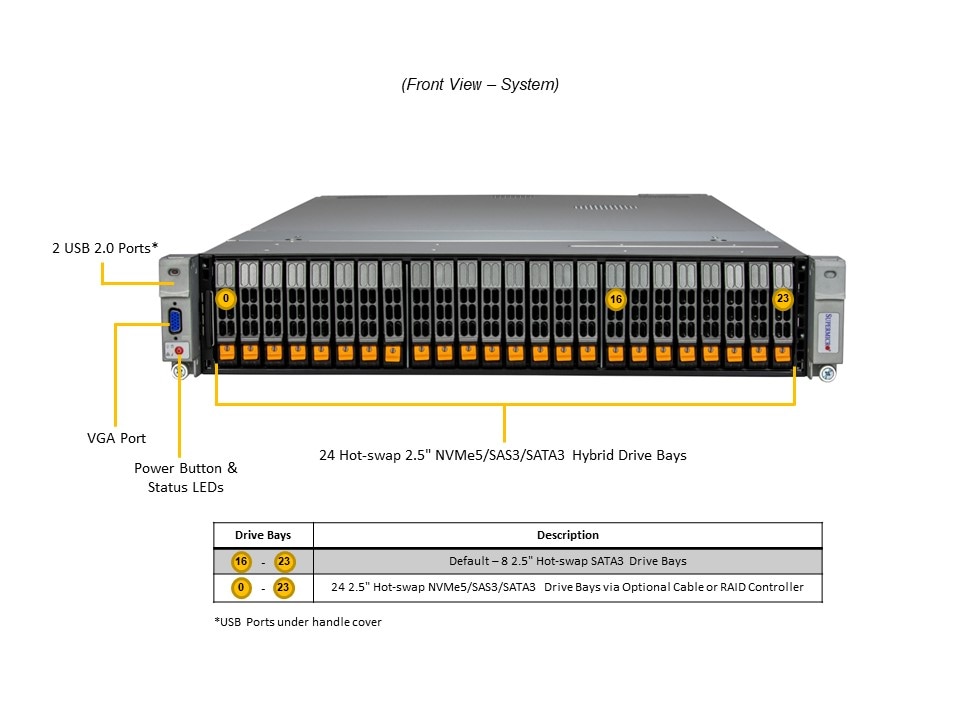

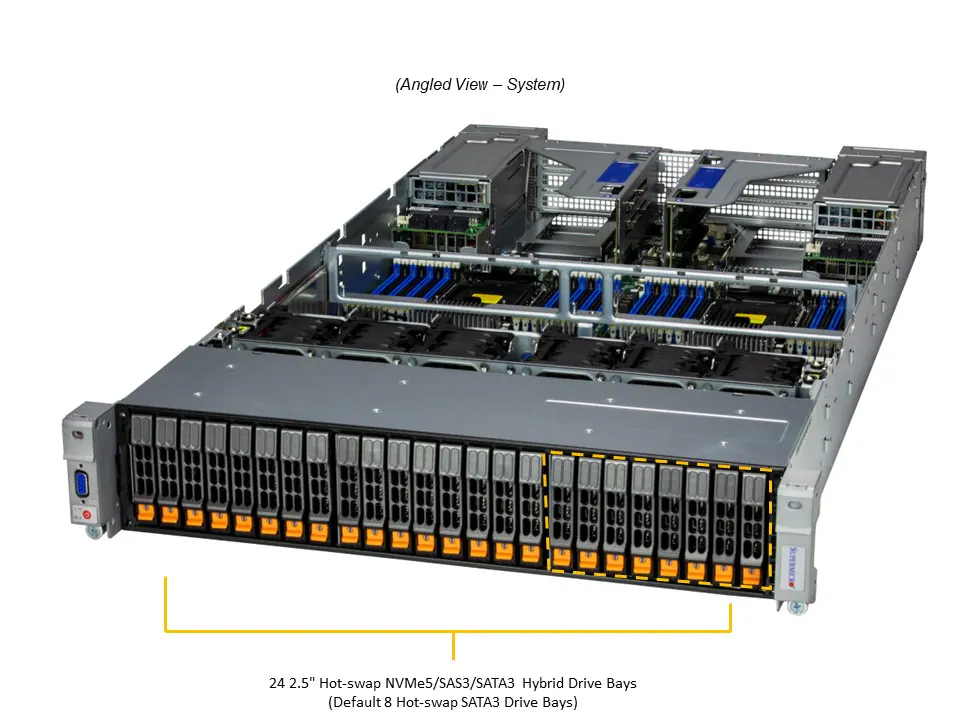

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ SATA drive bays
  • 8 front hot-swap 2.5″ SATA drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 24 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Heavy duty counter-rotating 6cm Fan(s)
  • Up to 4 Direct to Chip (D2C) Cold Plate Fan(s) (optional)
Air Shroud
  • 4 Air Shrouds
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate (optional)
Power Supply
  • 4x 1600W 4x 1600W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 4x 1600W 4x 1600W Redundant (2 + 2) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Optional Parts List
