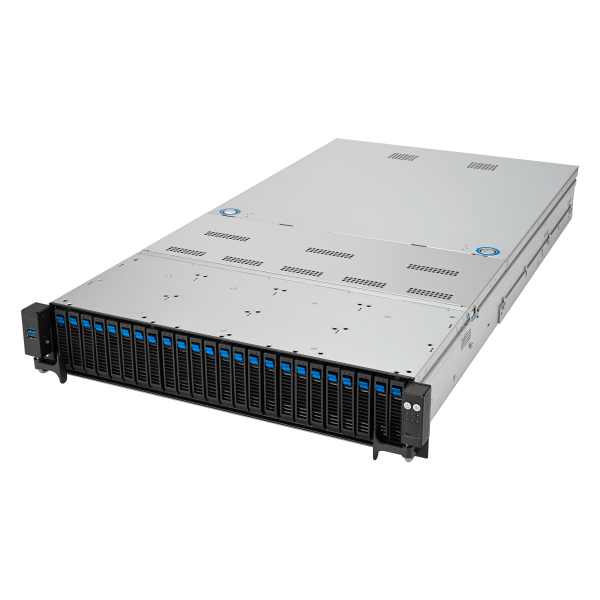

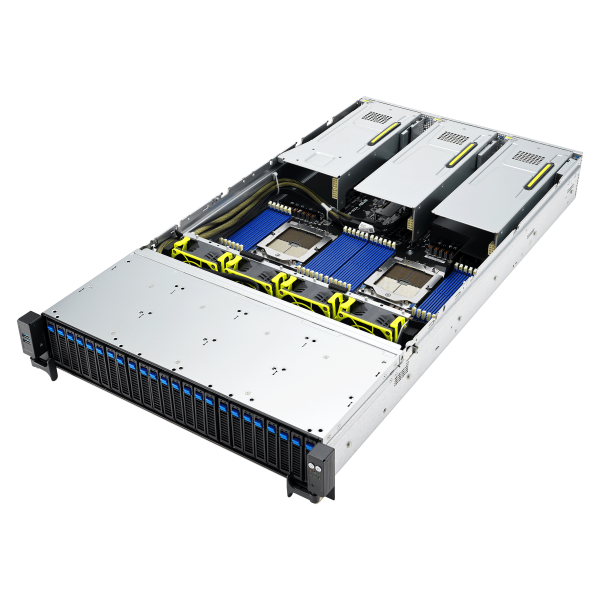

ASUS RS720A-E12-RS24U
AMD EPYC™ 9004 dual-processor 2U server that supports up to 24 DIMM, 24 NVMe, nine PCIe® 5.0 slots, two M.2, OCP 3.0, three dual-slot GPUs, and ASUS ASMB11-iKVM
Key Features
- Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
- Scale-up storage and expansion design: Up to 24 all-flash NVMe drives on the front panel and nine PCIe 5.0 slots for higher bandwidth and system upgrade
- Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
- Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP
- Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
- Read for AI and HPC workloads: Up to three dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx
Specifications
| Processor / System Bus | 2 x Socket SP5 (LGA 6096) AMD EPYC™ 9004 Series (up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology *Please consult sales for more details. |
| Generation | E12 |
| Memory | Total Slots : 24 (12-channel per CPU, 1 DIMM per CPU) Capacity : Maximum up to 3072GB per socket Memory Type : DDR5 4800/4400 RDIMM/ 3DS RDIMM Memory Size : 128GB, 64GB, 32GB RDIMM 128GB, 64GB, 32GB 3DS RDIMM * Refer to www.asus.com/support for more information |
| Expansion Slots | Configuration #1 (Non-GPU support) Up to 9 x Expansion slots + 1 x internal RAID slot 6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL) 2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 or 1 x OCP3.0 (FHFL) 1 x PCIe Gen5 x16 (LPHL) 1 x PCIe Gen4 x8 (LP, internal) Configuration #2 (GPU support) Up to 9 x Expansion slots + 1 x internal RAID slot 6 x PCIe Gen5 x8 or 3 x PCIe Gen5 x16 (FHFL) 2 x PCIe Gen5 x8 or 1 x PCIe Gen5 x16 (FHFL) 1 x PCIe Gen5 x16 (LPHL) 1 x PCIe Gen4 x8 (LP, internal) |
| Storage | SATA Controller : 8 x SATA 6Gb/s ports 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) SAS Controller : Braodcom HBA CARD 9500-16i (Optional) Broadcom MegaRAID 9540-8i (Optional) Broadcom MegaRAID 9560-16i (Optional) NVMe Controller : SupremeRAID™ from Graid SR1001 (support up to 4 NVMe) (Optional) SupremeRAID™ from Graid SR1000 (support up to 24 NVMe) (Optional) SupremeRAID™ from Graid SR1010 (support up to 24 NVMe) (Optional) |

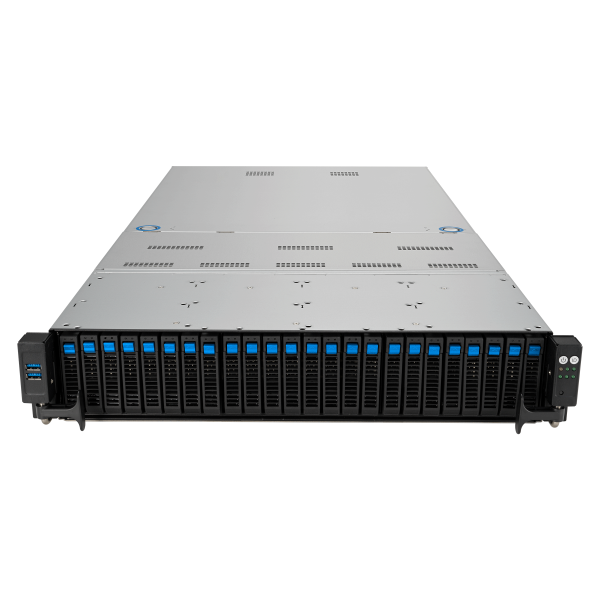

| Drive Bays | 24 x 2.5″ hot-swap drive bays Support up to 16NVMe + 8NVMe/SATA/SAS* *RAID card is required to support SAS hard drives. *NVMe is only supported through Gen4 on switch boards. |
| System Fan | 4 |
| Networking | Configuration #1 (Non-GPU support) 1 x Mgmt LAN 4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) Configuration #2 (GPU support) 1 x Mgmt LAN 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional) |
| Graphic | Aspeed AST2600 64MB |
| Multi-GPU Support | Please find the latest GPU support from https://servers.asus.com/support/gpu |
| Front I/O Ports | 2 x USB 3.2 Gen1 ports |

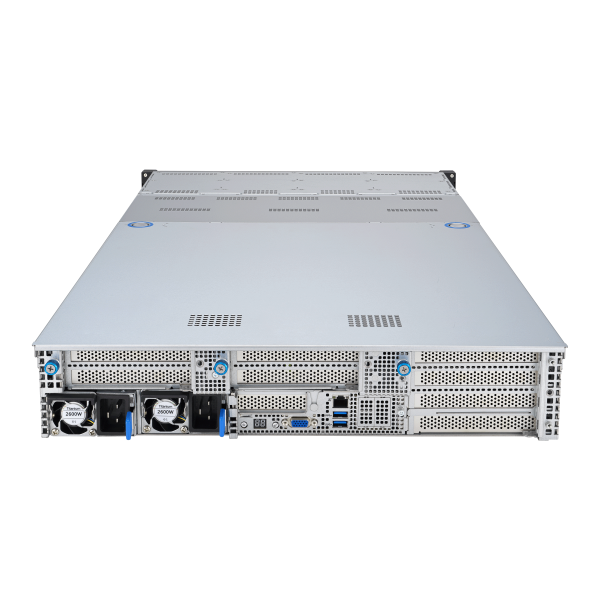

| Rear I/O Ports | 2 x USB 3.2 Gen1 ports 1 x VGA port 1 x RJ-45 Mgmt LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional) 1 x OCP3.0 port (Optional) *GPU SKU do not support OCP3.0. |
| Switch/LED | Front Switch/LED: 1 x Power Switch (w/ LED) 1 x Reset Switch 1 x Location Switch (w/ LED) 1 x HDD Access LED 1 x Message LED LAN 1-4 LED (on NIC module) Rear Switch/LED: 1 x Port 80 LED (Q-Code) 1 x Power Switch w/ LED 1 x Location Switch w/LED 1 x Message LED |
| OS Support | Please find the latest OS support from https://servers.asus.com/support/os |
| Management Solution | On-Board ASMB11-iKVM for KVM-over-IP ASUS Control Center Enterprise (Optional) |
| Regulatory Compliance | BSMI, CE, CB, C-Tick, FCC(Class A) |
| Dimensions | 840mm x 449mm x 88.1mm (33.07″ x 17.68″ x 3.47″) |
| Form Factor | 2U |
| Weight | Net Weight : 20.3KG Gross Weight : 26.77KG |
| Power Supply | Configuration #1 (Non-GPU support) 1+1 Redundant AC: 2600W/1600W 80 PLUS Titanium Power Supply 2000W/1600W 80 PLUS Platinum Power Supply Configuration #2 (GPU support) 1+1 Redundant AC: 2600W 80 PLUS Titanium Power Supply 2000W 80 PLUS Platinum Power Supply |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% (Non condensing) |
| Optional Items | Heat Sink: Standard Cooling Solution Enhanced Volume Air Cooling Solution. Rail Kit: Tool-less Friction Rail Kit 1.5U Height Full Extension Ball bearing Type Rail Kit *Please consult sales if cable arm needed. 2U Front Bezel |

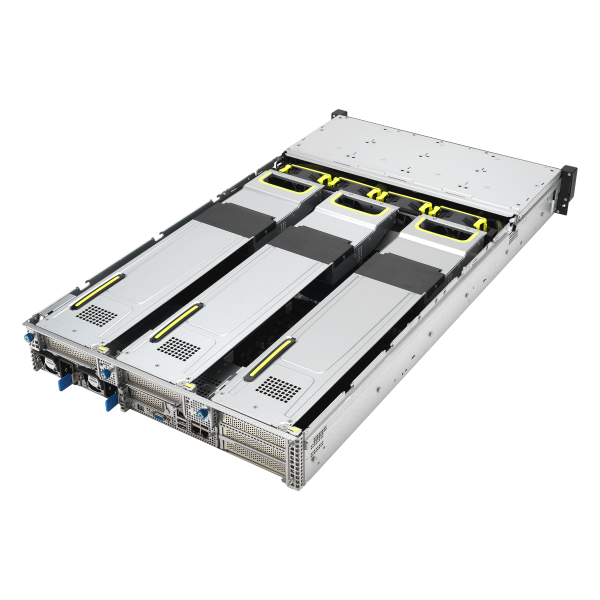

| Note | Configuration #1 (Non-GPU support) Air duct for Non-GPU support, Short Riser bracket Configuration #2 (GPU support) External Fan, Air duct for GPU support, Long Riser bracket |
| CPU Heatsink/ Cooler | Configuration #1 (Non-GPU support) 2U Standard Heatsink Configuration #2 (GPU support) 1U EVAC Heatsink |
