Supermicro SuperServer AS -1116CS-TN

Favorite
Compara

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

Pretul afisat contine TVA (21%).

SuperServer AS -1116CS-TN

1U UP CloudDC with DC-MHS, up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 2 PCIe 5.0 x16 slots + 1 PCIe 5.0 x16 AIOM slot

Key Features

  1. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurationsBased on Modular DeNsity Optimized HPM Form Factor (M-DNO)Support DC-SCM module with OpenBMC
  2. All-in-one platform for cloud data centers, based on the OCP Data Center Modular Hardware System (DC-MHS) with flexible I/O and storage configurations
  3. Based on Modular DeNsity Optimized HPM Form Factor (M-DNO)
  4. Support DC-SCM module with OpenBMC
  5. Single AMD EPYC™ 9005/9004 Series Processor
  6. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s(Please check System Memory Section for detail)
  7. Support up to DDR5 12 DIMM slots (1DPC), speed up to 6400MT/s
  8. (Please check System Memory Section for detail)
  9. 2 PCIe 5.0 x16 FHHL slots
  10. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
  11. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
  12. 1 RJ45 1 GbE Dedicated BMC LAN Port (DC-SCM)
  13. 8 Hot-swap 2.5″ NVMe/SATA/SAS drive baysOptional 4 Hot-swap 2.5″ NVMe/SAS/SATA drive baysOptional RAID support via storage add-on card
  14. 8 Hot-swap 2.5″ NVMe/SATA/SAS drive bays
  15. Optional 4 Hot-swap 2.5″ NVMe/SAS/SATA drive bays
  16. Optional RAID support via storage add-on card
  17. Support up to 2 FHHL GPU accelerator cards
  18. Dual 1000W / 2000W Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
  19. Dual 1000W / 2000W Redundant Titanium Level power supplies
  20. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -1116CS-TN

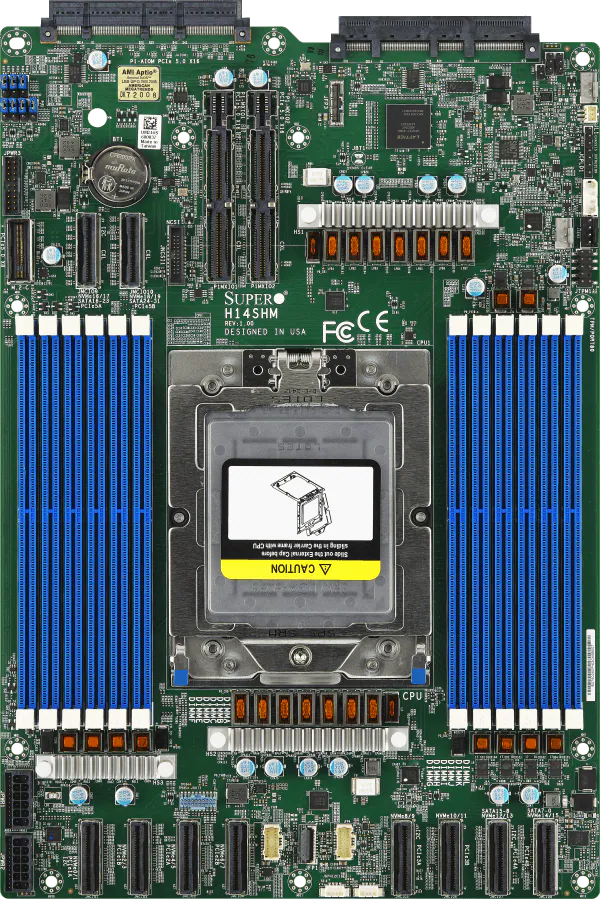

Motherboard
  • Super H14SHM
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 9005/9004 Series Processors
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 500W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect

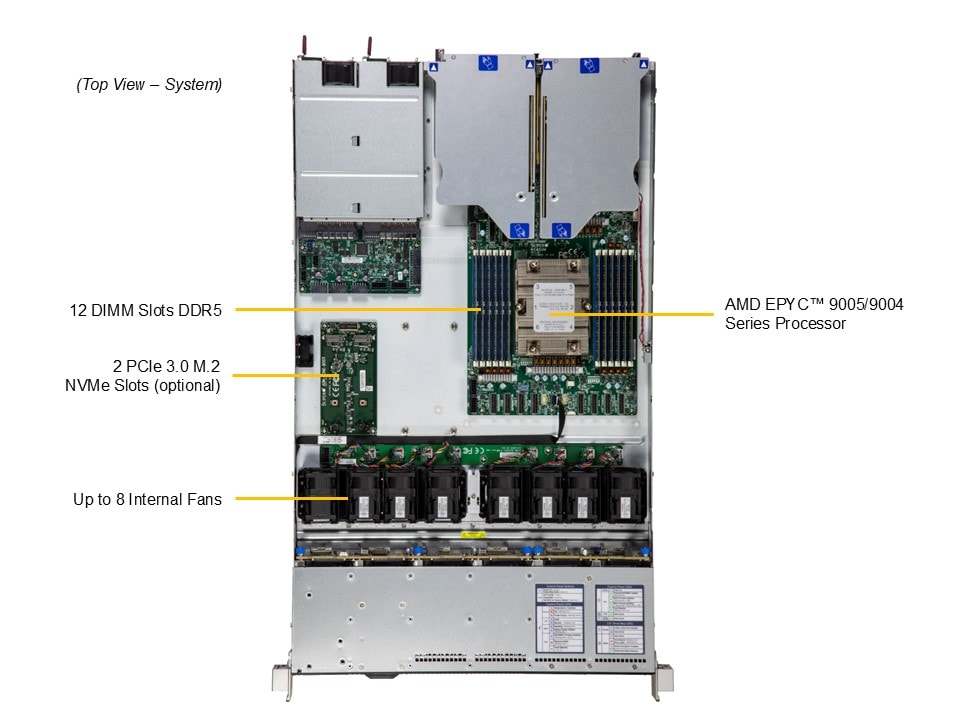

System Memory
Memory
  • Slot Count: 12 DIMM slots/12 Channels
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support

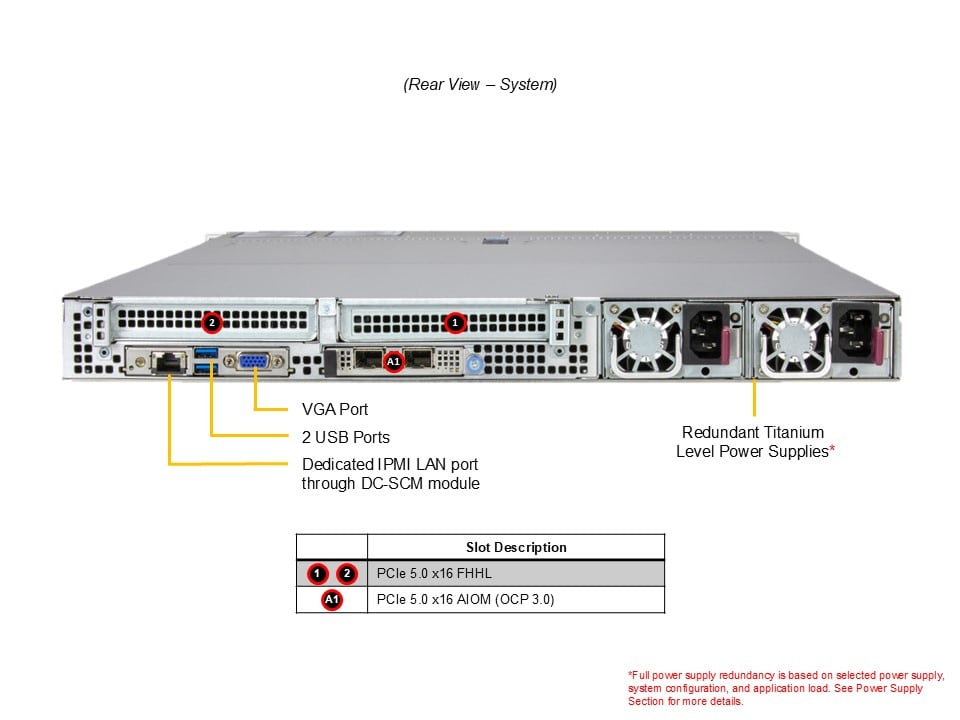

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 2.0 Type-A port(Rear)
  • 1 USB 3.2 Gen1 Type-A port(Rear)
Video
  • 1 VGA port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
  • IPMIView
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Server AS -1116CS-TN
  • Super H14SHM
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MD101TS-R000NDP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black

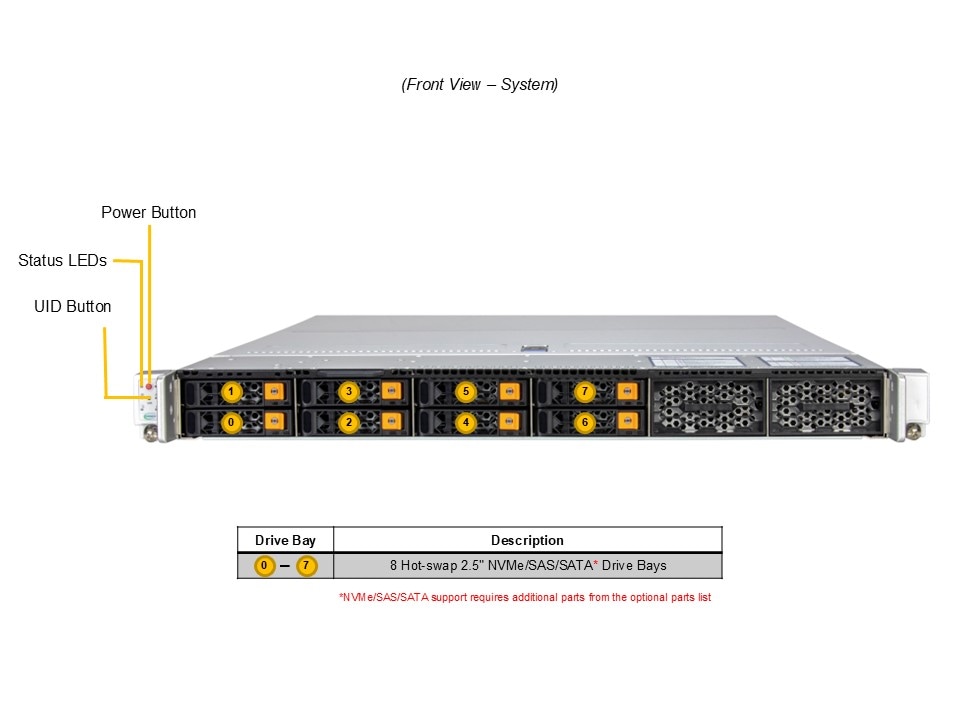

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Failed LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support
  • Up to 2 CXL 2.0 x16 devices

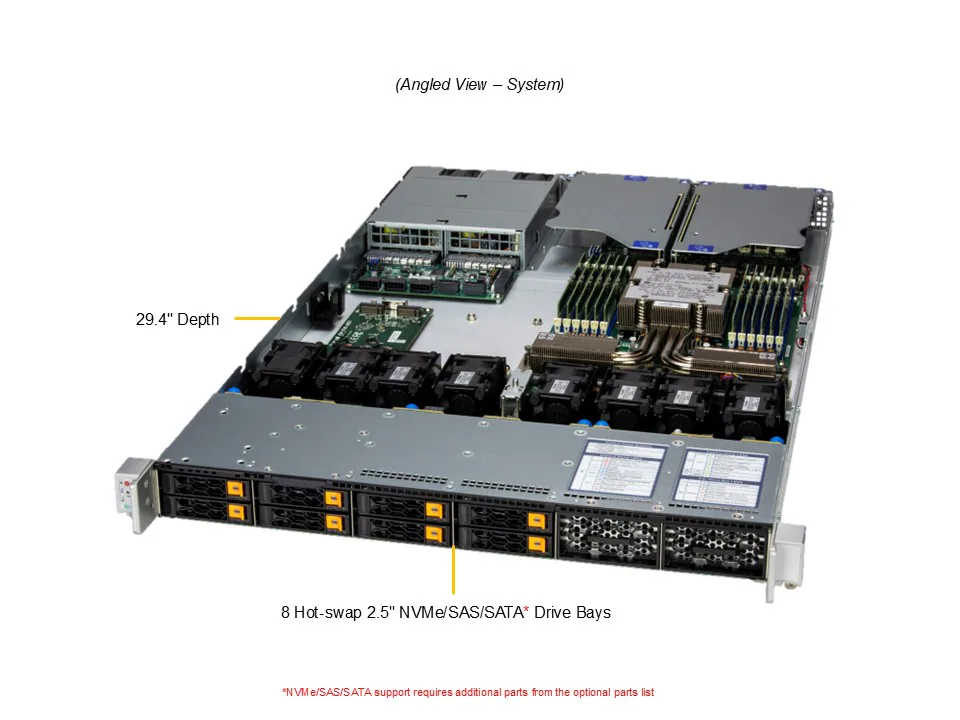

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays

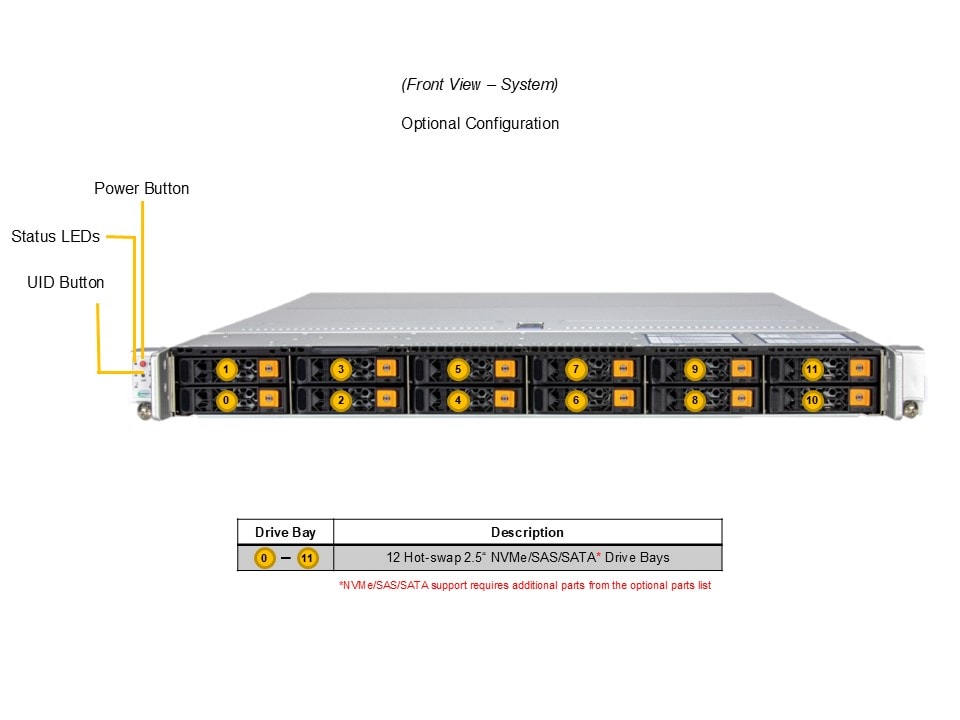

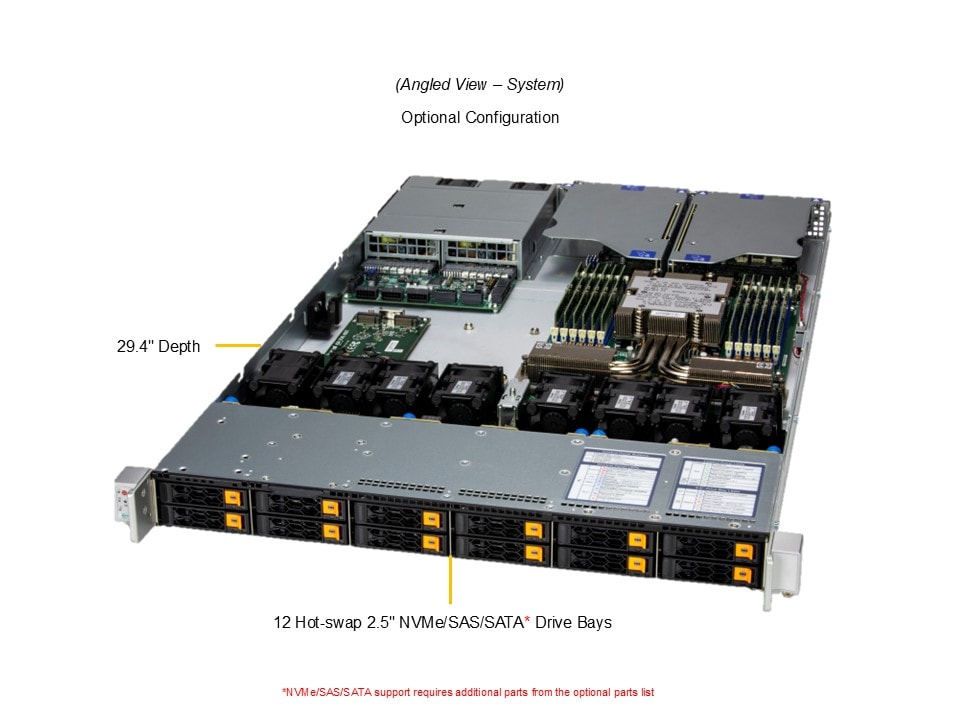

  • Option A: Total 12 bays12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • 12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1000W 2x 2000W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac)
12V SB
  • Max: 2.1A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 1000W 2x 2000W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: as-20-1116cs-tn Categorii: , , ,
Product SKUs
  • A+ Server AS -1116CS-TN
Motherboard
  • Super H14SHM
Processor
CPU
  • Single processor(s)
  • AMD EPYCâ„¢ 9005/9004 Series Processors
Core Count
  • Up to 192C/384T
Note
  • Supports up to 500W TDP CPUs *
  • *Air Cooled CPUs with TDP over 500W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 single-width GPUs
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 12 DIMM slots/12 Channels
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYCâ„¢ 9005 Series Processor)
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYCâ„¢ 9004 Series Processor)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 2.0 Type-A port(Rear)
  • 1 USB 3.2 Gen1 Type-A port(Rear)
Video
  • 1 VGA port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
  • ACPI 6.5
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • KVM with dedicated LAN
  • IPMI 2.0
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
  • IPMIView
Power configurations
  • ACPI/APM Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Server AS -1116CS-TN
  • Super H14SHM
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-MD101TS-R000NDP
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 29.4″ (747 mm)
Package
  • 8.1″ (H) x 23.8″ (W) x 40.6″ (D)
Weight
  • Gross Weight: 49 lbs (22.2 kg)
  • Net Weight: 34 lbs (15.4 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Failed LED
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHHL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHHL slots
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
CXL Support
  • Up to 2 CXL 2.0 x16 devices
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • Option A: Total 12 bays12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • 12 front hot-swap 2.5″ PCIe 5.0 NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default)/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 8 Counter-Rotating PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1000W 2x 2000W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac)
12V SB
  • Max: 2.1A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 1000W 2x 2000W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

Based on 0 reviews

0.0 overall
0
0
0
0
0

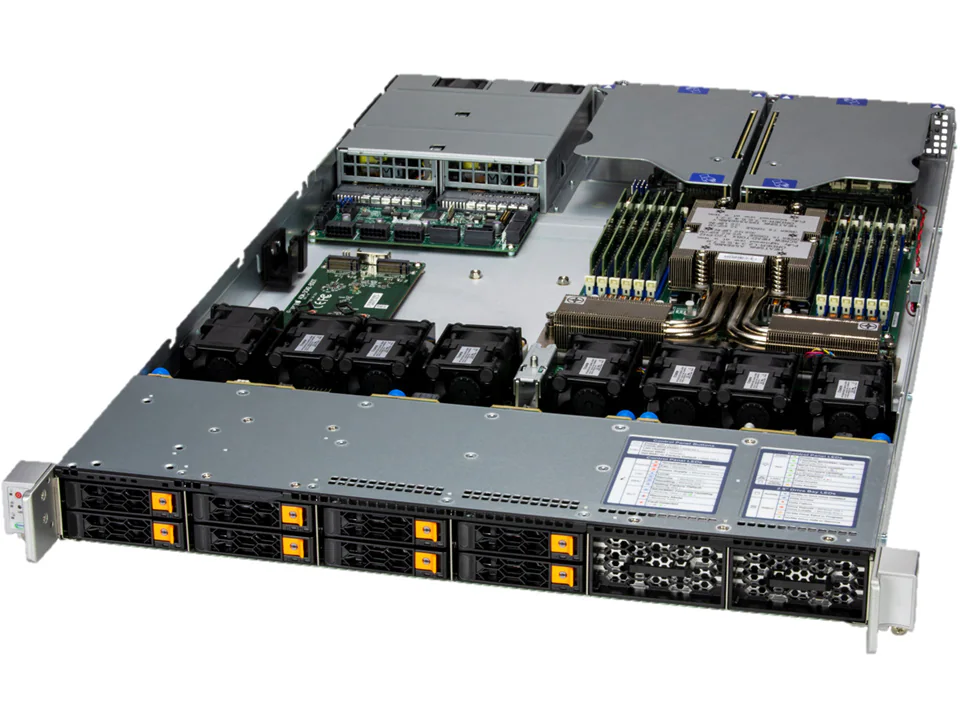

Be the first to review “Supermicro SuperServer AS -1116CS-TN”

There are no reviews yet.

Completeaza formularul de mai jos si te vom contacta cu o oferta personalizata.

Configuratie dorita

Completeaza formularul de mai jos si te vom contacta pentru publicarea in SICAP.

Produse similare

Brands Carousel

Select at least 2 products
to compare
