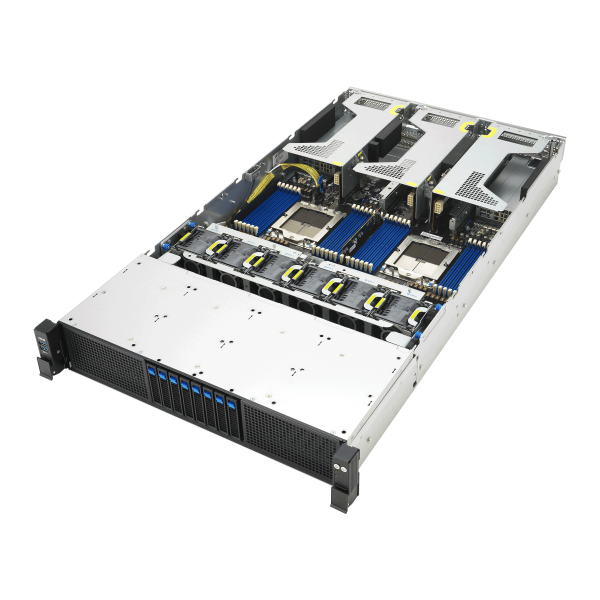

ASUS RS720A-E13-RS8G
ASUS RS720A-E13-RS8G - imagine 2
ASUS RS720A-E13-RS8G - imagine 3
ASUS RS720A-E13-RS8G - imagine 4
ASUS RS720A-E13-RS8G - imagine 5
ASUS RS720A-E13-RS8G - imagine 6
ASUS RS720A-E13-RS8G - imagine 7
ASUS RS720A-E13-RS8G - imagine 8
ASUS RS720A-E13-RS8G - imagine 9
, , , , Configureaza acest server →

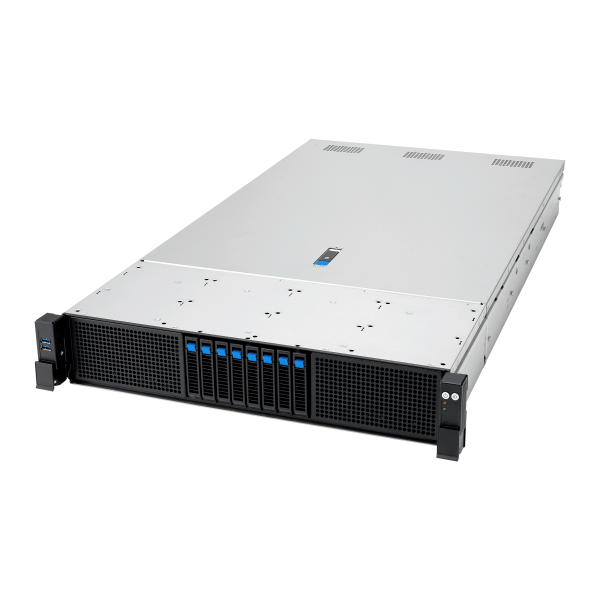

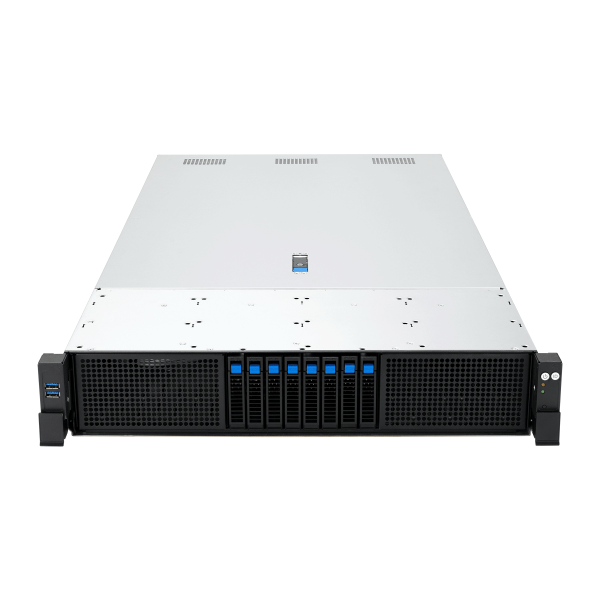

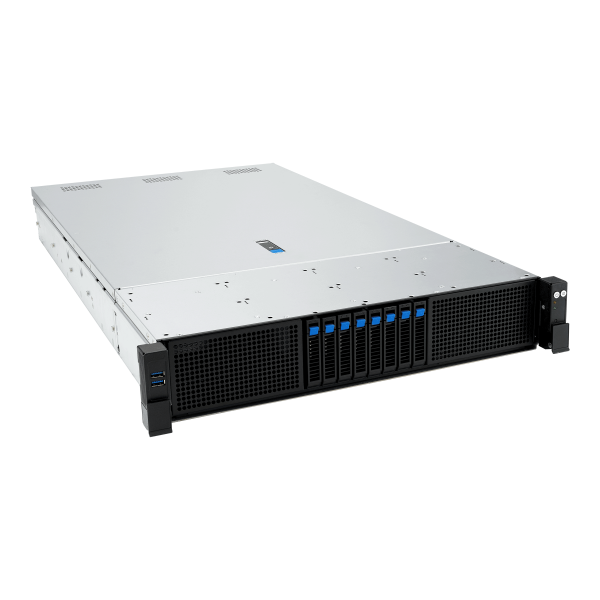

ASUS RS720A-E13-RS8G

Favorite
Compara

AMD EPYC™ 9005 dual-processor 2U server optimized with up to three dual-slot GPUs, supports up to 24 RDIMM, eight NVMe/SATA/SAS support storage, eight PCIe® 5.0 expansion slots, two OCP 3.0, and support for a maximum TDP of up to 3pcs 400W GPU

Pretul afisat contine TVA (21%).

RS720A-E13-RS8G

AMD EPYC™ 9005 dual-processor 2U server optimized with up to three dual-slot GPUs, supports up to 24 RDIMM, eight NVMe/SATA/SAS support storage, eight PCIe® 5.0 expansion slots, two OCP 3.0, and support for a maximum TDP of up to 3pcs 400W GPU

Key Features

  • High-performance processing: Powered by dual AMD EPYC™ 9005 processors with up to 400W TDP per socket, delivering outstanding performance with 192 cores for demanding workloads.
  • Modular and scalable architecture: Built on the flexible DC-MHS architecture, providing seamless integration, optimization and scalability for modern data centers and dynamic IT environments.

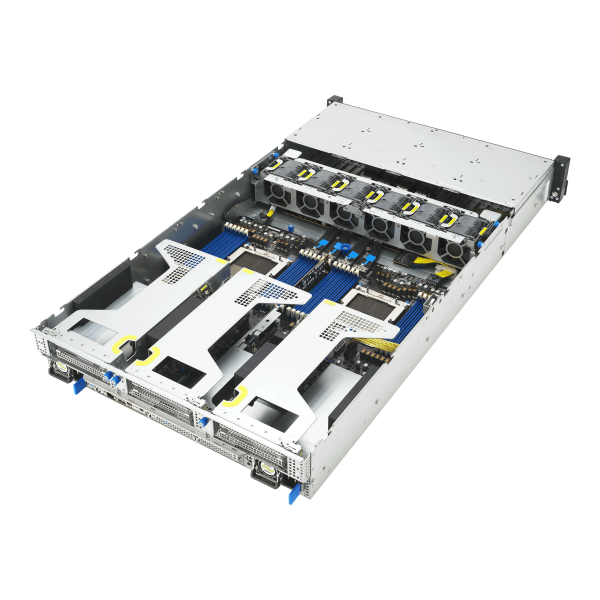

  • Advanced cooling solution: 1U enhanced-volume air-cooling (EVAC) heatsinks for GPU with higher TDP, ensuring efficient thermal management and system stability under heavy workloads.
  • Tool-less, easy-maintenance design: Features tool-less access, including a top-cover handle and optimized fan bar for improved cable management and easy maintenance.
  • Scalable expansion capability: Supports up to 24 DDR5 RDIMM modules at 6000MHz, maximum up to 3TB. Offers versatile storage options with eight hot-swap bays and supports up to eight NVMe/SATA/SAS support PCIe 5.0 drives for evolving workload requirements.
  • Enhanced security: PFR FPGA as Root-of-Trust solution with TPM 2.0 for hardware security and regular firmware updates to address vulnerabilities.

Specifications

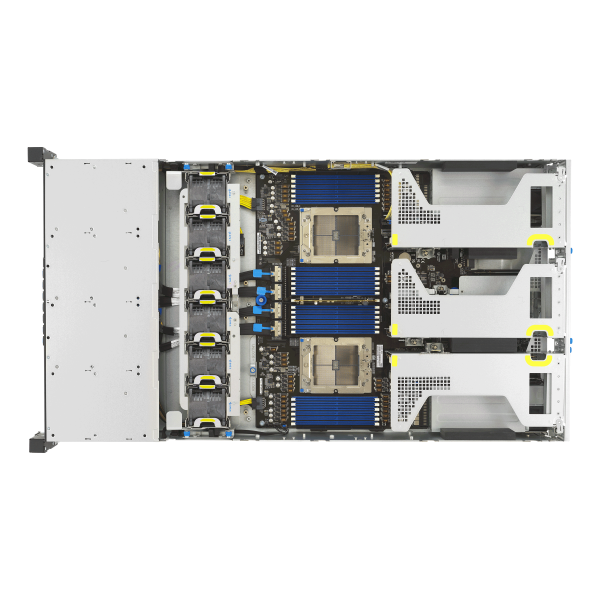

Processor / System Bus
  • 2 x Socket SP5 (LGA 6096P)
  • AMD EPYC™ 9005 processors (Up to TDP 400W)
  • *TDP support by configuration.
Generation
  • E13
Memory
  • Total Slots :
  • 24 (12-channel per CPU, 1 DIMM per CPU)
  • Capacity :
  • Total Maximum up to 3072GB
  • Memory Type :
  • DDR5 6400/5600 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 128GB, 96GB, 64GB, 32GB RDIMM
  • 128GB, 96GB, 64GB, 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Total 10 expansion slots
  • 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
  • 2 x PCIE Gen5 x16 (FHHL)
  • 2 x OCP3.0 Gen5 x16 (SFF)

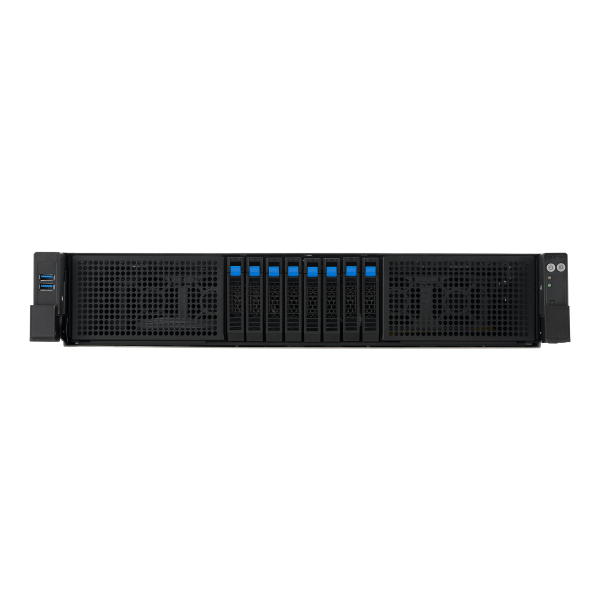

Drive Bays
  • 8x 2.5†hot-swap drive bays
  • Support 8x NVMe/SATA/SAS*
  • *HBA/ RAID card is required to support SAS hard drives
System Fan
  • 6
Networking
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 2 x USB 3.2 Gen1 ports

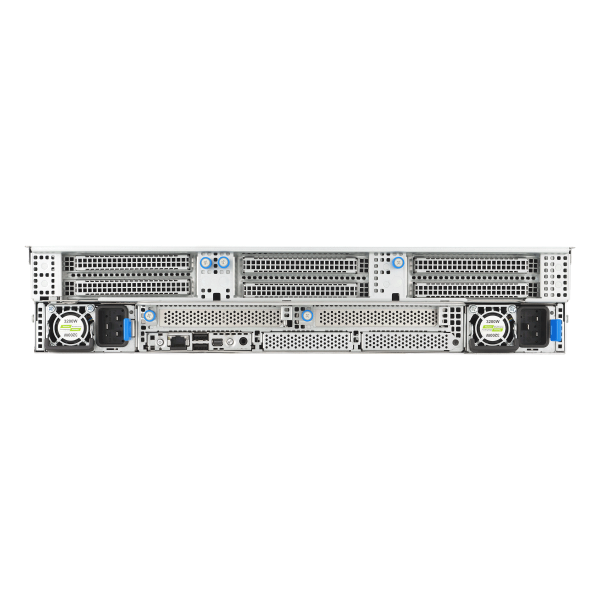

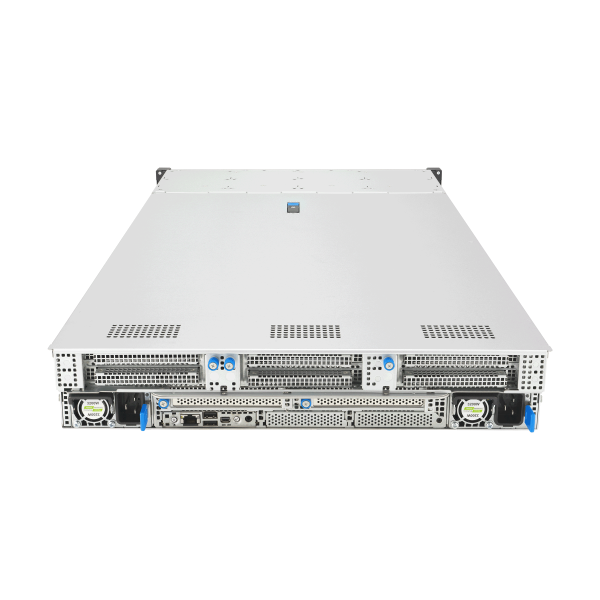

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x Mini-DP port
  • 1 x RJ-45 Management LAN port
  • 1 x Debug port
Switch/LED
  • Front Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Reset Switch
  • 1 x Location Switch w/ LED
  • 1 x HDD Access LED
  • 1 x Message LED
  • Rear Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Location Switch w/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB12-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance
  • BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions
  • 822.16(L) x 484.65(W) x 87.3(H) mm
  • 32.37(L) x 19.08(W) x 3.44(H) inch
Form Factor
  • 2U
Weight
  • Net Weight : 17.82KG
  • Gross Weight : 21.34KG
Power Supply
  • 1+1 Redundant 80 PLUS 3200W Titanium PSU
  • Rating:
  • 100-120V~/220-240V~, 16A (x2), 50/60Hz
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
  • Security:
  • Dual BMC Module (default)
  • TPM Module (MUST bundle with ASUS server while placing order if required.)
  • Accessory:
  • 2U Front Bezel
  • 1.5U Height Full Extension Ball bearing Type Rail Kit
  • Cable arm (Please consult sales if required.)
Note
  • *SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
  • 2 x 1U EVAC Heatsink
SKU: rs720a-e13-rs8g Categorii: , , , ,
Processor / System Bus
  • 2 x Socket SP5 (LGA 6096P)
  • AMD EPYCâ„¢ 9005 processors (Up to TDP 400W)
  • *TDP support by configuration.
Generation
  • E13
Memory
  • Total Slots :
  • 24 (12-channel per CPU, 1 DIMM per CPU)
  • Capacity :
  • Total Maximum up to 3072GB
  • Memory Type :
  • DDR5 6400/5600 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 128GB, 96GB, 64GB, 32GB RDIMM
  • 128GB, 96GB, 64GB, 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Total 10 expansion slots
  • 6 x PCIE Gen5 x8 or 3 x PCIE Gen5 x16 (FHFL)
  • 2 x PCIE Gen5 x16 (FHHL)
  • 2 x OCP3.0 Gen5 x16 (SFF)
Drive Bays
  • 8x 2.5†hot-swap drive bays
  • Support 8x NVMe/SATA/SAS*
  • *HBA/ RAID card is required to support SAS hard drives
System Fan
  • 6
Networking
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 2 x USB 3.2 Gen1 ports
Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x Mini-DP port
  • 1 x RJ-45 Management LAN port
  • 1 x Debug port
Switch/LED
  • Front Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Reset Switch
  • 1 x Location Switch w/ LED
  • 1 x HDD Access LED
  • 1 x Message LED
  • Rear Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Location Switch w/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • On-Board ASMB12-iKVM for KVM-over-IP
  • ASUS Control Center Enterprise (Classic C)(Optional)
Regulatory Compliance
  • BSMI, CE, CB, RCM, FCC(Class A), ISED
Dimensions
  • 822.16(L) x 484.65(W) x 87.3(H) mm
  • 32.37(L) x 19.08(W) x 3.44(H) inch
Form Factor
  • 2U
Weight
  • Net Weight : 17.82KG
  • Gross Weight : 21.34KG
Power Supply
  • 1+1 Redundant 80 PLUS 3200W Titanium PSU
  • Rating:
  • 100-120V~/220-240V~, 16A (x2), 50/60Hz
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% (Non condensing)
Optional Items
  • Security:
  • Dual BMC Module (default)
  • TPM Module (MUST bundle with ASUS server while placing order if required.)
  • Accessory:
  • 2U Front Bezel
  • 1.5U Height Full Extension Ball bearing Type Rail Kit
  • Cable arm (Please consult sales if required.)
Note
  • *SAS support only from SAS HBA/RAID Card
CPU Heatsink/ Cooler
  • 2 x 1U EVAC Heatsink
