ASUS VS320D-RS12U

Favorite
Compara

2U dual-controller high-availability and active-active architecture unified storage appliance, embedded unified storage system powered by Intel® Xeon® 64-bit processors. Built-in 4-port 10GbE, supports 16 × 25GbE ports, 12 × 3.5-inch hot-swap bays, and scalable to 7.1PB raw capacity with JBOD, for versatile enterprise data management.

Pretul afisat contine TVA (21%).

VS320D-RS12U

2U dual-controller high-availability and active-active architecture unified storage appliance, embedded unified storage system powered by Intel® Xeon® 64-bit processors. Built-in 4-port 10GbE, supports 16 × 25GbE ports, 12 × 3.5-inch hot-swap bays, and scalable to 7.1PB raw capacity with JBOD, for versatile enterprise data management.

Key Features

  • Outstanding performance: Dual-active Intel® Xeon® controllers deliver reliable, high availability, and high-throughput performance for data lake and enterprise IT workloads.
  • High density and scalability: 12 tool-less, front-accessible 3.5-inch hot-swap drive trays per system, expandable up to 324 drives and 7.1PB raw capacity with ASUS JBOD expansion.
  • Unified protocol support: CIFS, NFS, FTP, WebDAV, iSCSI, and Fibre Channel (FC), enabling seamless file and block-level access across diverse environments.
  • Versatile connectivity: Each controller with built-in 4-port 10GbE (SFP+), optional 8-port 25GbE, and up to 24 LAN ports per system for flexible, high-bandwidth networking.
  • Enterprise-class reliability: 99.9999% dual-controller high-availability design, supports RAID 1, 5, 6, 10, 50, 60, and EE for fast data recovery, cache-to-flash data protection, redundant power supplies, and non-disruptive firmware upgrades.
  • Advanced data services: Features thin provisioning, SSD cache, auto-tiering, snapshots, local and remote data clone, S3 cloud sync, inline deduplication, and compression.
  • Secure data management: Supports SED, WORM, antivirus, RBAC, Windows ACL, and HTTPS management for robust data security and access control.
  • Modern simplicity: Intuitive ASUS Unified Storage Manager with web-based GUI for set-and-forget deployment. Data accessible within five minutes after installation.

Specifications

Architecture
  • Dual-active controller
Processor / System Bus
  • Intel®Xeon® 64-bit 4-core
Memory
  • [Per Controller]
  • Total Slots :4
  • Capacity: Maximum up to 256GB UDIMM
  • Memory Type: DDR4 ECC DIMM
  • Memory Size: 64GB/32GB RDIMM, 16GB/8GB UDIMM
  • * Refer to support page for more information
Storage
  • 12 x 3.5†hot-swap drive bays
  • Compatible Drive Type:
  • 3.5″&2.5″ SAS,NL-SAS,SED HDD/2.5″SAS,SED SSD
  • Maximum Drive Bays with Expansion Unit: 420 Bays
  • Drive Interface: SAS 12Gb/s
  • Maximum Internal Raw Capacity:
  • 288 TB (calculate 24 TB HDD)
  • Maximum Raw Capacity with Expansion Units:
  • 10,080 TB (calculate 24 TB HDD)
Connectivity Port
  • (Gen3x8 Slot)x2
  • 1GbE RJ45 LAN Port
  • 1(onboard management port per controller)
  • 10GbE SFP+ LAN Port
  • 4 (onboard per controller)/ 4 (option)
  • 10GbE RJ45 LAN Port
  • 4 (option)
  • 25GbE SFP28 LAN Port
  • 2 (option)/ 4 (option)
  • 16Gb SFP+ Fibre Channel
  • 2 (option)/ 4 (option)
  • 32Gb SFP28 Fibre Channel
  • 2 (option)/ 4 (option)
Expansion and External Port
  • 12Gb/s SAS Wide Port:
  • 2 (onboard per controller)
  • USB Port:
  • 1(front)/2(rear)
  • Others:
  • Console Port x1,Service Port (UPS) x1
Software Specification
  • Storage OS:
  • ASUS Storage Manager
  • RAIDType:
  • 0/1/3/5/6/10/30/50/60/5EE /6EE /50EE /60EE /N-waymirror
  • Storage Efficiency:
  • Thin provisioning
  • Compression and Deduplication (option)
  • Software Acceleration:
  • SSD cache/Auto tiering/RDMA
  • Data Protection:
  • Snapshot /Local volume clone
  • Backup Service:
  • Rsync/ S3 backup / Cloud backup / XMirror* / Microsoft 365 email backup
  • Remote Replication:
  • Asynchronous (built-in)/Synchronous (option)
  • Security:
  • SSL / SSH / iSCSI CHAP / ISE & SED / WORM / RBAC / Windows ACL / Antivirus
  • Management:
  • WebUI/Serialconsole/RESTfulAPI/S.E.S./LCM
Front I/O Ports
  • 1 x Enclosure Status LED
  • 1 x Enclosure Access LED
  • 1 x Disk Drive Status LED
  • 1 x Disk Drive Power LED
  • 1 x Enclosure PowerButton/LED
  • 1 x USB Port
  • 1 x UID(UniqueIdentifier)Button/LED

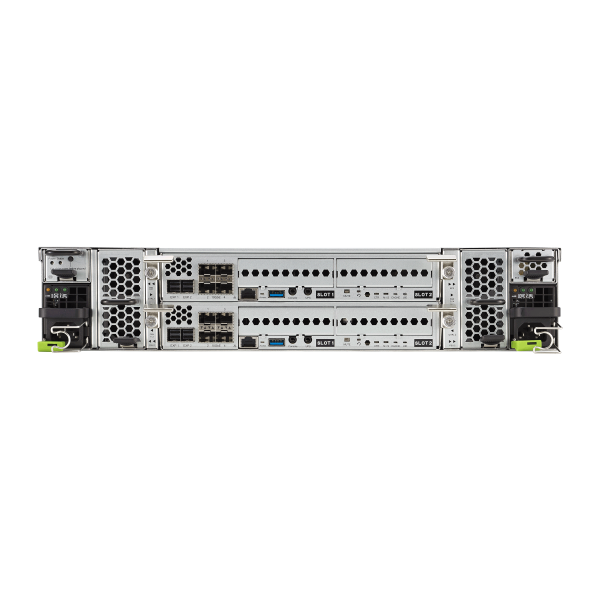

Rear I/O Ports
  • 1 x Master/Slave LED
  • 1 x Controller Status LED
  • 1 x Dirty Cache LED
  • 1 x UID(Unique Identifier) LED
  • [Per node]
  • 2 x 12Gb/s SAS Wide Port
  • 4 x 10GbE iSCSI (SFP+) Port
  • 1 x Management Port
  • 1 x Service Port
  • 1 x Console Port
  • 1 x USB Port
  • 1 x Resetto Factory Default Button
  • 1 x Buzzer Mute Button
Dimensions
  • 88mm x 438mm x 515mm
Form Factor
  • 2U
Weight
  • Net Weight :16.4 kg
  • Gross Weight :18.8 kg
Memory Protection
  • Cache-to-Flash(Super capacitor Module+Flash Module) (option)
System Fan
  • 4
Power Supply
  • 1+1 Redundant 850W 80 PLUS Platinum Power Supply
  • 1+1 Redundant 850W 80 PLUS Platinum Power Supply
Power Consumption
  • 407 W
Regulatory Compliance
  • CE/ FCC/ BSMI/ CCC
Enviroment
  • Operation temperature: 0℃ ~ 40℃
  • Non operation temperature: -10℃ ~ 50℃
  • Non operation humidity: 10% ~ 90% ( Non condensing)
SKU: vs320d-rs12u Categorii: , , , ,
