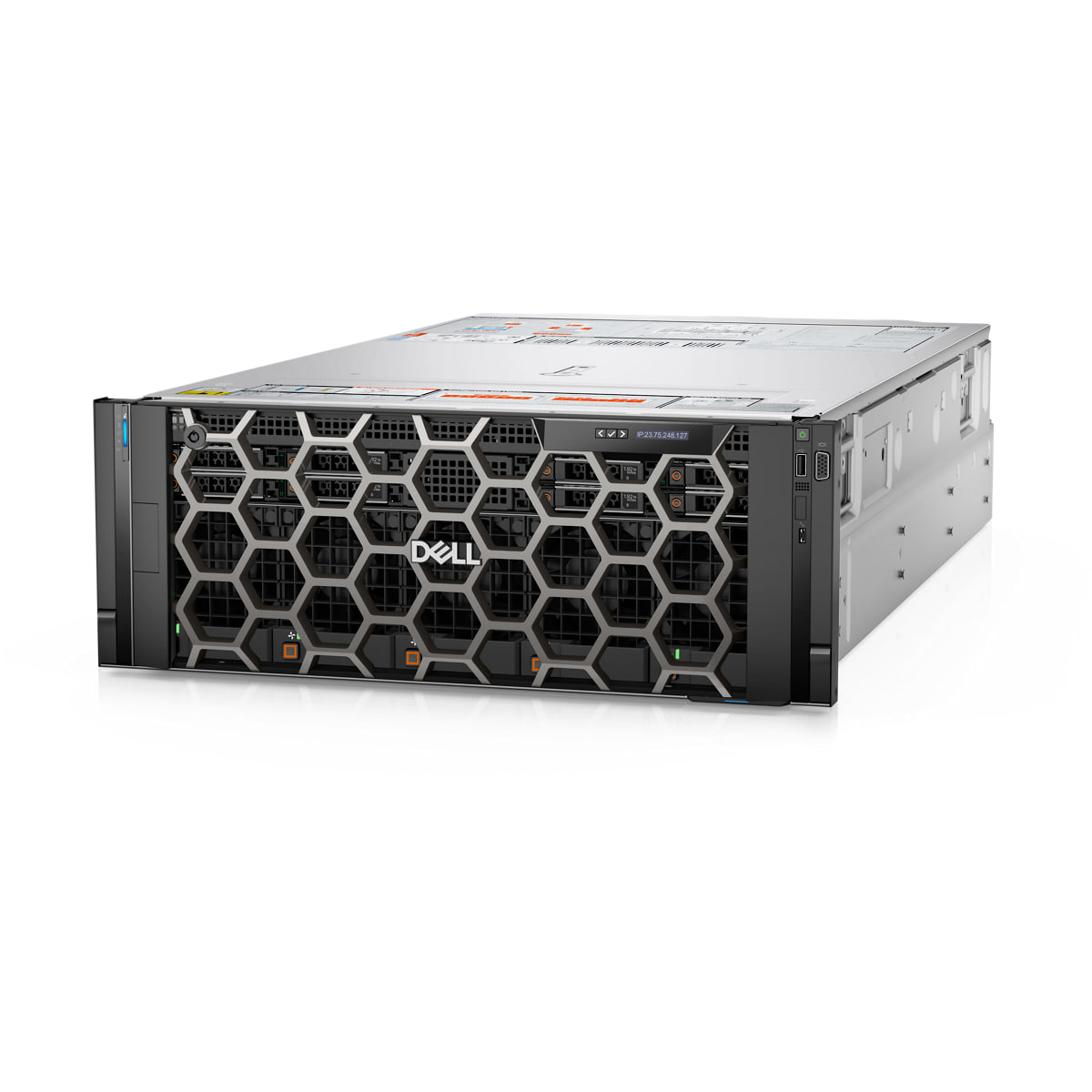

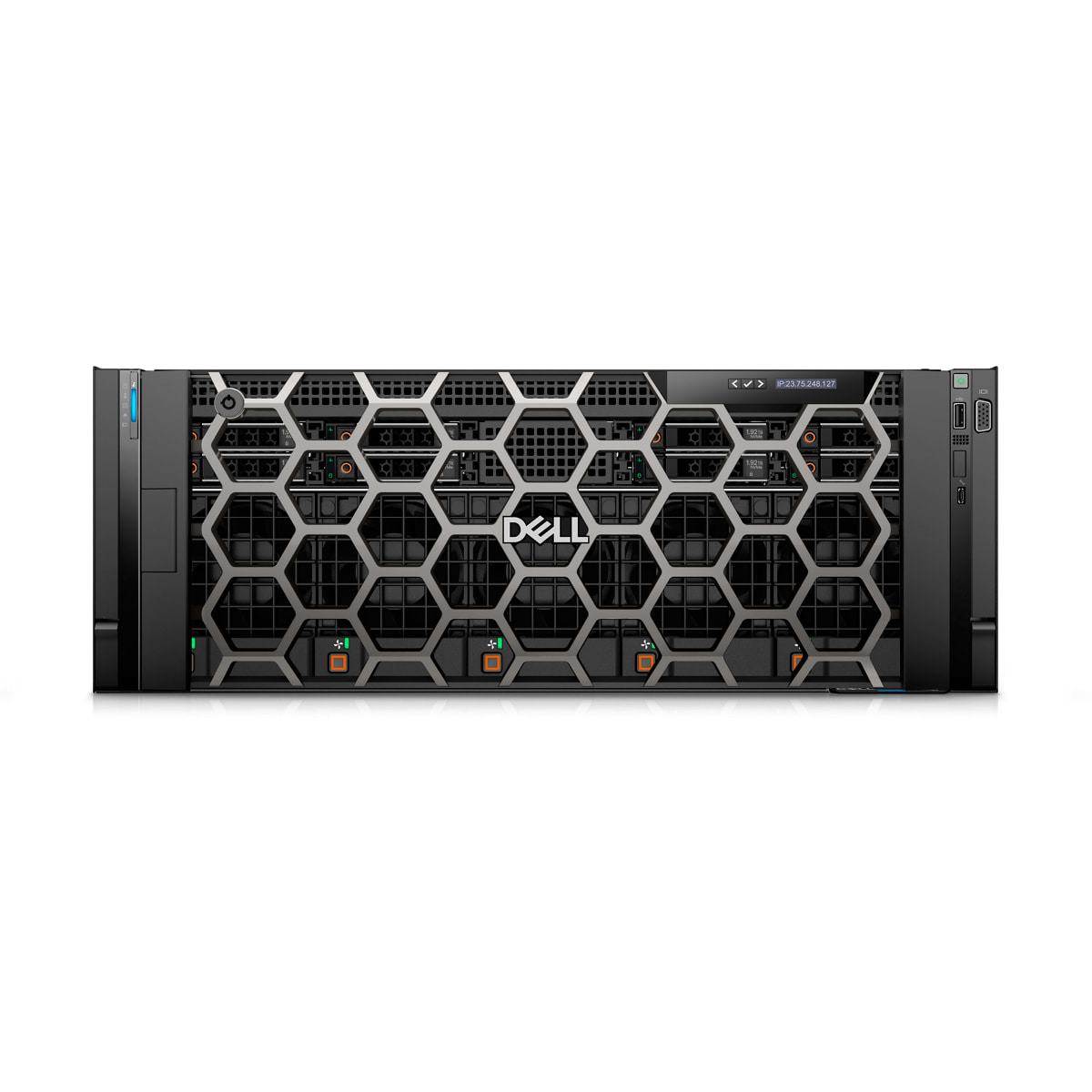

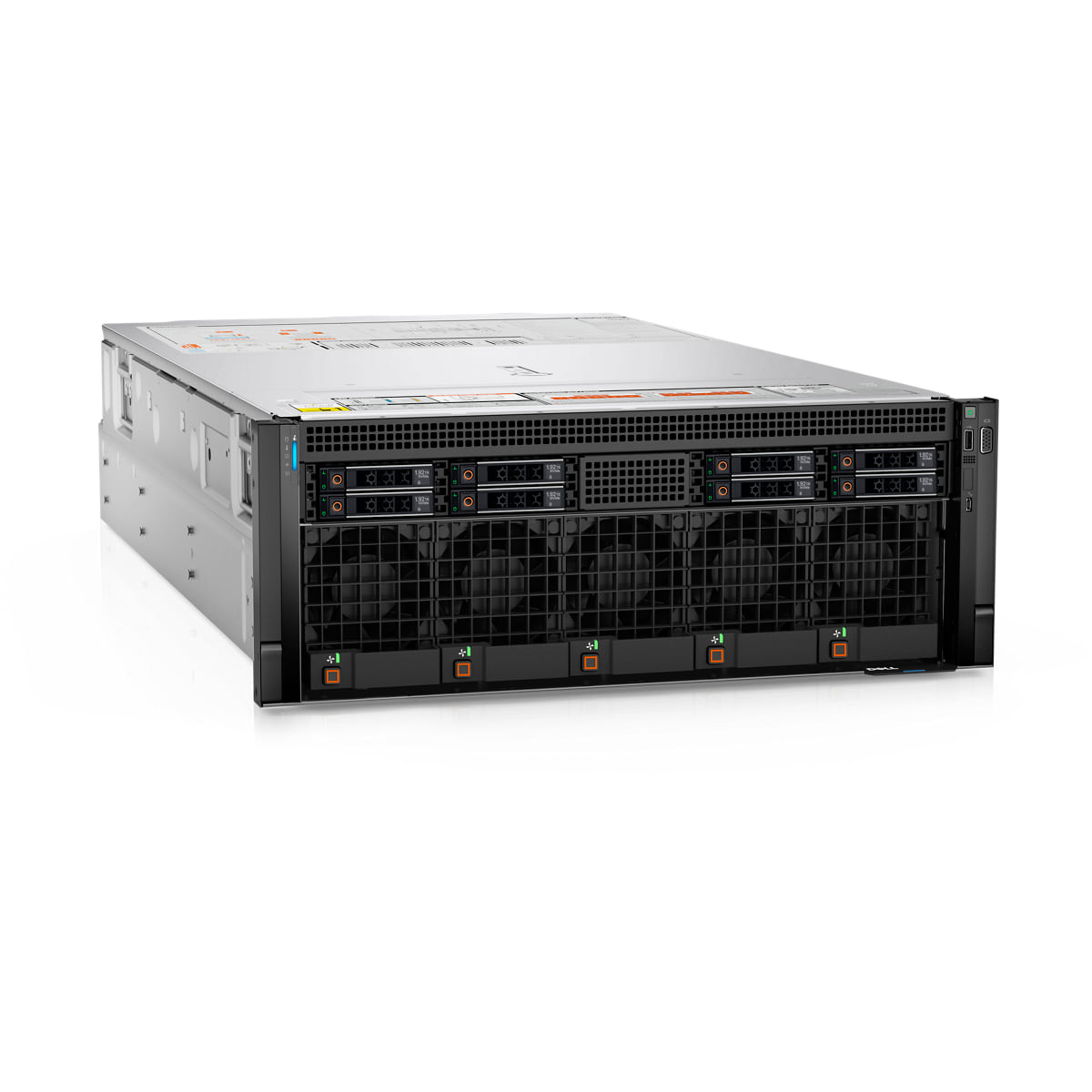

Dell PowerEdge XE8640 Rack Server
Drive AI, HPC and analytics workloads with superior performance.
PowerEdge XE8640 Rack Server
Drive AI, HPC and analytics workloads with superior performance.
Key Features
Purpose-built performance
Drive AI, HPC and analytics workloads with superior performance.
Specifications
| Processor | Two 4th Generation Intel®Xeon®Scalable processor with up to 56 cores per processor Cooling options Air cooling for Processors Liquid Assisted Air Cooling for GPU. Note: No facility water to rack required. |
| Operating System | Canonical®Ubuntu®Server LTS Red Hat®Enterprise Linux |
| Chipset | Intel®C741 chipset |
| Accelerators | 4 NVIDIA®HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA®NVLink technology |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or USB Software RAID S160 |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish® iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter® OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap Fans Up to 6 Standard (STD) fans installed in mid tray Up to 5 High performance (HPR) gold grade fans installed on the front of the system All are hot swap fans |
| Ports | Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet port |
| Slots | PCIe 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5) Bezel Optional LCD bezel or security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 inches (174.3 mm) Width 18.97 inches (481.91 mm) Depth 35.48 inches (901.4 mm) with bezel 34.07 inches (865.54 mm) without bezel Weight 135.36 pounds (61.4 kg) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | Two 4th Generation Intel®Xeon®Scalable processor with up to 56 cores per processor Cooling options Air cooling for Processors Liquid Assisted Air Cooling for GPU. Note: No facility water to rack required. |
| Operating System | Canonical®Ubuntu®Server LTS Red Hat®Enterprise Linux |
| Chipset | Intel®C741 chipset |
| Accelerators | 4 NVIDIA®HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA®NVLink technology |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 32 DDR5 DIMM slots Maximum RAM RDIMM 4 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe SSD drives max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs or USB Software RAID S160 |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish® iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter® OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 2800W Titanium 200-240 VAC or 240 HVDC redundant, hot swap Fans Up to 6 Standard (STD) fans installed in mid tray Up to 5 High performance (HPR) gold grade fans installed on the front of the system All are hot swap fans |
| Ports | Network Options 1 x OCP 3.0 (optional) 2 x 1GbE LOM (optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x VGA 1 x RJ45 iDRAC9 ethernet port |
| Slots | PCIe 2 CPU configuration: Up to 4 PCIe slots (4 x16 Gen5) Bezel Optional LCD bezel or security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 inches (174.3 mm) Width 18.97 inches (481.91 mm) Depth 35.48 inches (901.4 mm) with bezel 34.07 inches (865.54 mm) without bezel Weight 135.36 pounds (61.4 kg) |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
