2U UP Hyper supporting up to 24 hot-swap 2.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer SYS-212HA-TN

2U UP Hyper supporting up to 24 hot-swap 2.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 + 1 PCIe 5.0 AIOM slots

Key Features

  1. Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
  2. Single Intel® Xeon® 6 6900 series Processor.
  3. 12 DIMM slots support RDIMM / MRDIMM
  4. Double width add-on card support.
  5. Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
  6. Breeze through high throughput workloads with PCIe 5.0 NVMe drive support.
  7. Trusted Platform Module (TPM) 2.0 onboard.
  8. Modularized and Tool-less design for easy serviceability.

Specifications

Product SKUs
  • SuperServer SYS-212HA-TN

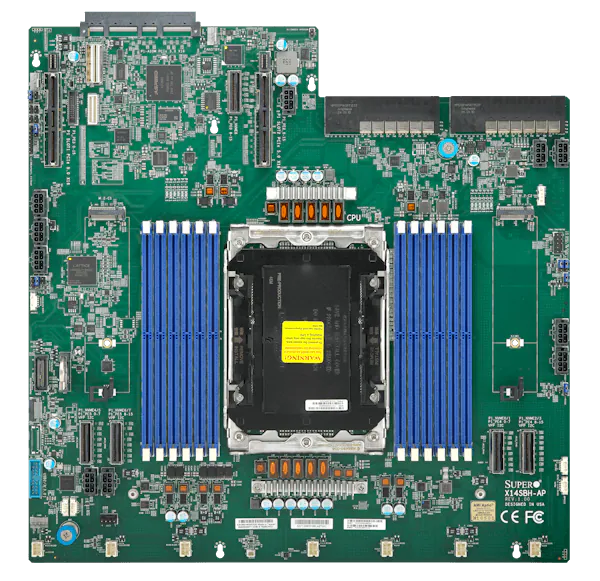

Motherboard
  • Super X14SBH-AP
Processor
CPU
  • Single Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100 NVL, L4, L40S
  • Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-212HA-TN
  • Super X14SBH-AP
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 31.74″ (806.2 mm)
Package
  • 9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver

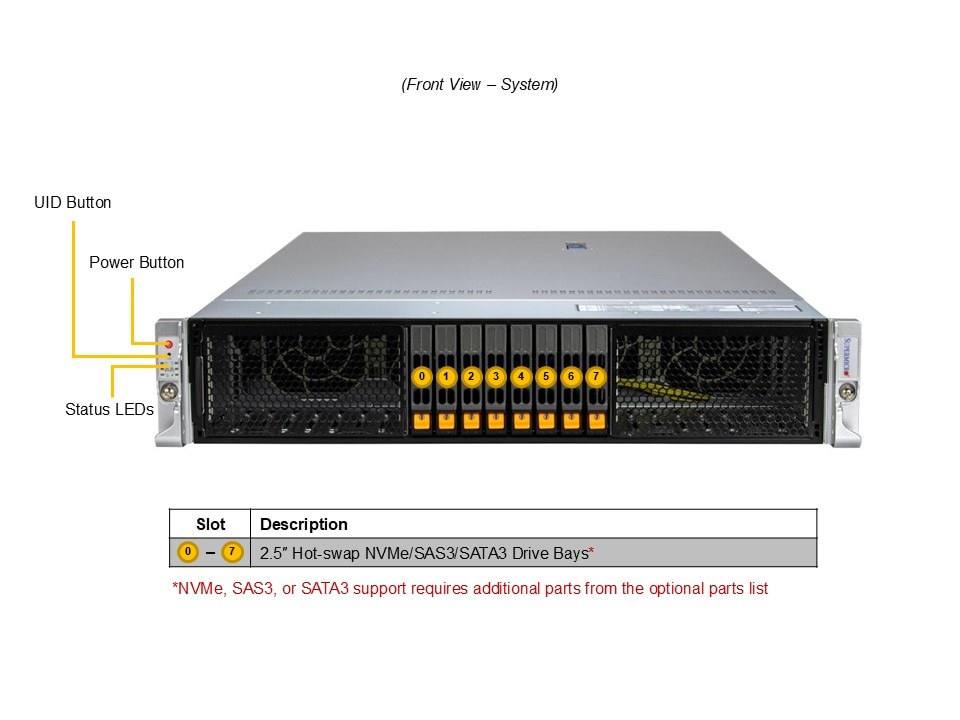

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information

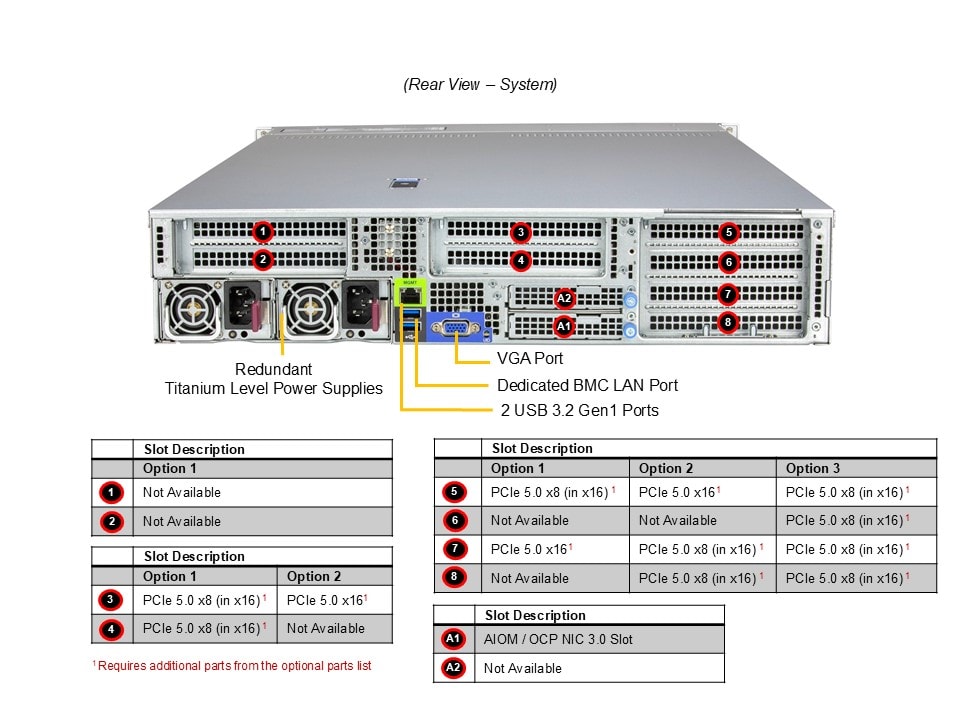

Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*1 PCIe 5.0 x16 FH/10.5″L double-width slot 1 PCIe 5.0 x8 FHFL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 FH/10.5″L double-width slot
  • 1 PCIe 5.0 x8 FHFL slot
  • 1 PCIe 5.0 x16 FHFL double-width slot
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B*2 PCIe 5.0 x8 FH/10.5″L slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x8 FH/10.5″L slots
  • 1 PCIe 5.0 x8 FHHL slot
  • 1 PCIe 5.0 x16 FHFL double-width slot
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option C*1 PCIe 5.0 x16 FH/10.5″L double-width slot 2 PCIe 5.0 x16 FHFL double-width slots
  • 1 PCIe 5.0 x16 FH/10.5″L double-width slot
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

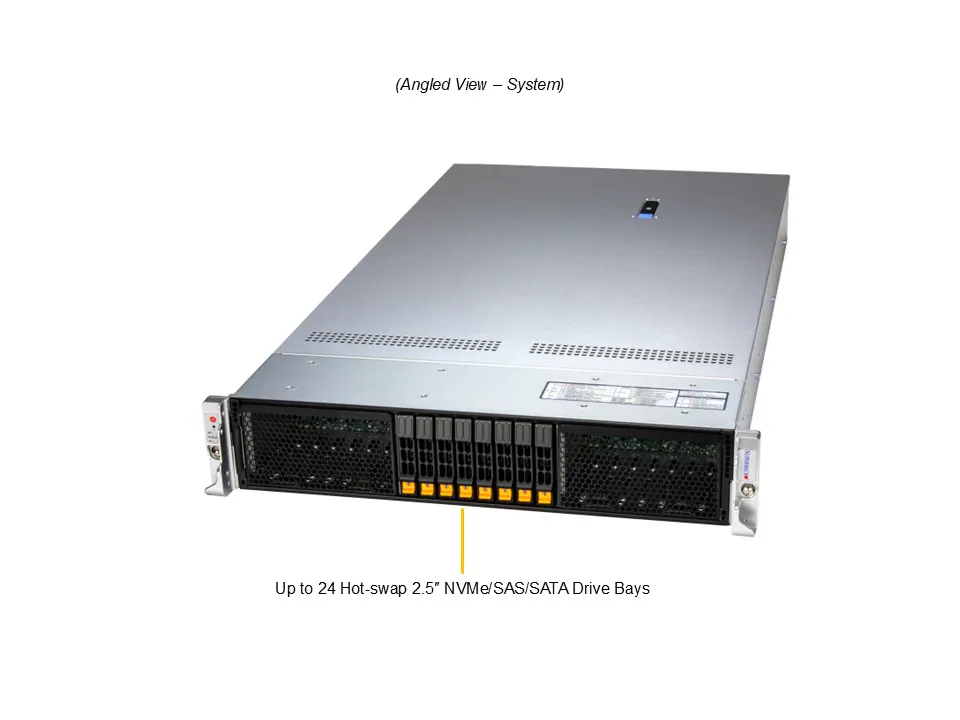

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ SAS*/SATA* drive bays
  • 24 front hot-swap 2.5″ SAS*/SATA* drive bays
  • Option B: Total 16 bays16 front hot-swap 2.5″ SAS*/SATA* drive bays
  • 16 front hot-swap 2.5″ SAS*/SATA* drive bays
  • Option C: Total 4 bays4 front hot-swap 2.5″ NVMe* drive bays
  • 4 front hot-swap 2.5″ NVMe* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 counter-rotating 60x60x56mm Fan(s)
Power Supply
  • 2x 1200W 2x 1300W 2x 1600W 2x 2600W 2x 2000W 2x 2000W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1300W 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1300W: -44–65Vdc / 50-60Hz +12VMax: 108.3A / Min: 0A 12V SBMax: 2.1A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 1300W: -44–65Vdc / 50-60Hz
+12V
  • Max: 108.3A / Min: 0A
12V SB
  • Max: 2.1A
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Input
  • 2000W: 200-277Vac / 50-60Hz
+12V
  • Max: 166A / Min: 0A (200Vac-277Vac)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1300W 2x 1600W 2x 2600W 2x 2000W 2x 2000W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1300W 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1300W: -44–65Vdc / 50-60Hz +12VMax: 108.3A / Min: 0A 12V SBMax: 2.1A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: sys-212ha-tn Categorii: , , ,
Product SKUs
  • SuperServer SYS-212HA-TN
Motherboard
  • Super X14SBH-AP
Processor
CPU
  • Single Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • Up to 128C/256T; Up to 504MB Cache
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 1 double-width or 2 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100 NVL, L4, L40S
  • Intel PCIe: Intel Data Center GPU Flex 170
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 8800MT/s ECC DDR5 MRDIMM
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 ports(Rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-212HA-TN
  • Super X14SBH-AP
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-HS201-R000NFP
Dimensions and Weight
Height
  • 3.5″ (88.9 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 31.74″ (806.2 mm)
Package
  • 9.96″ (H) x 26.46″ (W) x 43.31″ (D)
Weight
  • Gross Weight: 75 lbs (34 kg)
  • Net Weight: 45 lbs (20.5 kg)
Available Color
  • Silver
Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Option A*1 PCIe 5.0 x16 FH/10.5″L double-width slot 1 PCIe 5.0 x8 FHFL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 1 PCIe 5.0 x16 FH/10.5″L double-width slot
  • 1 PCIe 5.0 x8 FHFL slot
  • 1 PCIe 5.0 x16 FHFL double-width slot
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option B*2 PCIe 5.0 x8 FH/10.5″L slots 1 PCIe 5.0 x8 FHHL slot 1 PCIe 5.0 x16 FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • 2 PCIe 5.0 x8 FH/10.5″L slots
  • 1 PCIe 5.0 x8 FHHL slot
  • 1 PCIe 5.0 x16 FHFL double-width slot
  • 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
  • Option C*1 PCIe 5.0 x16 FH/10.5″L double-width slot 2 PCIe 5.0 x16 FHFL double-width slots
  • 1 PCIe 5.0 x16 FH/10.5″L double-width slot
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 8 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • Option A: Total 24 bays24 front hot-swap 2.5″ SAS*/SATA* drive bays
  • 24 front hot-swap 2.5″ SAS*/SATA* drive bays
  • Option B: Total 16 bays16 front hot-swap 2.5″ SAS*/SATA* drive bays
  • 16 front hot-swap 2.5″ SAS*/SATA* drive bays
  • Option C: Total 4 bays4 front hot-swap 2.5″ NVMe* drive bays
  • 4 front hot-swap 2.5″ NVMe* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 counter-rotating 60x60x56mm Fan(s)
Power Supply
  • 2x 1200W 2x 1300W 2x 1600W 2x 2600W 2x 2000W 2x 2000W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1300W 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1300W: -44–65Vdc / 50-60Hz +12VMax: 108.3A / Min: 0A 12V SBMax: 2.1A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 1300W: -44–65Vdc / 50-60Hz
+12V
  • Max: 108.3A / Min: 0A
12V SB
  • Max: 2.1A
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Input
  • 2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Input
  • 2000W: 200-277Vac / 50-60Hz
+12V
  • Max: 166A / Min: 0A (200Vac-277Vac)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1300W 2x 1600W 2x 2600W 2x 2000W 2x 2000W 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 230-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (230Vdc-240Vdc) (for CCC only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) 2x 1300W 2x 1300W Redundant (1 + 1) Gold (Certification Pending) Level power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1300W: -44–65Vdc / 50-60Hz +12VMax: 108.3A / Min: 0A 12V SBMax: 2.1A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger) 2x 2600W 2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2600W: 200-240Vac 2600W: 200-240Vdc (For CQC Only)2600W: 200-240Vac / 50-60Hz 2600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 216A / Min: 0A (11.4Vdc-12.6Vdc) (12V output)Max: 216A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)2700W: 200-240Vac +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)Max: 225A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger) 2x 2000W 2x 2000W Redundant (1 + 1) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input2000W: 200-277Vac / 50-60Hz +12VMax: 166A / Min: 0A (200Vac-277Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

Based on 0 reviews

0.0 overall
0
0
0
0
0

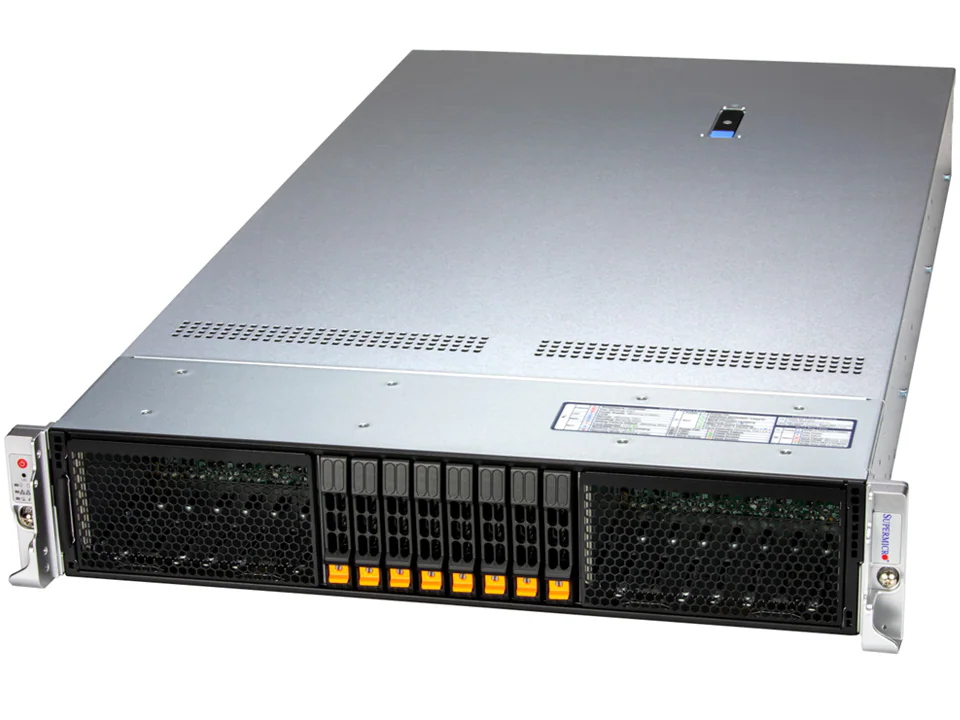

Be the first to review “Supermicro SuperServer SYS-212HA-TN”

There are no reviews yet.

Completeaza formularul de mai jos si te vom contacta cu o oferta personalizata.

Configuratie dorita

Completeaza formularul de mai jos si te vom contacta pentru publicarea in SICAP.

Brands Carousel

Select at least 2 products
to compare
