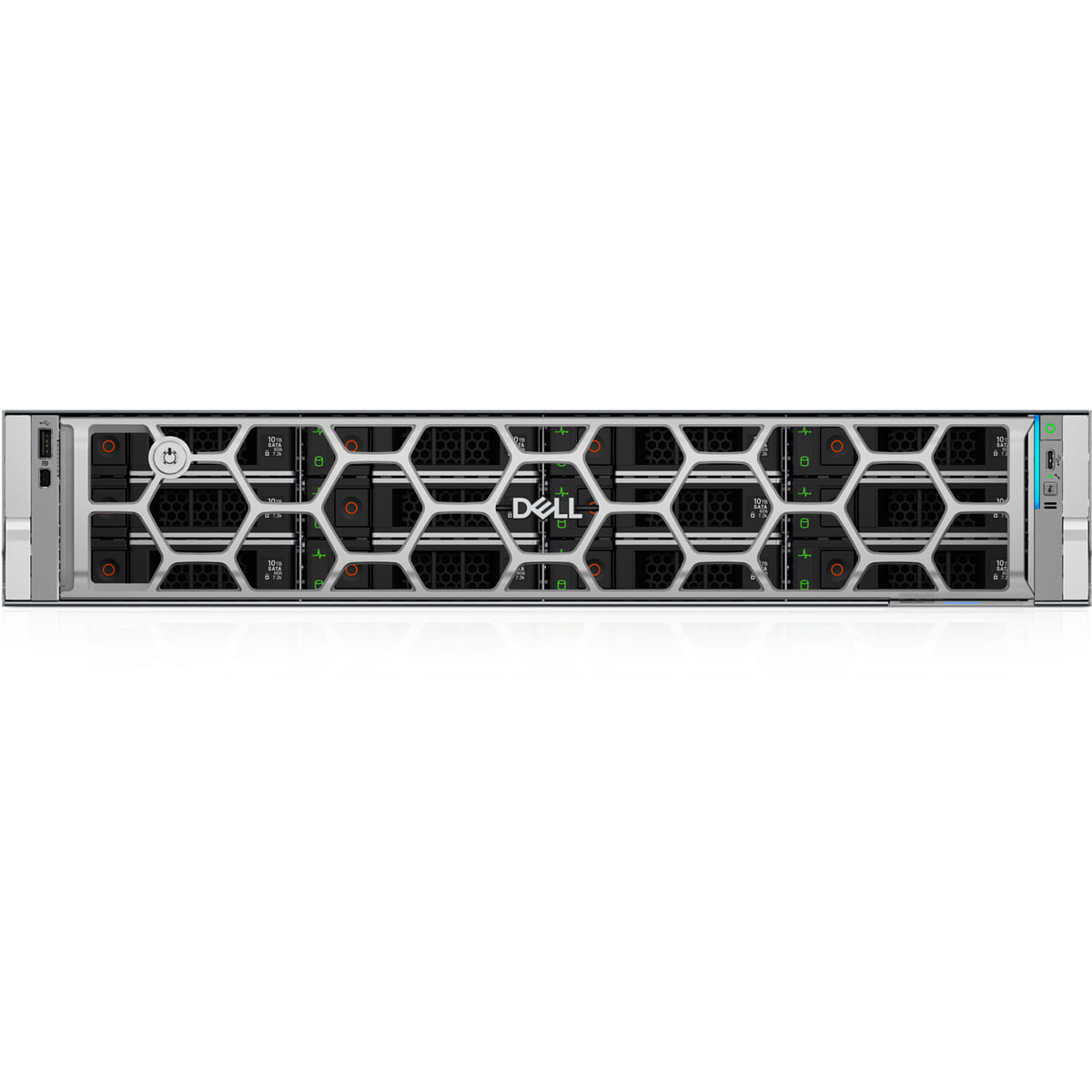

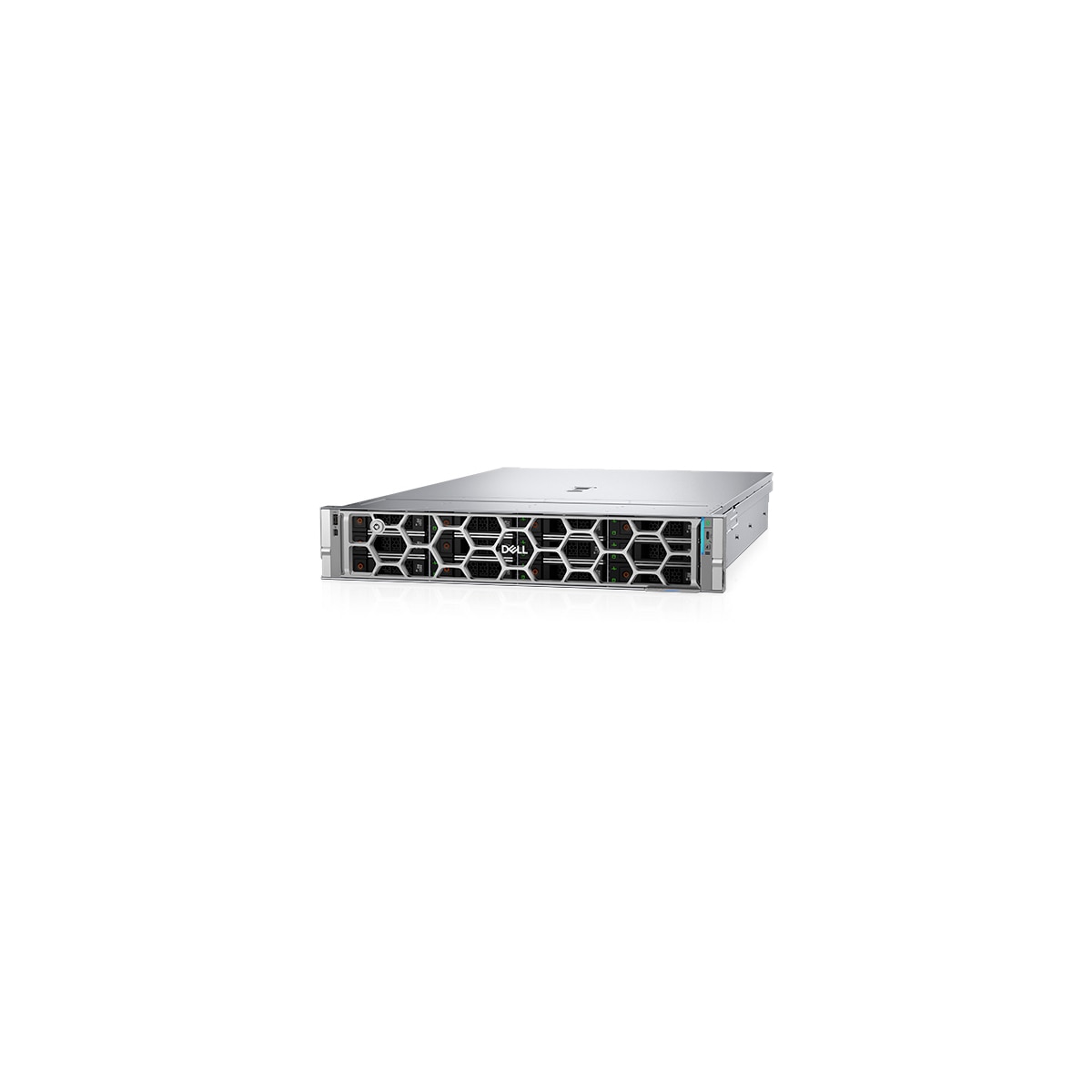

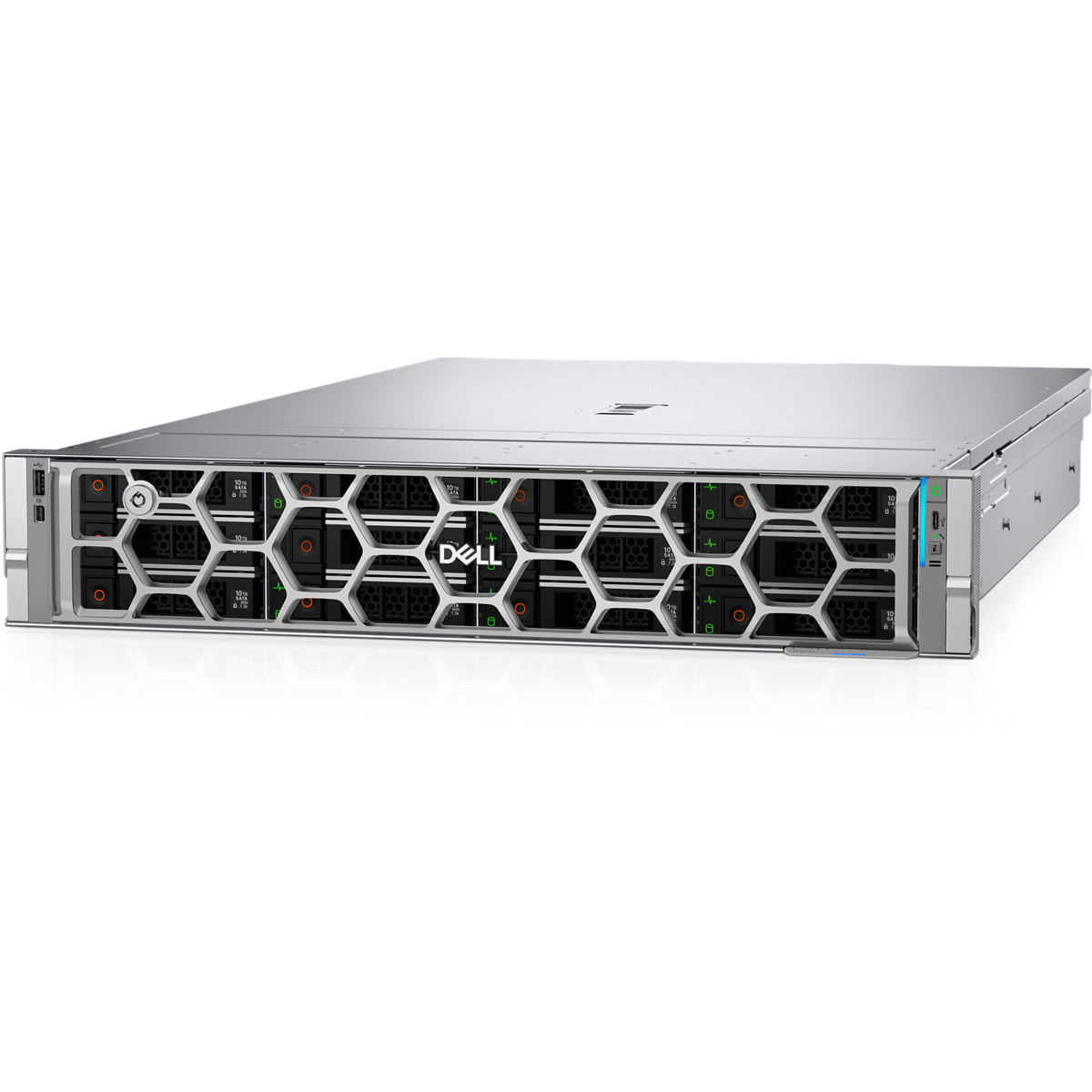

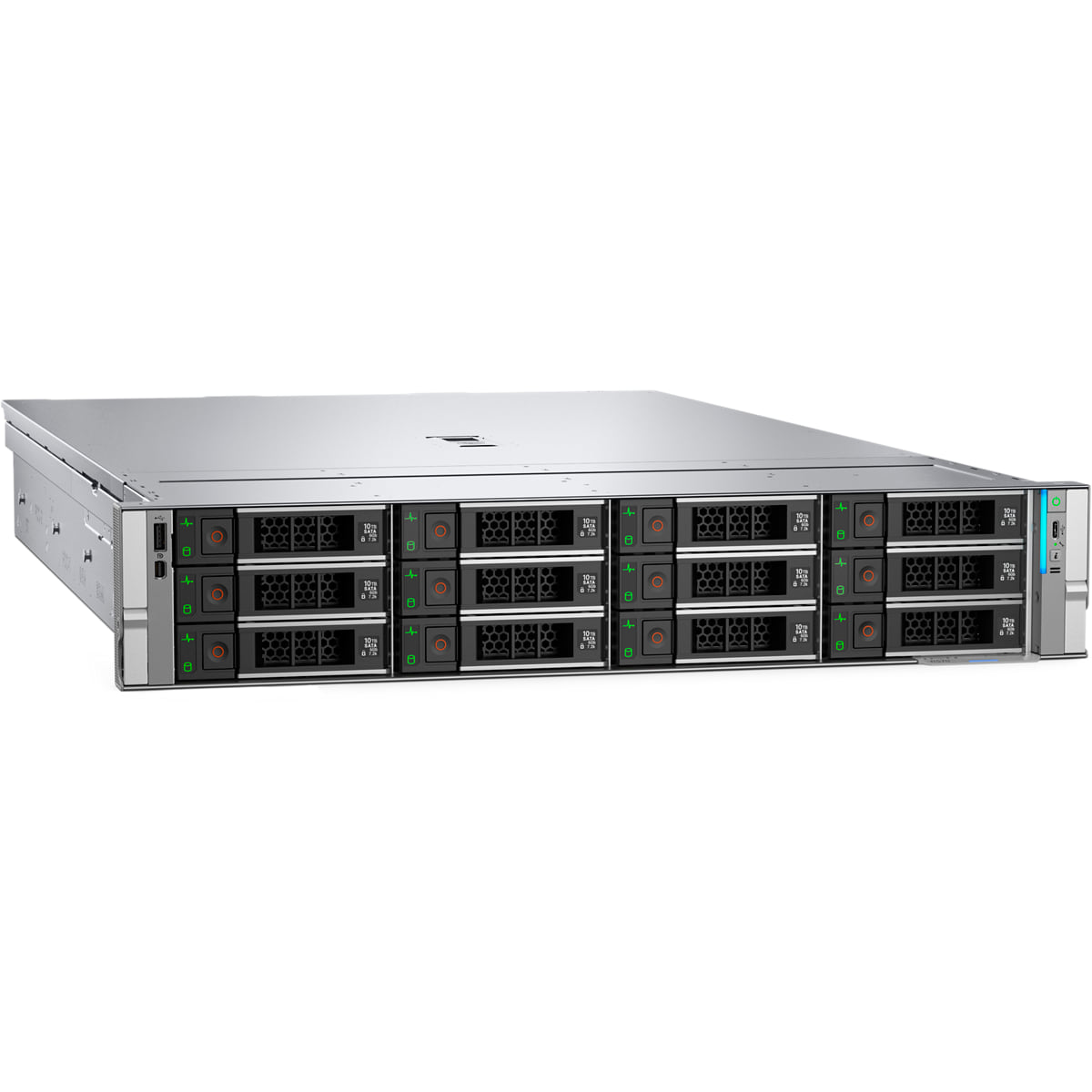

Dell PowerEdge R5715
The 2U, one-socket PowerEdge R5715 with 5th Gen AMD EPYC™ processor features flexible, scalable configurations to addresses a broad range of workloads.
PowerEdge R5715
The 2U, one-socket PowerEdge R5715 with 5th Gen AMD EPYC™ processor features flexible, scalable configurations to addresses a broad range of workloads.
Key Features
Efficient performance; flexible storage
The 2U, one-socket PowerEdge R5715 with 5th Gen AMD EPYC™ processor features flexible, scalable configurations to addresses a broad range of workloads.
Specifications
| Processor | One 5th Generation AMD EPYC 9005 Series processor with up to 32 Zen5 cores per processor |
| Operating System | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux VMware ESXi SUSE Linux Enterprise Server |
| Chipset | AMD chipset |
| Accelerators | N/A |
| Memory | DIMM Speed: Up to 5200 MT/s Memory Type: RDIMM Memory Module Slots: 24 DDR5 DIMM slot, supports 1.5 TB max Maximum RAM: RDIMM 1.5 TB max |
| Storage | Front Bays: Up to 12 x 3.5-inch SAS/SATA Up to 16 x 2.5-inch SAS/SATA drives Mid Bay:N/A Rear Bay:N/A |
| Storage Controllers | Internal Controllers: PERC H365i PERC H965i External Controllers:N/A Software RAID:N/A Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| Management | Embedded / At-the-Server: iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish Racadm CLI OpenManage Consoles: OpenManage Enterprise (OME) OME Power Manager OME Services OME Update Manager OME APEX AIOps Observability plugin OME APEX AIOps Observability OME Integration for VMware vCenter (with VMware Aria Operations) OME integration for Microsoft System Center OpenManage Integration for Windows Admin Center Mobility:N/A Tools:IPMI Change Management: Dell Repository Manager Dell System Update Enterprise Catalogs Server Update Utility (SUU) OpenManage Integrations: Red Hat Ansible Collections Terraform Providers |
| Power Supplies | Platinum 800W, 1100W Titanium: 800W, 1100W Cooling options: Air cooling Fans: Up to six hot plug fans GPU options:N/A |
| Ports | Front Ports: 1 x USB 2.0 Type-A (optional LCP KVM) 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x MiniDisplay port (optional LCP KVM) Rear Ports: 1 x 1 Gb dedicated BMC Ethernet port 2 x USB 3.1 Type-A 1 x VGA Internal Ports: 1 x USB 3.1 Type-A |
| Slots | PCIe: Up to four PCIe slots (x16 connector) Slot 2: 1 x16 Gen5 Full Height Slot 3: 1 x16 Gen5 Full Height Slot 7: 1 x16 Gen5 Full Height Slot 9: 1 x16 Gen5 Full Height Gen5 PCIe slots up to: 4 OCP network options: 2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE and 25GbE Slot 4: 1 x16 Gen5 OCP3.0 Slot 10: 1 x16 Gen5 OCP3.0 Embedded NIC: 1 Gb dedicated BMC Ethernet port PCIe Add-in Card (AIC) NIC: 100 GbE and 400GbE; NDR VPI (400GbE) BOSS: Slot 6: 1 x4 Gen3 BOSS Video Card:N/A |
| Bezel | Optional metal bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height: 3.41 in. (86.80 mm) Width: 18.97 in. (482.00 mm) Depth: 31.59 in. (802.40 mm) with bezel 31.55 in. (801.51 mm) without bezel Weight: Max: 59.19 lb(26.85 kg) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails™ static rails for 4-post and 2-post racks. Note: CMA is not supported in Direct Liquid Cooling configuration |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Processor | One 5th Generation AMD EPYC 9005 Series processor with up to 32 Zen5 cores per processor |
| Operating System | Canonical Ubuntu Server LTS Microsoft Windows Server with Hyper-V Red Hat Enterprise Linux VMware ESXi SUSE Linux Enterprise Server |
| Chipset | AMD chipset |
| Accelerators | N/A |
| Memory | DIMM Speed: Up to 5200 MT/s Memory Type: RDIMM Memory Module Slots: 24 DDR5 DIMM slot, supports 1.5 TB max Maximum RAM: RDIMM 1.5 TB max |
| Storage | Front Bays: Up to 12 x 3.5-inch SAS/SATA Up to 16 x 2.5-inch SAS/SATA drives Mid Bay:N/A Rear Bay:N/A |
| Storage Controllers | Internal Controllers: PERC H365i PERC H965i External Controllers:N/A Software RAID:N/A Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1 DC-MHS) |
| Security | AMD Secure Encrypted Virtualization (SEV) AMD Secure Memory Encryption (SME) Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown TPM 2.0 FIPS, CC-TCG certified Chassis Intrusion Detection |
| Management | Embedded / At-the-Server: iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish Racadm CLI OpenManage Consoles: OpenManage Enterprise (OME) OME Power Manager OME Services OME Update Manager OME APEX AIOps Observability plugin OME APEX AIOps Observability OME Integration for VMware vCenter (with VMware Aria Operations) OME integration for Microsoft System Center OpenManage Integration for Windows Admin Center Mobility:N/A Tools:IPMI Change Management: Dell Repository Manager Dell System Update Enterprise Catalogs Server Update Utility (SUU) OpenManage Integrations: Red Hat Ansible Collections Terraform Providers |
| Power Supplies | Platinum 800W, 1100W Titanium: 800W, 1100W Cooling options: Air cooling Fans: Up to six hot plug fans GPU options:N/A |
| Ports | Front Ports: 1 x USB 2.0 Type-A (optional LCP KVM) 1 x USB 2.0 Type-C (HOST/BMC Direct) 1 x MiniDisplay port (optional LCP KVM) Rear Ports: 1 x 1 Gb dedicated BMC Ethernet port 2 x USB 3.1 Type-A 1 x VGA Internal Ports: 1 x USB 3.1 Type-A |
| Slots | PCIe: Up to four PCIe slots (x16 connector) Slot 2: 1 x16 Gen5 Full Height Slot 3: 1 x16 Gen5 Full Height Slot 7: 1 x16 Gen5 Full Height Slot 9: 1 x16 Gen5 Full Height Gen5 PCIe slots up to: 4 OCP network options: 2 x OCP NIC 3.0 card (optional) and 1GbE, 10GbE and 25GbE Slot 4: 1 x16 Gen5 OCP3.0 Slot 10: 1 x16 Gen5 OCP3.0 Embedded NIC: 1 Gb dedicated BMC Ethernet port PCIe Add-in Card (AIC) NIC: 100 GbE and 400GbE; NDR VPI (400GbE) BOSS: Slot 6: 1 x4 Gen3 BOSS Video Card:N/A |
| Bezel | Optional metal bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height: 3.41 in. (86.80 mm) Width: 18.97 in. (482.00 mm) Depth: 31.59 in. (802.40 mm) with bezel 31.55 in. (801.51 mm) without bezel Weight: Max: 59.19 lb(26.85 kg) |
| Rack Support | ReadyRails II sliding rails with optional cable management arm (CMA) and strain relief bar (SRB) for 4-post racks. Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRailsâ„¢ static rails for 4-post and 2-post racks. Note: CMA is not supported in Direct Liquid Cooling configuration |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
