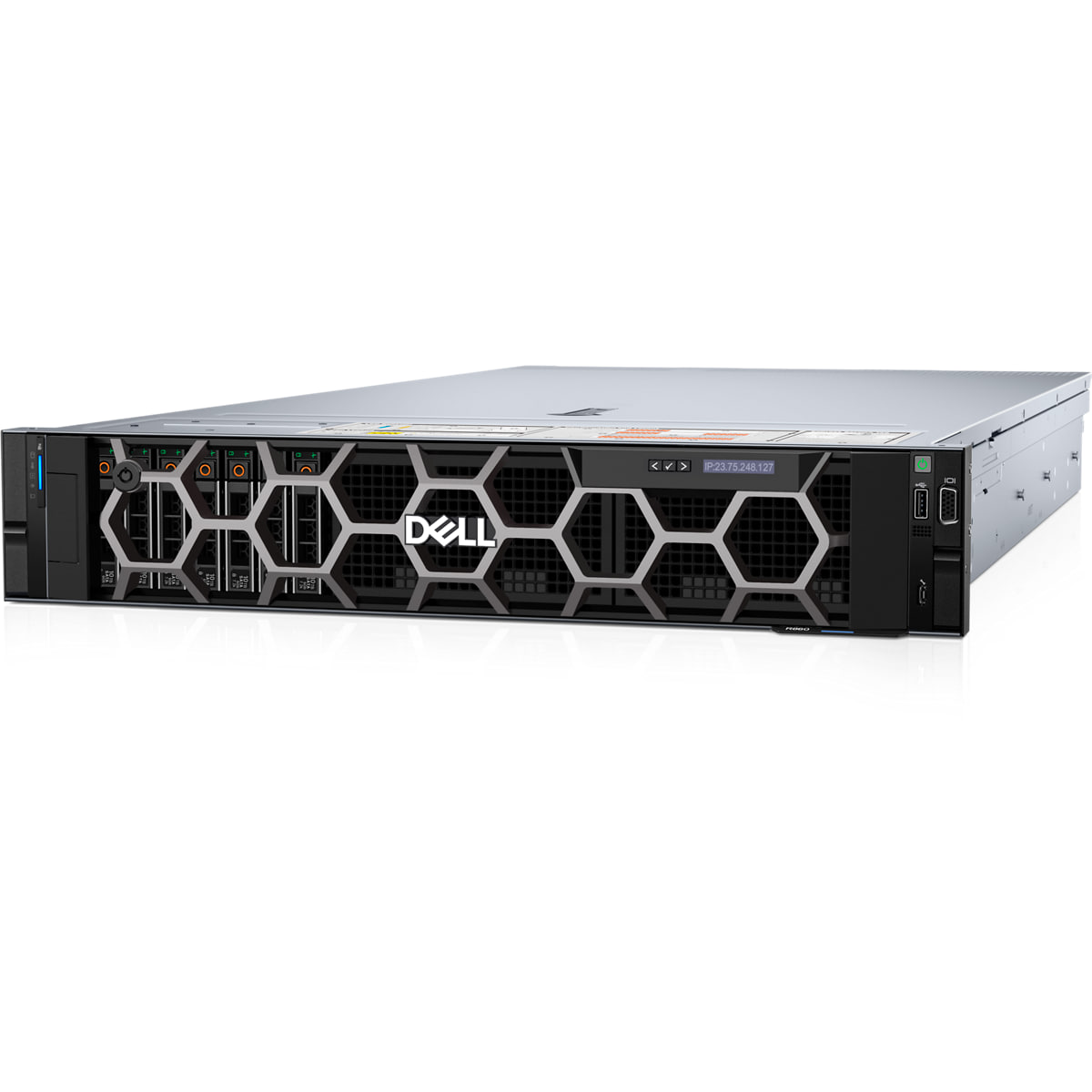

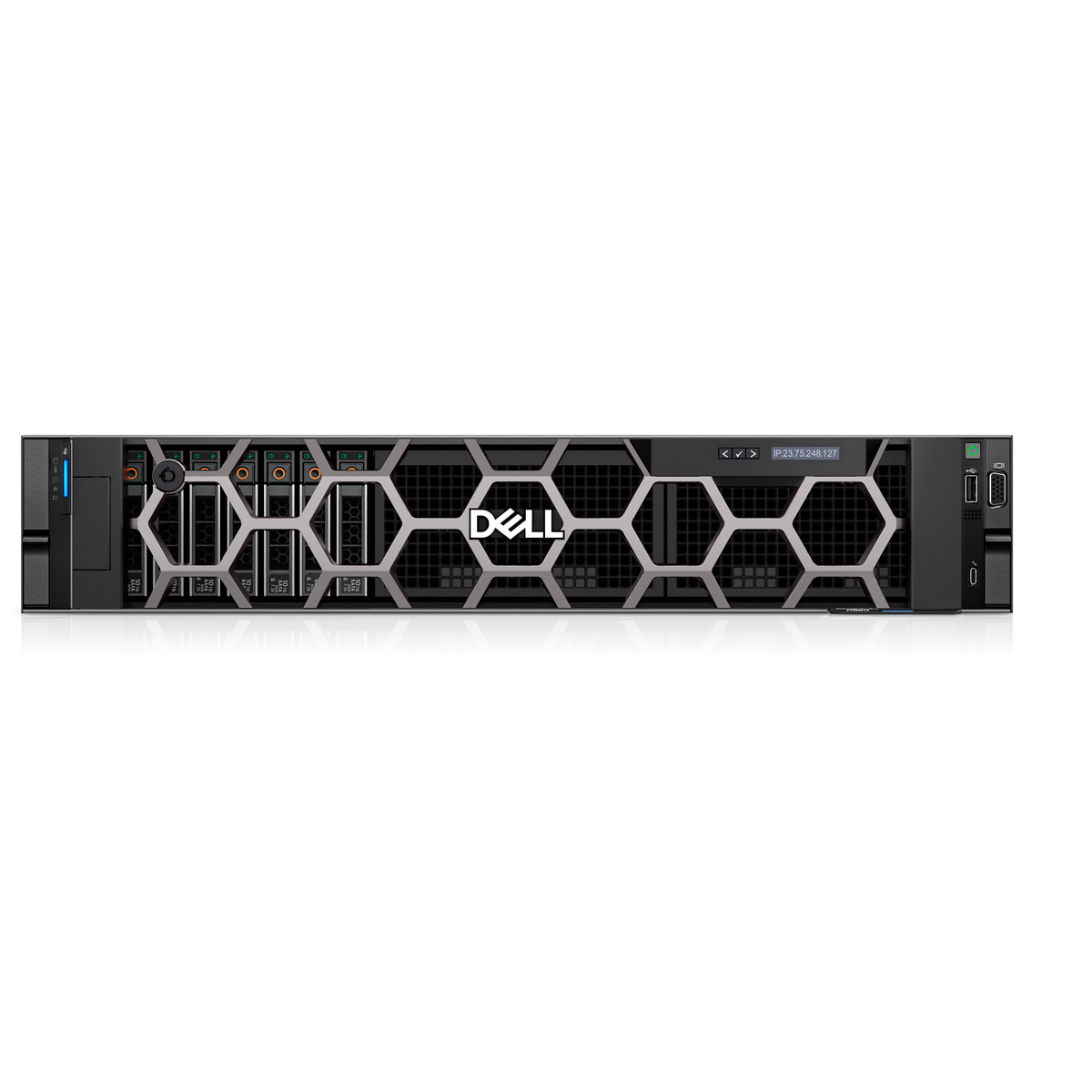

Dell PowerEdge R860
Maximize transformation and data-driven initiatives with a dense compute foundation.
PowerEdge R860
Maximize transformation and data-driven initiatives with a dense compute foundation.
Key Features
Power your business-critical workloads
Maximize transformation and data-driven initiatives with a dense compute foundation.
Specifications
| Processor | Up to 4 x 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel®QuickAssist Technology |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C741 Chipset |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 64 DDR5 DIMM slots Maximum RAM RDIMM 16 TB Front Bay Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB Mid Bay N/A Rear Bay Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB |
| Storage | Front Bay Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch NVMe (SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 24 x 2.5-inch SAS/SATA (HDD/SSD) including up to 8 x 2.5-inch NVMe (SSD) max 245.76 TB Mid Bay- N/A Rear Bay Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, PERC H355, HBA355i, HBA465i External Controllers PERC H965e, HBA355e, HBA465e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant Fans Up to 6 fans |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
| Slots | Eight PCIe slots: Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 3: 1 x16 Gen5 Low profile, Half length Slot 4: 1 x16 Gen5 Full height, Half length Slot 5: 1 x16 Gen5 Full height, Half length Slot 6: 1 x16 Gen5 Low profile, Half length Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 in. (86.8 mm) Width 18.97 in. (482 mm) Depth 34.77 in. (883.2 mm) with bezel 34.22 in. (869.2 mm) without bezel Weight Max 94.73 lbs (42.97 kg) Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks. Note: CMA is not supported in Direct Liquid Cooling configuration. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | Up to 4 x 4th Generation Intel Xeon Scalable processor with up to 60 cores per processor and with optional Intel®QuickAssist Technology |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C741 Chipset |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 64 DDR5 DIMM slots Maximum RAM RDIMM 16 TB Front Bay Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 8 x EDSFF E3.S Gen5 NVMe (SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) + 8 x 2.5-inch NVMe (SSD) max 368.64 TB Mid Bay N/A Rear Bay Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 30.72 TB Up to 4 x EDSFF E3.S Gen5 NVMe (SSD) drives max 30.72 TB |
| Storage | Front Bay Up to 8 x 2.5-inch SAS/SATA (HDD/SSD) max 61.44 TB Up to 16 x 2.5-inch SAS/SATA (HDD/SSD) max 122.88 TB Up to 16 x 2.5-inch NVMe (SSD) max 245.76 TB Up to 24 x 2.5-inch NVMe (SSD) max 368.64 TB Up to 24 x 2.5-inch SAS/SATA (HDD/SSD) including up to 8 x 2.5-inch NVMe (SSD) max 245.76 TB Mid Bay- N/A Rear Bay Up to 2 x 2.5-inch SAS/SATA (HDD/SSD) max 15.36 TB |
| Storage Controllers | Internal Controllers PERC H965i, PERC H755, PERC H355, HBA355i, HBA465i External Controllers PERC H965e, HBA355e, HBA465e Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Quick Sync 2 wireless module Consoles OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware vCenter OpenManage Integration for Microsoft System Center OpenManage Integration with Windows Admin Center Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft System Center OpenManage Integration with ServiceNow RedHat Ansible Modules Terraform Providers VMware vCenter and vRealize Operations Manager |
| Power Supplies | 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant Fans Up to 6 fans |
| Ports | Network Options 2 x 1GbE LOM card (optional) 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x Dedicated iDRAC Ethernet port 1 x USB 2.0 1 x USB 3.0 1 x Serial (optional) 1 x VGA (optional for Direct Liquid Cooling configuration) Internal Ports 1 x USB 3.0 (optional) |
| Slots | Eight PCIe slots: Slot 1: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 2: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 3: 1 x16 Gen5 Low profile, Half length Slot 4: 1 x16 Gen5 Full height, Half length Slot 5: 1 x16 Gen5 Full height, Half length Slot 6: 1 x16 Gen5 Low profile, Half length Slot 7: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length Slot 8: 1 x16 Gen5 or 1 x8 Gen4 Full height, Half length |
| Bezel | Optional LCD bezel or security bezel |
| Form Factor | 2U rack server |
| Dimensions & Weight | Height 3.41 in. (86.8 mm) Width 18.97 in. (482 mm) Depth 34.77 in. (883.2 mm) with bezel 34.22 in. (869.2 mm) without bezel Weight Max 94.73 lbs (42.97 kg) Combo (Drop-in/Slide-in) rails with optional CMA and SRB for 4-post racks. ReadyRails static rails for 4-post and 2-post racks. Note: CMA is not supported in Direct Liquid Cooling configuration. |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Dell Regulatory Compliance Home Page Dell and the Environment |
