Dell PowerEdge T160
The single-socket Dell PowerEdge T160 is a small chassis tower server for customers desiring flexibility, affordability and processing power.
PowerEdge T160
The single-socket Dell PowerEdge T160 is a small chassis tower server for customers desiring flexibility, affordability and processing power.
Key Features
PowerEdge T160
• Intel® Pentium® G7400 3.7G• 1x 16GB, 5600MHz• 1x 2TB HD SATA• 3 yrs ProSupport
3U Tower Server for Near-Edge and SMB applications
The single-socket Dell PowerEdge T160 is a small chassis tower server for customers desiring flexibility, affordability and processing power.
Specifications
| Processor | One Intel®Xeon®6300 series processor or one Intel®Xeon®E-2400 series processor with up to 8 cores or One Intel®Pentium®G7400/ G7400T processor with 2 cores |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C262 Chipset |
| Accelerators | NA |
| Memory | DIMM Speed Up to 4400 MT/s Memory Type ECC UDIMM Memory Module Slots 4 DDR5 DIMM slots Maximum RAM ECC UDIMM 128 GB |
| Storage | Front Bay Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB Up to 3×3.5″ Chip SATA+ 2x 2.5″ NVMe, max 63.36 TB Up to 3×3.5″ PERC SAS/SATA + 2×2.5″ NVMe, max 63.36 TB Note: NVMe doesn’t support S160 or HW RAID configuration. Mid Bay NA Rear Bay NA |
| Storage Controllers | Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter External Controllers HBA355e Adapter Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Secured-core server Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server: iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles: OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center Mobility: OpenManage Mobile Tools: Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations: BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | 300 W Bronze 100—240 V AC, cabled 500 W Platinum 100—240 V AC, cabled |

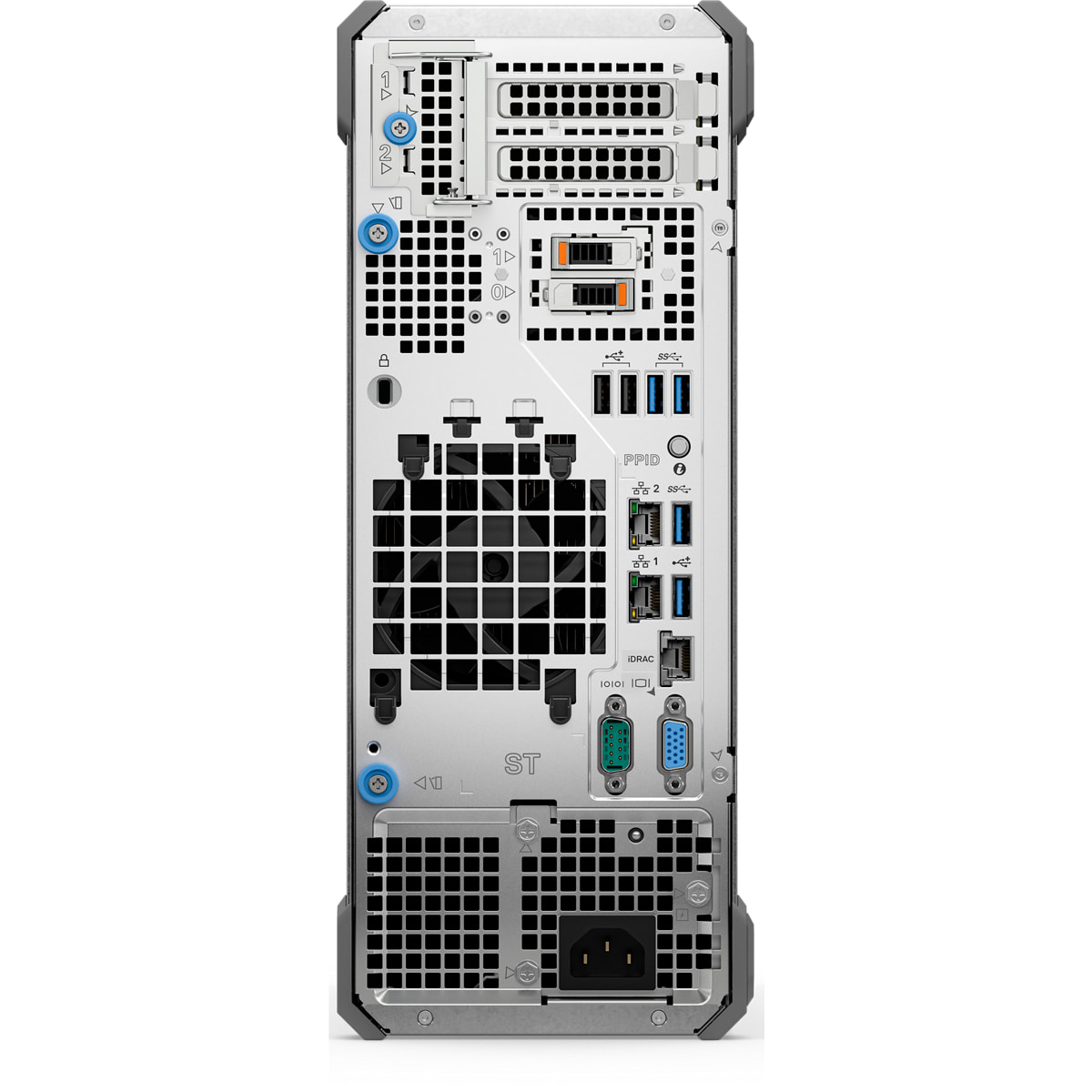

| Ports | Network Options 2 x 1GbE LOM on Planar Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1 Rear Ports 1 x Dedicated iDRAC (RJ-45) port 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Serial 1 x VGA 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1 |
| Slots | PCIe Up to two PCIe slots: Slot 1: 1 x 8 slot with x4 bandwidth, Half Height, Half Length Slot 2: 1 x 16 slot with x16 bandwidth, Half Height, Half Length |
| Chassis | Fans Up to two fans |
| Bezel | Filter Bezel |
| Form Factor | 3U tower server |
| Dimensions & Weight | Height 13.09 in. (332.5 mm) (with feet) 12.97 in. (329.5 mm) (without feet) Width 5.21 in. (132.52 mm) Depth 16.09 in. (408.8 mm) (with bezel) 15.89 in. (403.8 mm) (without bezel) Weight 25.66 lbs. (11.64 kg)maximum weight |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
| Processor | One Intel®Xeon®6300 series processor or one Intel®Xeon®E-2400 series processor with up to 8 cores or One Intel®Pentium®G7400/ G7400T processor with 2 cores |
| Operating System | Canonical®Ubuntu®Server LTS Microsoft®Windows Server®with Hyper-V RedHat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® |
| Chipset | Intel®C262 Chipset |
| Accelerators | NA |
| Memory | DIMM Speed Up to 4400 MT/s Memory Type ECC UDIMM Memory Module Slots 4 DDR5 DIMM slots Maximum RAM ECC UDIMM 128 GB |
| Storage | Front Bay Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB Up to 3×3.5″ Chip SATA+ 2x 2.5″ NVMe, max 63.36 TB Up to 3×3.5″ PERC SAS/SATA + 2×2.5″ NVMe, max 63.36 TB Note: NVMe doesn’t support S160 or HW RAID configuration. Mid Bay NA Rear Bay NA |
| Storage Controllers | Internal Controllers HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter External Controllers HBA355e Adapter Software RAID S160 Internal Boot Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs USB |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Secured-core server Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server: iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles: OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin CloudIQ for PowerEdge plug in OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center Mobility: OpenManage Mobile Tools: Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations: BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | 300 W Bronze 100—240 V AC, cabled 500 W Platinum 100—240 V AC, cabled |
| Ports | Network Options 2 x 1GbE LOM on Planar Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 3.2 Gen1 Rear Ports 1 x Dedicated iDRAC (RJ-45) port 3 x USB 2.0 3 x USB 3.2 Gen1 1 x Serial 1 x VGA 2 x Ethernet ports Internal Ports 1 x USB 3.2 Gen1 |
| Slots | PCIe Up to two PCIe slots: Slot 1: 1 x 8 slot with x4 bandwidth, Half Height, Half Length Slot 2: 1 x 16 slot with x16 bandwidth, Half Height, Half Length |
| Chassis | Fans Up to two fans |
| Bezel | Filter Bezel |
| Form Factor | 3U tower server |
| Dimensions & Weight | Height 13.09 in. (332.5 mm) (with feet) 12.97 in. (329.5 mm) (without feet) Width 5.21 in. (132.52 mm) Depth 16.09 in. (408.8 mm) (with bezel) 15.89 in. (403.8 mm) (without bezel) Weight 25.66 lbs. (11.64 kg)maximum weight |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
