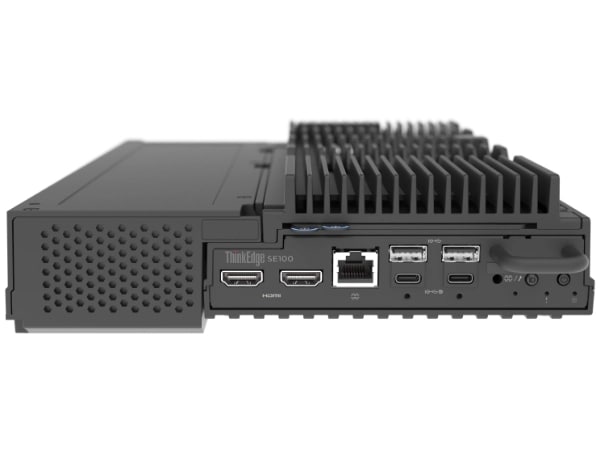

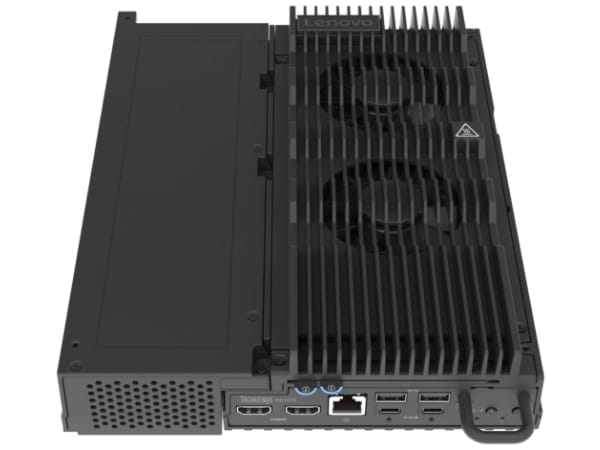

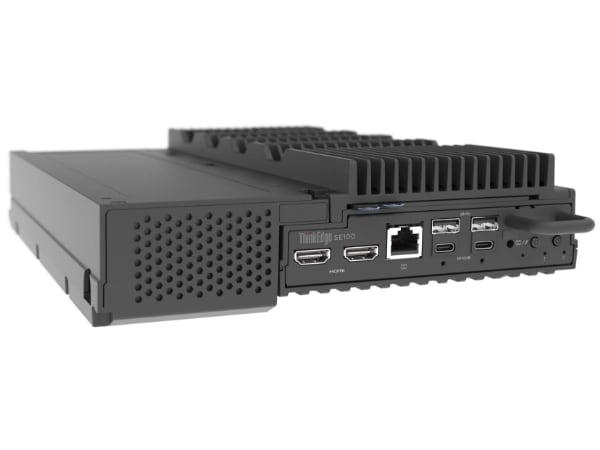

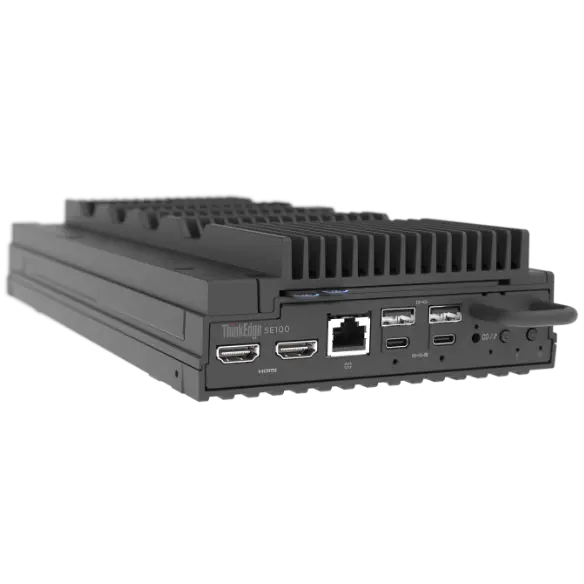

Lenovo ThinkEdge SE100
Lenovo ThinkEdge SE100 - imagine 2
Lenovo ThinkEdge SE100 - imagine 3
Lenovo ThinkEdge SE100 - imagine 4
, , , Configureaza acest server →

Lenovo ThinkEdge SE100

Favorite
Compara

The SE100 has a compact form factor that makes it ideal for space-constrained environments. ThinkShield lifecycle security, physical tamper protection, and key-encrypted storage.Full remote manageability via the Cloud-based ThinkShield Key Vault Portal.The 5 to 45℃ temperature range combined with high shock and vibration tolerances makes it a solid choice for applications in hardened environments, together with native IP50 for dust proof.

Pretul afisat contine TVA (21%).

Lenovo ThinkEdge SE100

The SE100 has a compact form factor that makes it ideal for space-constrained environments. ThinkShield lifecycle security, physical tamper protection, and key-encrypted storage.Full remote manageability via the Cloud-based ThinkShield Key Vault Portal.The 5 to 45℃ temperature range combined with high shock and vibration tolerances makes it a solid choice for applications in hardened environments, together with native IP50 for dust proof.

Key Features

Innovation Design for Edge

The ThinkEdge SE100 offers 100% power in a 85% smaller form factor, making it ideal for tight spaces without compromising performance. It includes isecurity options, and is easily managed with Lenovo XClarity Controller. This combination is perfect for edge applications that require high performance, low latency, and efficient power usage for AI-driven analytics.

Exceptional Performance & Functionality

The ThinkEdge SE100 combines the capability of Intel® Core™ Ultra 7 processors. These technologies combine advanced AI capabilities, efficient power consumption, and powerful processing to meet the demanding requirements of edge computing.

Secure. Connected. Reliable.

Edge users need constant access to information to make informed decisions, but this can be a challenge. The ThinkEdge SE100 is designed to solve this issue offering wired connection speeds of 1G and 10G. This compact, reliable server is built to handle a wide range of Edge workloads. It can be remotely set up, activated, managed, and even unlocked in case of tampering, using the ThinkShield Key Vault Portal and its accompanying user app.

Specifications

Form Factor
  • Base node: Height: 53mm, Width: 142mm, Depth: 278mm, 2.1LWith Expansion Kit: Height: 53mm, Width: 214mm, Depth: 278mm, 3.1L
Processor
  • Intel® Core™ Ultra 7 processor 255H: 6P+8E+2LP-EIntel® Core™ Ultra 5 processor 225H :4P+8E+2LP-E
Memory
  • Up to 64GB in 2x slots, using 32GB CSODIMMs; Up to 6400MHz DDR5
Storage Options
  • 1x M.2 2280 boot drives, Max to 960GUp to 2x M.2 using NVMe data storage drives. Max to 7.68TBSED, high capacity, and high endurance drive optionsOptional encryption key deletion on tamper or theft detection
RAID Support
  • N/A
Mounting Options
  • Single node mounting options for desktop, VESA, DIN,1U 2N or 1U 3N rackmount
Power
  • Dual-redundant external power supplies 140W for stand alone1U2N, 1U3N in 1U enclosure with 300W power adapter
Network Interfaces (Wired)
  • 2x 1GbE1GbE RJ45 management port
Network Interfaces (Wireless)
  • N/A
Accelerators and PCIe Expansion
  • 1x PCIe G4 x8 HHHL (75W)Support for NVIDIA 2000E, NVIDIA A1000
Front I/O
  • 2x USB 3.2 Gen2 (Type-A)1x USB 3.2 Gen2 (Type-C, with XCC display), 1x USB 3.2 Gen2 (type-C, with XCC display )2x HDMI 2.01x RJ45 for RS232 serial COM
Rear I/O
  • 1x Type-C (Power), with locking screw1x Type-C (Power, BMC USB 2.0), support power redundancy with locking screw2x USB 3.2 Gen2 Type-A2x 1GbE+ 1x GbE management
Systems Management
  • Lenovo XClarity Administrator
Environmental
  • Extended operating temperature of 5 to 45°CSatisfy 15G shock & 0.15 Grms vibration, IEC 60068IP50 dust protection; noise level: 35 dBA (base node)MERV5 with expansion kit
Security
  • Security 2.0 with ThinkShield Key Vault or XCC managementOptional Key Vault SED encrypted storage for boot and data drivesLenovo Trusted Supplier Program, Secure boot, and Smart USB ProtectionsNIST SP800-193 compliance using hardware Root of Trust and Platform Firmware ResilienceTPM 2.0Intrusion tamper protectionOptional Kensington keyed lock compatible chassisType-C Locking screw
Operating Systems
  • Microsoft Windows 11 IoT Enterprise LTSC, Microsoft Windows 11 Enterprise, Ubuntu 24.04, RHEL 10.0*. Visit lenovopress.lenovo.com/osig for details.*Launch schedule work in process
Limited Warranty
  • 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
SKU: thinkedge-se100 Categorii: , , ,
Form Factor
  • Base node: Height: 53mm, Width: 142mm, Depth: 278mm, 2.1LWith Expansion Kit: Height: 53mm, Width: 214mm, Depth: 278mm, 3.1L
Processor
  • Intel® Core™ Ultra 7 processor 255H: 6P+8E+2LP-EIntel® Core™ Ultra 5 processor 225H :4P+8E+2LP-E
Memory
  • Up to 64GB in 2x slots, using 32GB CSODIMMs; Up to 6400MHz DDR5
Storage Options
  • 1x M.2 2280 boot drives, Max to 960GUp to 2x M.2 using NVMe data storage drives. Max to 7.68TBSED, high capacity, and high endurance drive optionsOptional encryption key deletion on tamper or theft detection
RAID Support
  • N/A
Mounting Options
  • Single node mounting options for desktop, VESA, DIN,1U 2N or 1U 3N rackmount
Power
  • Dual-redundant external power supplies 140W for stand alone1U2N, 1U3N in 1U enclosure with 300W power adapter
Network Interfaces (Wired)
  • 2x 1GbE1GbE RJ45 management port
Network Interfaces (Wireless)
  • N/A
Accelerators and PCIe Expansion
  • 1x PCIe G4 x8 HHHL (75W)Support for NVIDIA 2000E, NVIDIA A1000
Front I/O
  • 2x USB 3.2 Gen2 (Type-A)1x USB 3.2 Gen2 (Type-C, with XCC display), 1x USB 3.2 Gen2 (type-C, with XCC display )2x HDMI 2.01x RJ45 for RS232 serial COM
Rear I/O
  • 1x Type-C (Power), with locking screw1x Type-C (Power, BMC USB 2.0), support power redundancy with locking screw2x USB 3.2 Gen2 Type-A2x 1GbE+ 1x GbE management
Systems Management
  • Lenovo XClarity Administrator
Environmental
  • Extended operating temperature of 5 to 45°CSatisfy 15G shock & 0.15 Grms vibration, IEC 60068IP50 dust protection; noise level: 35 dBA (base node)MERV5 with expansion kit
Security
  • Security 2.0 with ThinkShield Key Vault or XCC managementOptional Key Vault SED encrypted storage for boot and data drivesLenovo Trusted Supplier Program, Secure boot, and Smart USB ProtectionsNIST SP800-193 compliance using hardware Root of Trust and Platform Firmware ResilienceTPM 2.0Intrusion tamper protectionOptional Kensington keyed lock compatible chassisType-C Locking screw
Operating Systems
  • Microsoft Windows 11 IoT Enterprise LTSC, Microsoft Windows 11 Enterprise, Ubuntu 24.04, RHEL 10.0*. Visit lenovopress.lenovo.com/osig for details.*Launch schedule work in process
Limited Warranty
  • 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades
