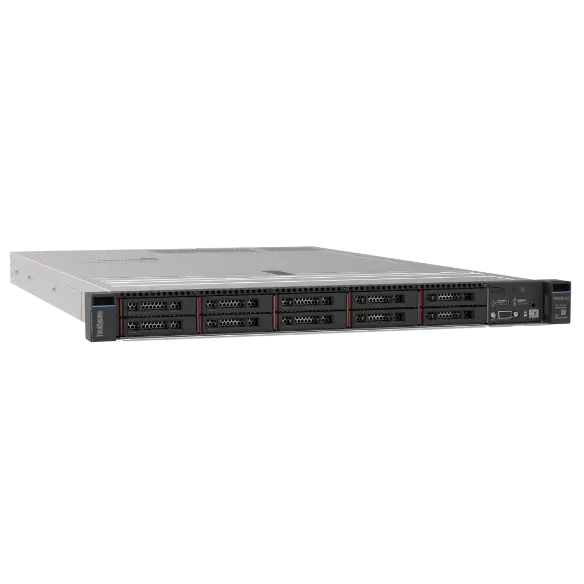

Lenovo ThinkSystem SR630 V3 Rack Server
Up to 2x 5th Gen Intel® Xeon® Scalable processorsUp to 32x TruDDR5 5600MHz memoryIndustry leading backplane technology with Lenovo AnyBay™ SSD/HDD drive supportUp to 12x low latency NVMe SSD for high performance storageSupport 16x EDSFF-based E1.S drivesUp to 5x PCIe Gen4/Gen5 slots + 1x OCP 3.0 for I/O flexibilityUp to 3x 75W GPUs for graphics-intensive workloads
- Up to 2x 5th Gen Intel® Xeon® Scalable processors
- Up to 32x TruDDR5 5600MHz memory
- Industry leading backplane technology with Lenovo AnyBay™ SSD/HDD drive support
- Up to 12x low latency NVMe SSD for high performance storage
- Support 16x EDSFF-based E1.S drives
- Up to 5x PCIe Gen4/Gen5 slots + 1x OCP 3.0 for I/O flexibility
- Up to 3x 75W GPUs for graphics-intensive workloads
Specifications
| Form Factor | 1U rack |
| Processor | Up to 2x 5th Gen Intel® Xeon® Scalable processors, up to 64 cores and 350W TDP |
| Drive Bays | Up to 4x 3.5″ or 12x 2.5″ or 16x EDSFF E1.S drivesFront: up to 4x 3.5 / 10x 2.5″ /16x EDSFF E1.short hot swap drivesRear: 2x 2.5â€; 7mm SATA/NVMe hot-swap boot drives, support RAIDInternal 2x M.2 SATA/NVMe boot drives, support RAIDDirect NVMe, VROC/VMD, and onboard SATA with SW RAID (0,1,5,10) |
| Memory | Supports up to 32x TruDDR5 3DS/RDIMMs |
| Expansion Slots | Up to 5x PCIe 4.0/5.0 slots, 1x OCP 3.0 slot, 1x cabled internal HBA/RAID adapter that doesn’t occupy a standard PCIe slot |
| GPUs | Up to 4x single-width GPUs or 2x double-width GPUs |
| Network Interface | LOM adapter installed in the OCP 3.0 slot, optional for front access Networking PCIe adapters |
| Ports | Front: 1x USB 3.1 G1, 1x USB 2.0 for BMC, 1x VGA (optional), 1x external diagnostics handset port (optional)Rear: 3x USB 3.0 G1, 1x VGA, 1x 1GbE RJ45 (management), 2nd 1GbE management port (optional in OCP slot location), and 1x Serial port (optional) |
| HBA/RAID Support | SATA with SW RAID (0,1,5,10); Common building blocks including standard and Internal PCIe RAID/HBA adapters. |
| Power | Dual Redundant AC & DC; Platinum & Titanium; 750W, 1100W, 1800W, and 1100W -48V DC Platinum |
| Systems Management | Lenovo XClarity Controller |
| OS Support | Microsoft, SUSE, Red Hat, VMware. Visit lenovopress.com/osig for more information. |
| Limited Warranty | 1-year and 3-year customer replaceable unit and onsite service, next business day 9×5; optional service upgrades. |
