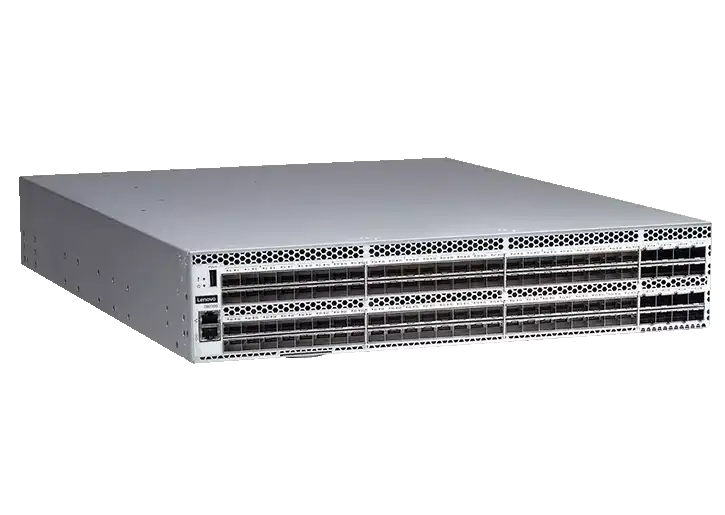

Lenovo ThinkSystem DB730S FC SAN Switch
Create scalable and secure SAN fabrics with the highest-density Gen 7 64G Switch designed for extreme performance and autonomous SAN capabilities.
Create scalable and secure SAN fabrics with the highest-density Gen 7 64G Switch designed for extreme performance and autonomous SAN capabilities.
Specifications
| Models | 64G: 48 active ports with 64Gbps SWL FC transceivers (R airflow) 64G: 48 active ports with 64Gbps SWL FC transceivers (F airflow like Telco) |
| Fibre Channel ports | ​128 ports (96 64G SFP+ ports, plus 16 2x64G SFP-DD ports), each supporting E_Ports, F_Ports, M_Ports, D_Ports, and EX_Ports ​48-port base configuration; additional ports are enabled with two 24-port SFP+ PODs (Ports on Demand), plus a 32-port SFP-DD POD (16 2x64G SFP-DD transceivers), scaling the switch from 48 ports to 128 ports. |
| Port on Demand Options | 24-Port SW License with 64Gbps SWL FC transceivers 32-Port SW License with 64Gbps SWL SFP-DD FC transceivers |
| Aggregate bandwidth/td> | 8.192Tb/s |
| Maximum fabric latency | Latency for locally switched ports is 460 ns (including FEC). |
| Media types (Brocade transceivers required) | 64G FC: hot-pluggable SFP-DD, SN connector; 64Gb/s SWL. 64G FC: hot-pluggable SFP+, LC connector; 64Gb/s SWL, LWL 10 km, ELWL 25 km. 32G FC: hot-pluggable SFP+, LC connector; 32Gb/s SWL, LWL 10 km, ELWL 25 km. 10G FC: hot-pluggable SFP+, LC connector; 10Gb/s SWL, LWL 10 km. Fibre Channel distance is subject to fiber-optic cable and port speed. |
| Rack-mount rail kits | Fixed rail kit is included standard, Mid-mount rack kit optional |
| Software Included | Enterprise Software: Trunking, Fabric Vision, Extended Fabric and Integrated Routing |
| Enclosure | (R) Back-to-front airflow; non-port-side intake; power from back, 2U (F) Front-to-back airflow; non-port-side exhaust; power from back, 2U |
| Power supply | Dual, hot-swappable redundant power supplies with integrated system cooling fans and status LEDs. 80 Plus Gold |
| Warranty | 3-year hardware and firmware/FOS (upgrades available) |
