Supermicro SuperServer SYS-530MT-H12TRF

Favorite

Compara

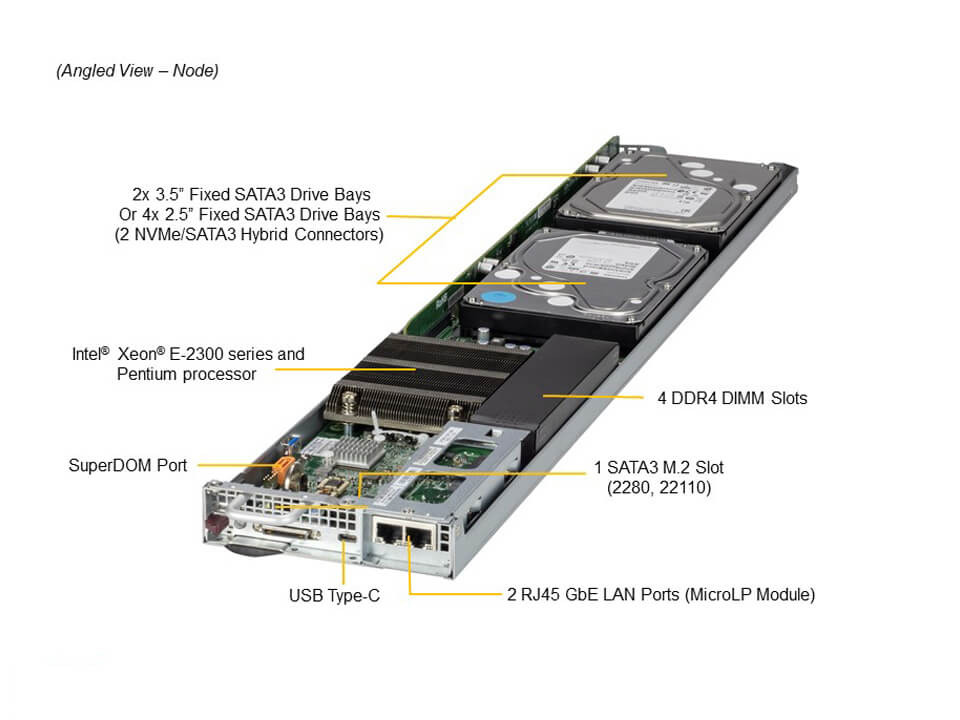

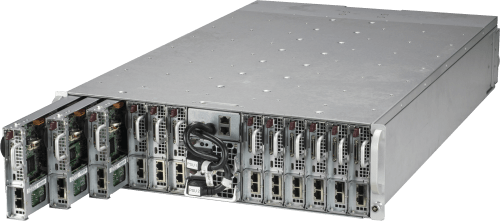

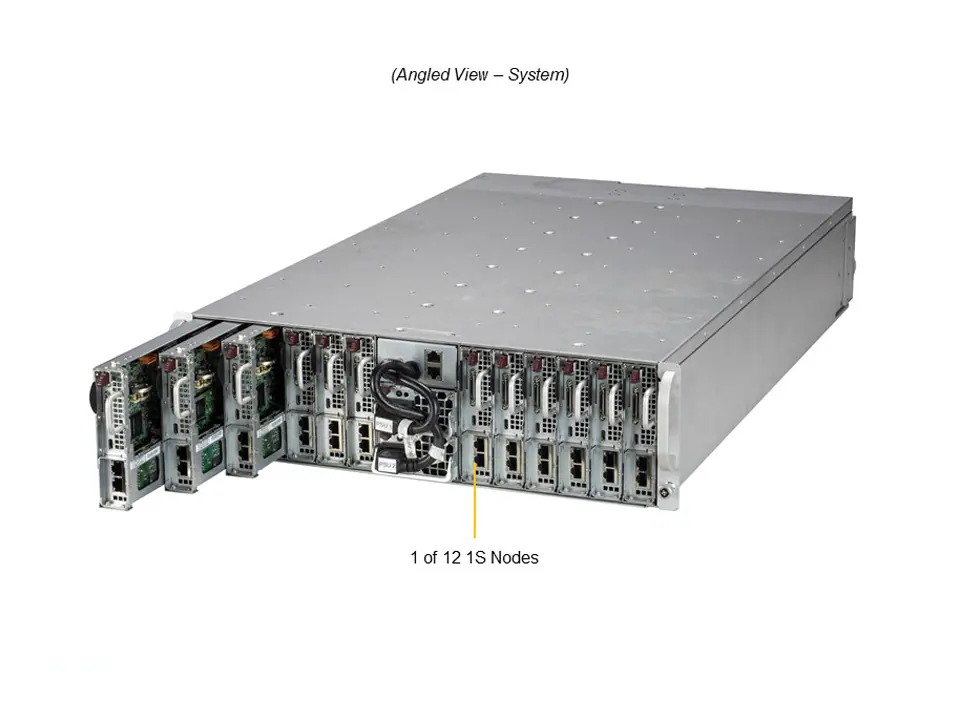

3U 12-Node MicroCloud with 2 internal fixed 3.5″ NVMe/SAS drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-530MT-H12TRF

3U 12-Node MicroCloud with 2 internal fixed 3.5″ NVMe/SAS drives per node

Key Features

12 set of Intel® Xeon® E-2300 series and Pentium processor
Intel® C256
12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
12 set of Dual 1GbE LAN Ports
12 set of 2x internal 3.5″ SATA3 (6Gbps) (or) 4x 2.5″ SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
4x 8cm Heavy duty fans with optimal cooling zone
2200W Redundant Titanium Level high-efficiency power supplies with PMBus

Specifications

Product SKUs
SuperServer SYS-530MT-H12TRF
Motherboard

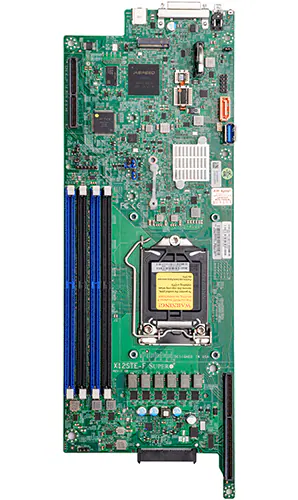

Super X12STE-F
Processor (per Node)
CPU	Single Socket H5 (LGA-1200) Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
Core Count	Up to 8C/16T; Up to 16MB Cache
Note	Supports 80W – 95W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
Memory Voltage	1.2V
On-Board Devices (per Node)
SATA	SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
Network Connectivity	No NIC option supported
Input / Output (per Node)
LAN	2 RJ45 1 GbE LAN ports (Intel® I350)
USB	2 USB 2.0 ports 1 Type-C port(front)
Video	1 port
DOM	1 SATA DOM (Disk on Module) port
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI 6.0 Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
FAN	Fan speed control, Dual Cooling Zone
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-530MT-H12TRF
Super X12STE-F
Chassis
Form Factor	3U Rackmount
Model	CSE-939HN-R2K20BP
Dimensions and Weight
Height	5.21″ (132.5 mm)
Width	17.5″ (444.5 mm)
Depth	29.5″ (749.3 mm)
Package	16.1″ (H) x 28.35″ (W) x 42.36″ (D)
Weight	Gross Weight: 125 lbs (56.7 kg) Net Weight: 95 lbs (43.09 kg)
Available Color	Black

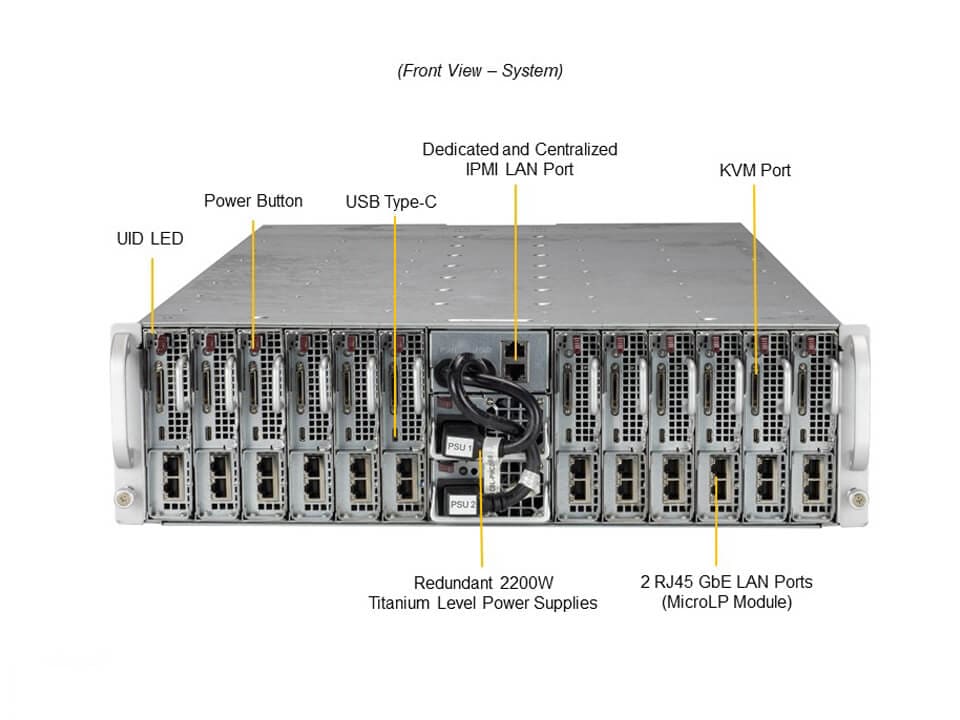

Front Panel
Buttons	Power On/Off
LED	UID LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 4.0 x8 MicroLP slot 1 PCIe 4.0 x8 MicroLP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 2 bays2 internal fixed 3.5″ NVMe/SAS drive bays 2 internal fixed 3.5″ NVMe/SAS drive bays Option A: Total 4 bays4 internal fixed 2.5″ NVMe/SATA drive bays 4 internal fixed 2.5″ NVMe/SATA drive bays
M.2	1 M.2 SATA slot (M-key 2280/22110) View M.2 Options

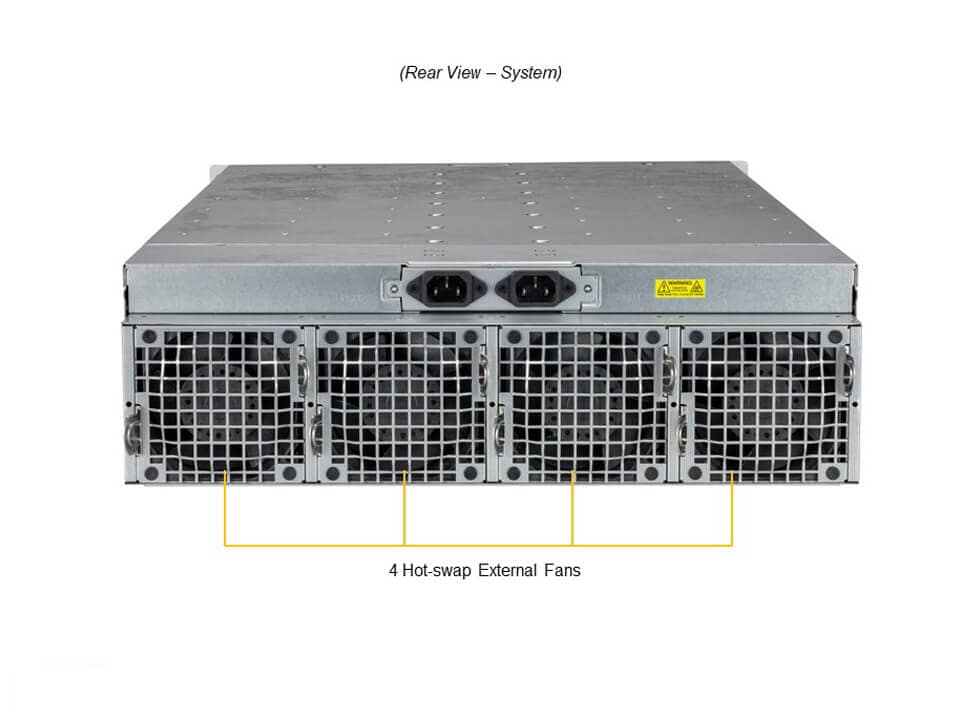

System Cooling
Fans	Up to 4 Heavy Duty 9cm Fan(s)
Air Shroud	12 Air Shrouds
Power Supply
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 220-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	76 x 40 x 336 mm
Input	1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 220-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vdc-240Vdc)
5V SB	Max: 1A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 2200W 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1200W: 100-127Vac 1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz 2090W: 230-240Vdc / 50-60Hz (for CCC only)2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)2200W: 220-240Vac 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (100Vdc-127Vdc)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (230Vac-240Vac)Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)Max: 183.33A / Min: 0A (220Vdc-240Vdc) 5V SBMax: 1A / Min: 0A Output TypeBackplanes (gold finger)
Standard Parts (Parts Included)
Optional Parts List
