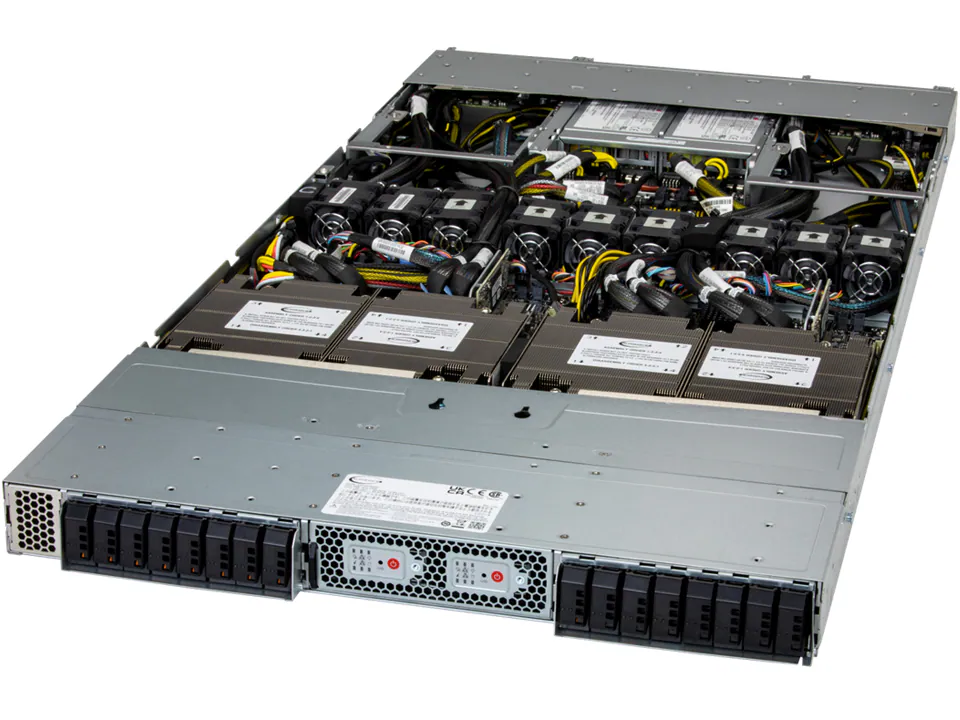

Supermicro SuperServer ARS-121L-DNR

Favorite

Compara

1U 2-Node NVIDIA Grace CPU Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Pretul afisat contine TVA (21%).

SuperServer ARS-121L-DNR

1U 2-Node NVIDIA Grace CPU Superchip system supporting NVIDIA BlueField-3 or NVIDIA ConnectX-7

Key Features

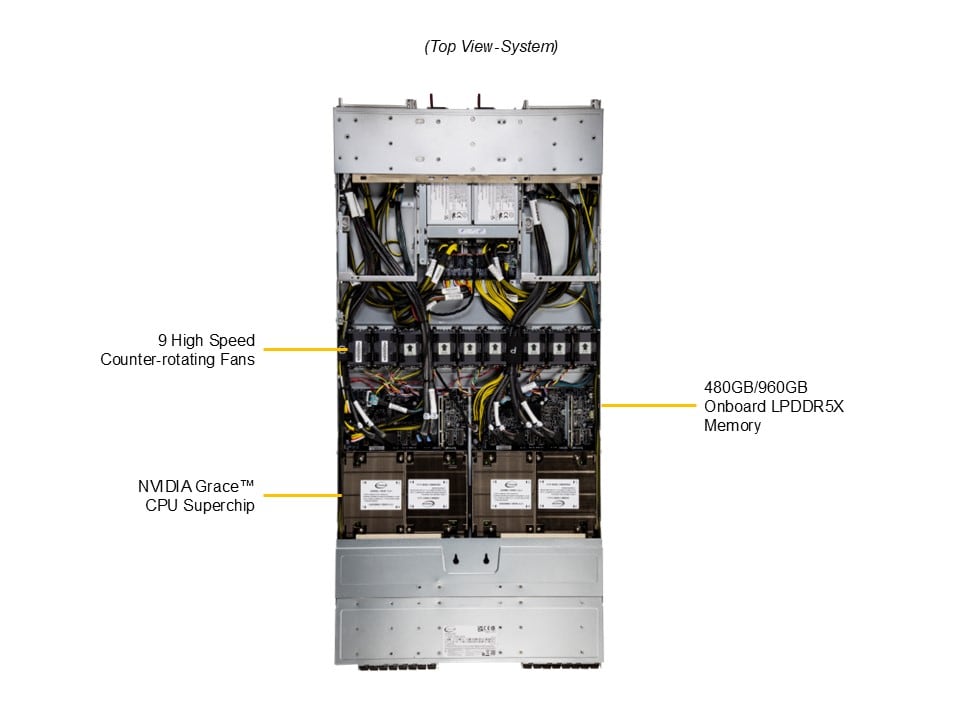

High density 1U 2-node system with NVIDIA Grace™ CPU Superchip per node
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s
Up to 960GB LPDDR5X onboard memory (per node)
2x PCIe 5.0 x16 slots per node supporting NVIDIA BlueField®-3 or ConnectX®-7

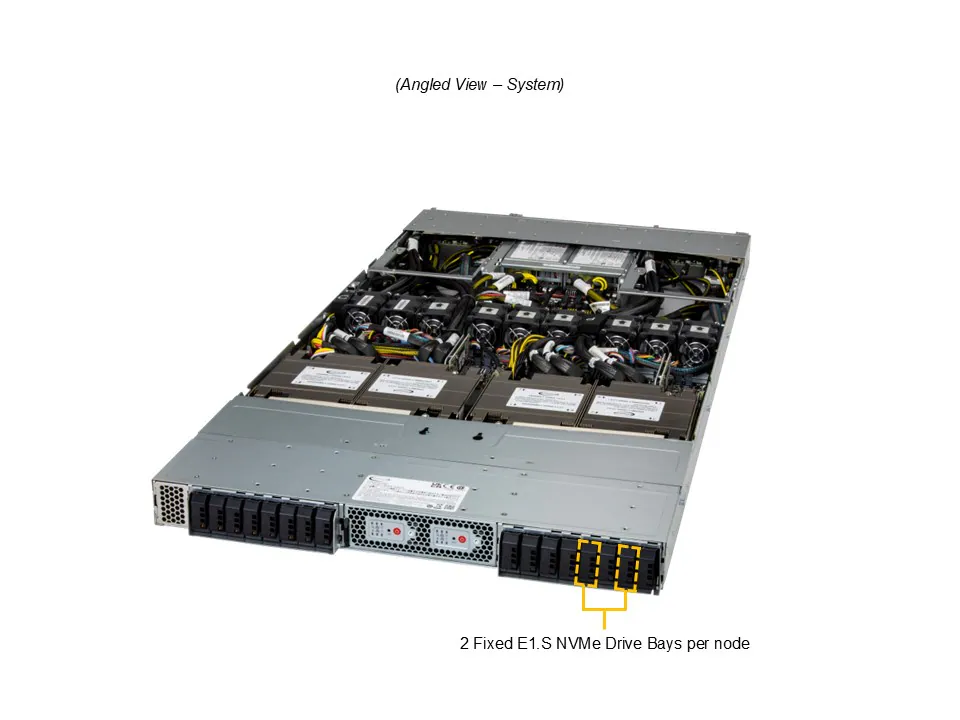

Up to 2x Hot-swap E1.S drives and 2x M.2 NVMe drives per node
7 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

Specifications

Product SKUs
ARS-121L-DNR
Motherboard

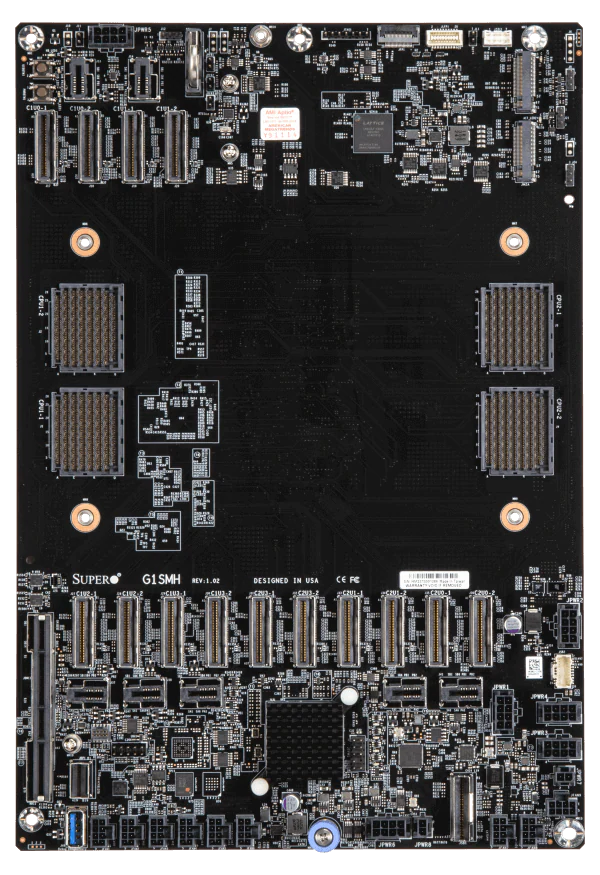

Super G1SMH
Processor (per Node)
CPU	Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note	Supports up to 500W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: Onboard Memory Max Memory: Up to 960GB ECC
On-Board Devices (per Node)
Input / Output (per Node)

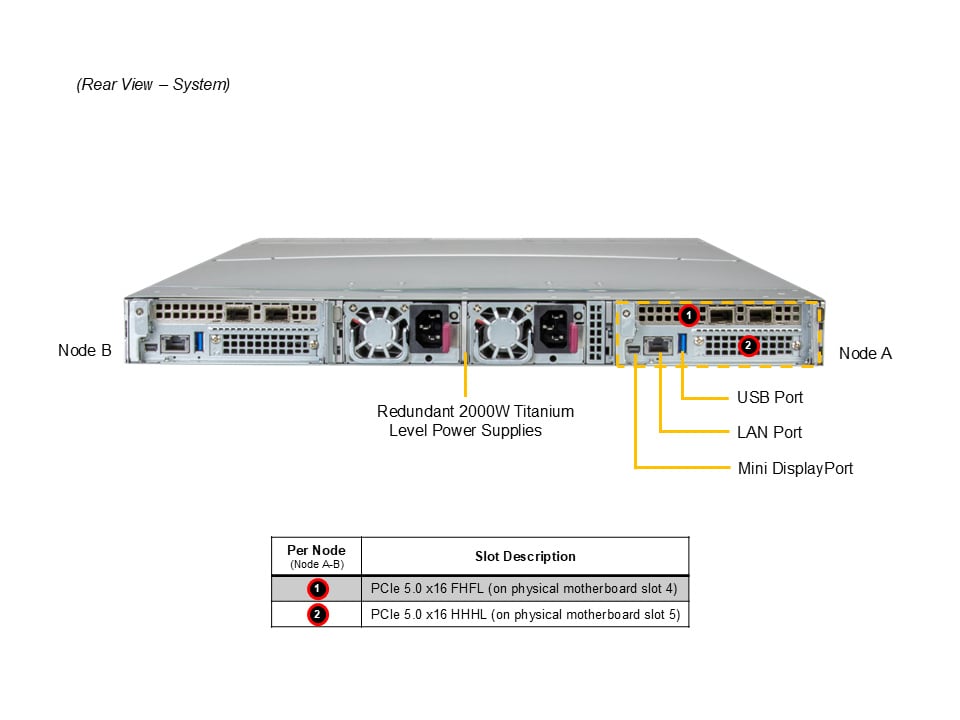

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 ports(rear)
Video	1 mini-DP port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Power configurations	Power-on mode for AC power recovery ACPI Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
ARS-121L-DNR
Super G1SMH
Chassis
Form Factor	1U Rackmount
Model	CSE-GP102TS-R000NDFP
Dimensions and Weight
Height	1.75″ (44 mm)
Width	17.33″ (440 mm)
Depth	37″ (940 mm)
Package	9.5″ (H) x 28″ (W) x 48″ (D)
Weight	Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg)
Available Color	Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage (per Node)

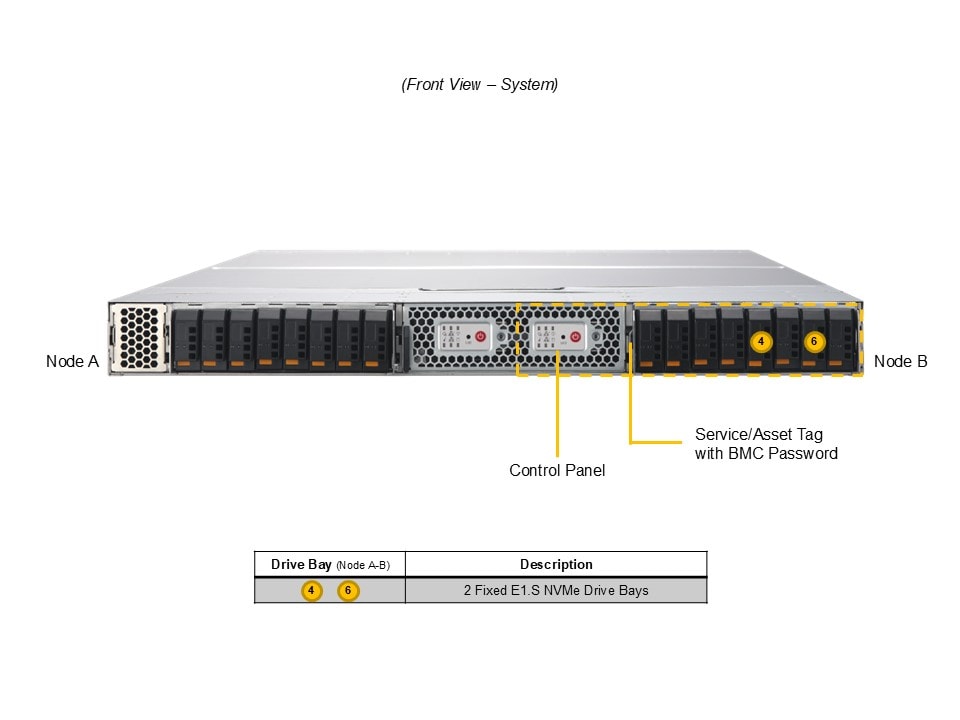

Drive Bays Configuration	Default: Total 4 bays4 front hot-swap E1.S NVMe drive bays 4 front hot-swap E1.S NVMe drive bays
M.2	4 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 9 Removable heavy-duty 4cm Fan(s)
Power Supply
2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)

SKU: ars-121l-dnr Categorii: BRAND, gpu, Server&Storage, SUPERMICRO

Product SKUs
ARS-121L-DNR
Motherboard
Super G1SMH
Processor (per Node)
CPU	Dual processor(s) NVIDIA Dual 72-core CPUs on a Grace™ CPU Superchip
Note	Supports up to 500W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory	Slot Count: Onboard Memory Max Memory: Up to 960GB ECC
On-Board Devices (per Node)
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 ports(rear)
Video	1 mini-DP port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Power configurations	Power-on mode for AC power recovery ACPI Power Management
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
ARS-121L-DNR
Super G1SMH
Chassis
Form Factor	1U Rackmount
Model	CSE-GP102TS-R000NDFP
Dimensions and Weight
Height	1.75″ (44 mm)
Width	17.33″ (440 mm)
Depth	37″ (940 mm)
Package	9.5″ (H) x 28″ (W) x 48″ (D)
Weight	Gross Weight: 65.5 lbs (29.7 kg) Net Weight: 48.5 lbs (22 kg)
Available Color	Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 4 bays4 front hot-swap E1.S NVMe drive bays 4 front hot-swap E1.S NVMe drive bays
M.2	4 M.2 NVMe slots (M-key) View M.2 Options
System Cooling
Fans	Up to 9 Removable heavy-duty 4cm Fan(s)
Power Supply
2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
2x 2000W 2x 2000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
