Supermicro SuperServer SYS-212GB-FNR

Favorite

Compara

UP Intel 2U PCIe GPU System with up to 4 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200

Pretul afisat contine TVA (21%).

SuperServer SYS-212GB-FNR

UP Intel 2U PCIe GPU System with up to 4 NVIDIA RTX PRO™ 6000 Blackwell Server Edition or NVIDIA H200

Key Features

Single Socket E2 (LGA-4710) Intel® Xeon® 6700-series processors with P-cores up to 350W with air cooling
Support for up to 4 double-width PCIe GPU accelerator cards
Up to 16 DIMMs supporting up to 1TB DDR5-6400 in 1DPC or 2TB DDR5-5200 in 2DPC or 512GB DDR5-8000 in 1DPC
Up to 4 PCIe 5.0 x16 FHFL double-width + 3 PCIe 5.0 x16 FHFL slots
Up to 4 rear hot-swap E1.S NVMe drive bays
Two 2700W Titanium Level power supplies

Specifications

Product SKUs
SuperServer SYS-212GB-FNR
SuperServer SYS-212GB-FNR-01-G2 Gold Series version with pre-configured components
Motherboard
Super X14SBGM
Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores
Core Count	Up to 80C/160T
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 double-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory	Slot Count: 16 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 3.0 Type-A port(Rear)
Video	1 mini-DP port
System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-212GB-FNR
SuperServer SYS-212GB-FNR-01-G2 Gold Series version with pre-configured components
Super X14SBGM
Chassis
Form Factor	2U Rackmount
Model	CSE-MG204-R000NDFP
Dimensions and Weight
Height	3.43″ (87 mm)
Width	17.3″ (438.4 mm)
Depth	35.43″ (900 mm)
Package	11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight	Gross Weight: 84 lbs (38 kg) Net Weight: 66 lbs (30 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LED	HDD activity
Expansion Slots

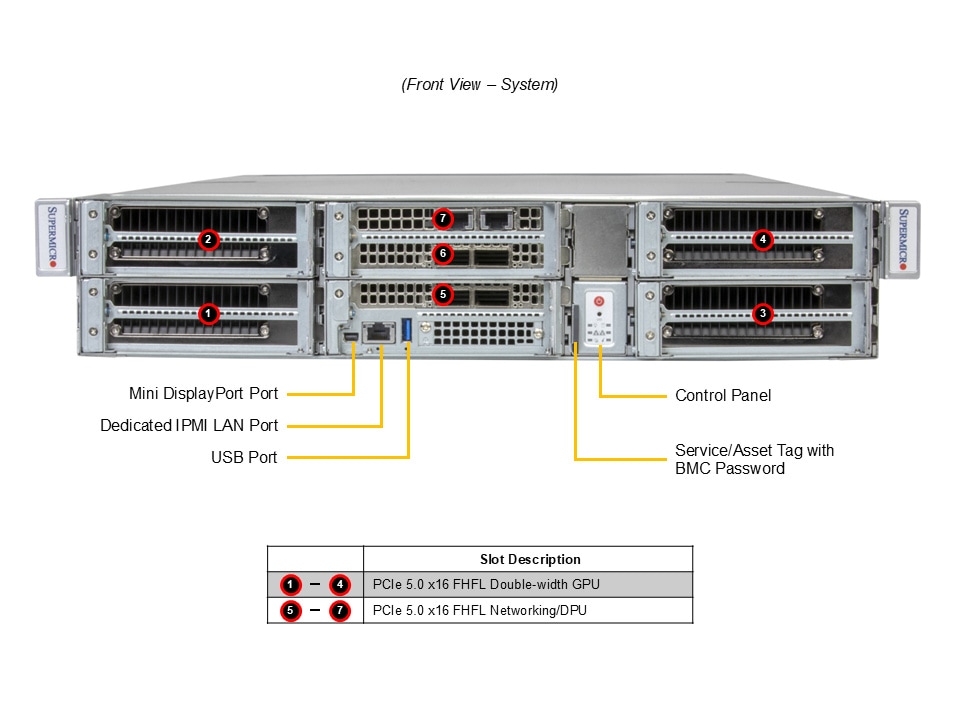

PCI-Express (PCIe) Configuration	Default4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots 4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage

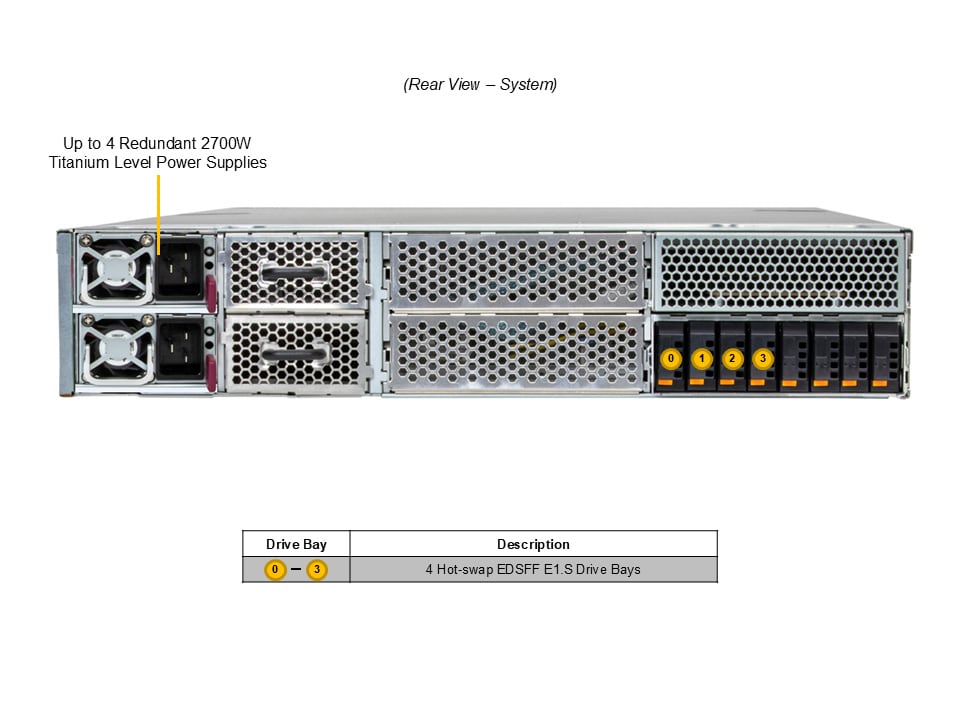

Drive Bays Configuration	Default: Total 4 bays4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays 4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling

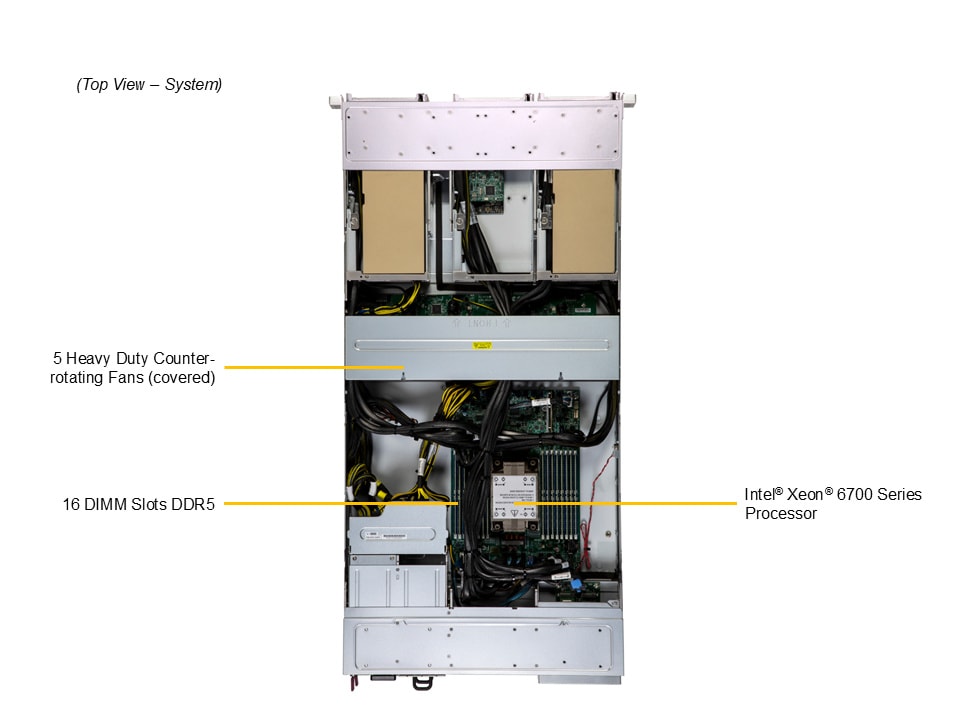

Fans	5x 8cm heavy duty fans with optimal fan speed control
Power Supply
2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

SKU: sys-212gb-fnr Categorii: BRAND, gpu, Server&Storage, SUPERMICRO

Product SKUs
SuperServer SYS-212GB-FNR
SuperServer SYS-212GB-FNR-01-G2 Gold Series version with pre-configured components
Motherboard
Super X14SBGM
Processor
CPU	Single Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores
Core Count	Up to 80C/160T
Note	Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 double-width GPUs
Supported GPU	NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory	Slot Count: 16 DIMM slots/8 Channels Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	1 USB 3.0 Type-A port(Rear)
Video	1 mini-DP port
System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! Plug-ins for 3rd Party Software
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-212GB-FNR
SuperServer SYS-212GB-FNR-01-G2 Gold Series version with pre-configured components
Super X14SBGM
Chassis
Form Factor	2U Rackmount
Model	CSE-MG204-R000NDFP
Dimensions and Weight
Height	3.43″ (87 mm)
Width	17.3″ (438.4 mm)
Depth	35.43″ (900 mm)
Package	11.02″ (H) x 27.56″ (W) x 47.24″ (D)
Weight	Gross Weight: 84 lbs (38 kg) Net Weight: 66 lbs (30 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off
LED	HDD activity
Expansion Slots
PCI-Express (PCIe) Configuration	Default4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots 4 PCIe 5.0 x16 FHFL double-width slots 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays 4 rear hot-swap E1.S PCIe 5.0 x4 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	5x 8cm heavy duty fans with optimal fan speed control
Power Supply
2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 185 mm
Input	2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB	Max: 4A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
2x 2700W 2x 2700W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
