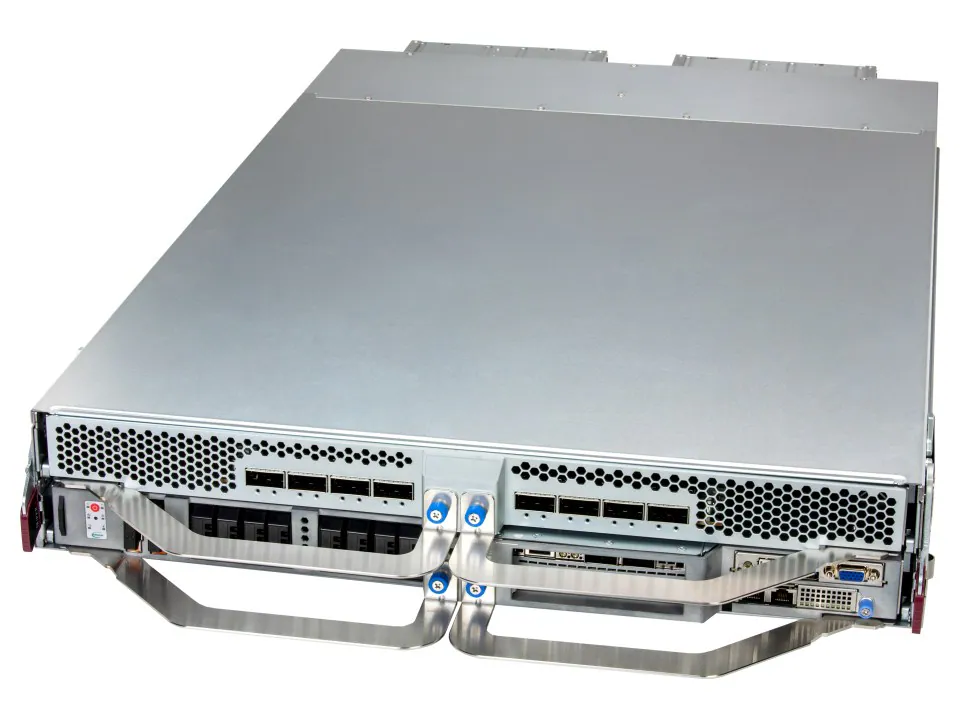

DP Intel 2-OU (OCP ORV3) Liquid-Cooled System with NVIDIA HGX B300 8-GPU (complete rack and onsite service are required)

Pretul afisat contine TVA (21%).

SuperServer SYS-222GS-NB3OT-ALC

DP Intel 2-OU (OCP ORV3) Liquid-Cooled System with NVIDIA HGX B300 8-GPU (complete rack and onsite service are required)

Key Features

  1. 21†OCP ORV3 Rack compatible, 1400A busbar with power shelves, DC-SCM Support
  2. Dual Intel® Xeon® 6700 series processors with P-cores, up to 350W TDP
  3. NVIDIA HGX B300 8-GPU with 5th Generation NVLink® 1.8TB/s, 2.3TB of HBM3e GPU memory per system
  4. 8x NVIDIA ConnectX®-8 SuperNICs, up to 800Gb/s, up to two NICs for North/South traffic
  5. 32x DIMMs with up to 8TB at 5200MT/s or up to 4TB at 6400MT/s DDR5 RDIMM
  6. 8x Hot-swap E1.S NVMe storage drive bays and 2x M.2 NVMe boot drives
  7. 2x 10GbE RJ45 via AIOM card

Specifications

Product SKUs
  • SuperServer SYS-222GS-NB3OT-ALC

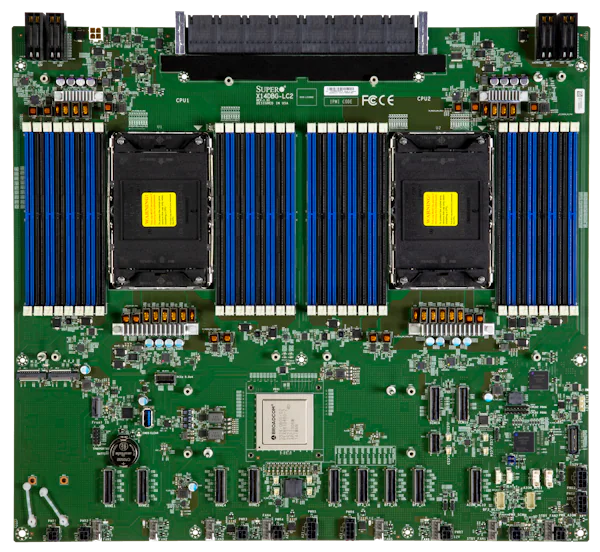

Motherboard
  • Super X14DBG-LC2
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700-series processors with P-cores
Core Count
  • Up to 86C/172T; Up to 335MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Liquid Cooled)​
GPU
Max GPU Count
  • 8 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX B300 8-GPU (288GB)
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ with NVSwitch™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Input / Output
LAN
  • 2 RJ45 10 GbE LAN ports (Intel® X710)
  • 8 OSFP 800 Gb/s InfiniBand LAN ports (NVIDIA ConnectX®-8 SuperNIC)
  • 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) (via DC-SCM)
Video
  • 1 VGA port(Front)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB UEFI
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-222GS-NB3OT-ALC
  • Super X14DBG-LC2
Chassis
Form Factor
  • 2-OU Rackmount
Model
  • CSE-GP202TS-000NP
Dimensions and Weight
Height
  • 3.7″ (94 mm)
Width
  • 21.1″ (537 mm)
Depth
  • 31.69″ (805 mm)
Package
  • 12.79″ (H) x 28.74″ (W) x 50.39″ (D)
Weight
  • Gross Weight: 176 lbs (80 kg)
  • Net Weight: 154 lbs (70 kg)
Available Color
  • Silver

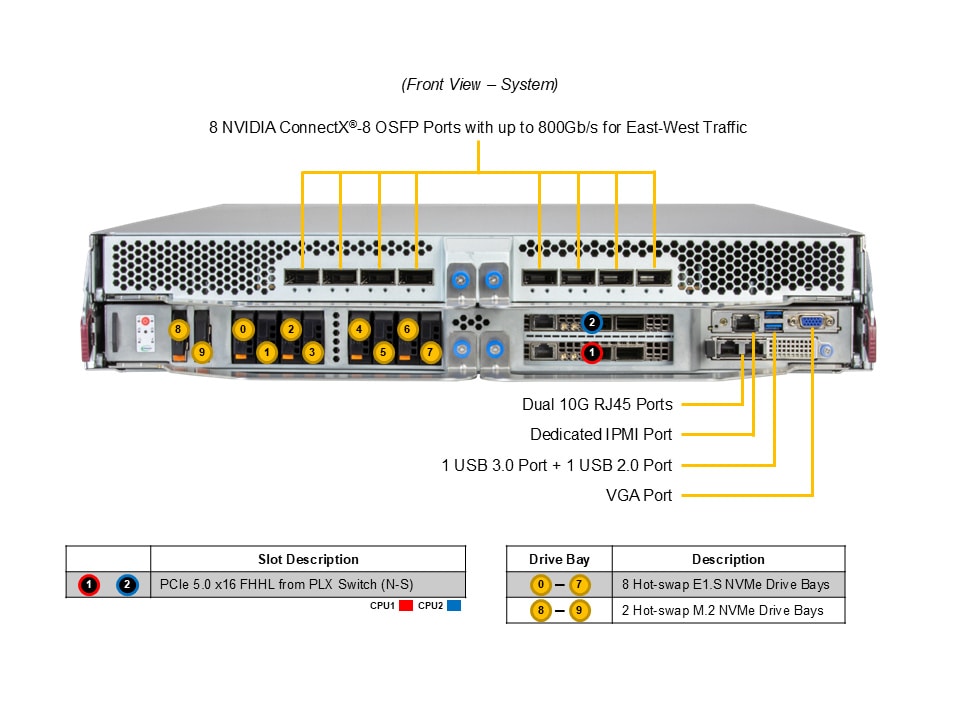

Front Panel
Buttons
  • Power On/Off
LED
  • Network activity LEDs
  • UID
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 (in x16) FHHL slots
  • 2 PCIe 5.0 x16 (in x16) FHHL slots

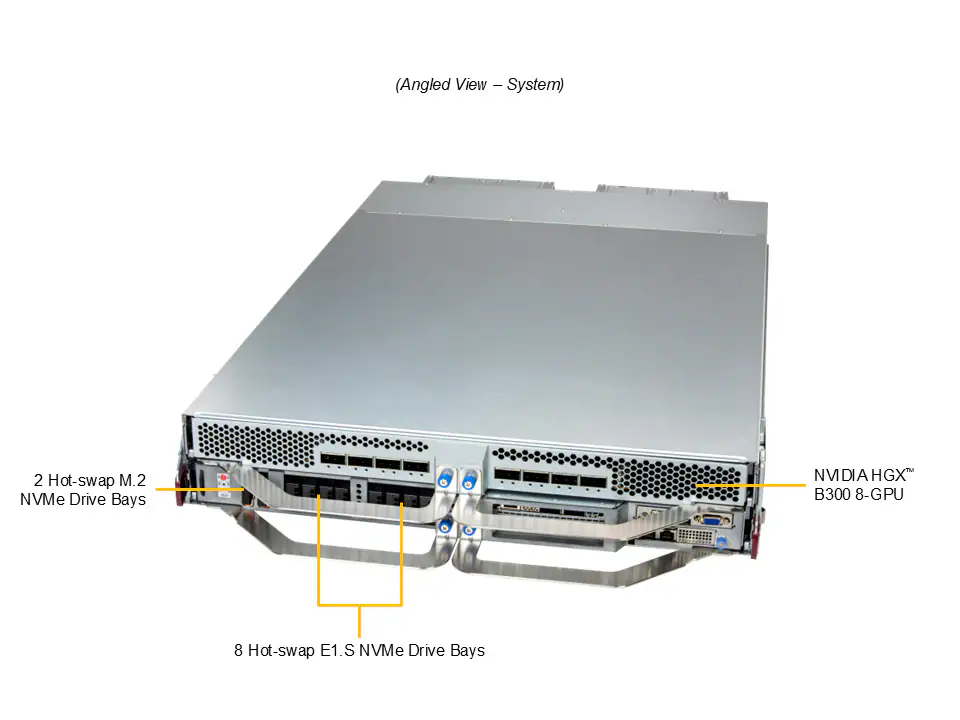

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap E1.S NVMe drive bays
  • 8 front hot-swap E1.S NVMe drive bays
M.2
  • 2 M.2 NVMe slots (M-key; RAID support via S3808N controller)
  • View M.2 Options

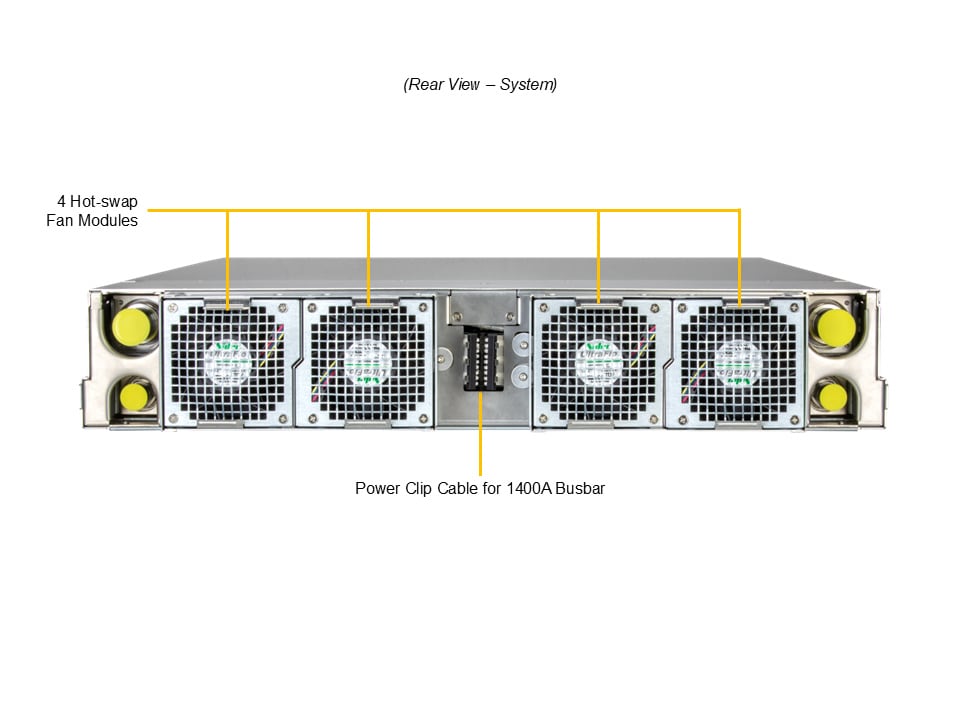

System Cooling
Fans
  • Up to 4 Fan 80mm Fan(s)
  • Up to 4 Fan 40mm Fan(s)
Air Shroud
  • 3 Air Shrouds
Liquid Cooling
  • Direct to Chip (D2C) Cold Plate
Power Supply
  • Power via Busbar (48-52V DC)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • Power via Busbar (48-52V DC)
