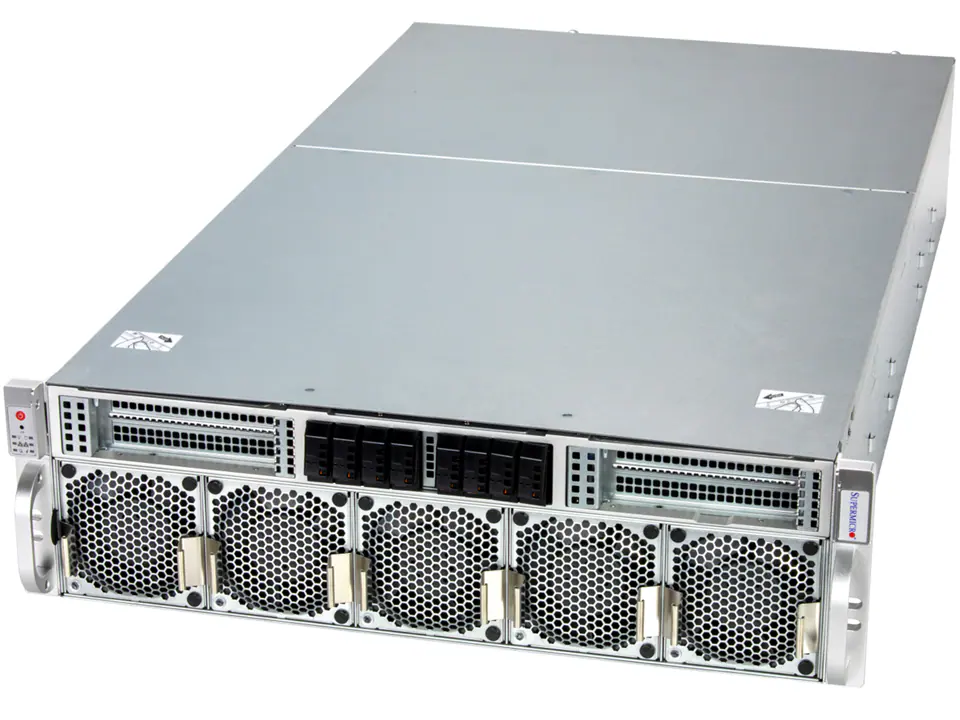

Supermicro SuperServer SYS-322GA-NR
Supermicro SuperServer SYS-322GA-NR - imagine 2

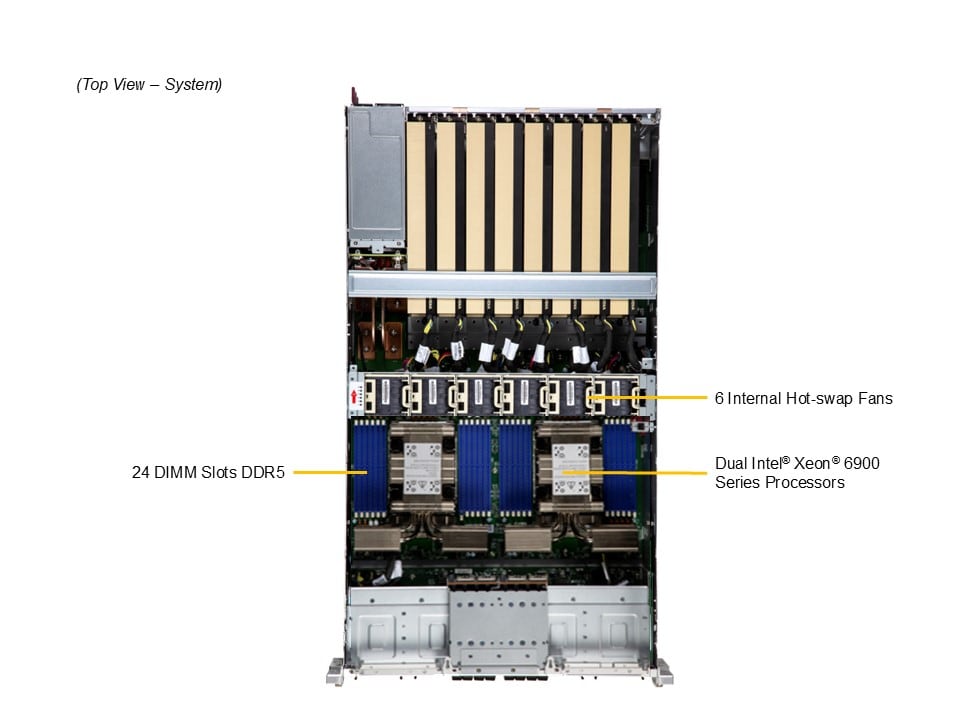

Supermicro SuperServer SYS-322GA-NR - imagine 3
Supermicro SuperServer SYS-322GA-NR - imagine 4
Supermicro SuperServer SYS-322GA-NR - imagine 5
Supermicro SuperServer SYS-322GA-NR - imagine 6
Supermicro SuperServer SYS-322GA-NR - imagine 7
Supermicro SuperServer SYS-322GA-NR - imagine 8
Supermicro SuperServer SYS-322GA-NR - imagine 9
Supermicro SuperServer SYS-322GA-NR - imagine 10
, , ,

Supermicro SuperServer SYS-322GA-NR

Favorite
Compara

3U Intel DP Edge Data Center System with Up to 10 PCIe 5.0 x16 slots + Up to 14 E1.S NVMe Drives

Pretul afisat contine TVA (21%).

SuperServer SYS-322GA-NR

3U Intel DP Edge Data Center System with Up to 10 PCIe 5.0 x16 slots + Up to 14 E1.S NVMe Drives

Key Features

  1. Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
  2. 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 6TB 8800MT/s DDR5 MRDIMM
  3. Up to 10 PCIe 5.0 x16 FHFL or 20 PCIe 5.0 x8 FHFL slots
  4. 6/8/14 hot-swap E1.S NVMe drive bays or 2/4/6 hot-swap 2.5″ NVMe drive bays
  5. 3x 3200W or 2700W Redundant (2+1) Titanium Level power supplies
  6. Support up to 8 Double Width Full Height Full Length GPU or 19 Single Width GPU

Specifications

Product SKUs
  • SuperServer SYS-322GA-NR
Motherboard
  • Super X14DBG-XAP
Processor
CPU
  • Dual Socket BR (LGA-7529)
  • Intel® Xeon® 6900 series processors with P-cores
Core Count
  • 128C/256T; 504MB Cache per CPU
Note
  • Supports up to 500W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 8 double-width or 19 single-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, A10, H200 NVL (141GB), L40S, NVIDIA RTX PRO™ 4000 Blackwell, NVIDIA RTX PRO™ 5000 Blackwell, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Server Edition, RTX 5000 Ada
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe, NVIDIA® NVLink™
System Memory
Memory
  • Slot Count: 24 DIMM slots/1 Channels
  • Max Memory (1DPC): 6TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (1DPC): 6TB 8800MT/s ECC DDR5 MRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.2 Gen1 Type-A ports
Video
  • 1 VGA port
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-322GA-NR
  • Super X14DBG-XAP
Chassis
Form Factor
  • 3U Rackmount
Model
  • CSE-MX301TS-R0NDFP
Dimensions and Weight
Height
  • 5.2″ (132.1 mm)
Width
  • 17.26″ (438.4 mm)
Depth
  • 31.5″ (800 mm)
Package
  • 13″ (H) x 29″ (W) x 47″ (D)
Weight
  • Gross Weight: 135 lbs (61.24 kg)
  • Net Weight: 70 lbs (32 kg)
Available Color
  • Silver
Front Panel
LED
  • Universal Information (UID) LED

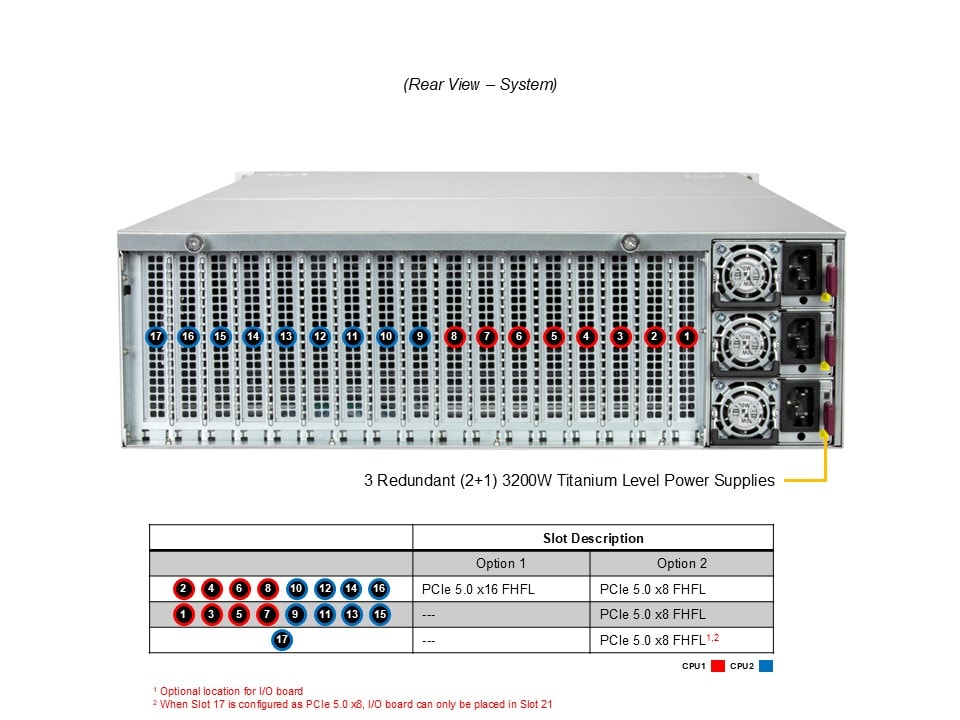

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default8 PCIe 5.0 x16 (in x16) FHFL double-width slots
  • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
  • Option A*8 PCIe 5.0 x16 (in x16) FHFL double-width slots 2 PCIe 5.0 x16 (in x16) FHFL slots
  • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
  • 2 PCIe 5.0 x16 (in x16) FHFL slots
  • Option B*20 PCIe 5.0 x8 (in x16) FHFL slots
  • 20 PCIe 5.0 x8 (in x16) FHFL slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
CXL Support
  • Up to 17 CXL 2.0 x16/x8 devices
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280)
Drive Bays / Storage
Drive Bays Configuration

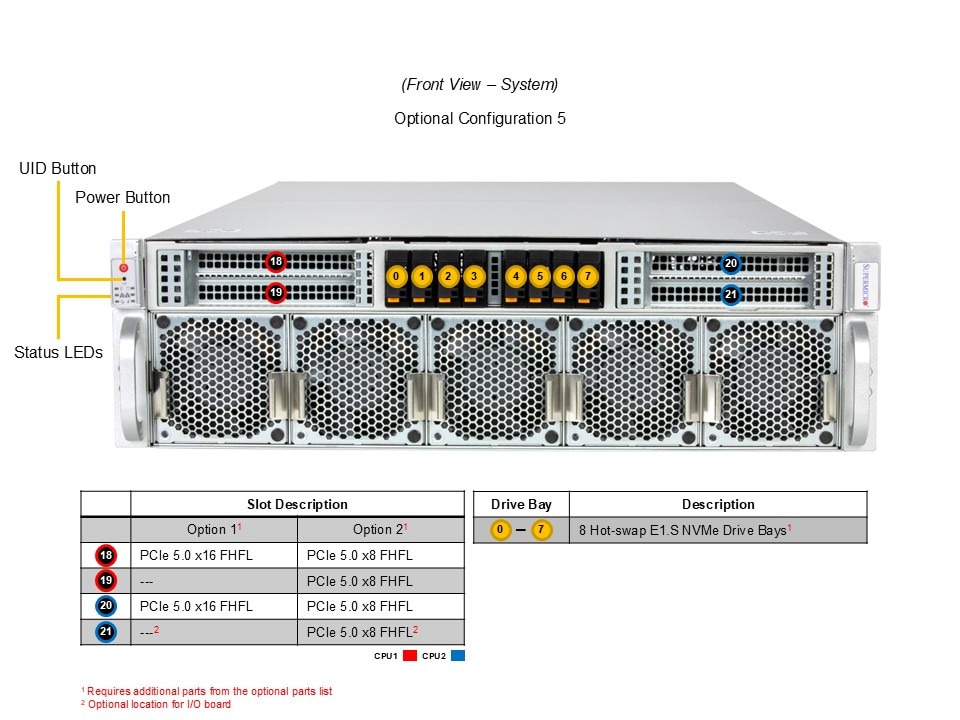

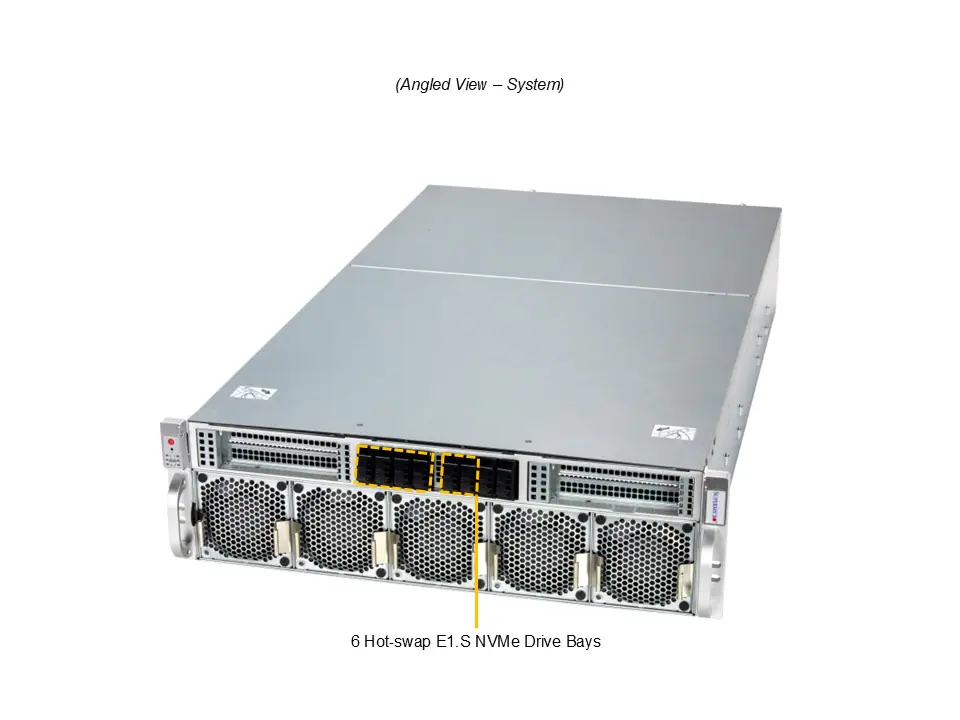

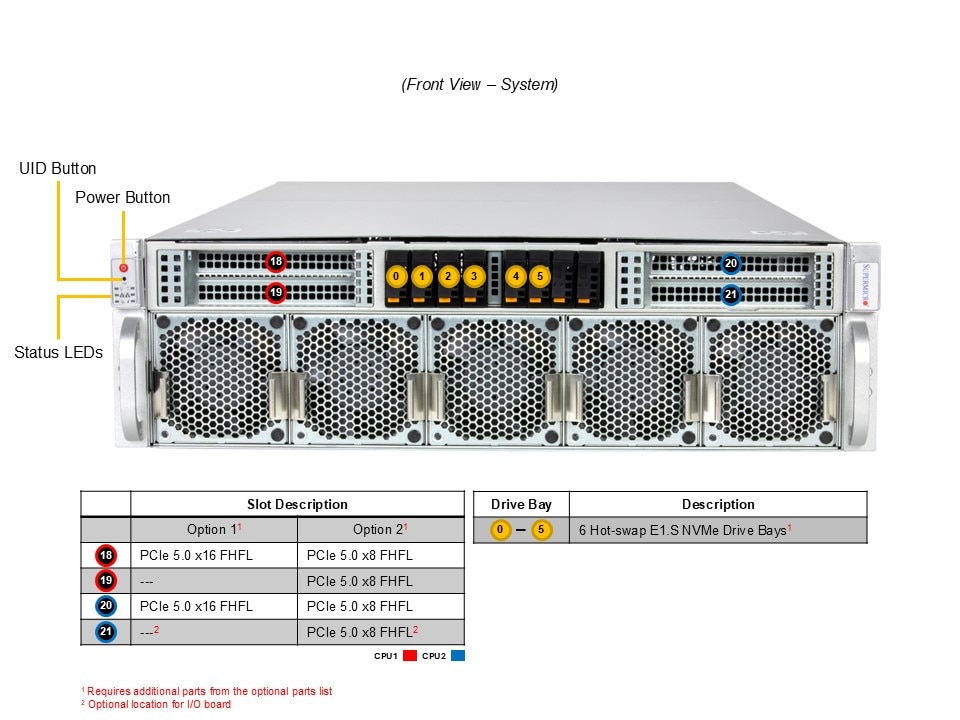

  • Option A: Total 6 bays6 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
  • 6 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays

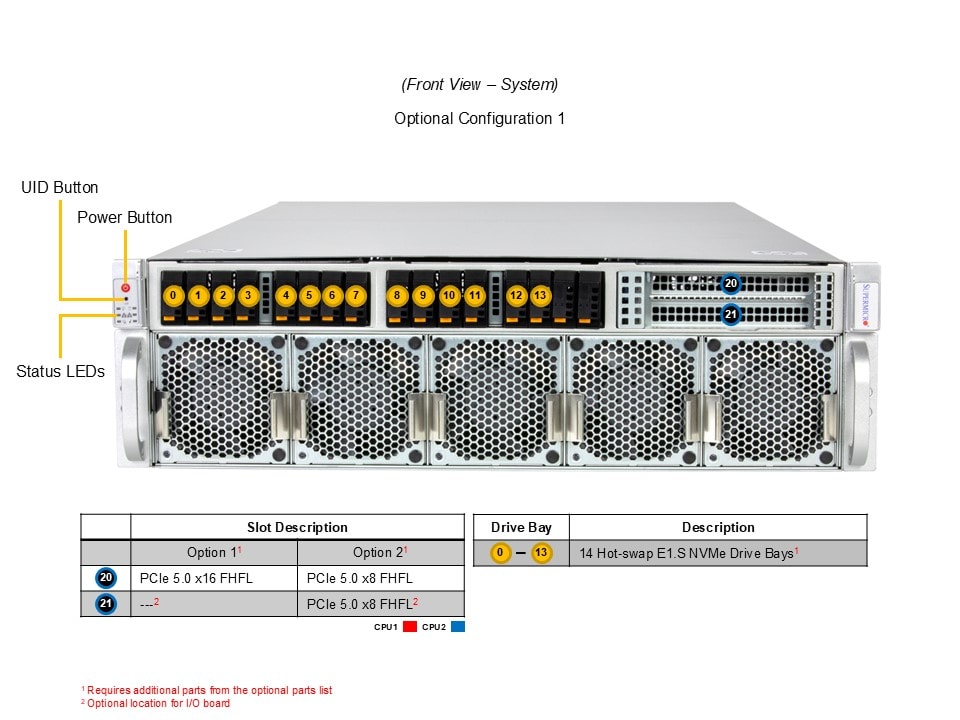

  • Option B: Total 14 bays14 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays
  • 14 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays

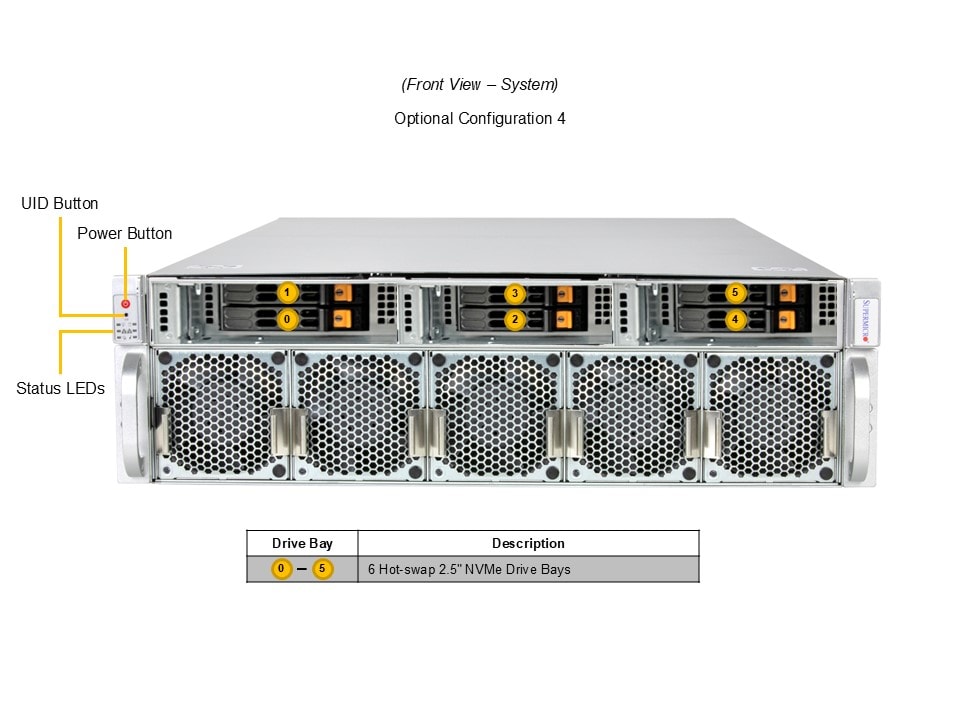

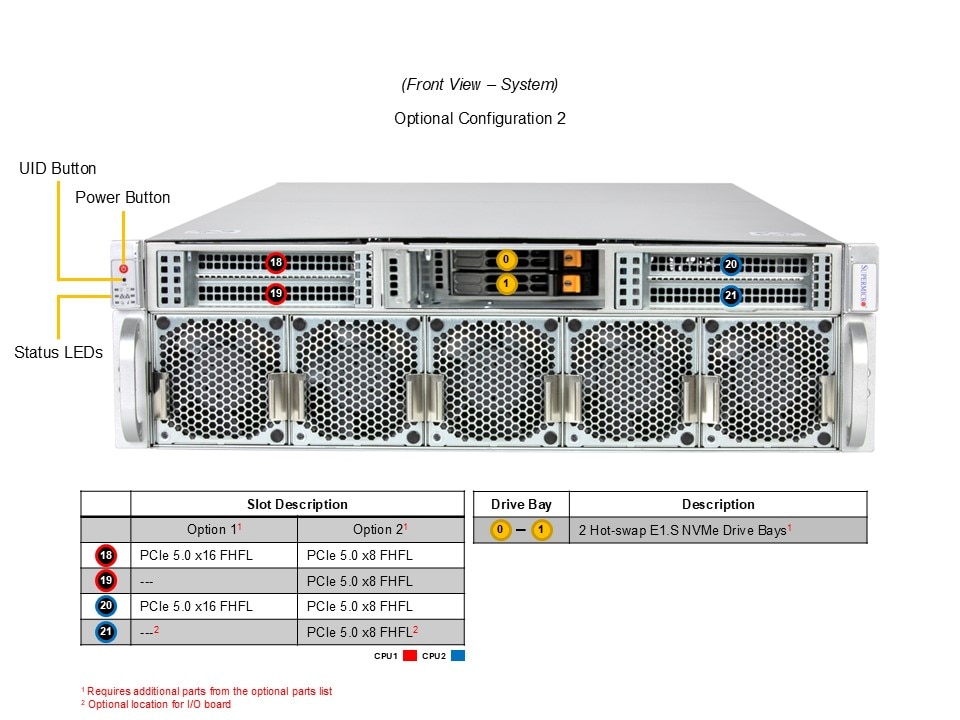

  • Option C: Total 2 bays2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 2 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays

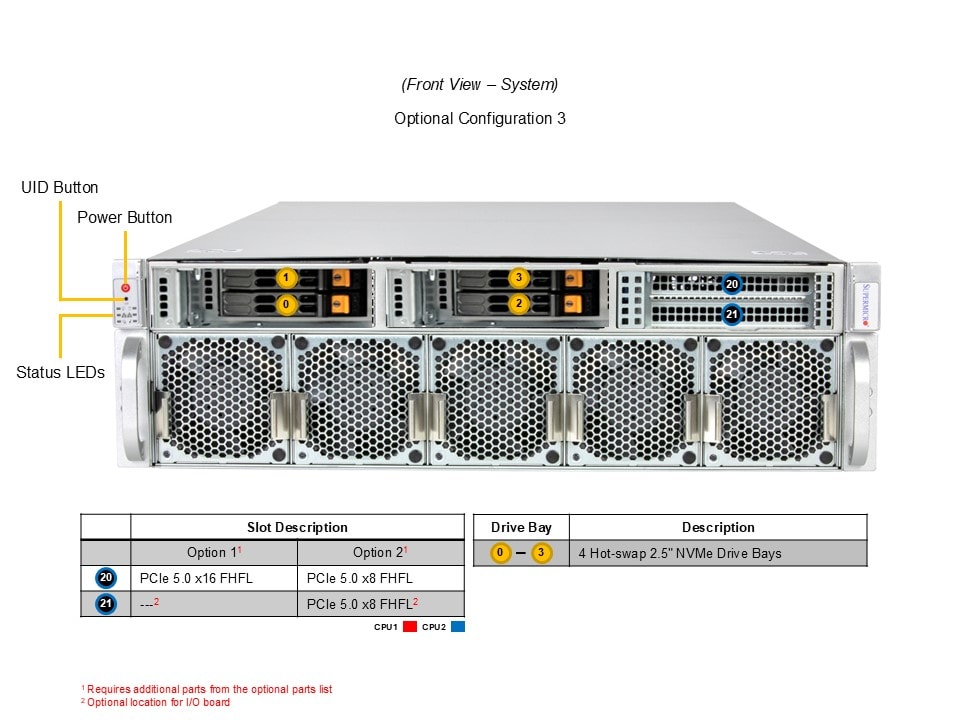

  • Option D: Total 4 bays4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • Option E: Total 6 bays6 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • 6 front hot-swap 2.5″ PCIe 5.0 x4 NVMe* drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 5 Front 8cm Fan(s)
  • Up to 6 Internal 6cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 3x 3200W 3x 2700W 3x 3200W 3x 3200W Redundant (2 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) 3x 2700W 3x 2700W Redundant (2 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Input
  • 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc)
12V SB
  • Max: 4A / Min: 0A
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 3x 3200W 3x 2700W 3x 3200W 3x 3200W Redundant (2 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 2900W: 200-207Vac / 50-60Hz 3000W: 207-220Vac / 50-60Hz 3200W: 220-240Vac / 50-60Hz 3200W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 82A / Min: 0A (100Vac-127Vac)Max: 237.7A / Min: 0A (200Vac-207Vac)Max: 245.9A / Min: 0A (207Vac-220Vac)Max: 262.3A / Min: 0A (220Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger) 3x 2700W 3x 2700W Redundant (2 + 1) Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12VMax: 225A / Min: 0A (200Vac-240Vac)Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
