Supermicro SuperServer SYS-420GU-TNXR

Favorite
Compara

DP Intel Universal GPU System with NVIDIA HGX A100 4-GPU

Pretul afisat contine TVA (21%).

SuperServer SYS-420GU-TNXR

DP Intel Universal GPU System with NVIDIA HGX A100 4-GPU

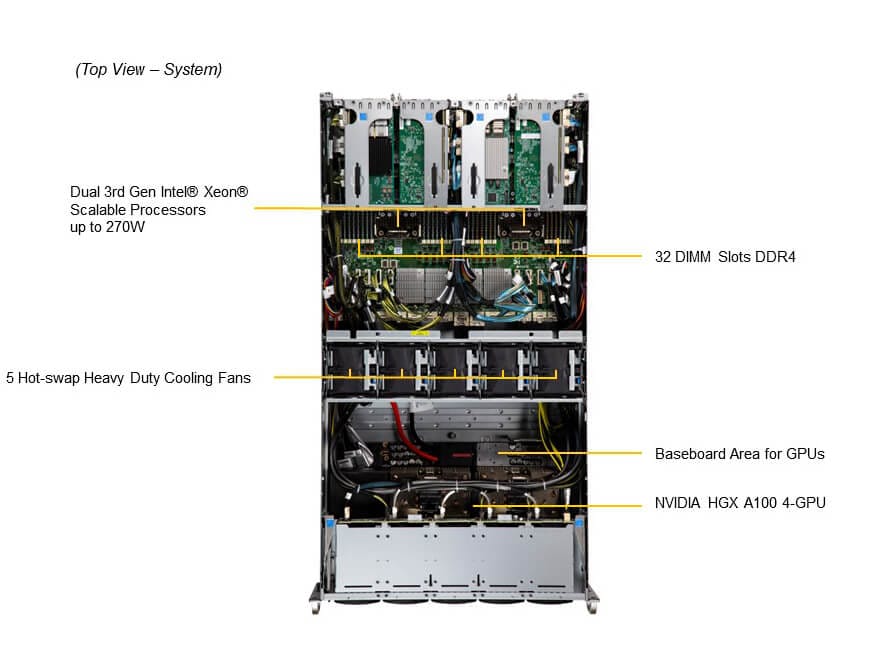

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
  4. Highest GPU communication using NVIDIA® NVLINK™Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)4U system with NVIDIA® HGX™ A100 4-GPU6 PCIe Gen 4.0 X16 LP Slots
  5. Highest GPU communication using NVIDIA® NVLINK™
  6. Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)
  7. 4U system with NVIDIA® HGX™ A100 4-GPU
  8. 6 PCIe Gen 4.0 X16 LP Slots
  9. Flexible networking options
  10. Up to 10x 2.5″ Hot-swap NVMe/SATA drive bays1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
  11. Up to 10x 2.5″ Hot-swap NVMe/SATA drive bays
  12. 1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
  13. 5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  14. 4x 3000W redundant Titanium level power supplies

Specifications

Product SKUs
  • SuperServer SYS-420GU-TNXR
Motherboard

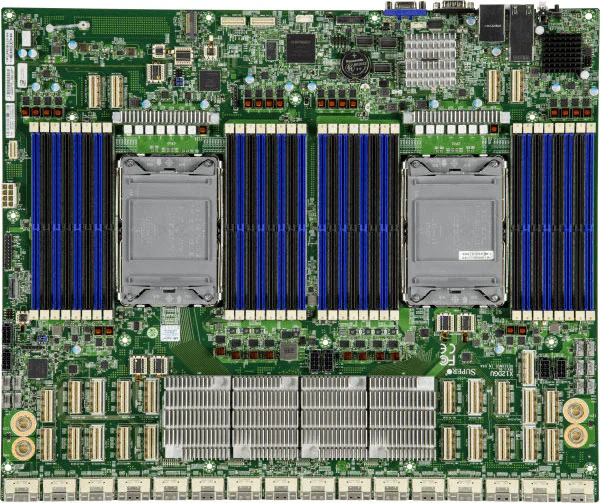

  • Super X12DGU
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • 4 onboard GPUs
Supported GPU
  • NVIDIA SXM: HGX A100 4-GPU (80GB)
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink™
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Network Connectivity
  • 2 RJ45 10GbE with Intel® X710
Input / Output
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7 +1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-420GU-TNXR
  • Super X12DGU
Chassis
Form Factor
  • 4U Rackmount
Model
  • CSE-458GTS-R3K06P
Dimensions and Weight
Height
  • 7″ (175.6 mm)
Width
  • 17.67″ (449 mm)
Depth
  • 32.79″ (833 mm)
Package
  • 14.57″ (H) x 27.55″ (W) x 49.6″ (D)
Weight
  • Gross Weight: 140 lbs (64 kg)
  • Net Weight: 105 lbs (48 kg)
Available Color
  • Black Front & Silver Body

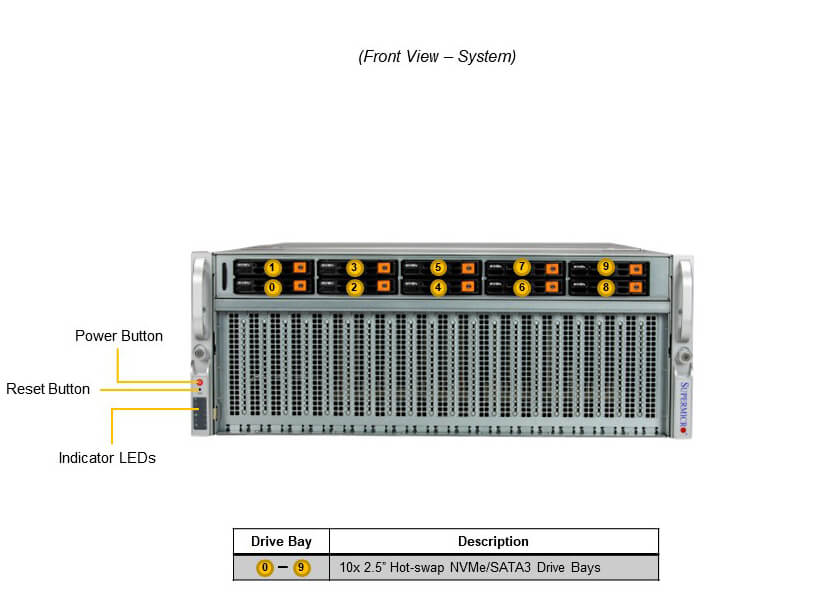

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

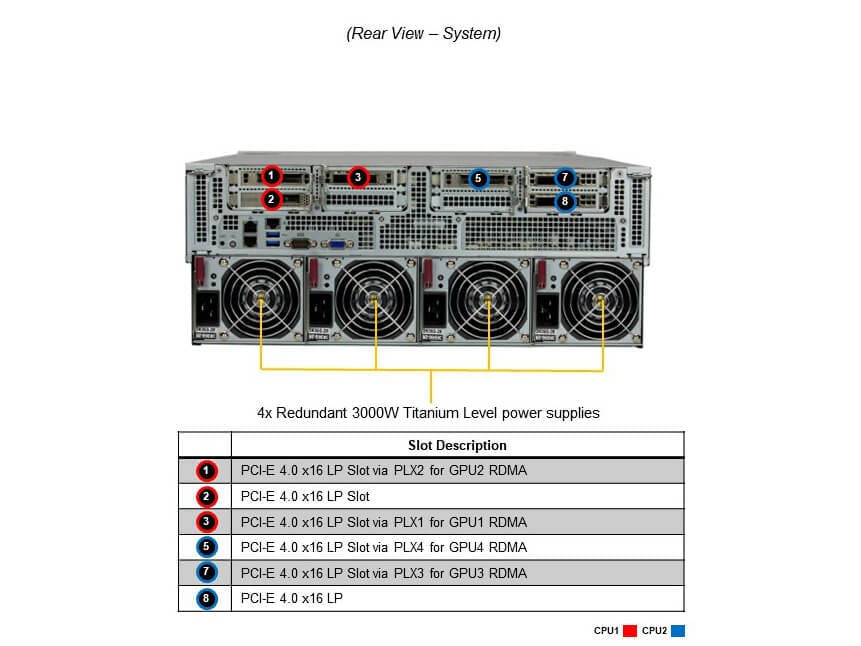

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default6 PCIe 4.0 x16 LP slots
  • 6 PCIe 4.0 x16 LP slots

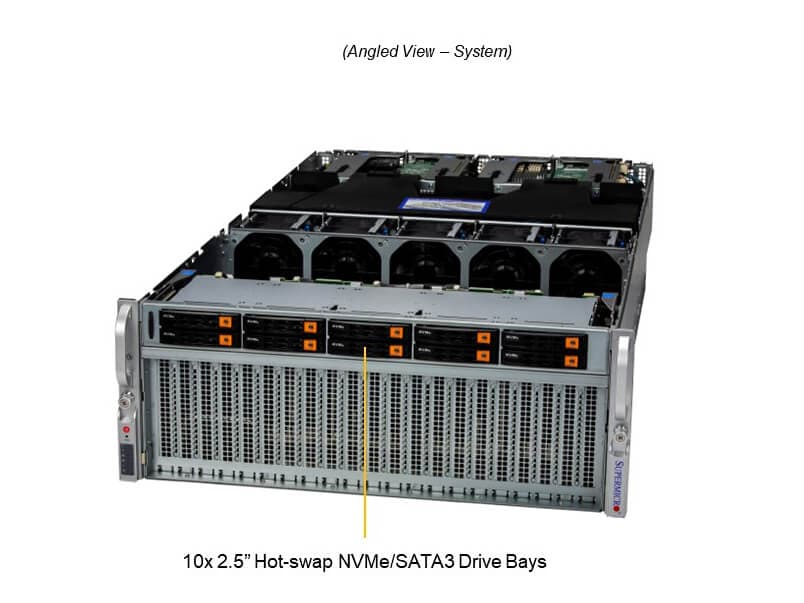

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 10 bays10 front hot-swap 2.5″ NVMe/SATA drive bays
  • 10 front hot-swap 2.5″ NVMe/SATA drive bays
M.2
  • 2 M.2 NVMe/SATA slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 5 removable heavy-duty Fan(s)
Power Supply
  • 4x 3000W 4x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 106.5 x 82.1 x 245.5 mm
Input
  • 2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 91.66A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 4x 3000W 4x 3000W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)106.5 x 82.1 x 245.5 mm Input2880W: 200-207Vac / 50-60Hz 3000W: 3000W: 207-240Vac / 50-60Hz 3000W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 91.66A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
