Supermicro SuperServer SYS-741GE-TNRT

Favorite
Compara

DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs

Pretul afisat contine TVA (21%).

SuperServer SYS-741GE-TNRT

DP Intel Workstation with up to 4 NVIDIA H100 or A100 PCIe GPUs

Key Features

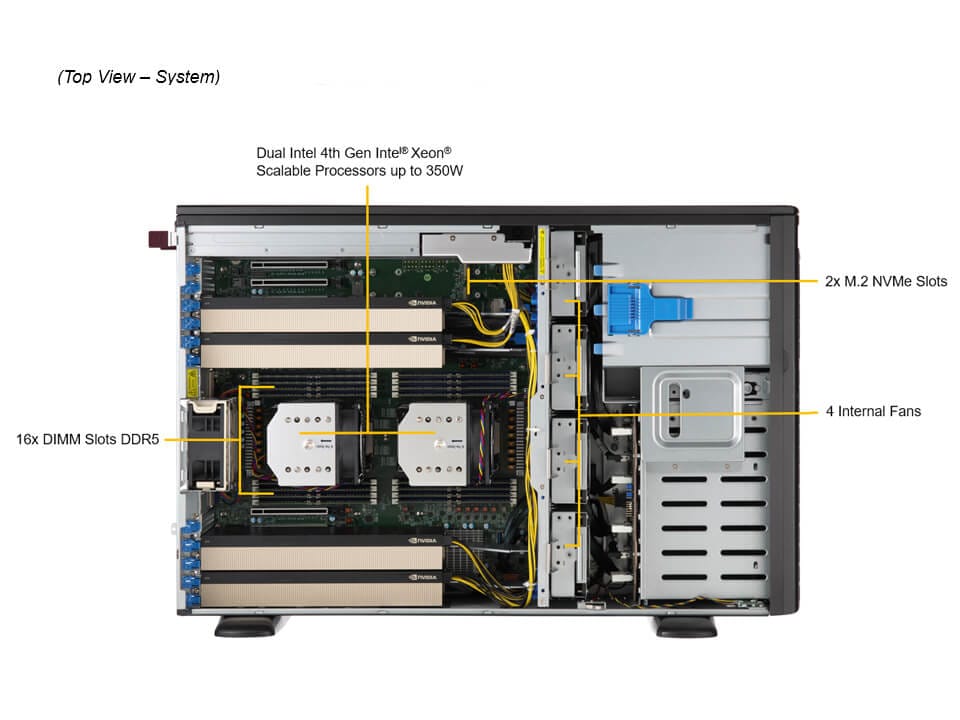

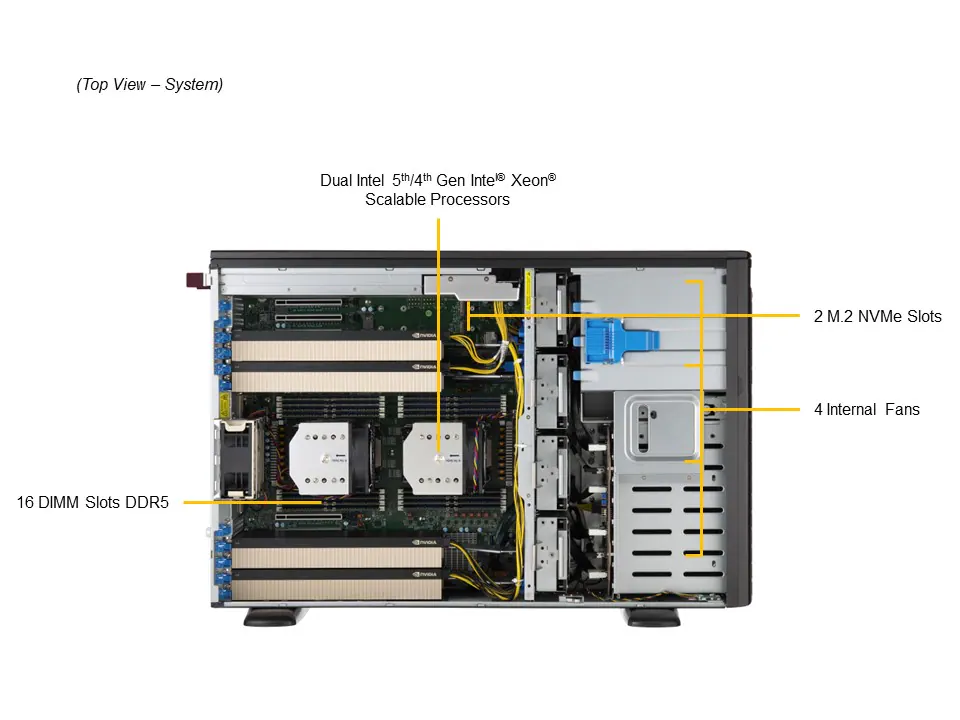

  1. 5th/4th Gen Intel® Xeon® Scalable processor support
  2. 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  3. Up to 4x double width, full length GPUs4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
  4. Up to 4x double width, full length GPUs
  5. 4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots

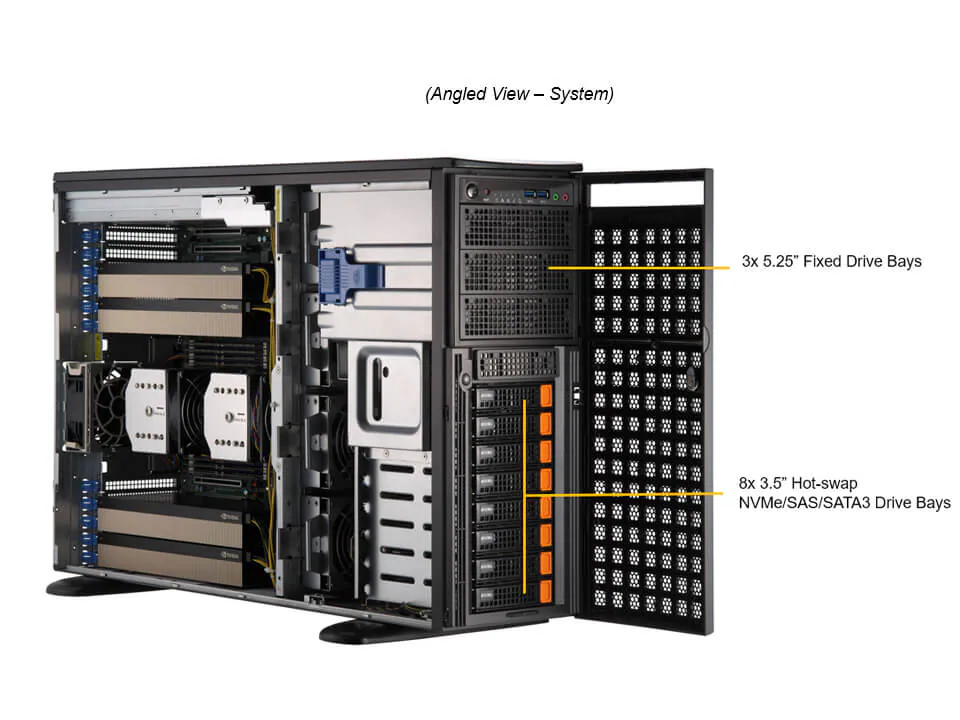

  6. Total 8x 3.5″ Hot-swap SATA/NVMe/SAS drive bays2x M.2 NVMe for boot drive onlyUp to 8x NVMe drives (8 NVMe drives supported by default)
  7. Total 8x 3.5″ Hot-swap SATA/NVMe/SAS drive bays
  8. 2x M.2 NVMe for boot drive only
  9. Up to 8x NVMe drives (8 NVMe drives supported by default)
  10. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  11. 2x 2000W (1+1) Redundant Power Supplies, Titanium Level

Specifications

Product SKUs
  • SuperServer SYS-741GE-TNRT

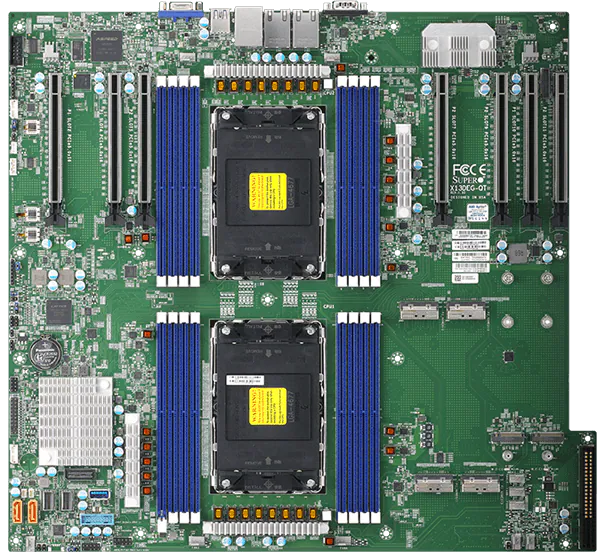

Motherboard
  • Super X13DEG-QT
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width GPUs
Supported GPU
  • NVIDIA PCIe: H100, H100 NVL, A100, A30, L4, L40, L40S, NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation, RTX 6000 Ada Generation, RTX A4000, RTX A5500, RTX A6000
  • AMD PCIe: Instinct™ MI210
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink™ Bridge (optional)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550-AT2
Input / Output
Video
  • 1 VGA port(Rear)
Serial
  • 1 COM port(rear)
Audio
  • Front Audio
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 8+4 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-741GE-TNRT
  • Super X13DEG-QT
Chassis
Form Factor
  • Tower Rackmount
Model
  • CSE-749TS-R2K05BP
Dimensions and Weight
Height
  • 18.32″ (465.4 mm)
Width
  • 6.96″ (177 mm)
Depth
  • 26.71″ (678.5 mm)
Package
  • 12.59″ (H) x 26.85″ (W) x 37.95″ (D)
Weight
  • Gross Weight: 62 lbs (28.1 kg)
  • Net Weight: 46 lbs (20.9 kg)
Available Color
  • Black Front & Silver Body

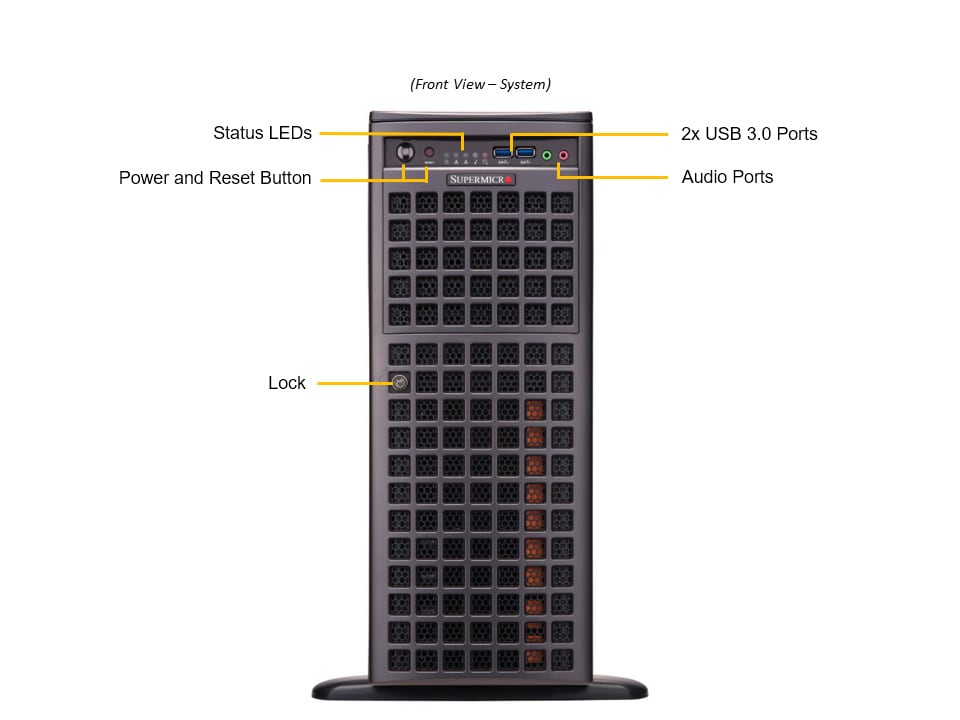

Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • Hard drive activity LED
  • Network activity LEDs
  • Power status LED
  • System Overheat & Power Fail LED

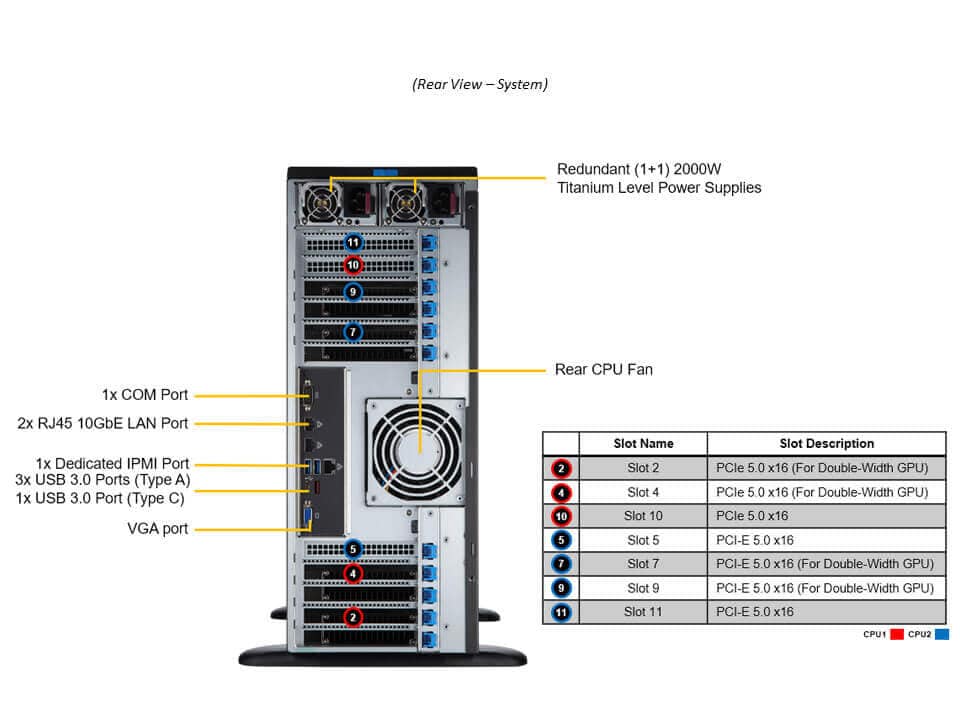

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default7 PCIe 5.0 x16 FHFL slots
  • 7 PCIe 5.0 x16 FHFL slots
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays8 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
  • 8 front hot-swap 3.5″ NVMe/SAS/SATA drive bays
  • Option A: Total 8 bays8 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
  • 8 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2
  • 2 M.2 NVMe slots (M-key)
  • View M.2 Options
System Cooling
Fans
  • Up to 4 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input100-127Vac 200-240Vac 1000W: 100-120Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vdc 2000W: 230-240Vac / 50-60Hz 2000W: 200-240Vac / 50-60Hz (for UL/cUL only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-120Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166.7A / Min: 0A (200Vac-240Vac) (for UL/cUL only)Max: 166.7A / Min: 0A (200Vac-240Vac)Max: 166.7A / Min: 0A (230Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
