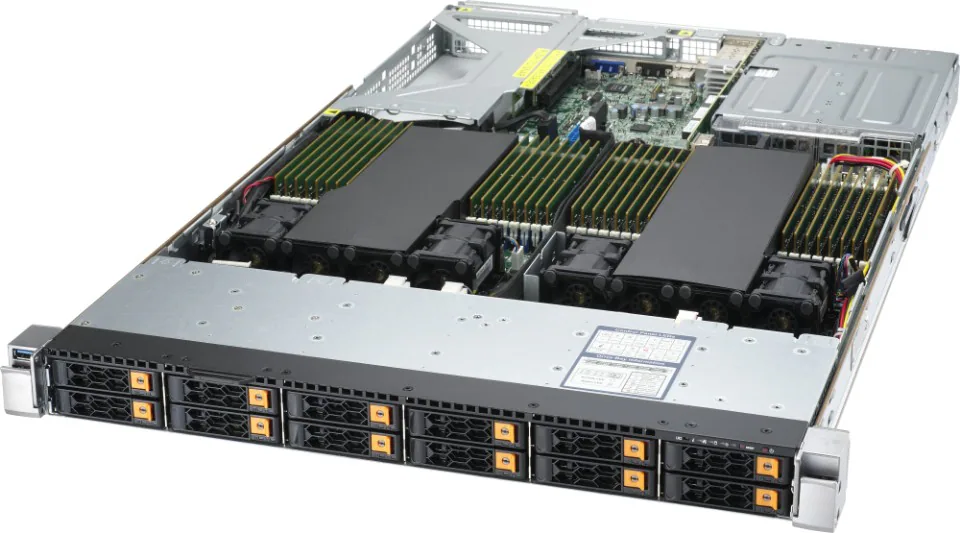

Supermicro SuperServer AS -1124US-TNR
Supermicro SuperServer AS -1124US-TNR - imagine 2
Supermicro SuperServer AS -1124US-TNR - imagine 3
Supermicro SuperServer AS -1124US-TNR - imagine 4
Supermicro SuperServer AS -1124US-TNR - imagine 5
Supermicro SuperServer AS -1124US-TNR - imagine 6
, , , Configureaza acest server →

Supermicro SuperServer AS -1124US-TNR

Favorite
Compara

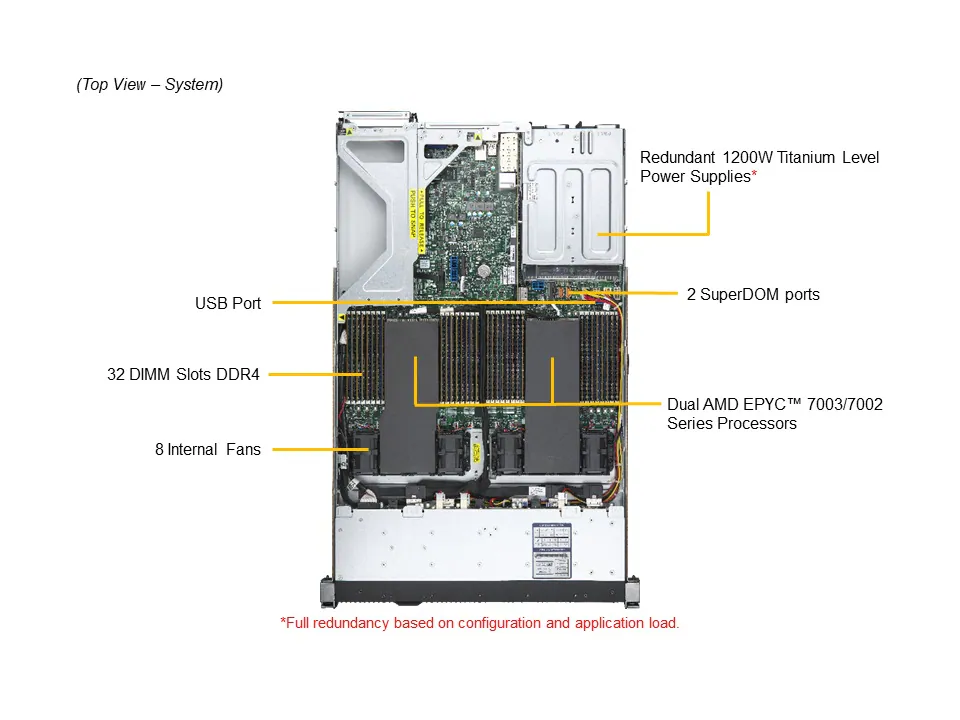

1U DP Ultra with up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 4.0 x16 slots

Pretul afisat contine TVA (21%).

SuperServer AS -1124US-TNR

1U DP Ultra with up to 12 hot-swap 2.5″ NVMe/SAS/SATA bays and 4 PCIe 4.0 x16 slots

Key Features

  1. Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  2. Dual AMD EPYC™ 7003/7002 Series Processors
  3. (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
  4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
  5. Must bundle with optional Ultra Riser Card2 PCIe 4.0 x16 FH, 9.5″L1 PCIe 4.0 x16 LP1 PCIe 4.0 x16 (internal proprietary LP slot), Ultra Riser Card must be bundled in order to enable this slot
  6. Must bundle with optional Ultra Riser Card
  7. 2 PCIe 4.0 x16 FH, 9.5″L
  8. 1 PCIe 4.0 x16 LP
  9. 1 PCIe 4.0 x16 (internal proprietary LP slot), Ultra Riser Card must be bundled in order to enable this slot
  10. 12 Hot-swap 2.5″ NVMe drive baysor SATA3/SAS3 (via optional SAS kit)
  11. 12 Hot-swap 2.5″ NVMe drive bays
  12. or SATA3/SAS3 (via optional SAS kit)

Specifications

Product SKUs
  • A+ Server AS -1124US-TNR
Motherboard

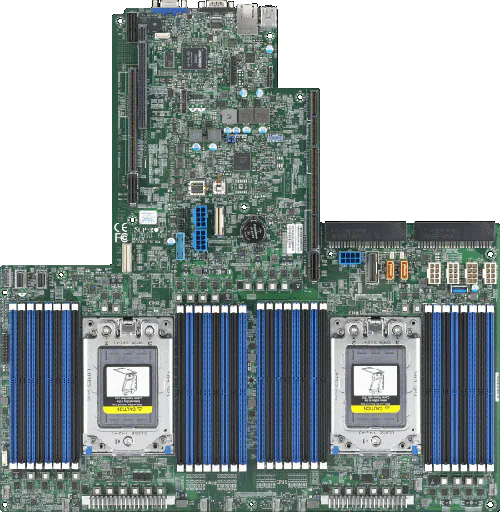

  • Super H12DSU-iN
Processor
CPU
  • Dual Socket SP3
  • AMD EPYC™ 7002/7003 Series Processors
Note
  • Supports up to 280W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • Ultra Riser Card
  • View Network Card (AOC) Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 4 USB 3.0 Type-A ports(Front)
Video
  • 1 VGA port
Serial
  • 1 COM port
DOM
  • 2 SATA DOM (Disk on Module) ports
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
BIOS Features
  • Plug and Play (PnP)
  • USB Keyboard support
  • ACPI 5.1
  • DMI 2.3
  • PCI 2.2
  • SMBIOS 3.1.1
Management
Software
  • Redfish API
  • Supermicro Server Manager (SSM)
  • Supermicro Power Manager (SPM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • KVM with dedicated LAN
  • NMI
  • OOB Management Package (SFT-OOB-LIC )
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory.
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • A+ Server AS -1124US-TNR
  • Super H12DSU-iN
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-119UTS-R1K22HP-T
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 28.5″ (724 mm)
Package
  • 7.99″ (H) x 23.81″ (W) x 37.4″ (D)
Weight
  • N/A
Available Color
  • Black
Expansion Slots

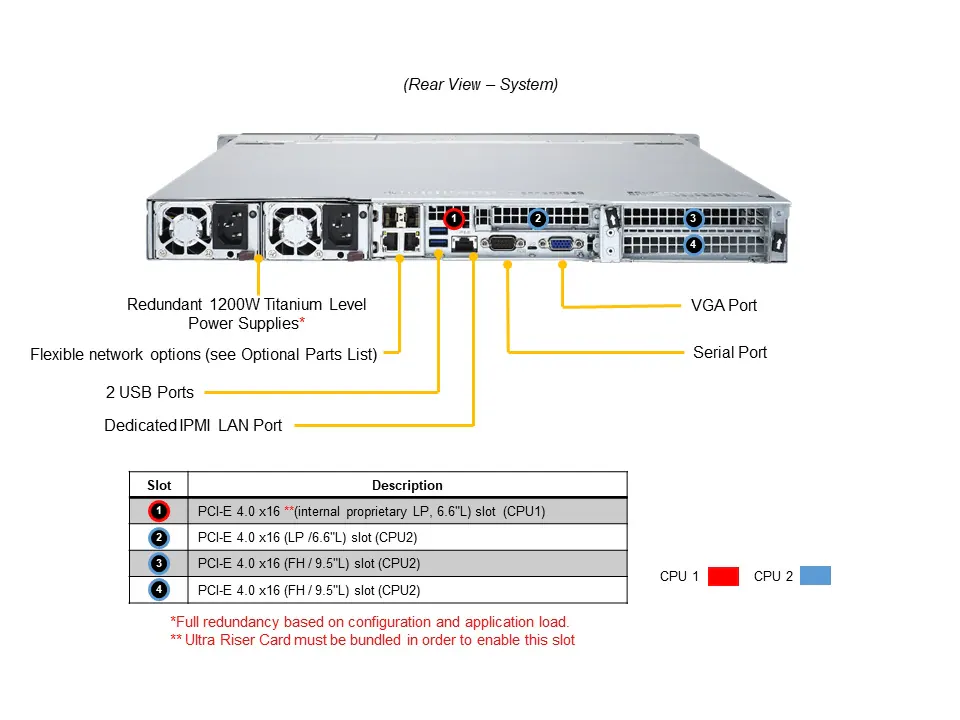

PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot 1 PCIe 4.0 x16 INTERNAL slot 2 PCIe 4.0 x16 FH, 9.5″L slots
  • 1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 INTERNAL slot
  • 2 PCIe 4.0 x16 FH, 9.5″L slots

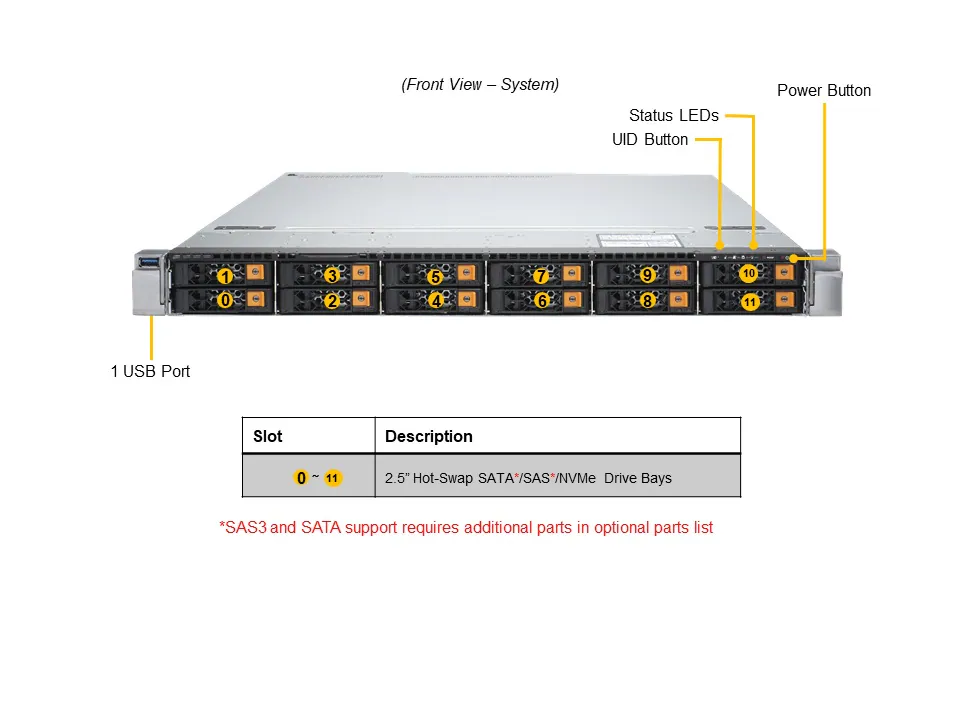

Drive Bays / Storage
Drive Bays Configuration

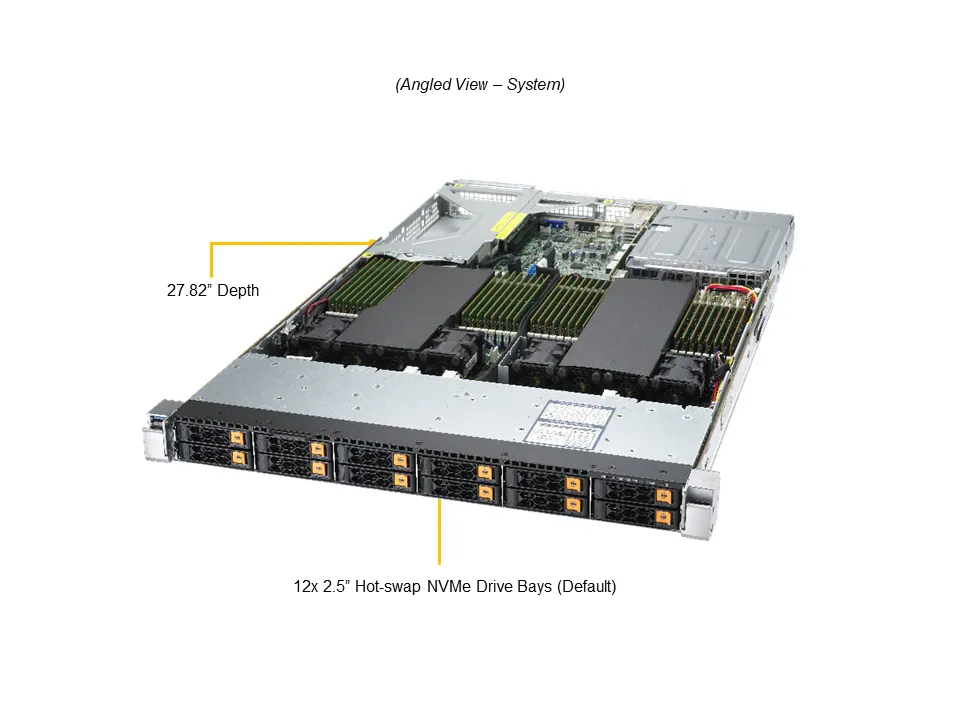

  • Default: Total 12 bays12 front hot-swap 2.5″ NVMe drive bays
  • 12 front hot-swap 2.5″ NVMe drive bays
  • Option A: Total 12 bays12 front hot-swap 2.5″ SAS drive bays
  • 12 front hot-swap 2.5″ SAS drive bays
  • Option B: Total 12 bays12 front hot-swap 2.5″ SAS* drive bays
  • 12 front hot-swap 2.5″ SAS* drive bays
  • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
System Cooling
Fans
  • Up to 8 heavy duty fans with optimal fan speed control
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 30°C (50°F to 86°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1200W: 200-240Vdc (For CCC Only)1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)Max: 100A / Min: 0A (200Vdc-240Vdc) (For CCC Only) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger)
