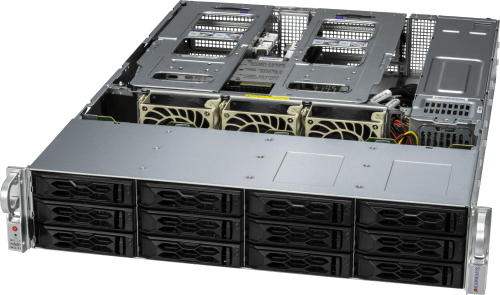

Supermicro SuperServer AS -2015CS-TNR
Supermicro SuperServer AS -2015CS-TNR - imagine 2
Supermicro SuperServer AS -2015CS-TNR - imagine 3
Supermicro SuperServer AS -2015CS-TNR - imagine 4
Supermicro SuperServer AS -2015CS-TNR - imagine 5
Supermicro SuperServer AS -2015CS-TNR - imagine 6
, , ,

Supermicro SuperServer AS -2015CS-TNR

Favorite
Compara

2U CloudDC with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer AS -2015CS-TNR

2U CloudDC with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and 4 PCIe 5.0 x16 slots + 2 AIOM slots

Key Features

  1. Single AMD EPYC™ 9004/9005* Series Processor(*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  2. Single AMD EPYC™ 9004/9005* Series Processor
  3. (*AMD EPYC™ 9005 series drop-in support requires board revision 2.x)
  4. Support up to DDR5 12 DIMM slots (1DPC). speed up to 6400MT/s(Please check System Memory Section for detail)
  5. Support up to DDR5 12 DIMM slots (1DPC). speed up to 6400MT/s
  6. (Please check System Memory Section for detail)
  7. 2 PCIe 5.0 x16 FHFL + 2 PCIe 5.0 x16 FHHL + 2 PCIe 5.0 x8 FHFL(Optional)
  8. Dual AIOM (OCP 3.0) for networking, 1 dedicated IPMI LAN
  9. 12 Hot-swap 3.5″/2.5″ SATA drive baysOptional 4 Hot-swap NVMe or 12 SAS drives support via additional parts2 M.2 PCIe 3.0 x2 NVMe slots
  10. 12 Hot-swap 3.5″/2.5″ SATA drive bays
  11. Optional 4 Hot-swap NVMe or 12 SAS drives support via additional parts
  12. 2 M.2 PCIe 3.0 x2 NVMe slots
  13. Dual 1200W Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
  14. Dual 1200W Redundant Titanium Level power supplies
  15. (Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
  • A+ Server AS -2015CS-TNR
  • A+ Server AS -2015CS-TNR-01-G2 Gold Series version with pre-configured components

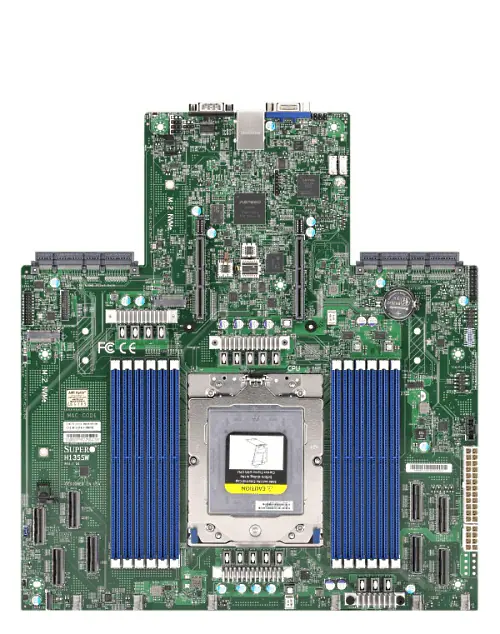

Motherboard
  • Super H13SSW
Processor
CPU
  • Single processor(s)
  • AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count
  • Up to 160C/320T
Note
  • Supports up to 400W TDP CPUs *
  • *Air Cooled CPUs with TDP over 360W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 2 double-width or 4 single-width GPUs
Supported GPU
  • NVIDIA PCIe: A100, A16, A2, A30, A40, L4, L40, L40S, RTX 6000 Ada Generation, RTX A4000
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • PCIe

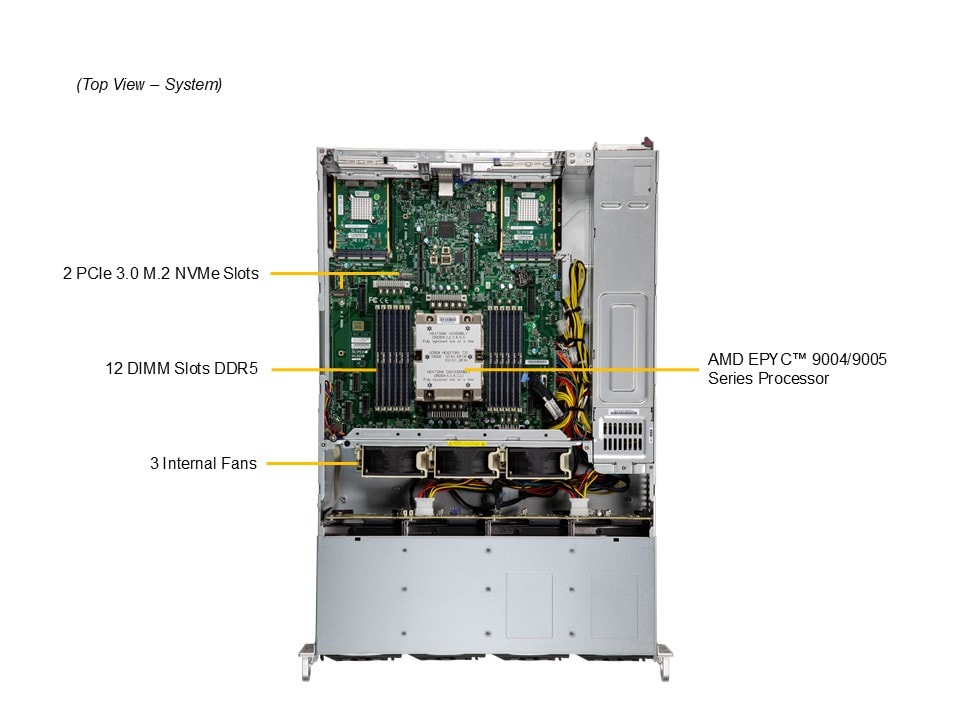

System Memory
Memory
  • Slot Count: 12 DIMM slots
  • Max Memory (1DPC): Up to 3TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01)
  • Max Memory (1DPC): Up to 3TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0)
  • Max Memory (1DPC): Up to 3TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash ROM
BIOS Features
  • ACPI 6.4
  • Plug and Play (PnP)
  • SMBIOS 3.5 or later
  • UEFI 2.8
  • USB Keyboard support
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • OOB Management Package (SFT-OOB-LIC )
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
  • Power-on mode control for AC power loss recovery
  • Power button override mechanism,
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Voltage
  • System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
  • A+ Server AS -2015CS-TNR
  • A+ Server AS -2015CS-TNR-01-G2 Gold Series version with pre-configured components
  • Super H13SSW
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-LA26TS-R1K23AWP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (648 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 59 lbs (26.76 kg)
  • Net Weight: 33 lbs (15 kg)
Available Color
  • Black front & sliver body

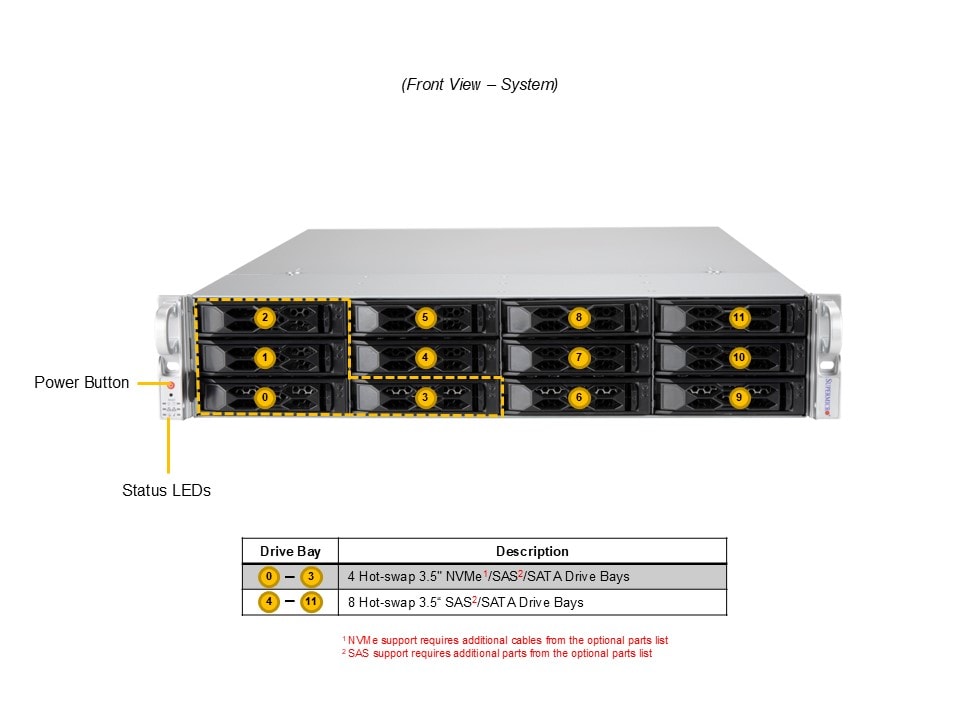

Front Panel
Buttons
  • Power On/Off
  • Universal Information (UID)
LED
  • Drive activity
  • Network activity
  • Power status
  • Universal Information (UID)

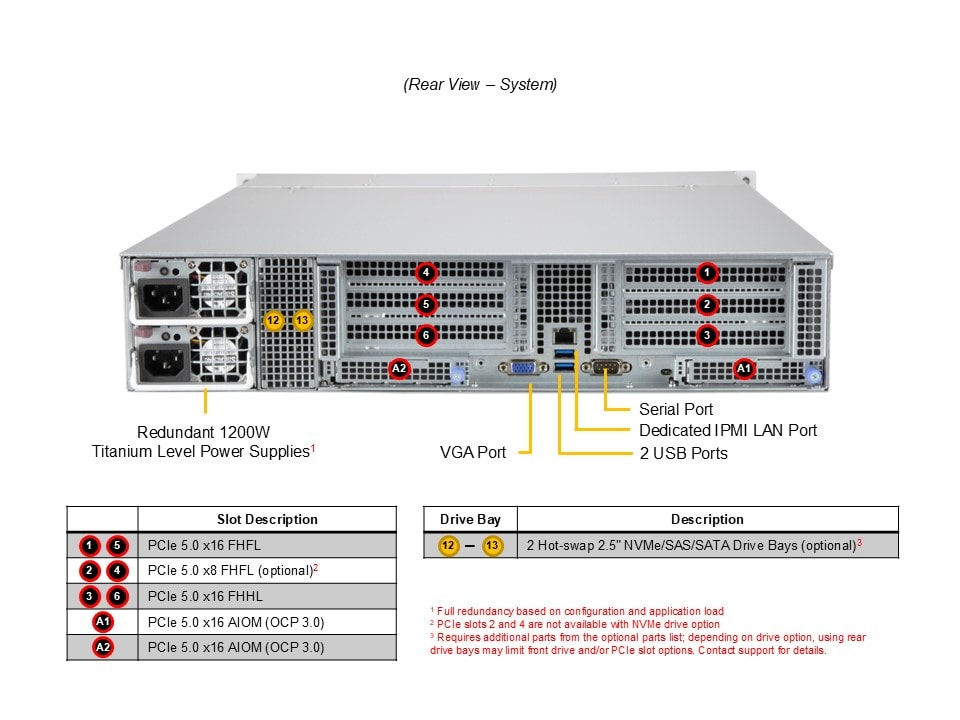

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHFL slots 2 PCIe 5.0 x16 FHHL slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 FHFL slots
  • 2 PCIe 5.0 x16 FHHL slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • Option A*2 PCIe 5.0 x8 FHFL slots
  • 2 PCIe 5.0 x8 FHFL slots
  • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)

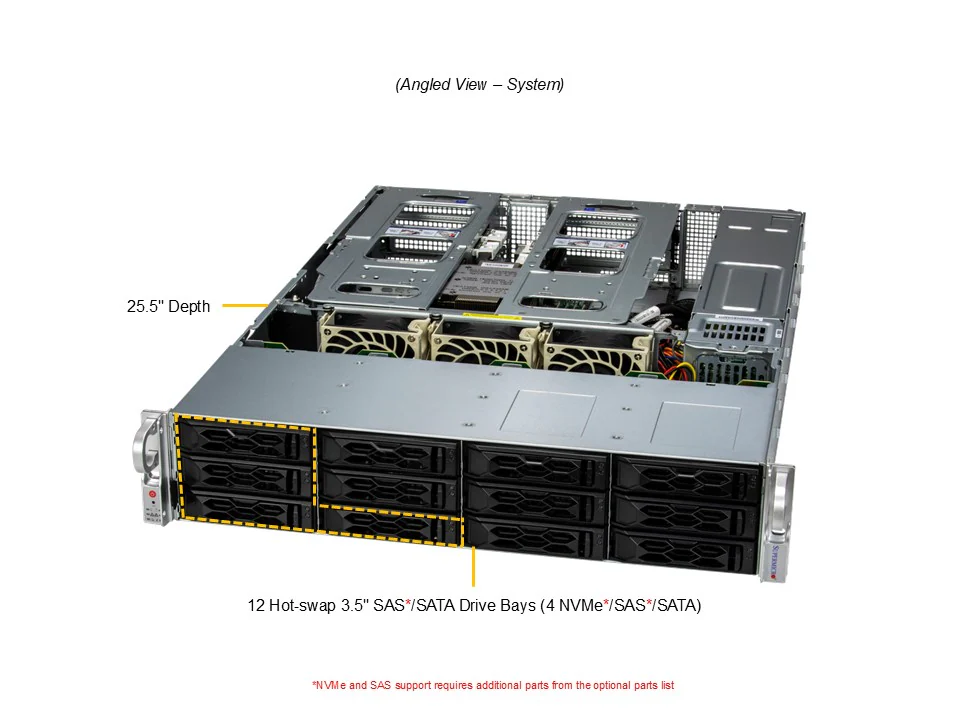

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 3.5″/2.5″ SATA drive bays
  • 12 front hot-swap 3.5″/2.5″ SATA drive bays
  • Option A: Total 4 bays4 front hot-swap 2.5″ PCIe 5.0 NVMe* drive bays
  • 4 front hot-swap 2.5″ PCIe 5.0 NVMe* drive bays
  • Option B: Total 12 bays12 front hot-swap 3.5″/2.5″ SAS* drive bays
  • 12 front hot-swap 3.5″/2.5″ SAS* drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2
  • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 3x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
