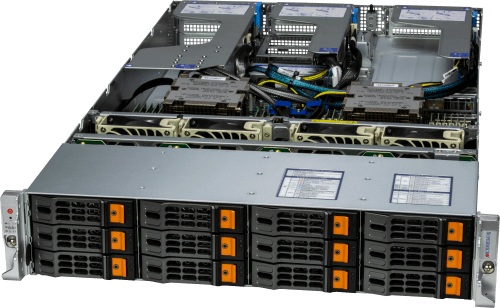

Supermicro SuperServer AS -2025HS-TNR

Favorite

Compara

2U Hyper with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots

Pretul afisat contine TVA (21%).

SuperServer AS -2025HS-TNR

2U Hyper with 12 hot-swap 3.5″ NVMe/SAS/SATA bays and up to 4 PCIe 5.0 x16 slots

Key Features

Dual AMD EPYC™ 9004/9005* Series Processors(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)
Dual AMD EPYC™ 9004/9005* Series Processors
(*AMD EPYC™ 9005 series drop-in support requires board revision 2.xx)

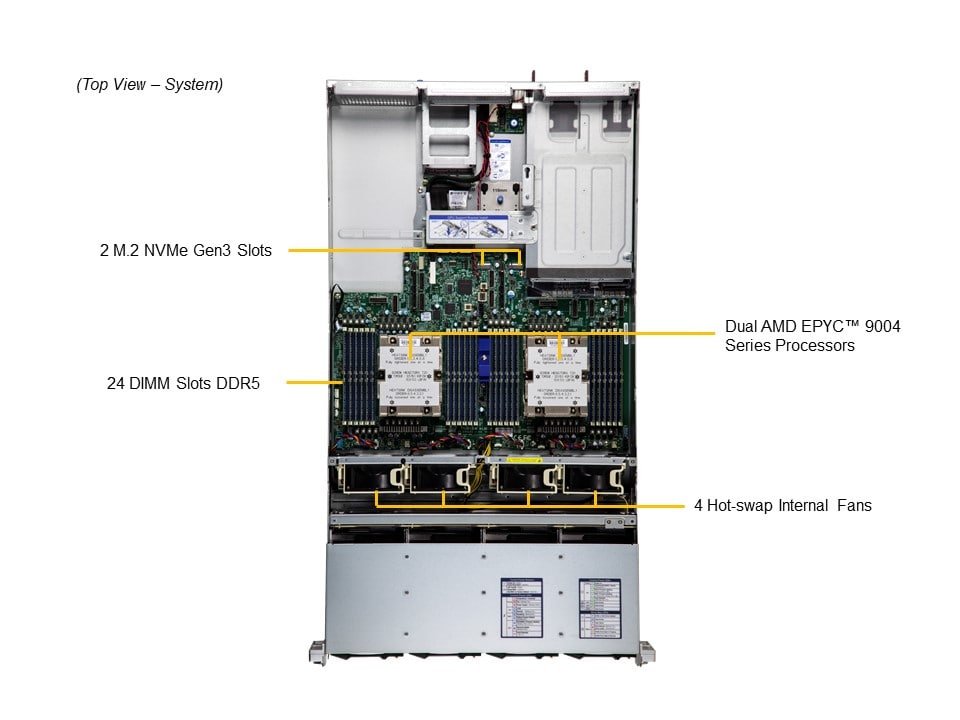

Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s(Please check System Memory Section for detail)
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
(Please check System Memory Section for detail)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and matchFlexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
12 Hot-swap 3.5″/2.5″ NVMe/SATA/SAS drive bays2 M.2 PCIe 3.0 NVMe slots

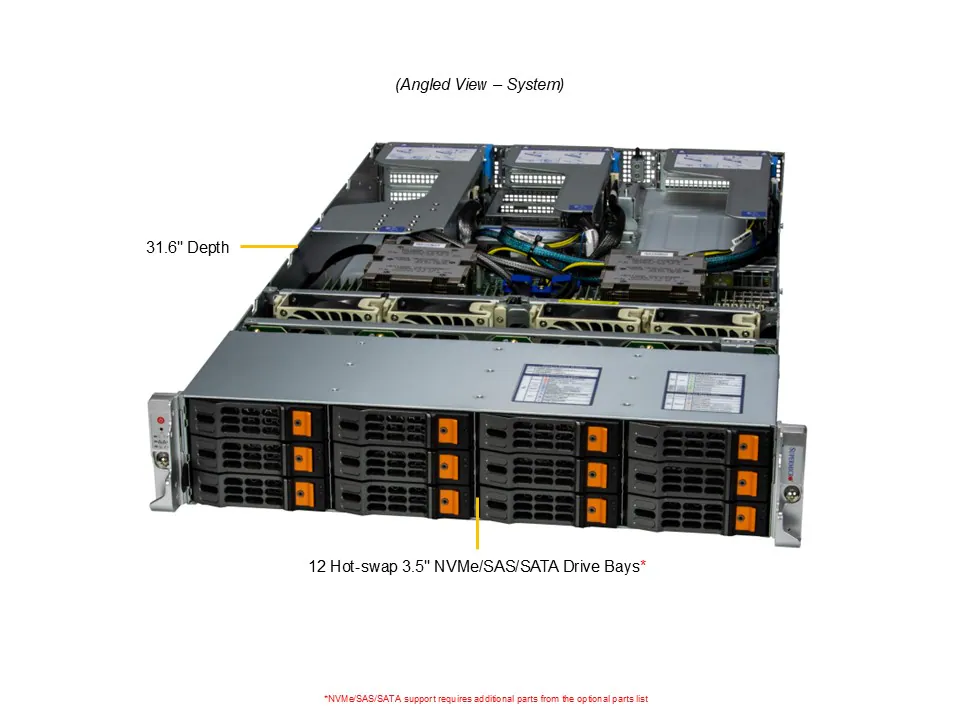

12 Hot-swap 3.5″/2.5″ NVMe/SATA/SAS drive bays
2 M.2 PCIe 3.0 NVMe slots
Dual 1600W Redundant Titanium Level power supplies(Power supply full redundancy based on configuration and application load)
Dual 1600W Redundant Titanium Level power supplies
(Power supply full redundancy based on configuration and application load)

Specifications

Product SKUs
A+ Server AS -2025HS-TNR
Motherboard

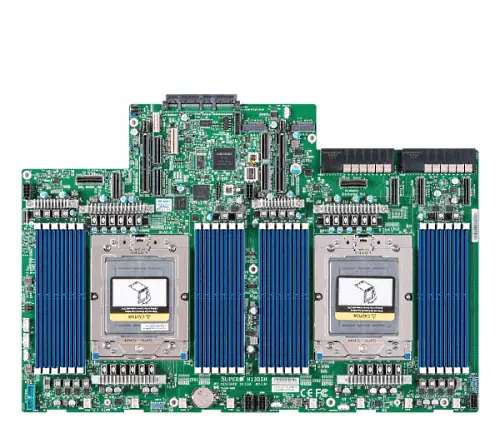

Super H13DSH
Processor
CPU	Dual processor(s) AMD EPYC™ 9004/9005 Series Processors(* AMD EPYC™ 9005 Series drop-in support requires board revision 2.x)
Core Count	Up to 320C/640T
Note	Supports up to 400W TDP CPUs * *Air Cooled CPUs with TDP over 290W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count	Up to 2 double-width or 2 single-width GPUs
Supported GPU	NVIDIA PCIe: H100, H100 NVL, A100, A16, A30, A40, L4, L40, L40S, RTX 4000, RTX 5000 Ada, RTX 6000 Ada Generation, RTX A2000, RTX A4000, RTX A4500, RTX A5000, RTX A5500, RTX A6000, T1000
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	PCIe
System Memory
Memory	Slot Count: 24 DIMM slots Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor, MB R1.x/R2.0/R2.01) Max Memory (1DPC): Up to 6TB 6000MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.0) Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor, MB R2.01)
Memory Voltage	1.1V
On-Board Devices
Network Connectivity	Via AIOM
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports(rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4 Plug and Play (PnP) SMBIOS 3.5 or later UEFI 2.8 USB Keyboard support
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) OOB Management Package (SFT-OOB-LIC ) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI Power Management Power-on mode control for AC power loss recovery Power button override mechanism,
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Voltage	System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
A+ Server AS -2025HS-TNR
Super H13DSH
Chassis
Form Factor	2U
Model	CSE-HS829-R1K63P-A
Dimensions and Weight
Height	3.5″ (88.9 mm)
Width	17.2″ (437 mm)
Depth	31.6″ (803 mm)
Package	10.4″ (H) x 23.8″ (W) x 43.6″ (D)
Weight	Gross Weight: 69 lbs (31.3 kg) Net Weight: 39 lbs (17.7 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off UID button
LED	HDD activity LAN1 activity Power status System information
Expansion Slots

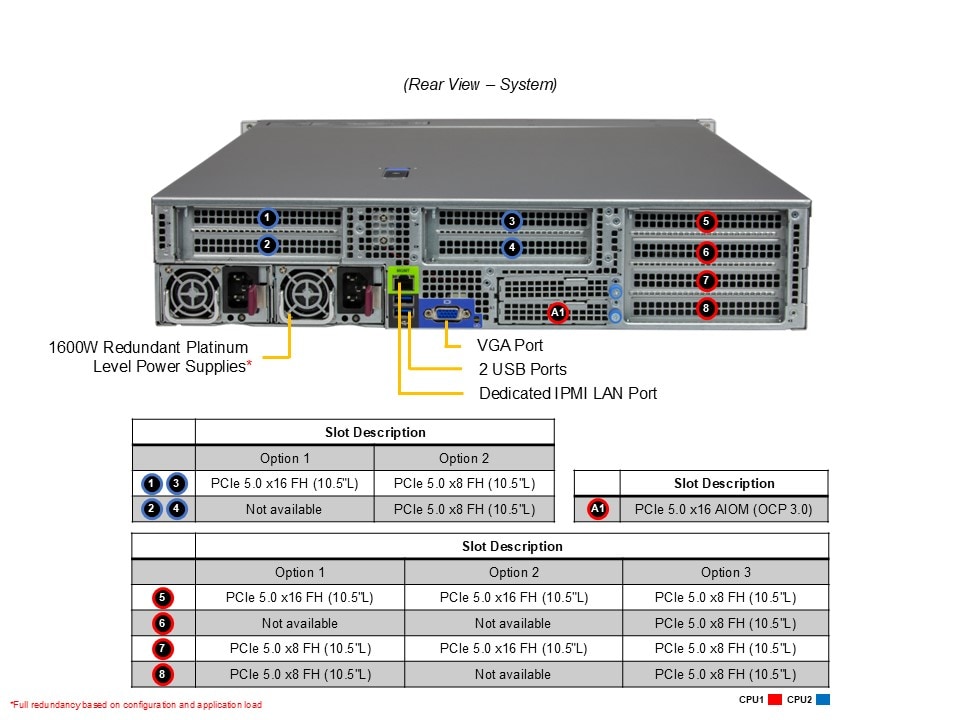

PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option B2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option C2 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option D1 PCIe 5.0 x16 (in x16) FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option E4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option F4 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 4 PCIe 5.0 x16 (in x16) FHFL double-width slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option G3 PCIe 5.0 x16 (in x16) FHFL double-width slots 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 3 PCIe 5.0 x16 (in x16) FHFL double-width slots 2 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option H2 PCIe 5.0 x16 (in x16) FHFL double-width slots 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x16 (in x16) FHFL double-width slots 4 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option I1 PCIe 5.0 x16 (in x16) FHFL double-width slot 6 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 (in x16) FHFL double-width slot 6 PCIe 5.0 x8 (in x16) FHFL slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
Drive Bays / Storage

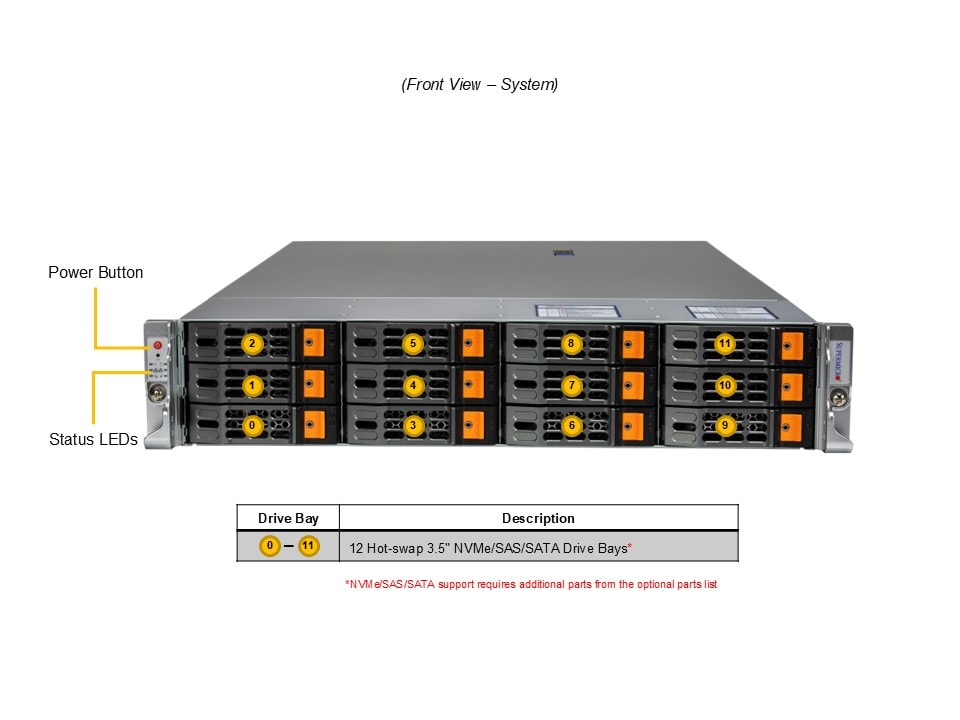

Drive Bays Configuration	Default: Total 12 bays12 front hot-swap 3.5″/2.5″ NVMe/SAS/SATA* drive bays 12 front hot-swap 3.5″/2.5″ NVMe/SAS/SATA* drive bays (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2	2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) View M.2 Options
System Cooling
Fans	Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud	2 Air Shrouds
Power Supply
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	73.5 x 40 x 265 mm
Input	1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V	Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB	Max: 3.5A / Min: 0A Max: 3.5A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
