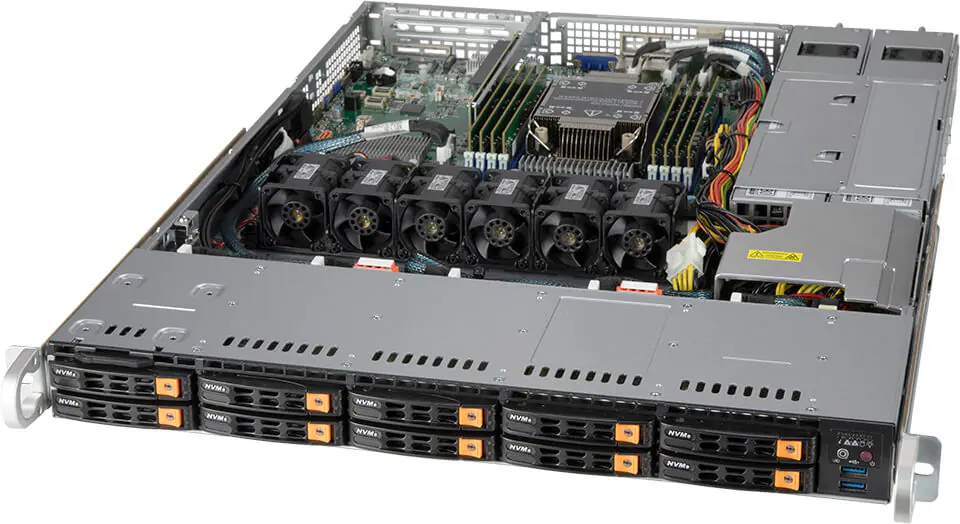

1U UP front-loading storage server with 10 hot-swap 2.5″ NVMe bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-110P-NTR10

1U UP front-loading storage server with 10 hot-swap 2.5″ NVMe bays and PCIe 4.0

Key Features

  1. Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
  3. 1 PCIe 4.0 x16 (FHHL) slot
  4. Intel® Ethernet Controller X550 2x 10GbE RJ45
  5. 10x Hot-swap 2.5” All NVMe Gen 4 tool-less drive bays; Onboard 2x NVMe Gen 3/SATA M.2
  6. Redundant Platinum 860W Power Supply

Specifications

Product SKUs
  • SuperServer SSG-110P-NTR10 Standard version with PWS-860P-1R2 (Platinum Level)
  • SuperServer SSG-110P-NTR10-EU European version with PWS-861A-1R (Titanium Level)
Motherboard

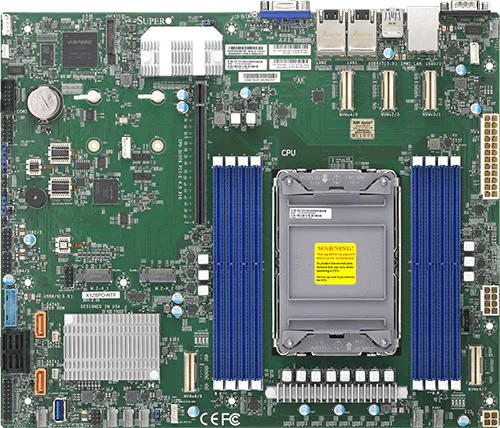

  • Super X12SPO-NTF
Processor
CPU
  • Single Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 8 DIMM slots
  • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
Memory Voltage
  • 1.2V
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550
Input / Output
LAN
  • 2 RJ45 1 GbE LAN ports
  • 1 RJ45 1 GbE Dedicated BMC LAN port (IPMI shared on LAN port 1)
USB
  • 2 USB 2.0 ports(header)
  • 2 USB 3.2 Gen1 Type-A ports(rear)
  • 2 USB 2.0 Type-A ports(rear)
  • 2 USB 3.2 Gen1 Type-A ports(front)
  • 1 USB 3.2 Gen1 Type-A port
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Header)
DOM
  • 2 SuperDOM (Disk on Module) portswith built-in power
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 7+1 Phase-switching voltage regulator module (VRM)
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-110P-NTR10 Standard version with PWS-860P-1R2 (Platinum Level)
  • SuperServer SSG-110P-NTR10-EU European version with PWS-861A-1R (Titanium Level)
  • Super X12SPO-NTF
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-116TS-R860CBP-N10
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 23.5″ (597 mm)
Package
  • 8″ (H) x 24″ (W) x 32″ (D)
Weight
  • Gross Weight: 38 lbs (17.24 kg)
  • Net Weight: 25 lbs (11.34 kg)
Available Color
  • Black

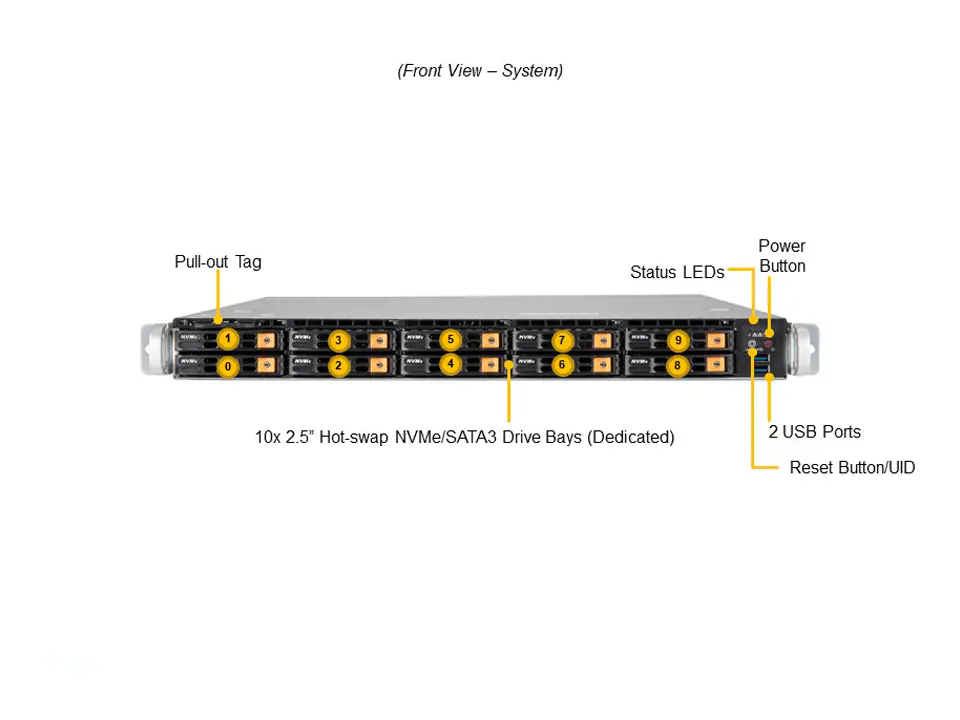

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • Device Activity
  • LAN 1 Activity
  • LAN 2 Activity
  • Power status
  • System information
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 FHHL slot
  • 1 PCIe 4.0 x16 FHHL slot
Drive Bays / Storage
Drive Bays Configuration

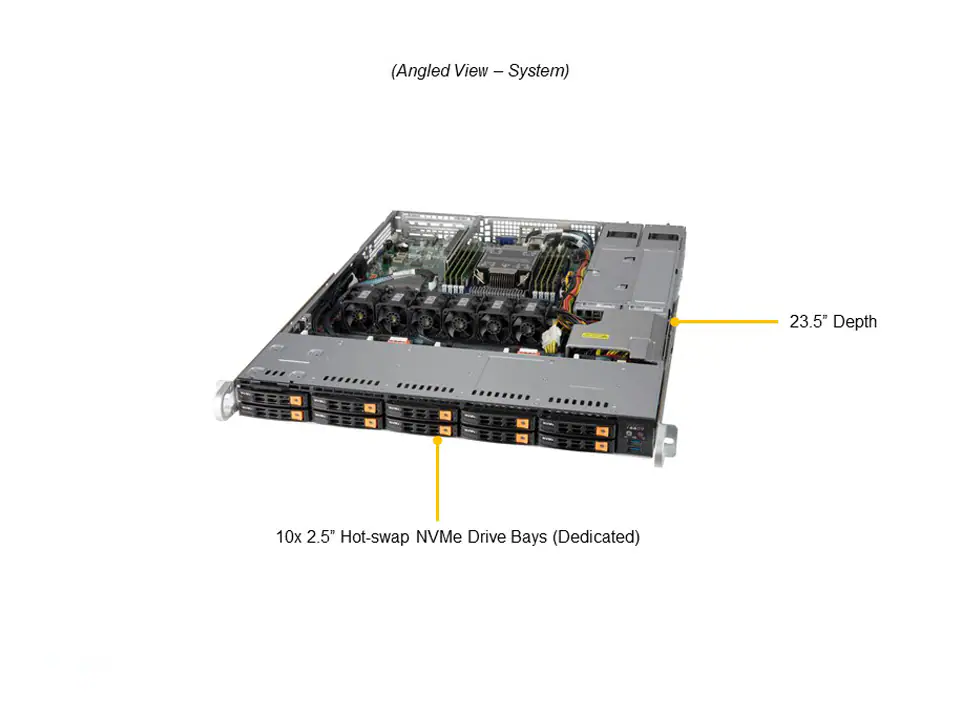

  • Default: Total 10 bays10 front hot-swap 2.5″ PCIe 4.0 NVMe drive bays
  • 10 front hot-swap 2.5″ PCIe 4.0 NVMe drive bays
M.2
  • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
  • View M.2 Options
System Cooling
Fans
  • Up to 6 Counter-rotating PWM 40x40x56mm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 54.5 x 40.25 x 322 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz
+12V
  • Max: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 2x 860W 2x 860W Redundant (1 + 1) Platinum Level (94%) power supplies Dimension (WxHxL)54.5 x 40.25 x 322 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 860W: 200-240Vac 860W: 200-240Vac / 50-60Hz 860W: 200-240Vdc / 50-60Hz +12VMax: 66.6A / Min: 0A (100Vac-127Vac)Max: 71.6A / Min: 0A (200Vac-240Vac)Max: 71.6A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
