Supermicro SuperServer SSG-222B-NE3X24R

Favorite
Compara

2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SSG-222B-NE3X24R

2U front-loading all-flash storage server with 24 E3.S NVMe drives and PCIe 5.0

Key Features

  1. Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processorsSupport CPU TDP up to 350W with air cooling
  2. Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors
  3. Support CPU TDP up to 350W with air cooling
  4. Up to 32 DIMMs supporting up to 8TB DDR5-6400 in 2DPC
  5. Flexible networking with up to 2 OCP 3.0 compatible AIOM slots
  6. Up to 2 PCIe 5.0 x16 FHHL + 1 PCIe 5.0 x8 FHHL + 2 PCIe 5.0 x16 AIOM slots
  7. Up to 32 front hot-swap E3.S 1T NVMe drive baysUp to 8 CXL 2.0 x8 Type 3 devices
  8. Up to 32 front hot-swap E3.S 1T NVMe drive bays
  9. Up to 8 CXL 2.0 x8 Type 3 devices
  10. Up to 2 double-width GPUs (Max TDP 300W)

Specifications

Product SKUs
  • SuperServer SSG-222B-NE3X24R
Motherboard

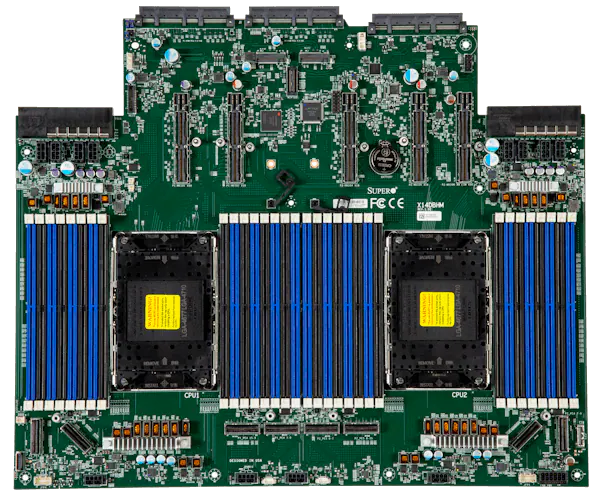

  • Super X14DBHM
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width GPUs
Supported GPU
  • NVIDIA PCIe: L40S, RTX A2000
System Memory
Memory
  • Slot Count: 32 DIMM slots/2 Channels
  • Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM/LRDIMM
  • Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM/LRDIMM
Memory Voltage
  • 1.1V
On-Board Devices
Network Connectivity
  • Via AIOM

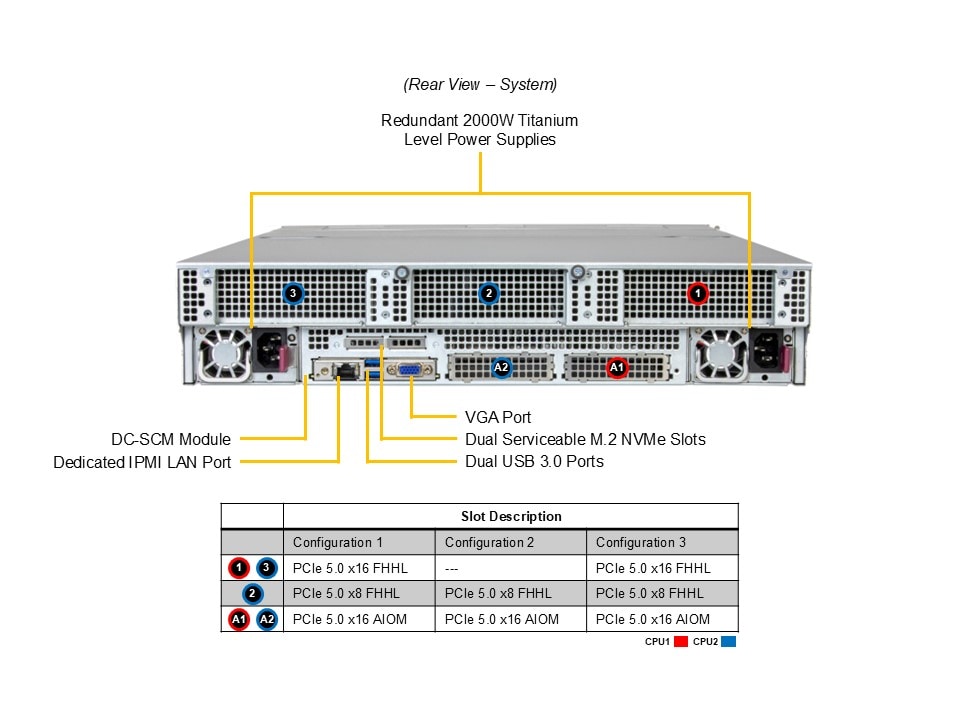

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 64MB SPI Flash
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • 7 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-222B-NE3X24R
  • Super X14DBHM
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-246E3-R2K09P
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.25″ (438 mm)
Depth
  • 30.7″ (780 mm)
Package
  • 9.4″ (H) x 23.5″ (W) x 43.2″ (D)
Weight
  • Gross Weight: 83.78 lbs (38 kg)
  • Net Weight: 61.73 lbs (28 kg)
Available Color
  • Silver

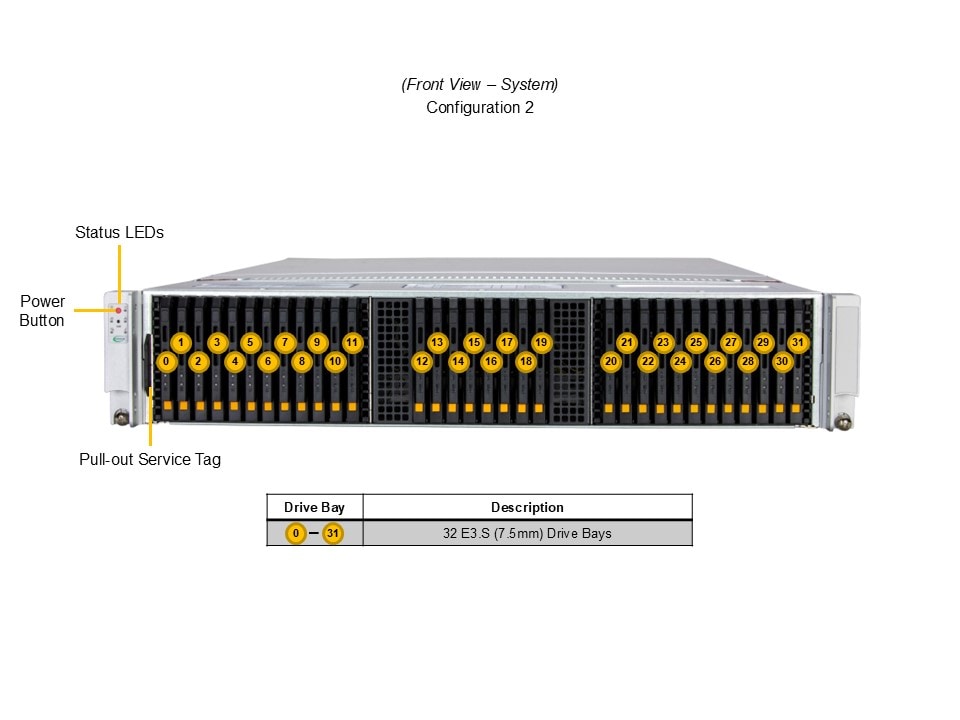

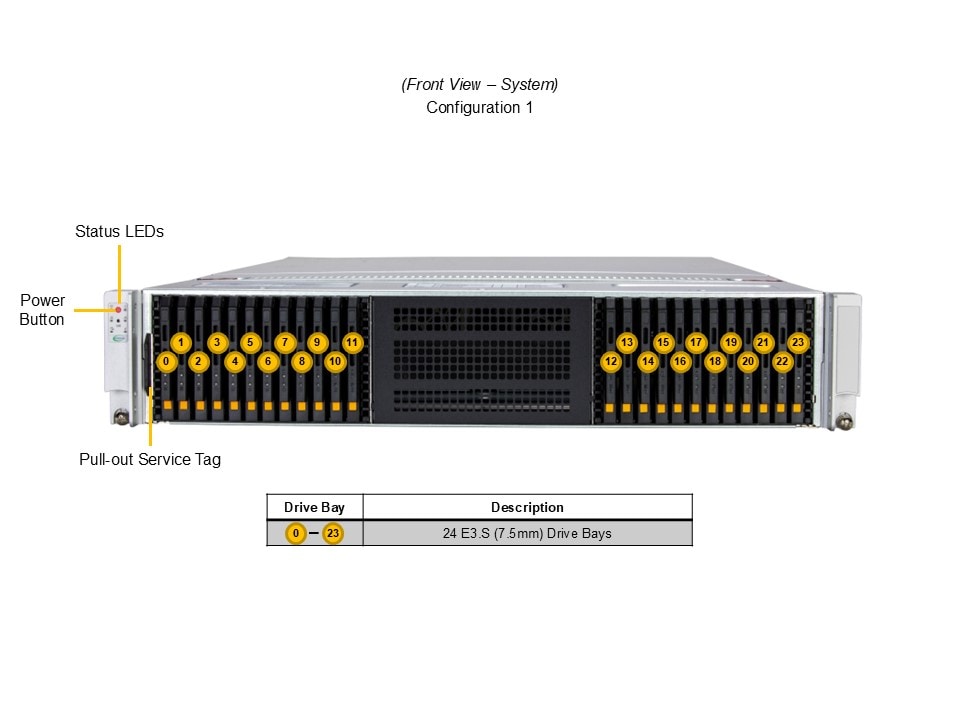

Front Panel
Buttons
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 acticity
  • Power Fail
  • Power status
  • System information (overheat/UID)
Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)1 PCIe 5.0 x8 FHFL slot
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 1 PCIe 5.0 x8 FHFL slot
  • Option A2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)1 PCIe 5.0 x8 FHFL slot
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 1 PCIe 5.0 x8 FHFL slot
  • Option B2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)1 PCIe 5.0 x8 FHFL slot
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 1 PCIe 5.0 x8 FHFL slot
  • Option C2 PCIe 5.0 x16 FHFL double-width slots 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)1 PCIe 5.0 x8 FHFL slot
  • 2 PCIe 5.0 x16 FHFL double-width slots
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 1 PCIe 5.0 x8 FHFL slot
CXL Support
  • Up to 8 CXL 2.0 x8 Type 3 devices
Drive Bays / Storage
Drive Bays Configuration

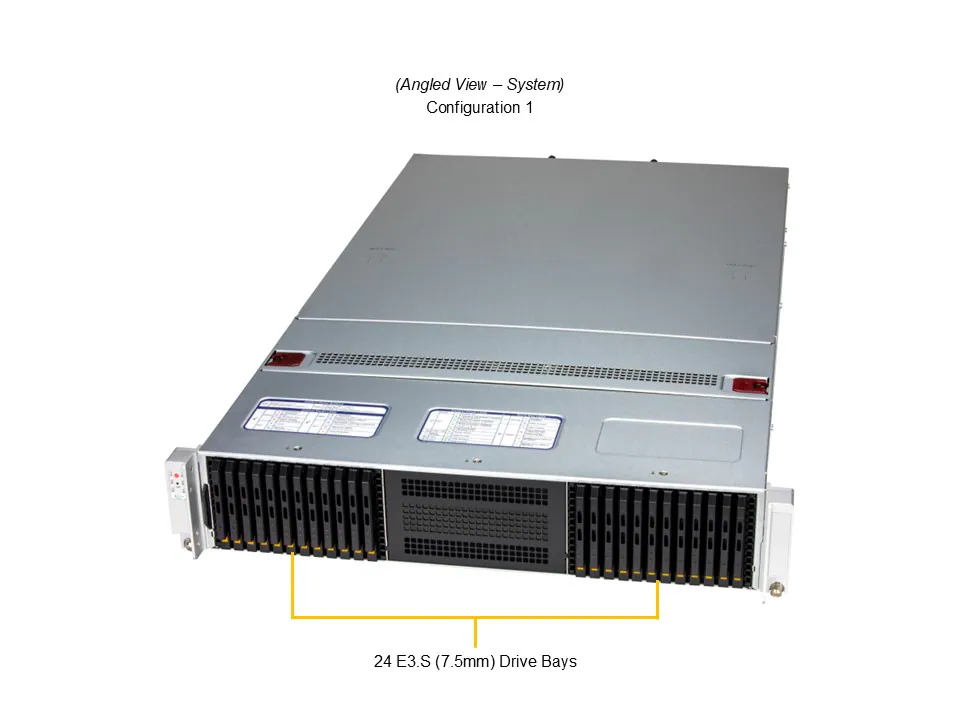

  • Default: Total 24 bays24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays
  • 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays
  • Option A: Total 24 bays24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays
  • 24 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays

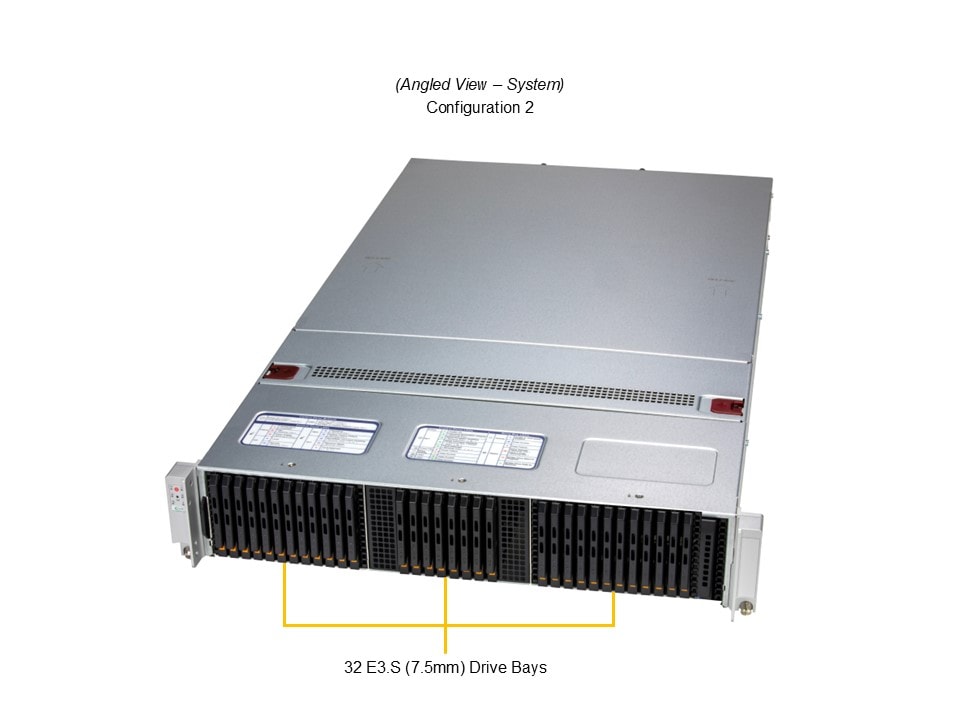

  • Option B: Total 32 bays32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
  • 32 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays

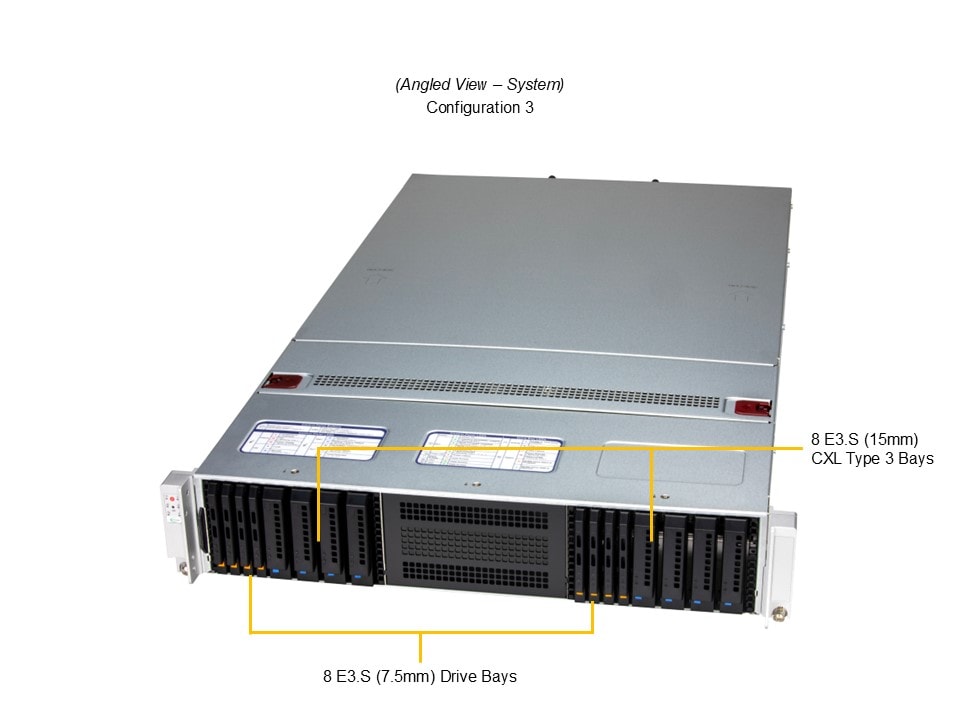

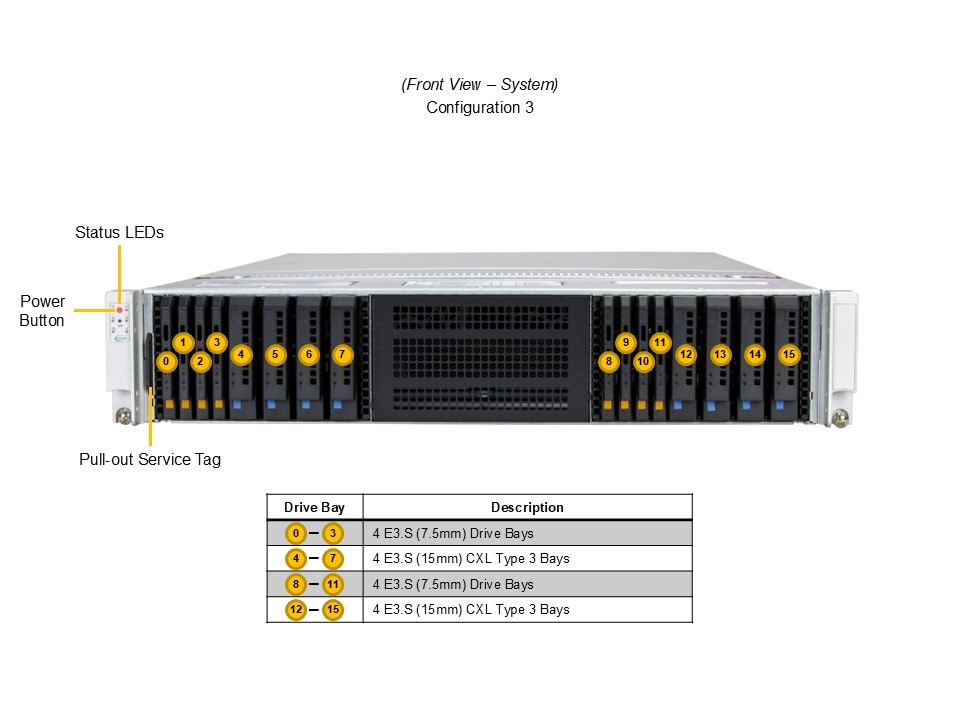

  • Option C: Total 16 bays8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays
  • 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe* drive bays
  • 8 front fixed E3.S 2T PCIe 5.0 x8 CXL Type 3* drive bays
  • (*CXL Type 3/NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2

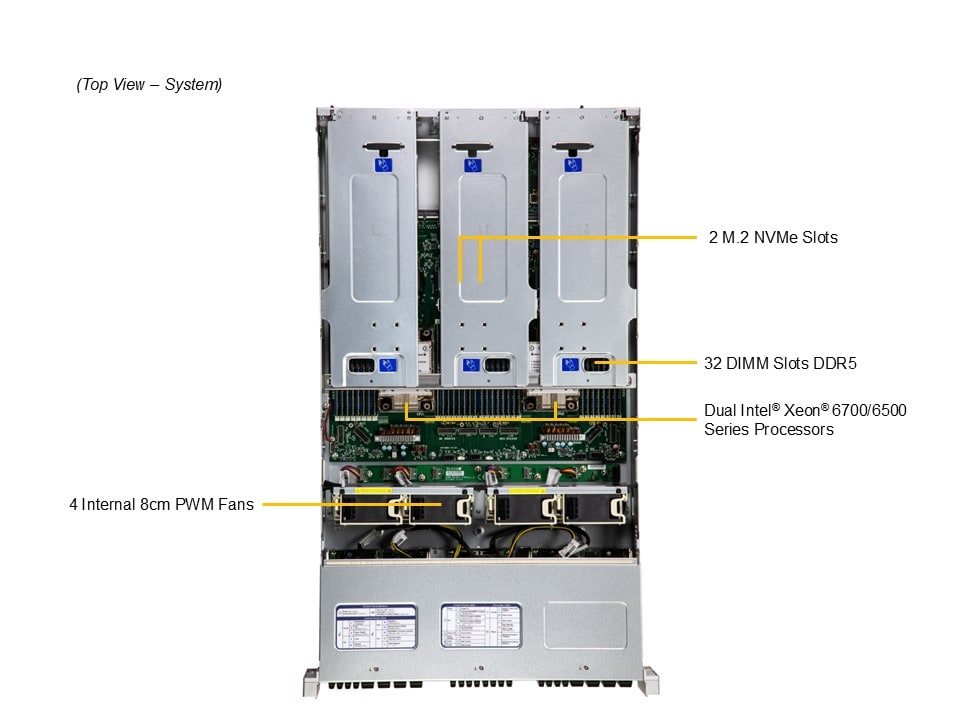

  • 2 M.2 NVMe slots (M-key 2280/22110)
  • View M.2 Options
System Cooling
Fans
  • Up to 4x 8cm heavy duty fans with optimal fan speed control
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 2000W 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1000W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2000W: 230-240Vac / 50-60Hz 2000W: 220-240Vac / 50-60Hz (for UL only)2000W: 230-240Vdc / 50-60Hz (for CQC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 166A / Min: 0A (230Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
