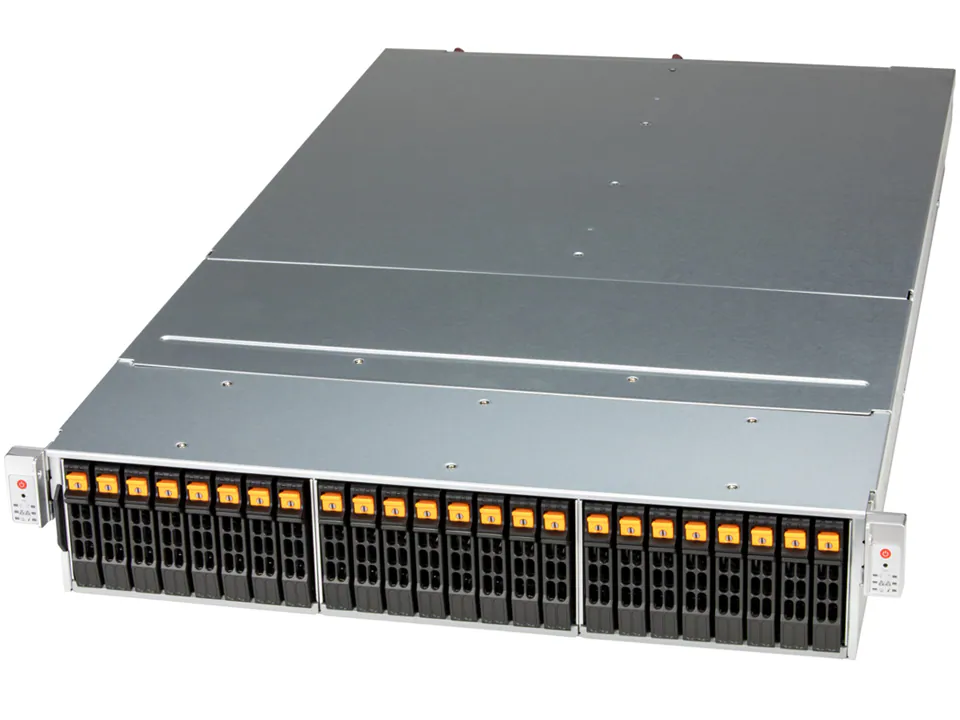

Supermicro SuperServer SSG-229J-5BU24JBF
Supermicro SuperServer SSG-229J-5BU24JBF - imagine 2
Supermicro SuperServer SSG-229J-5BU24JBF - imagine 3
Supermicro SuperServer SSG-229J-5BU24JBF - imagine 4
Supermicro SuperServer SSG-229J-5BU24JBF - imagine 5
, , ,

Supermicro SuperServer SSG-229J-5BU24JBF

Favorite
Compara

2U front-loading all-flash Modular Bluefield-3 based SDS Storage enclosure with 24 hot-swap 2.5″ NVMe bays and PCIe 5.0 with GPU/DPU support for LLM applications

Pretul afisat contine TVA (21%).

SuperServer SSG-229J-5BU24JBF

2U front-loading all-flash Modular Bluefield-3 based SDS Storage enclosure with 24 hot-swap 2.5″ NVMe bays and PCIe 5.0 with GPU/DPU support for LLM applications

Key Features

  1. IPMI management with dedicated LANBF3 management with shared LAN

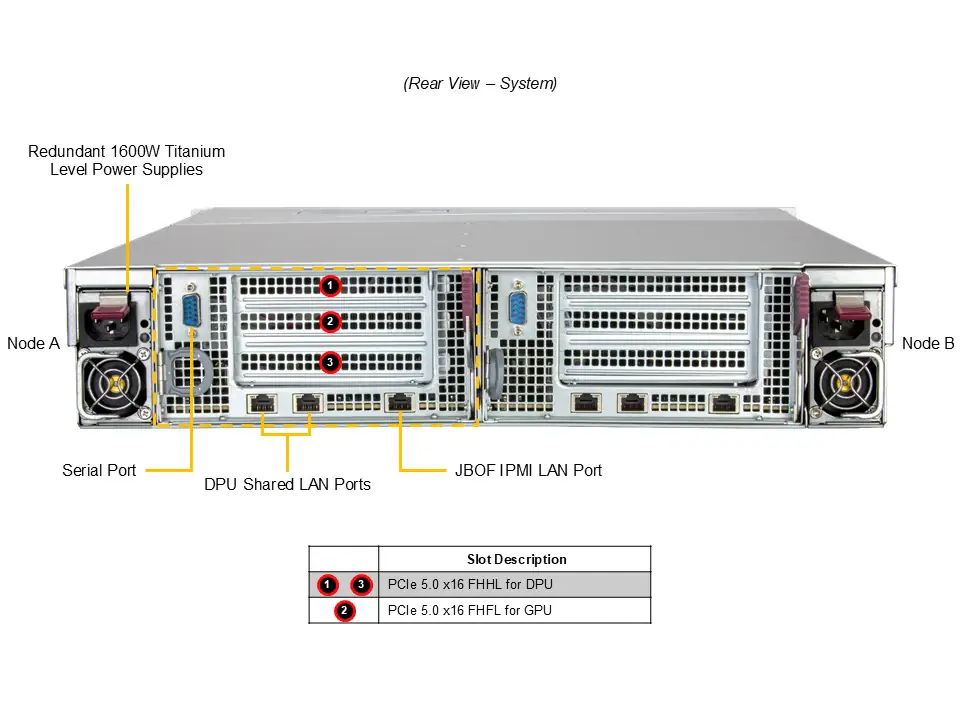

  2. Up to 3 PCIe 5.0 x16 FHFL slots per nodeUp to 2 DPU and 1 GPU per node

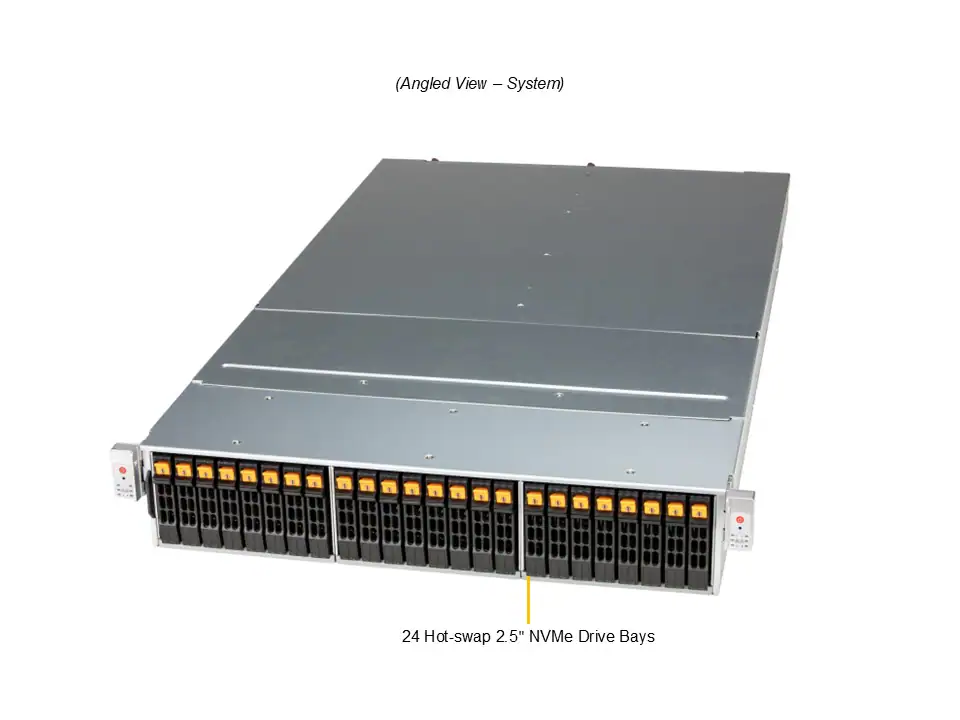

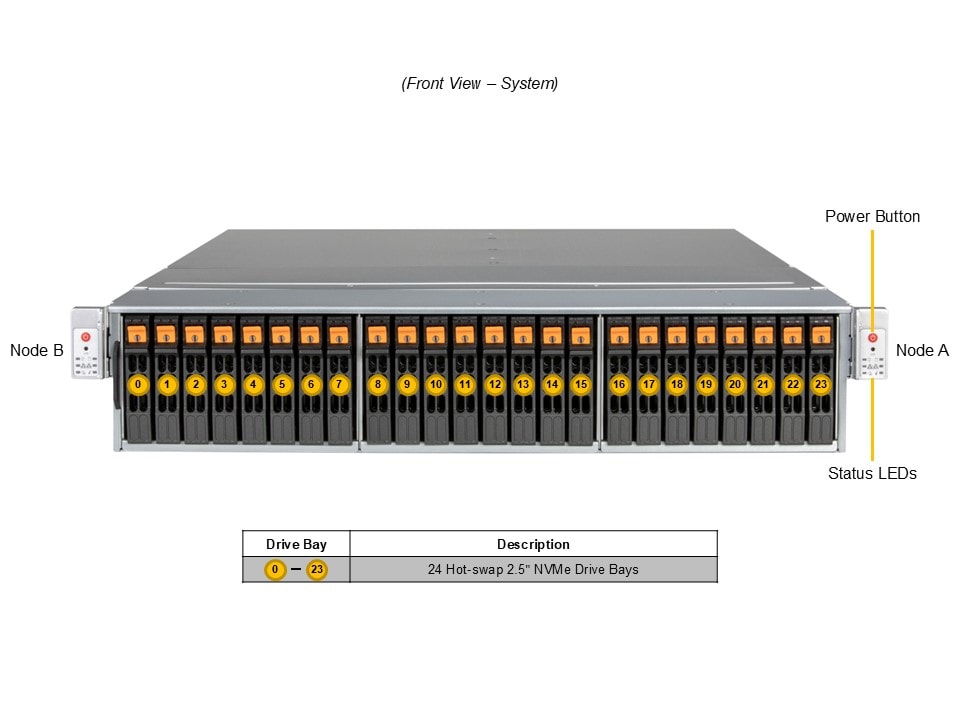

  3. Up to 24 front hot-swap 2.5″ NVMe drive bays
  4. 2 Redundant 1600W Titanium Level power supplies

Specifications

Product SKUs
  • SuperServer SSG-229J-5BU24JBF
PCIe Switch Control Board
  • Super BPN-NVME5-229PL-J
On-Board Devices (per Node)
Network Connectivity
  • 2 QSFP+ 200GbE with NVIDIA® BlueField®-3
  • 1 RJ45 1GbE with Realtek
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • SuperServer SSG-229J-5BU24JBF
  • Super BPN-NVME5-229PL-J
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-229TS-R000RCNDP
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.7″ (449.4 mm)
Depth
  • 30″ (762 mm)
Package
  • 9.64″ (H) x 26.37″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 94.8 lbs (43 kg)
  • Net Weight: 71.88 lbs (32.6 kg)
Available Color
  • Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 FHFL slots
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ NVMe drive bays
  • 24 front hot-swap 2.5″ NVMe drive bays
M.2

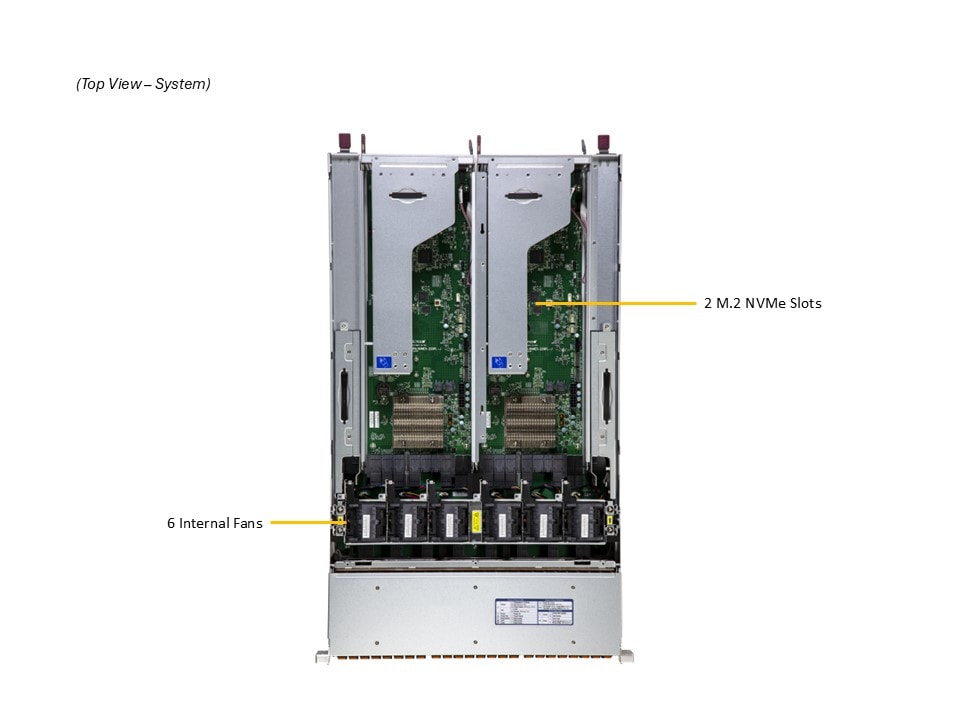

  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
Fans
  • Up to 6 Heavy Duty 60mm Fan(s)
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
SKU: ssg-229j-5bu24jbf Categorii: , , ,
Product SKUs
  • SuperServer SSG-229J-5BU24JBF
PCIe Switch Control Board
  • Super BPN-NVME5-229PL-J
On-Board Devices (per Node)
Network Connectivity
  • 2 QSFP+ 200GbE with NVIDIA® BlueField®-3
  • 1 RJ45 1GbE with Realtek
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
  • SuperServer SSG-229J-5BU24JBF
  • Super BPN-NVME5-229PL-J
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-229TS-R000RCNDP
Dimensions and Weight
Height
  • 3.47″ (88 mm)
Width
  • 17.7″ (449.4 mm)
Depth
  • 30″ (762 mm)
Package
  • 9.64″ (H) x 26.37″ (W) x 43.3″ (D)
Weight
  • Gross Weight: 94.8 lbs (43 kg)
  • Net Weight: 71.88 lbs (32.6 kg)
Available Color
  • Silver
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default3 PCIe 5.0 x16 FHFL slots
  • 3 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 24 bays24 front hot-swap 2.5″ NVMe drive bays
  • 24 front hot-swap 2.5″ NVMe drive bays
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System Cooling
Fans
  • Up to 6 Heavy Duty 60mm Fan(s)
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 265 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3.5A / Min: 0A Max: 3.5A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (Non-Condensing)
  • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 265 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz 1600W: 200-240Vdc / 50-60Hz (for CQC only) +12VMax: 83.3A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3.5A / Min: 0A Max: 3.5A Output TypeBackplanes (gold finger)
Optional Parts List
