Supermicro SuperServer SSG-620P-ACR16L

Favorite
Compara

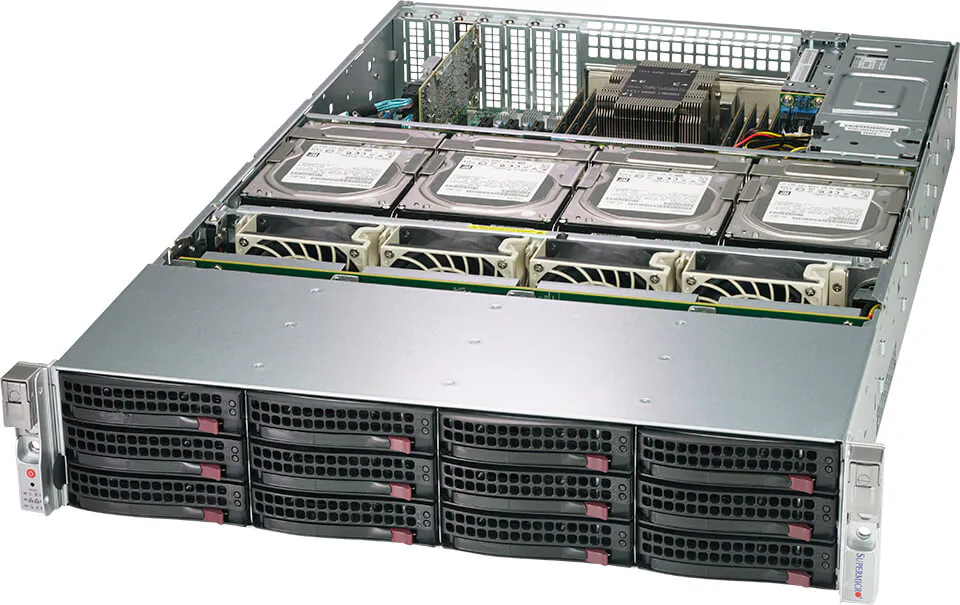

2U front-loading storage server with 16 hot-swap 3.5″ hybrid SAS/SATA bays and PCIe 4.0

Pretul afisat contine TVA (21%).

SuperServer SSG-620P-ACR16L

2U front-loading storage server with 16 hot-swap 3.5″ hybrid SAS/SATA bays and PCIe 4.0

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. 16 ECC DDR4-3200: LRDIMM/RDIMM + 2 Intel® Optane™ Persistent Memory Dedicated Slots
  3. 2x 10Gbe
  4. 16x 3.5″ hot-swap hybrid SATA/SAS drive bays (4 NVMe Hybrid Ports); 2 Rear SATA Slots; onboard 1 M.2 NVMe
  5. 3 heavy duty fans with optimal fan speed control; 1 Air Shroud
  6. 1600W Redundant Power Supplies Titanium Level (96%)
  7. Broadcom® 3816 Controller

Specifications

Product SKUs
  • SuperServer SSG-620P-ACR16L
Motherboard

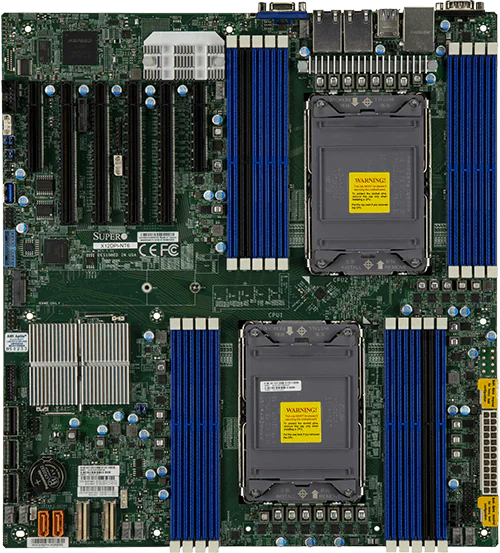

  • Super X12DPi-NT6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 38C/76T; Up to 57MB Cache per CPU
Note
  • Supports 120W – 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4
Memory Voltage
  • 1.2V
On-Board Devices
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X550
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
  • 2 RJ45 10 GBASE-T LAN ports
USB
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
DOM
  • 2 SuperDOM (Disk on Module) ports
System BIOS
BIOS Type
  • AMI 128MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 4+1 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SSG-620P-ACR16L
  • Super X12DPi-NT6
Chassis
Form Factor
  • 2U
Model
  • CSE-829HE1C4-R1K62LPB
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 27.75″ (705 mm)
Package
  • 10.8″ (H) x 25.9″ (W) x 39.3″ (D)
Weight
  • Gross Weight: 62 lbs (28.12 kg)
  • Net Weight: 41.5 lbs (18.82 kg)
Available Color
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LED
  • HDD Fail LED
  • Network Activity LEDs
  • Power Fail LED
  • Power status LED
  • System Information LED
Expansion Slots

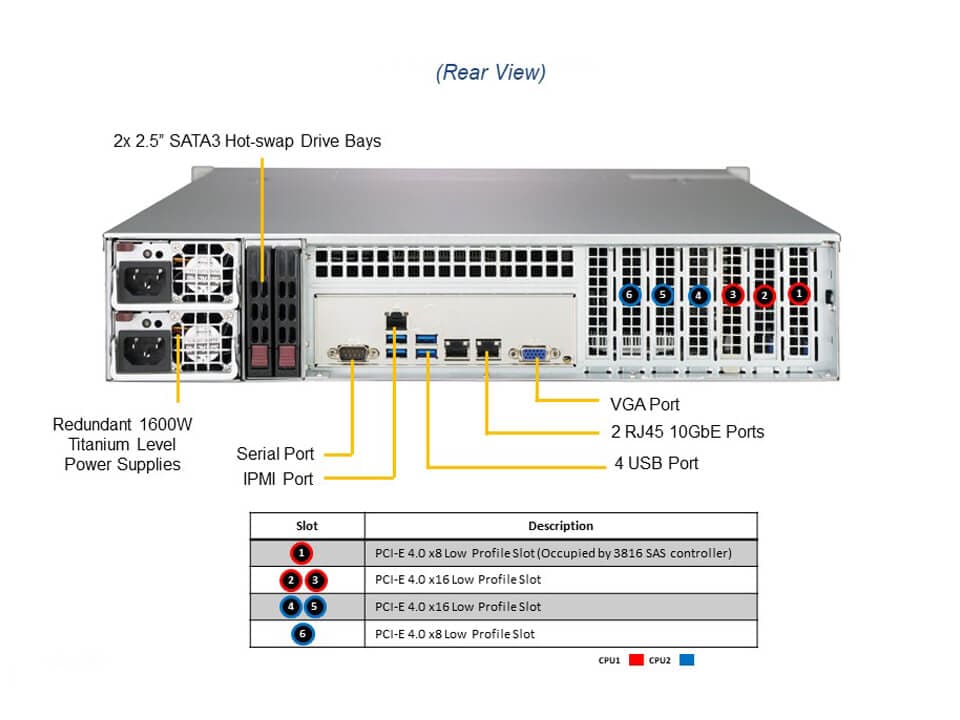

PCI-Express (PCIe) Configuration
  • Default4 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x8 LP slot
  • 4 PCIe 4.0 x16 LP slots
  • 1 PCIe 4.0 x8 LP slot
Drive Bays / Storage

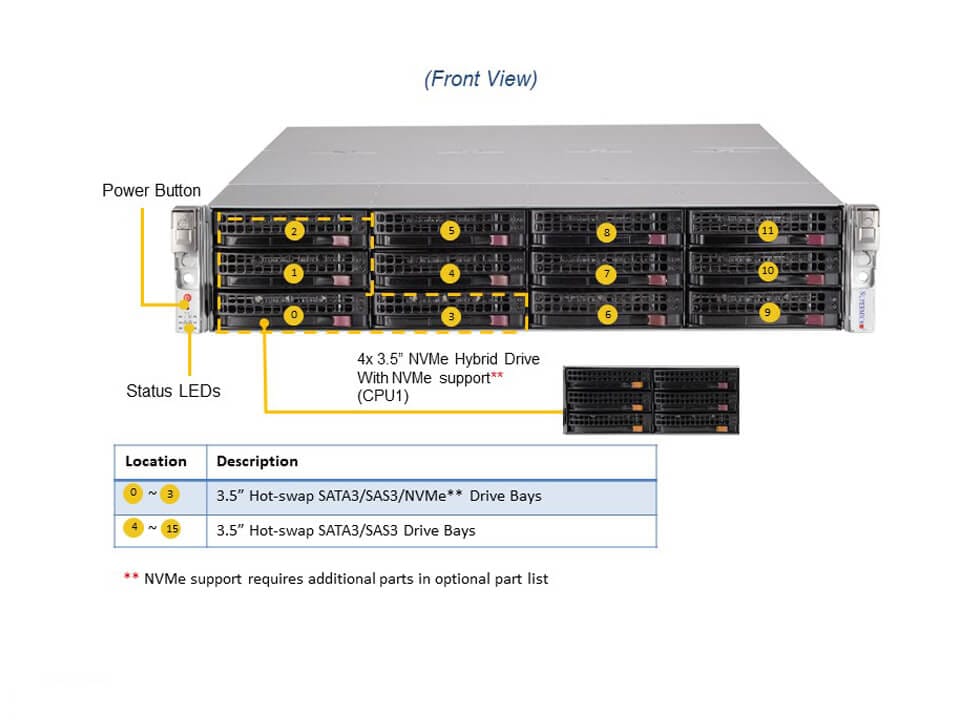

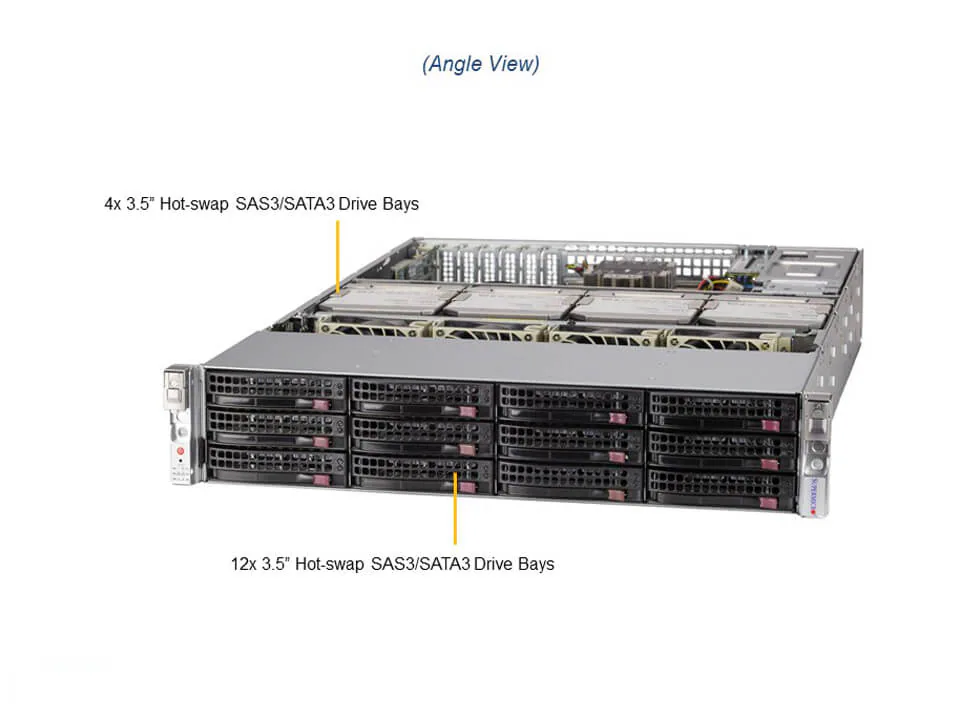

Drive Bays Configuration
  • Default: Total 18 bays8 front hot-swap 3.5″ SAS/SATA drive bays 4 internal hot-swap 3.5″ SAS/SATA drive bays 4 front hot-swap 3.5″ NVMe*/SAS/SATA drive bays 2 rear hot-swap 2.5″ SAS*/SATA drive bays
  • 8 front hot-swap 3.5″ SAS/SATA drive bays
  • 4 internal hot-swap 3.5″ SAS/SATA drive bays
  • 4 front hot-swap 3.5″ NVMe*/SAS/SATA drive bays
  • 2 rear hot-swap 2.5″ SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
M.2
  • 1 M.2 NVMe slot (M-key)
  • View M.2 Options

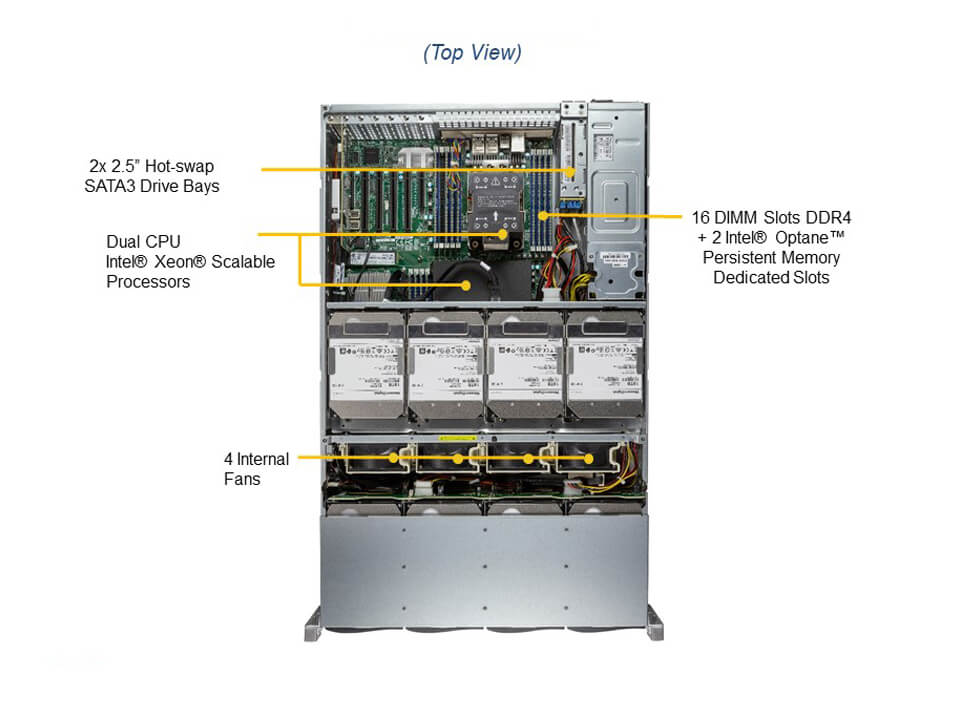

System Cooling
Fans
  • Up to 4 Heavy Duty 8cm Fan(s)
Air Shroud
  • 1 Air Shroud
Power Supply
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Dimension (WxHxL)
  • 73.5 x 40 x 203 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 2.1A / Min: 0A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% ()
  • Non-operating Relative Humidity: 5% to 95% ()
  • 2x 1600W 2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies Dimension (WxHxL)73.5 x 40 x 203 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac 1600W: 200-240Vac / 50-60Hz +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 83.3A / Min: 0A (100Vac-127Vac)Max: 133A / Min: 0A (200Vac-240Vac) 12V SBMax: 2.1A / Min: 0A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ]
Standard Parts (Parts Included)
Optional Parts List
