Supermicro SuperServer SYS-521R-T

Favorite

Compara

UP compact mini tower with 4 hot-swap 3.5″ SATA drive bays and PCIe 5.0

Pretul afisat contine TVA (21%).

SuperServer SYS-521R-T

UP compact mini tower with 4 hot-swap 3.5″ SATA drive bays and PCIe 5.0

Key Features

PCIe 5.0 x 16 slot
Dual LAN ports, 1 GbE and dedicated IPMI
12cm PWM quiet exhaust fan and optional 12cm front intake fan
350W 80PLUS Gold Power Supply
Up to 2 U.2 NVMe drives support (2024H2 version only)

Specifications

Product SKUs
SuperWorkstation SYS-521R-T
Motherboard
Super X13SCL-IF

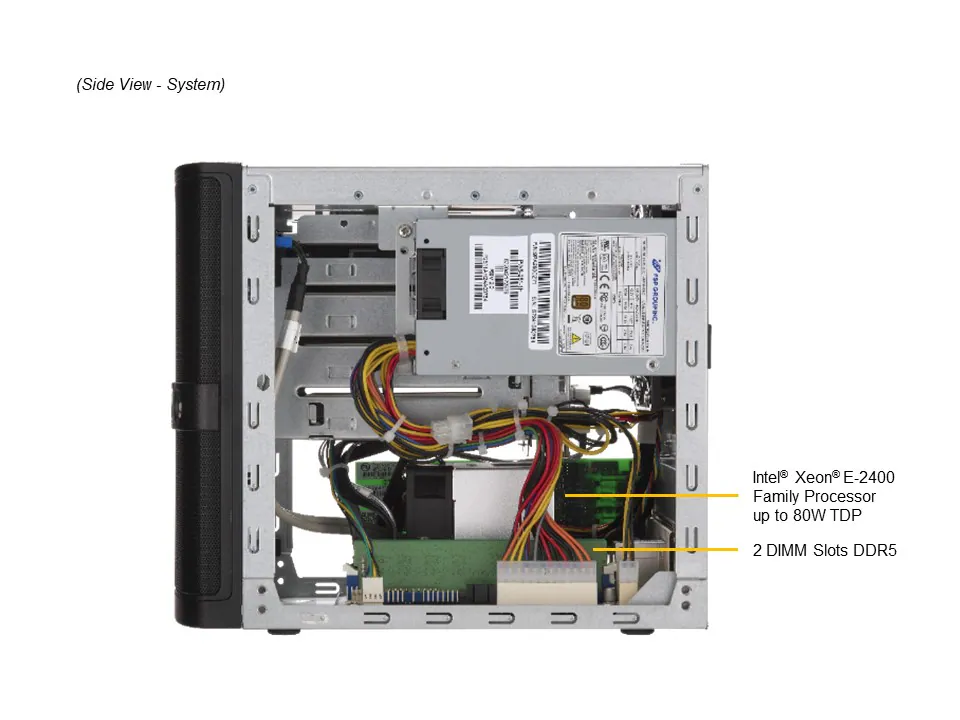

Processor
CPU	Single processor(s) Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
Core Count	Up to 8C/16T
Note	Supports up to 80W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 2 DIMM slots Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM
Memory Voltage	1.1V
On-Board Devices
SATA	SATA (6Gbps)
Network Connectivity	1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI) 2 RJ45 1GbE with Intel® I210

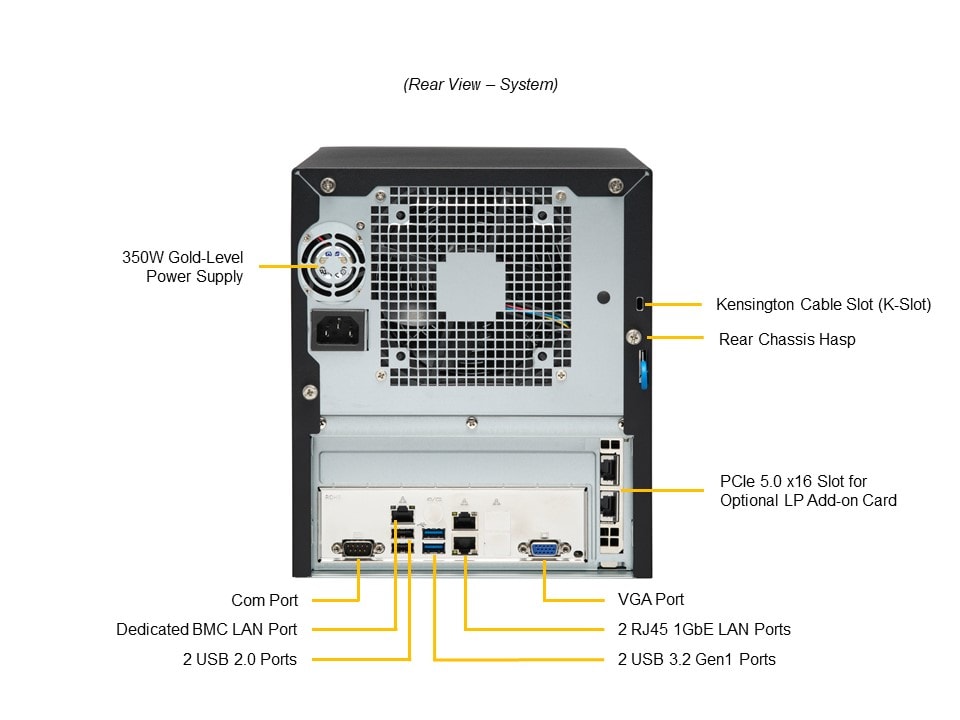

Input / Output
USB	2 USB 3.2 Gen1 Type-A ports(rear) 2 USB 2.0 Type-A ports(rear) 2 USB 3.2 Gen1 Type-A ports(front)
Video	1 VGA port
System BIOS
BIOS Type	AMI 256MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI 6.0 Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Supply Chain Security: Remote Attestation Runtime BMC Protections
PC Health Monitoring
Voltage	+1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
SuperWorkstation SYS-521R-T
Super X13SCL-IF
Chassis
Form Factor	Compact Mini-Tower
Model	CSE-721TQ-350B2

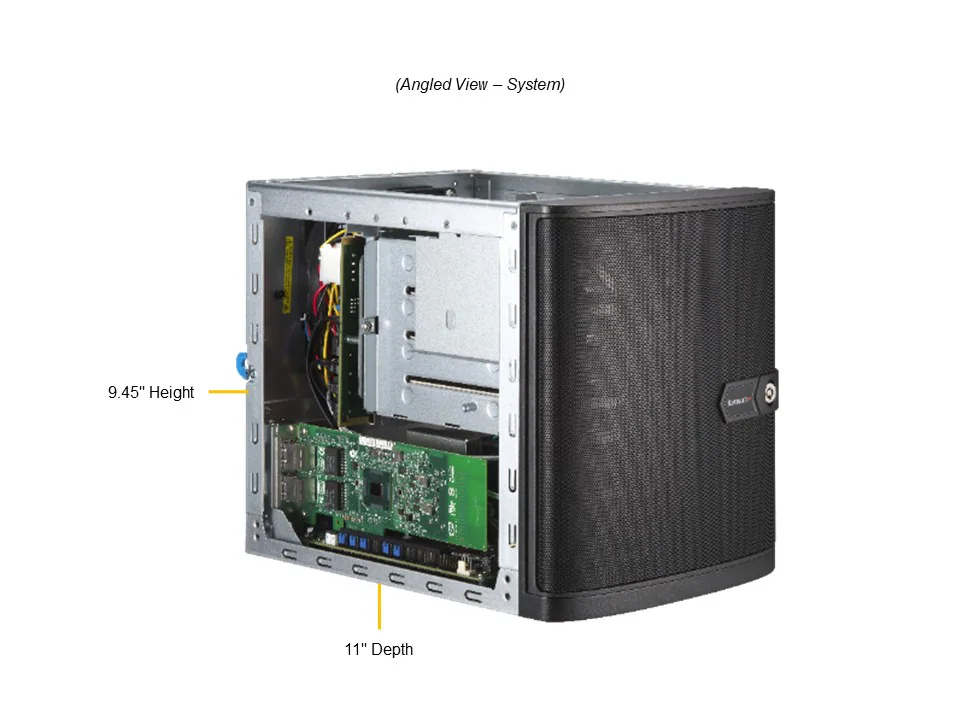

Dimensions and Weight
Height	9.45″ (240.03 mm)
Width	8.27″ (210.06 mm)
Depth	11″ (279.4 mm)
Package	13.78″ (H) x 12.4″ (W) x 16.14″ (D)
Weight	Gross Weight: 15 lbs (6.8 kg) Net Weight: 13.5 lbs (6.12 kg)
Available Color	Black

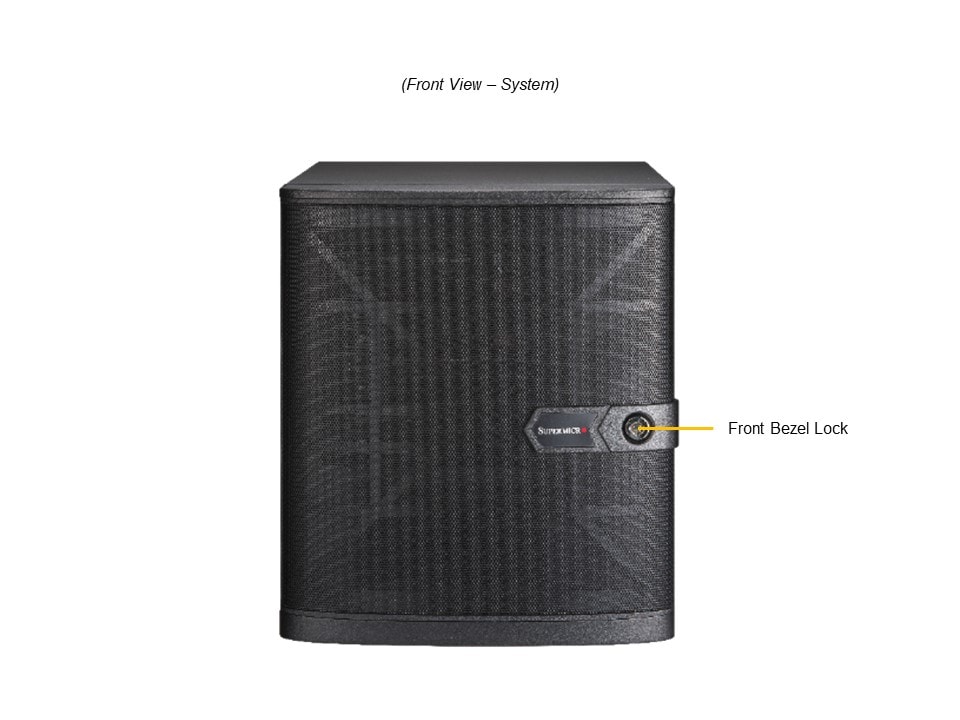

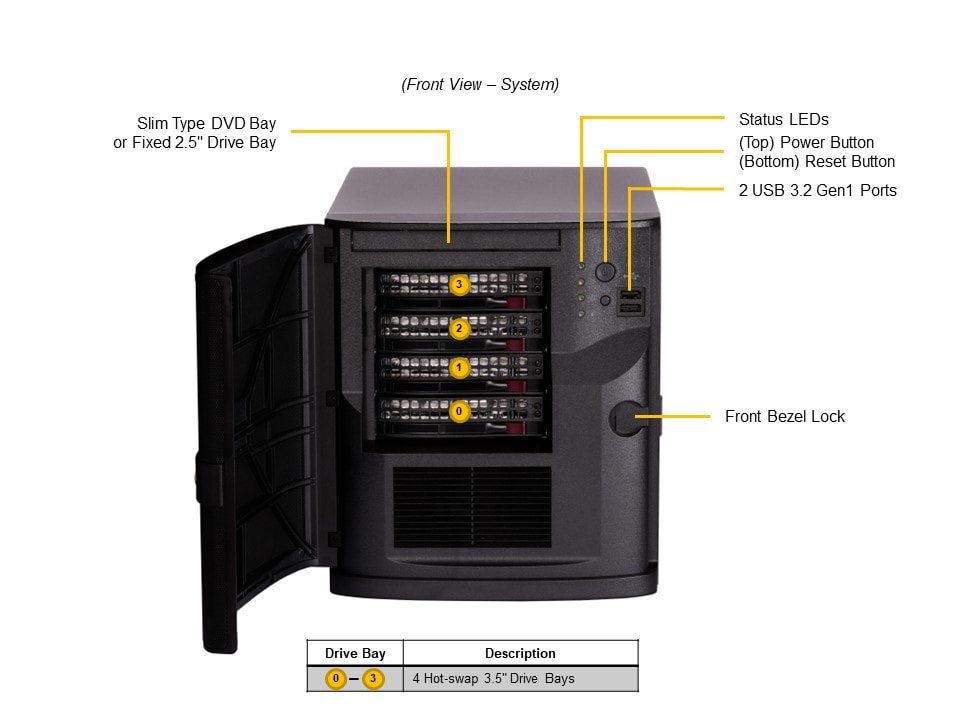

Front Panel
Buttons	Power On/Off button System Reset button
LED	Fan Fail/System Over Heat LED HDD activity LED Network activity LEDs Power status LED
Port	USB 3.0 Port(s)
Expansion Slots
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 HHHL slot 1 PCIe 5.0 x16 HHHL slot

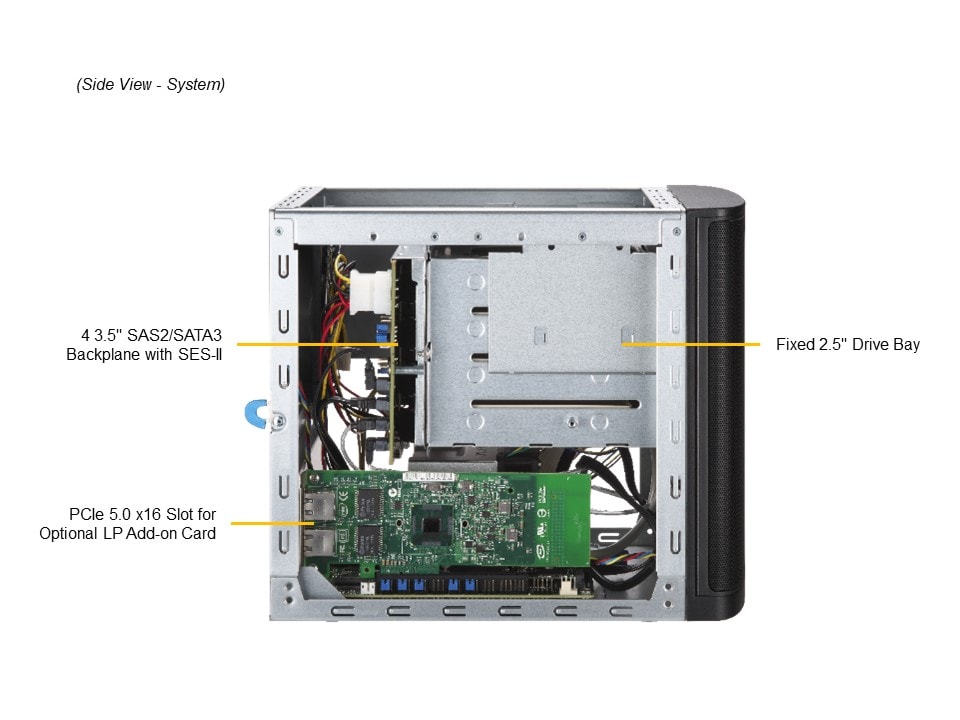

Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays4 front hot-swap 3.5″ PCIe 4.0 x4 NVMe/SAS/SATA drive bays 4 front hot-swap 3.5″ PCIe 4.0 x4 NVMe/SAS/SATA drive bays (*NVMe/SAS support may require additional storage controller and/or cables)
M.2	1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280) View M.2 Options
Peripheral Bays	1 bay
System Cooling
Fans	Up to 1x 120mm Fan(s)
Power Supply
1x 350W 1x 350W Gold Level (92%) power supply Dimension (WxHxL)81.5 x 40.5 x 150 mm Input350W: 100-240Vac / 50-60Hz +12VMax: 28A / Min: 0.1A (100Vac-240Vac) 5V SBMax: 2A / Min: 0.05A Output Type24pin ATX Certification Gold Level
Dimension (WxHxL)	81.5 x 40.5 x 150 mm
Input	350W: 100-240Vac / 50-60Hz
+12V	Max: 28A / Min: 0.1A (100Vac-240Vac)
5V SB	Max: 2A / Min: 0.05A
Output Type	24pin ATX
Certification	Gold Level
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
1x 350W 1x 350W Gold Level (92%) power supply Dimension (WxHxL)81.5 x 40.5 x 150 mm Input350W: 100-240Vac / 50-60Hz +12VMax: 28A / Min: 0.1A (100Vac-240Vac) 5V SBMax: 2A / Min: 0.05A Output Type24pin ATX Certification Gold Level
Optional Parts List
