Supermicro SuperServer SYS-120TP-DC8TR

Favorite
Compara

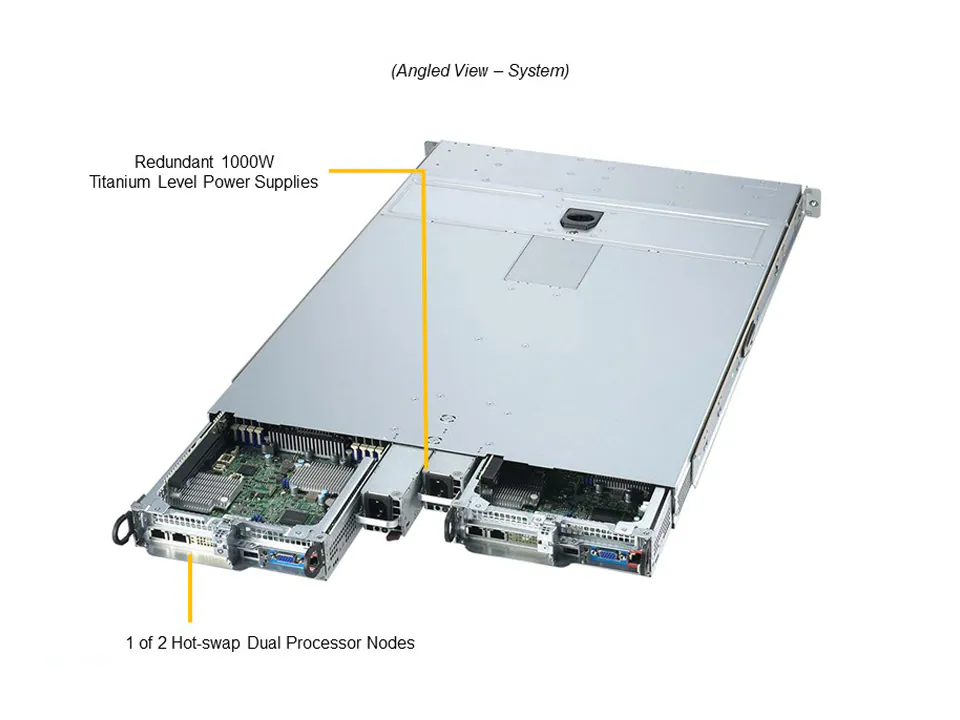

1U 2-node TwinPro with 4 2.5″ SAS/SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-120TP-DC8TR

1U 2-node TwinPro with 4 2.5″ SAS/SATA drives per node

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
  4. 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22×80 mm)
  5. Intel® X710 Dual port 10GBase-T LAN onboard
  6. 4x 2.5″ hot-swap SATA/SAS drive bays
  7. 6 counter-rotating 4cm PWM fans with optimal fan speed control (Per System)
  8. Two 1000W redundant power supplies with PMBus
  9. ASPEED AST2600 BMC, 2 USB, VGA. RoTBroadcom® 3808 SAS (12Gbps); 4 slots per node; HBA only, no RAID support.
  10. ASPEED AST2600 BMC, 2 USB, VGA. RoT
  11. Broadcom® 3808 SAS (12Gbps); 4 slots per node; HBA only, no RAID support.

Specifications

Product SKUs
  • SuperServer SYS-120TP-DC8TR

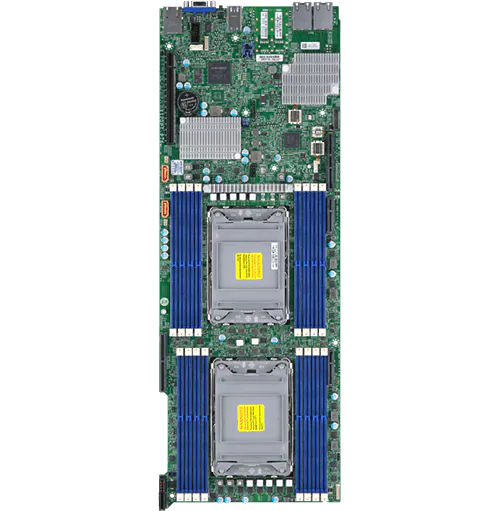

Motherboard
  • Super X12DPT-PT6

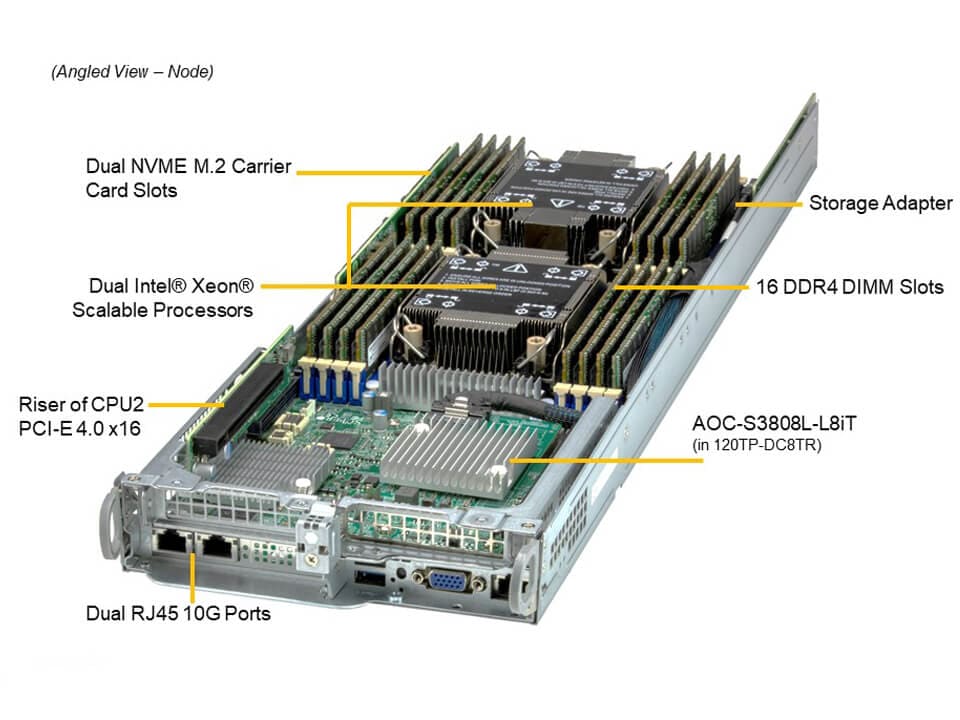

Processor (per Node)
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 32C/64T; Up to 48MB Cache per CPU
Note
  • Supports up to 185W TDP CPUs (Air Cooled)
System Memory (per Node)
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
Memory Voltage
  • 1.2V
On-Board Devices (per Node)
Network Connectivity
  • 2 RJ45 10GBASE-T with Intel® X710-AT2

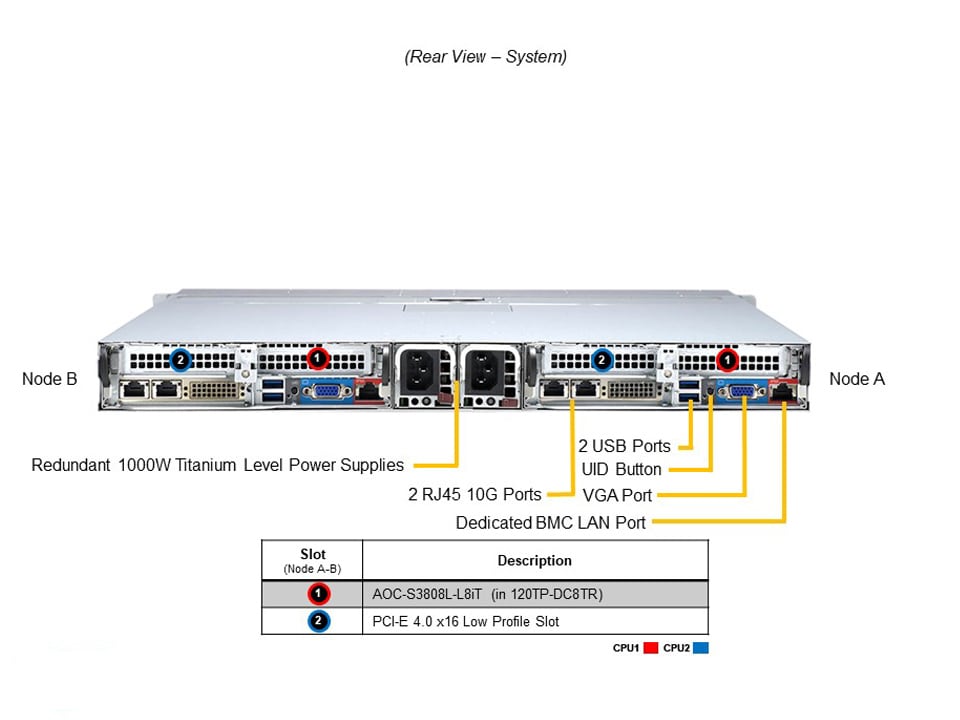

Input / Output (per Node)
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(rear)
Video
  • 1 VGA port
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • 5 Phase-switching voltage regulator
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
  • SuperServer SYS-120TP-DC8TR
  • Super X12DPT-PT6
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-809H-R1K05P3
Dimensions and Weight
Height
  • 1.7″ (43 mm)
Width
  • 17.25″ (438 mm)
Depth
  • 28.25″ (718 mm)
Package
  • 8″ (H) x 29.6″ (W) x 38.4″ (D)
Weight
  • Gross Weight: 48.1 lbs (21.9 kg)
  • Net Weight: 33.5 lbs (15.2 kg)
Available Color
  • Black front & silver body

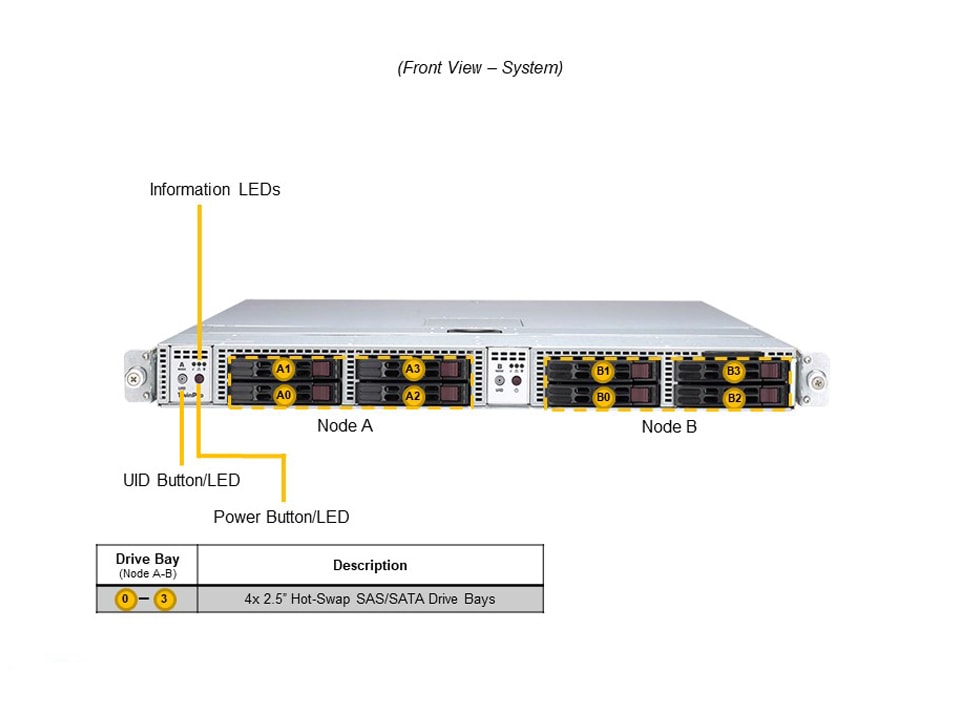

Front Panel
Buttons
  • Power On/Off button
  • UID button
LED
  • Network activity LED
  • Power status LED
  • System information (overheat/UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration
  • Default1 PCIe 4.0 x16 LP slot
  • 1 PCIe 4.0 x16 LP slot
Drive Bays / Storage (per Node)
Drive Bays Configuration
  • Default: Total 4 bays4 front hot-swap 2.5″ SAS/SATA drive bays
  • 4 front hot-swap 2.5″ SAS/SATA drive bays
System Cooling
Fans
  • Up to 6x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 1x 1000W 1x 1000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)38 x 40 x 360 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac 1000W: 200-240Vac / 50-60Hz 1000W: 240-240Vdc / 50-60Hz +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 38 x 40 x 360 mm
Input
  • 800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac 1000W: 200-240Vac / 50-60Hz 1000W: 240-240Vdc / 50-60Hz
+12V
  • Max: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
  • 1x 1000W 1x 1000W Redundant Titanium Level (96%) power supply Dimension (WxHxL)38 x 40 x 360 mm Input800W: 100-127Vac 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac 1000W: 200-240Vac / 50-60Hz 1000W: 240-240Vdc / 50-60Hz +12VMax: 66.7A / Min: 0A (100Vac-127Vac)Max: 83A / Min: 0A (200Vac-240Vac) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
