Supermicro SuperServer SYS-211GT-HNC8R - imagine 2

Supermicro SuperServer SYS-211GT-HNC8R - imagine 3

Supermicro SuperServer SYS-211GT-HNC8R - imagine 4

BRAND, Server&Storage, SUPERMICRO, twin

Supermicro SuperServer SYS-211GT-HNC8R

Favorite

Compara

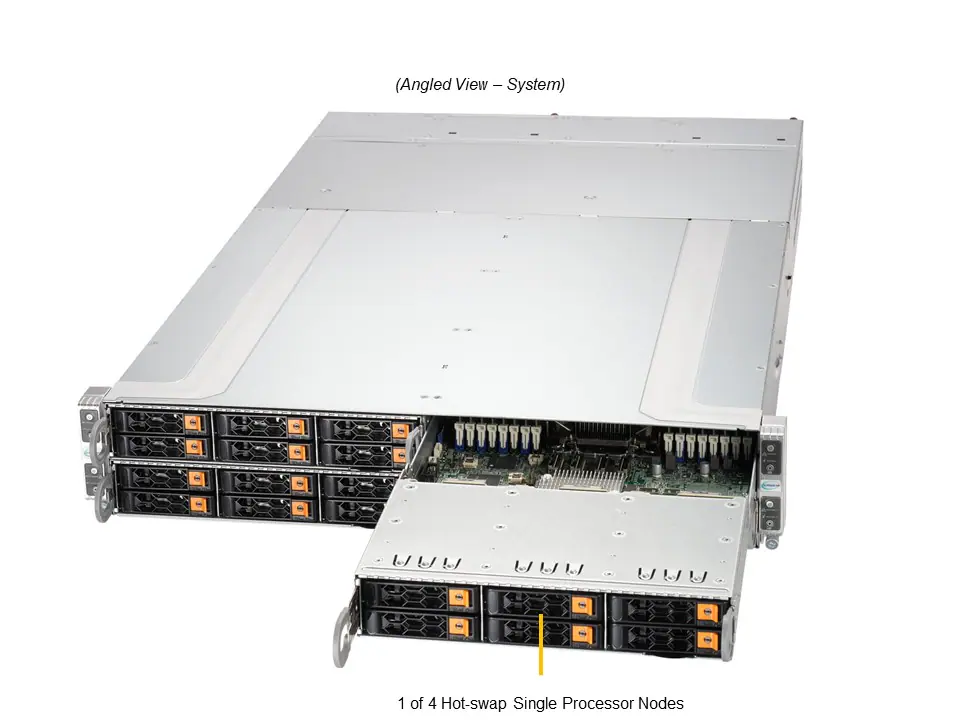

2U 4-Node GrandTwin with up to 6 hot-swap 2.5″ NVMe/SAS/SATA drives per node and rear I/O

Pretul afisat contine TVA (21%).

SuperServer SYS-211GT-HNC8R

2U 4-Node GrandTwin with up to 6 hot-swap 2.5″ NVMe/SAS/SATA drives per node and rear I/O

Key Features

Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 300W TDP
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
2 AIOM
6x NVMe/SAS/SATA drive bays
2x cooling fans per 2U enclosure, 16K RPM Heavy Duty; Shared Cooling Design
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
Built-in SAS3 Support via Broadcom 3808; IT Mode

Specifications

Product SKUs
SuperServer SYS-211GT-HNC8R

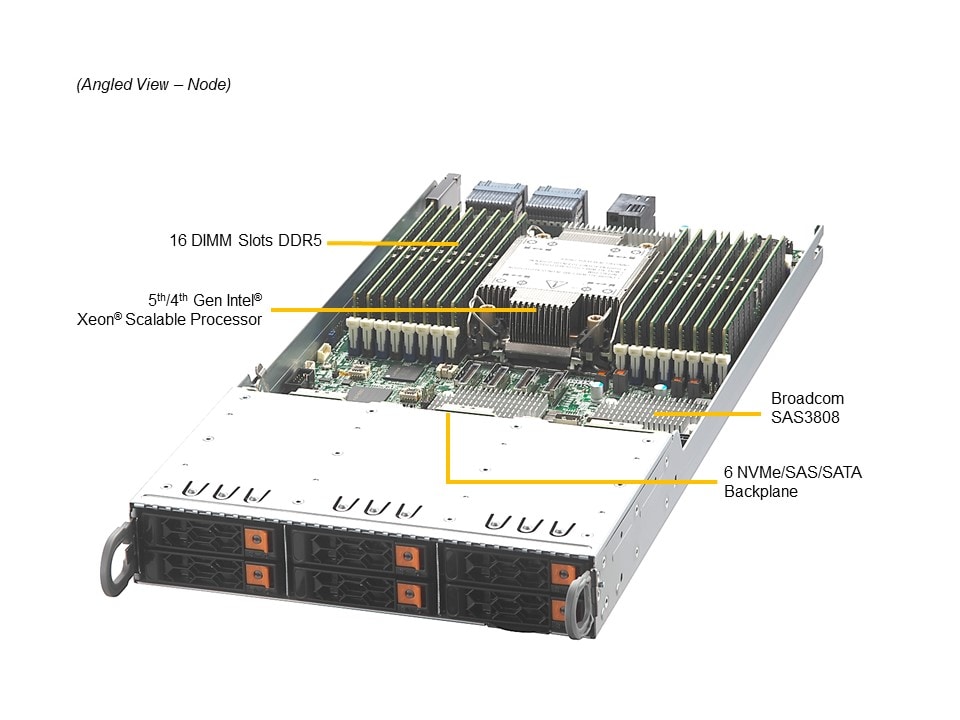

Motherboard

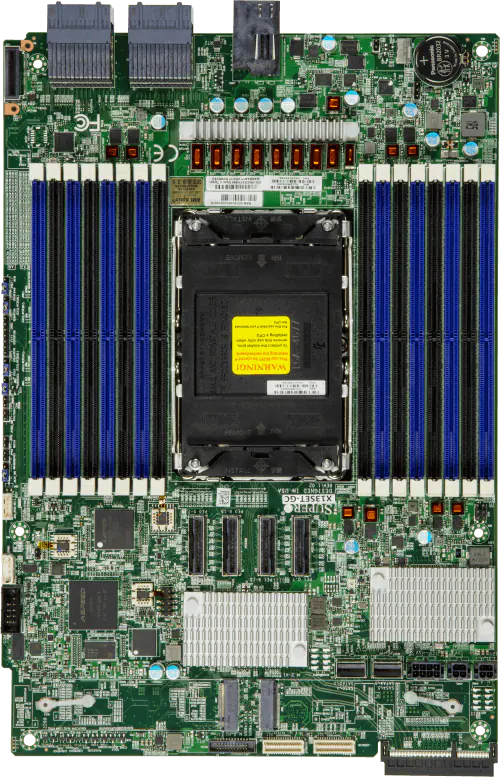

Super X13SET-GC
Processor (per Node)
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 350W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity	Via IO Module

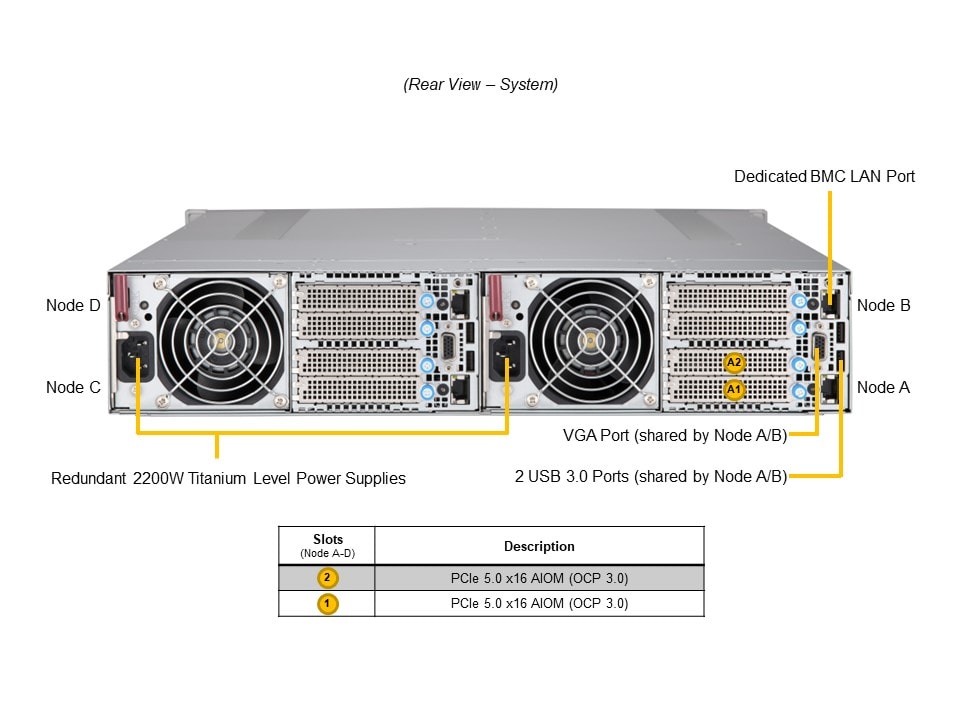

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-211GT-HNC8R
Super X13SET-GC
Chassis
Form Factor	2U Rackmount
Model	CSE-GT214BC-R2K21BP
Dimensions and Weight
Height	3.46″ (88 mm)
Width	17.67″ (449 mm)
Depth	28″ (711.2 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 88 lbs (39.9 kg) Net Weight: 68 lbs (30.8 kg)
Available Color	Silver

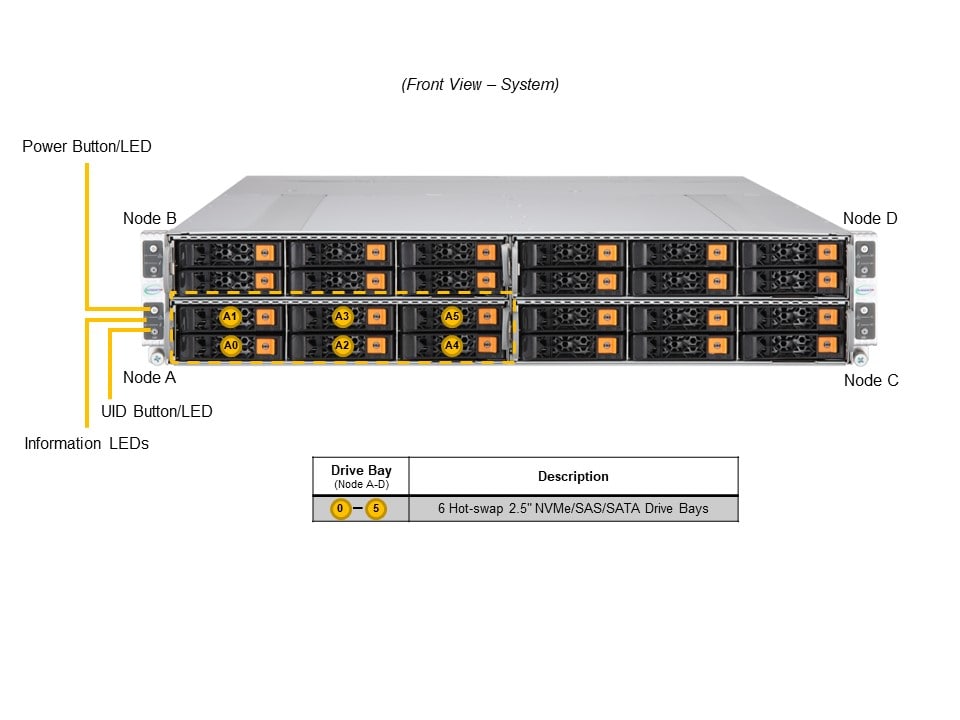

Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2	2 M.2 NVMe/SATA slots (M-key) View M.2 Options
System Cooling
Fans	Up to 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 84 x 245.3 mm
Input	200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB	Max: 2A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

SKU: sys-211gt-hnc8r Categorii: BRAND, Server&Storage, SUPERMICRO, twin

Product SKUs
SuperServer SYS-211GT-HNC8R
Motherboard
Super X13SET-GC
Processor (per Node)
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)* *Air Cooled CPUs with TDP over 350W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity	Via IO Module
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 ports
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-211GT-HNC8R
Super X13SET-GC
Chassis
Form Factor	2U Rackmount
Model	CSE-GT214BC-R2K21BP
Dimensions and Weight
Height	3.46″ (88 mm)
Width	17.67″ (449 mm)
Depth	28″ (711.2 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 88 lbs (39.9 kg) Net Weight: 68 lbs (30.8 kg)
Available Color	Silver
Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays 6 front hot-swap 2.5″ NVMe/SAS/SATA drive bays
M.2	2 M.2 NVMe/SATA slots (M-key) View M.2 Options
System Cooling
Fans	Up to 2x 16K RPM Heavy Duty 8cm Fan(s)
Power Supply
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	106.5 x 84 x 245.3 mm
Input	200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only)
+12V	Max: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only)
12V SB	Max: 2A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle	Return Server-End of Life Product
1x 2200W 1x 2200W Redundant Titanium Level (96%) power supply Dimension (WxHxL)106.5 x 84 x 245.3 mm Input200-220Vdc (2090W for North America – UL & cUL)230-240Vdc (2090W for the Rest of the World)220-230Vdc (1980W for the Rest of the World)200-220Vdc (1800W for the Rest of the World)100-127Vdc (1200W for the Rest of the World)220-240Vdc (2200W for North America – UL & cUL)1200W: 100-127Vac / 50-60Hz 1800W: 200-220Vac / 50-60Hz 1980W: 220-230Vac / 50-60Hz 2090W: 230-240Vac / 50-60Hz (for TUV/CB)2090W: 180-220Vac / 50-60Hz (For UL/cUL Only)2090W: 230-240Vdc / 50-60Hz (for CQC only)2200W: 220-240Vac / 50-60Hz (For UL/cUL Only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 150A / Min: 0A (200Vac-220Vac)Max: 165A / Min: 0A (220Vac-230Vac)Max: 174.17A / Min: 0A (180Vac-220Vac) (For UL/cUL Only)Max: 174.17A / Min: 0A (180Vdc-220Vdc) (For UL/cUL only)Max: 174.17A (230Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac)Max: 183.3A / Min: 0A (220Vac-240Vac) (For UL/cUL only) 12V SBMax: 2A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
