Supermicro SuperServer SYS-222BT-HNR-LCC

Favorite

Compara

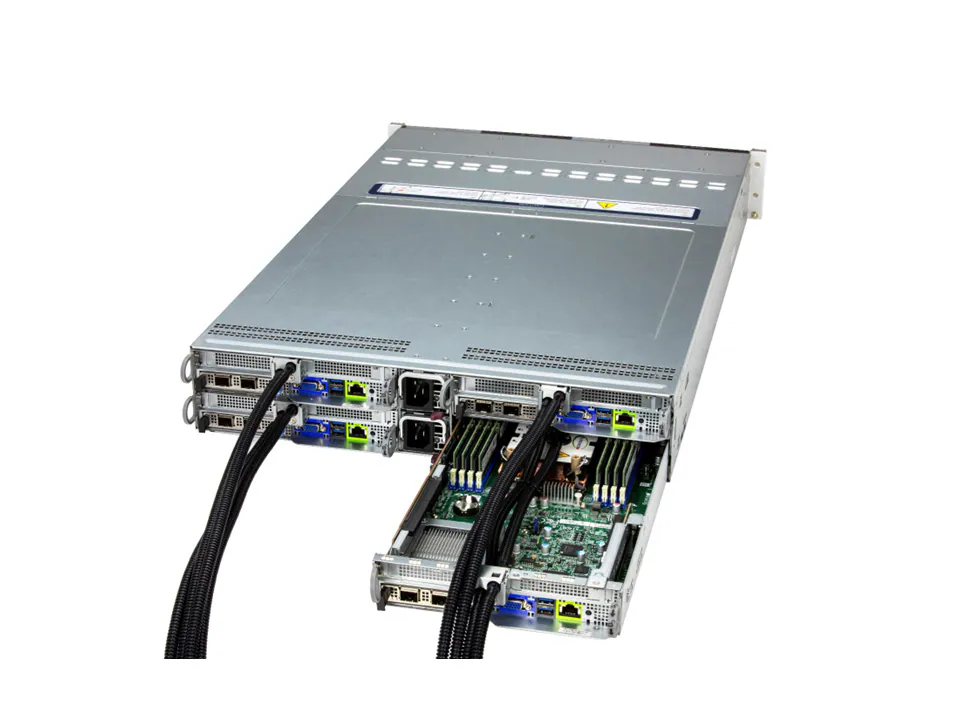

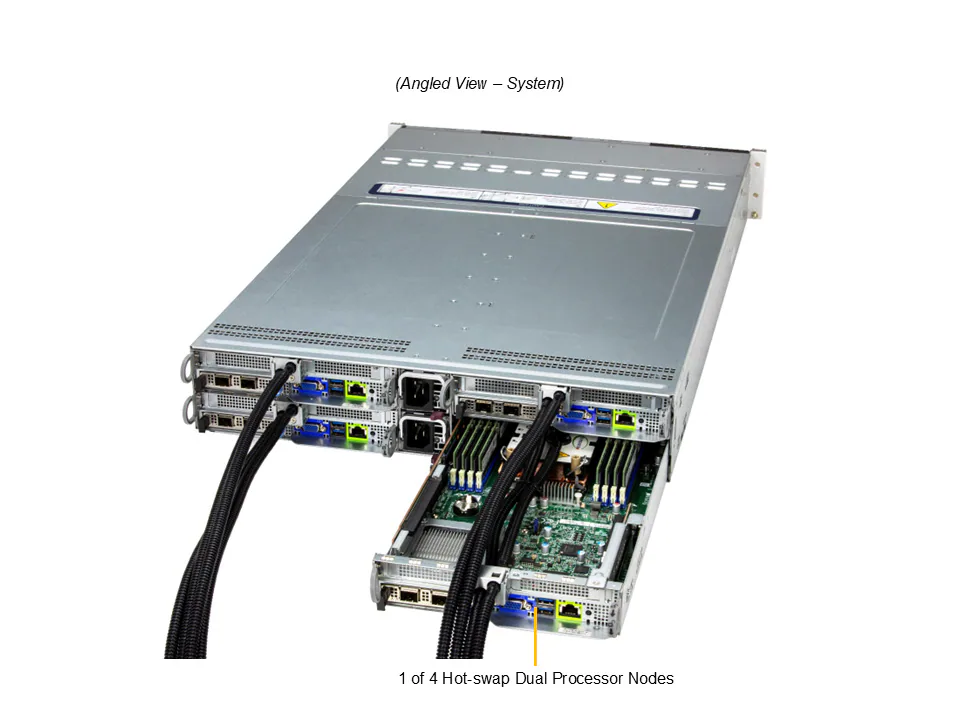

2U 4-Node BigTwin with 6 hot-swap 2.5″ NVMe drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-222BT-HNR-LCC

2U 4-Node BigTwin with 6 hot-swap 2.5″ NVMe drives per node

Key Features

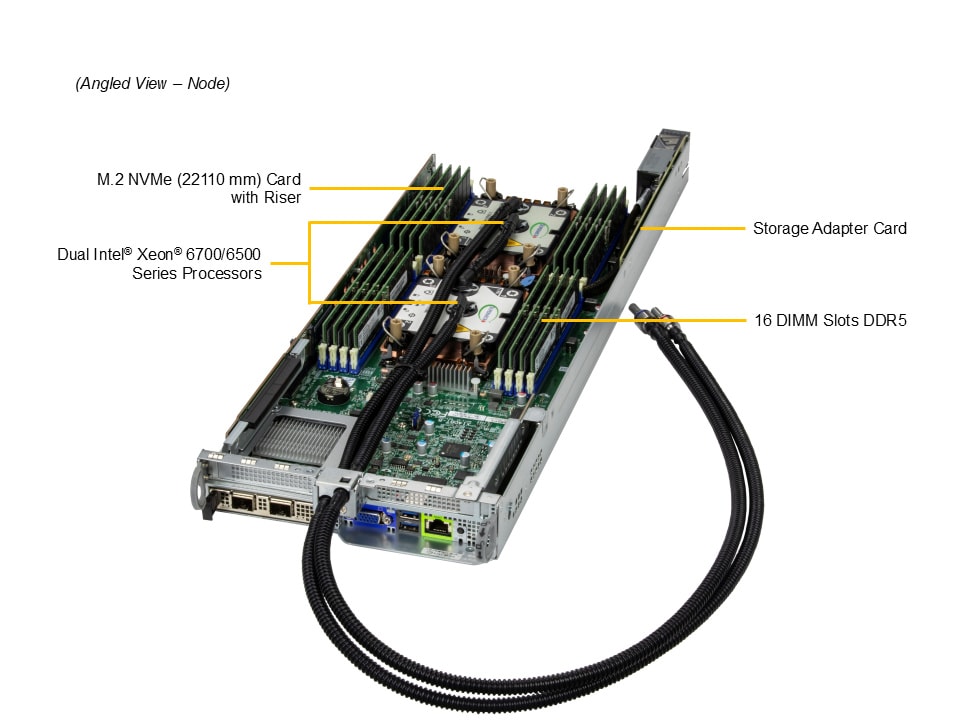

Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores up to 350W with liquid cooling
Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
Flexible networking with up to 1 OCP 3.0 compatible AIOM slots
Up to 2 PCIe 5.0 x16 LP + 1 PCIe 5.0 x16 AIOM slots

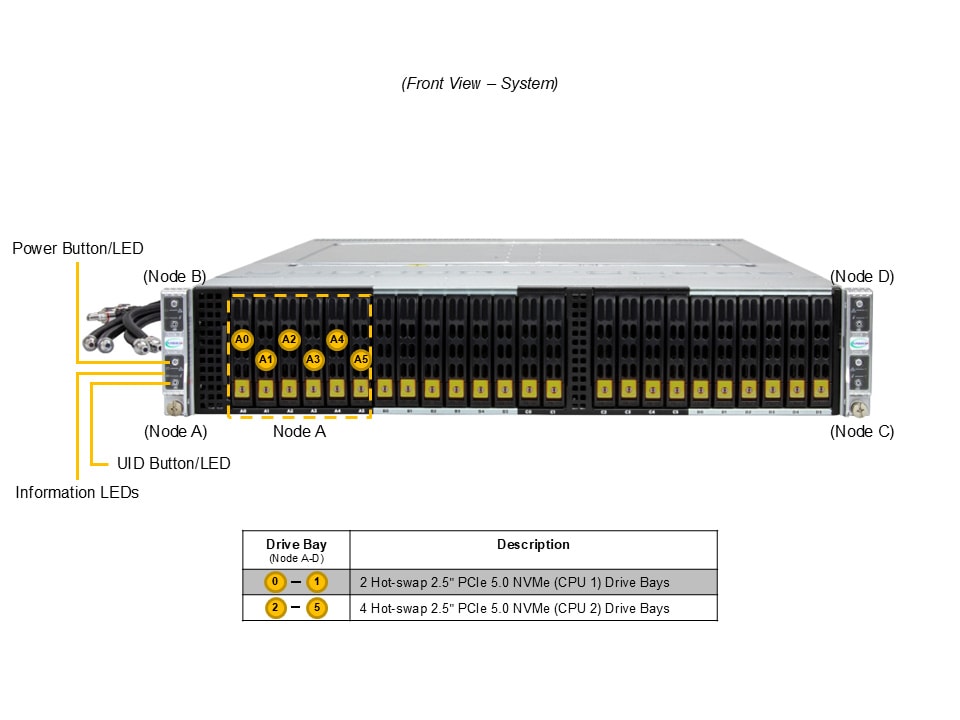

Up to 6 front hot-swap 2.5″ NVMe drive bays
2 Redundant 3600W Titanium Level power supplies
2U Rackmount chassis with 28.75″ (730mm) depth

Specifications

Product SKUs
SuperServer SYS-222BT-HNR-LCC
Motherboard

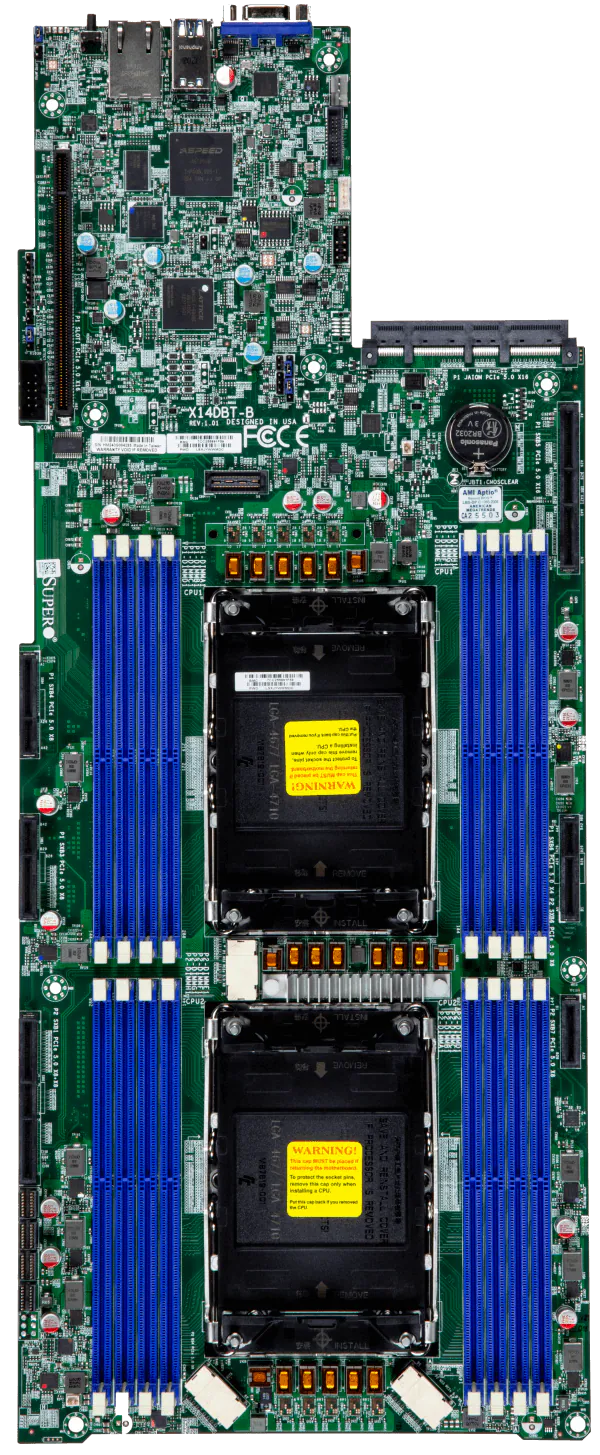

Super X14DBT-B
Processor (per Node)
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Liquid Cooled)
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
Network Connectivity	Via AIOM

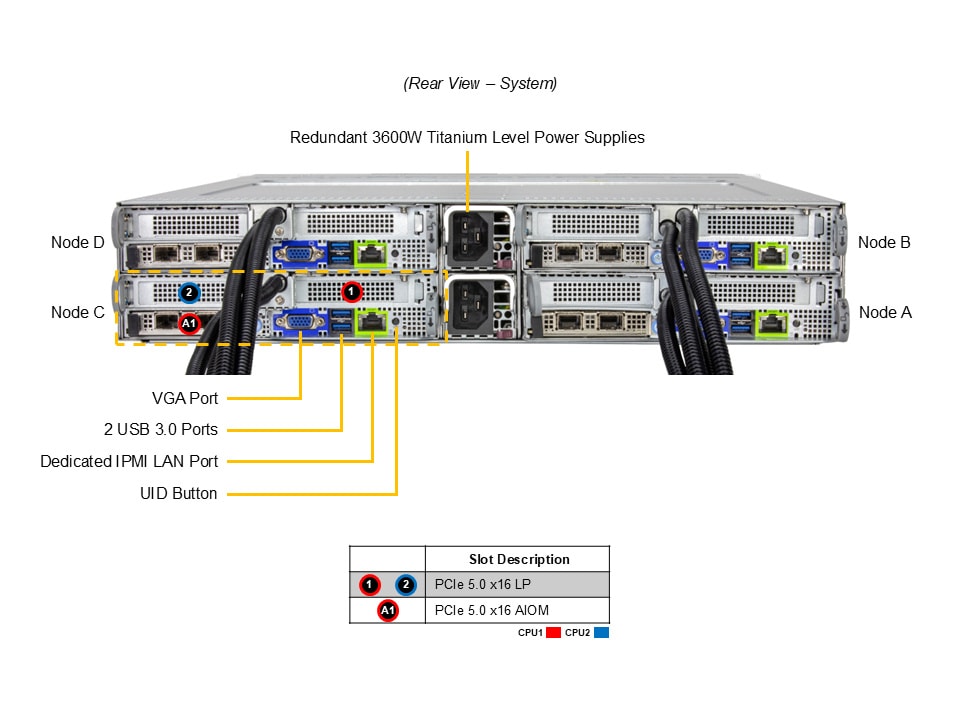

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Gen2 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-222BT-HNR-LCC
Super X14DBT-B
Chassis
Form Factor	2U Rackmount
Model	CSE-217BQ2-R3K60P
Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	28.75″ (730 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays6 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays 6 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) View M.2 Options
System Cooling
Fans	Up to 4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
Air Shroud	4 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate
Power Supply
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	45 x 40 x 480 mm
Input	1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac)
12V SB	Max: 4.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List

SKU: sys-222bt-hnr-lcc Categorii: BRAND, Server&Storage, SUPERMICRO, twin

Product SKUs
SuperServer SYS-222BT-HNR-LCC
Motherboard
Super X14DBT-B
Processor (per Node)
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 336MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Liquid Cooled)
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
Network Connectivity	Via AIOM
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Gen2 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment
SuperServer SYS-222BT-HNR-LCC
Super X14DBT-B
Chassis
Form Factor	2U Rackmount
Model	CSE-217BQ2-R3K60P
Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	28.75″ (730 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 1 PCIe 5.0 x16 LP slot 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) Option A2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays6 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays 6 front hot-swap 2.5″ PCIe 5.0 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID) View M.2 Options
System Cooling
Fans	Up to 4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
Air Shroud	4 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate
Power Supply
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	45 x 40 x 480 mm
Input	1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac)
12V SB	Max: 4.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
