Supermicro SuperServer SYS-622BT-HNC8R

Favorite

Compara

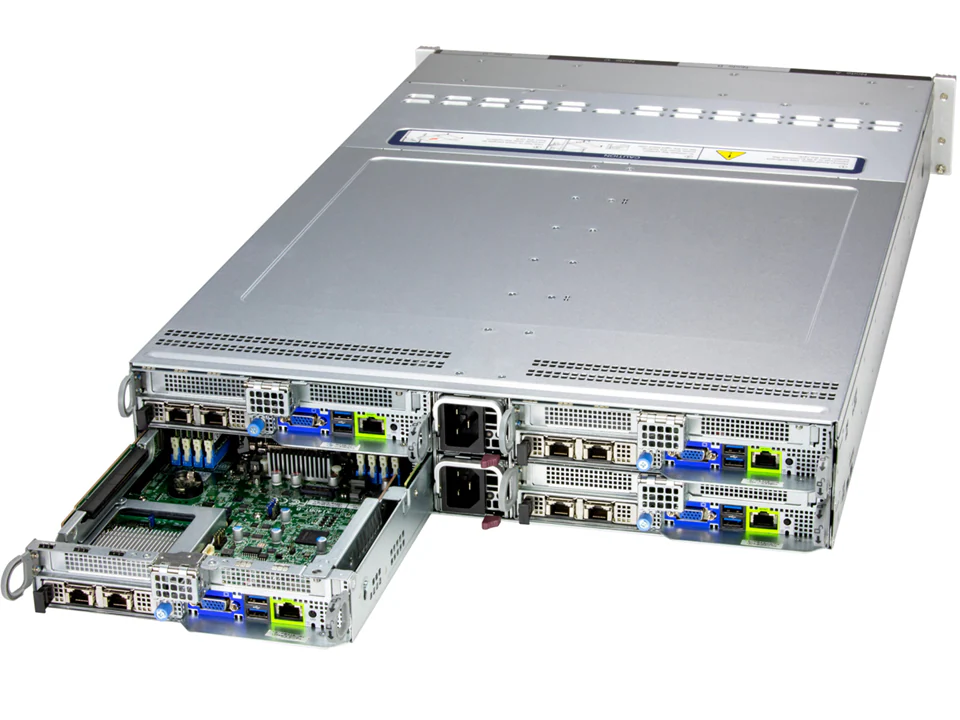

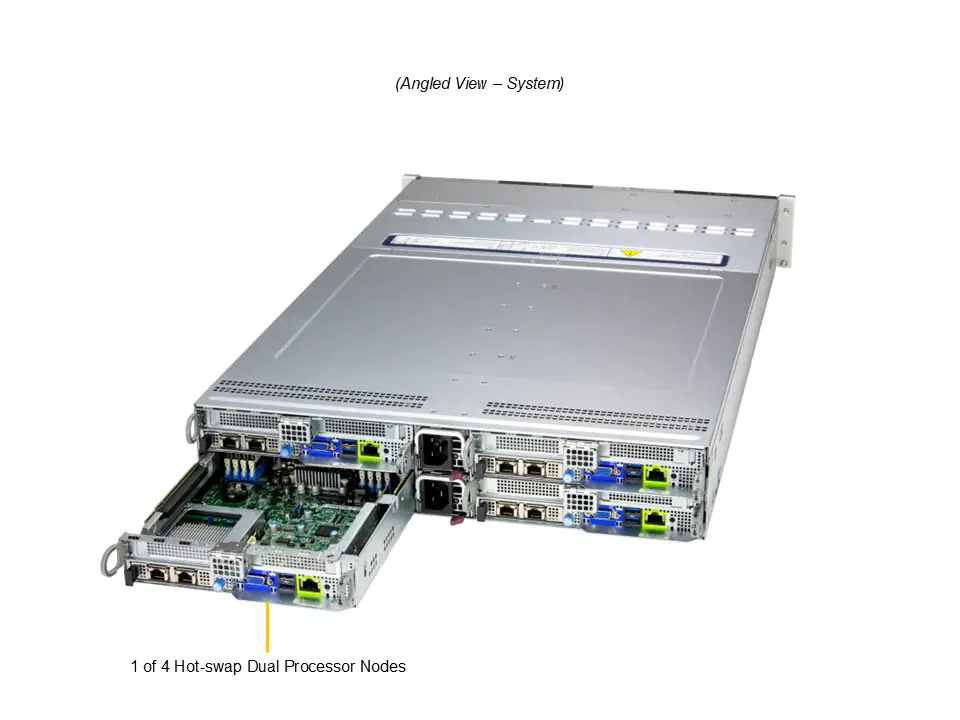

2U 4-Node BigTwin with 3 hot-swap 3.5″ NVMe/SAS/SATA drives per node

Pretul afisat contine TVA (21%).

SuperServer SYS-622BT-HNC8R

2U 4-Node BigTwin with 3 hot-swap 3.5″ NVMe/SAS/SATA drives per node

Key Features

Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 processors with E-cores up to 150W with air cooling or 350W with liquid coolingSingle CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
Dual Socket E2 Intel® Xeon® 6700/6500 series processors with P-cores or 6700 processors with E-cores up to 150W with air cooling or 350W with liquid cooling
Single CPU configurations supported while maintaining all expansion slot functionality; see Option A for drive support limitations
Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC
Flexible networking with OCP 3.0 AIOM slot
Up to 2 PCIe 5.0 x16 LP slots; Tool-less supportInternal PCIe 5.0 for 2 NVMe M.2 support onboardOptional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
Up to 2 PCIe 5.0 x16 LP slots; Tool-less support
Internal PCIe 5.0 for 2 NVMe M.2 support onboard
Optional 4 NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
Up to 3 front hot-swap 3.5″ NVMe/SAS drive baysBuilt-in SAS3 Support via Broadcom 3808; IT Mode
Up to 3 front hot-swap 3.5″ NVMe/SAS drive bays
Built-in SAS3 Support via Broadcom 3808; IT Mode

Specifications

Product SKUs
SuperServer SYS-622BT-HNC8R
Motherboard

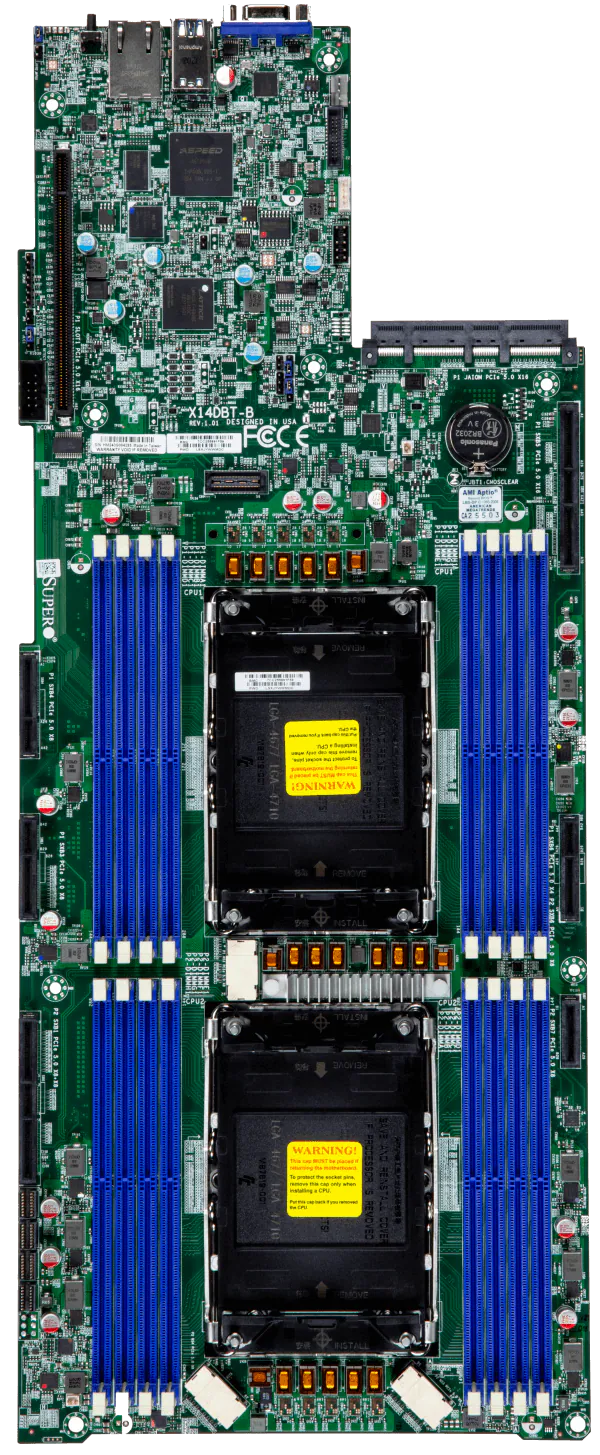

Super X14DBT-B

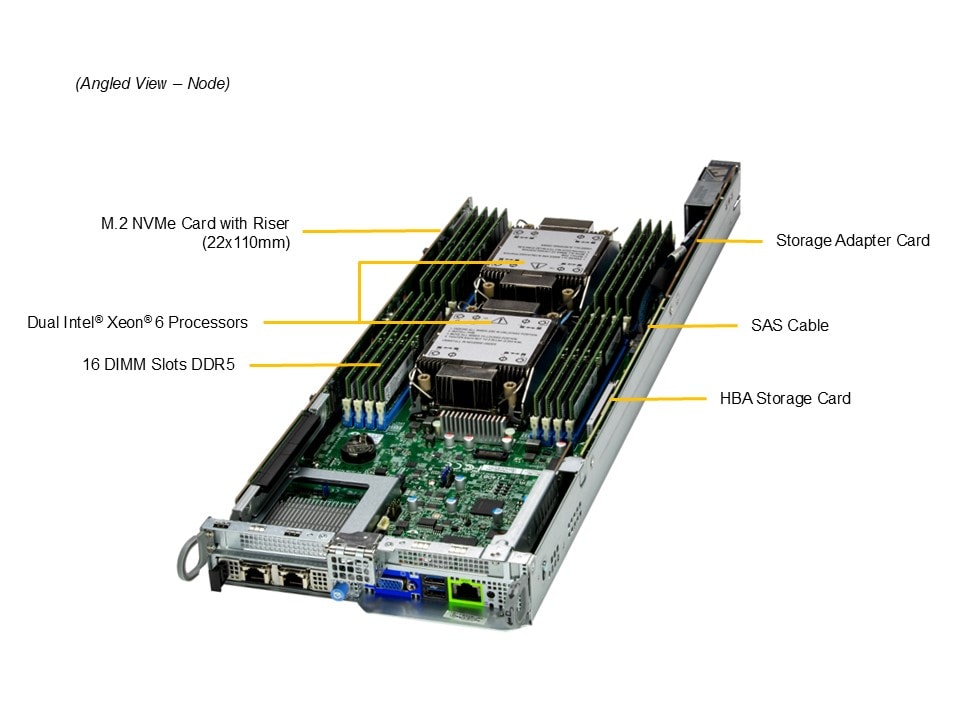

Processor (per Node)
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count	P-cores: Up to 86C/172T; Up to 366MB Cache per CPU E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)* Supports up to 350W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 150W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices (per Node)
SAS	SAS (12Gbps) via Broadcom® 3808; (IT mode)
Network Connectivity	Via AIOM
Input / Output (per Node)

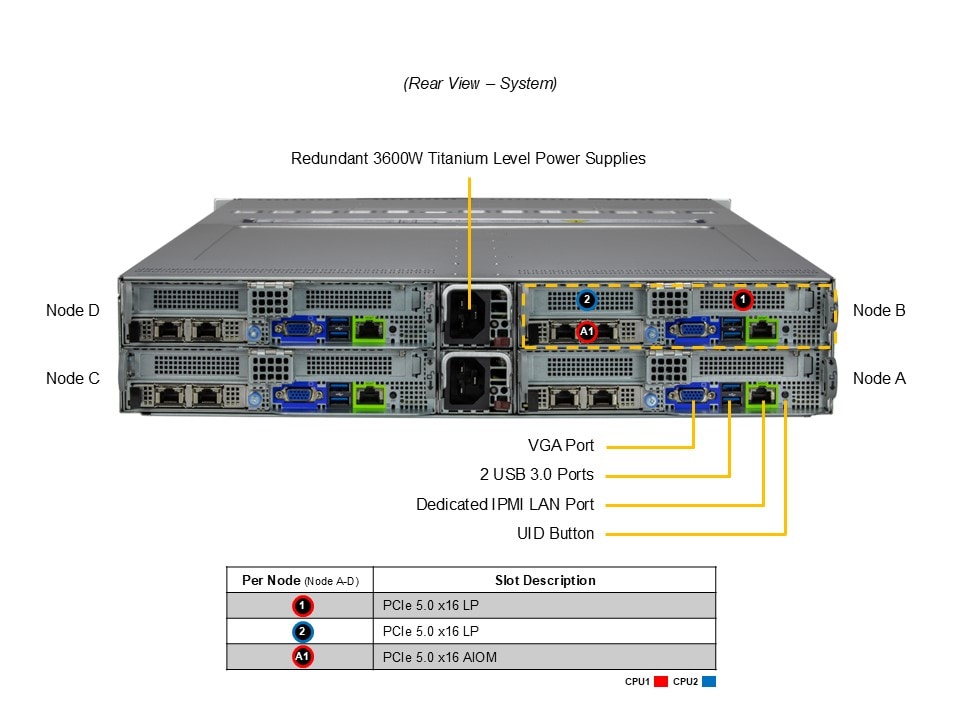

LAN	1 RJ45 1 GbE Dedicated BMC LAN port
USB	2 USB 3.0 Type-A ports(Rear)
Video	1 VGA port
System BIOS
BIOS Type	AMI 32MB SPI Flash
Management
Software	SuperCloud Composer® Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
SuperServer SYS-622BT-HNC8R
Super X14DBT-B
Chassis
Form Factor	2U Rackmount
Model	CSE-827BQ2-R3K60P
Dimensions and Weight
Height	3.47″ (88 mm)
Width	17.68″ (449 mm)
Depth	30.5″ (774 mm)
Package	9.76″ (H) x 24.65″ (W) x 45.28″ (D)
Weight	Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg)
Available Color	Black front & silver body
Front Panel
Buttons	Power On/Off button UID button
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage (per Node)

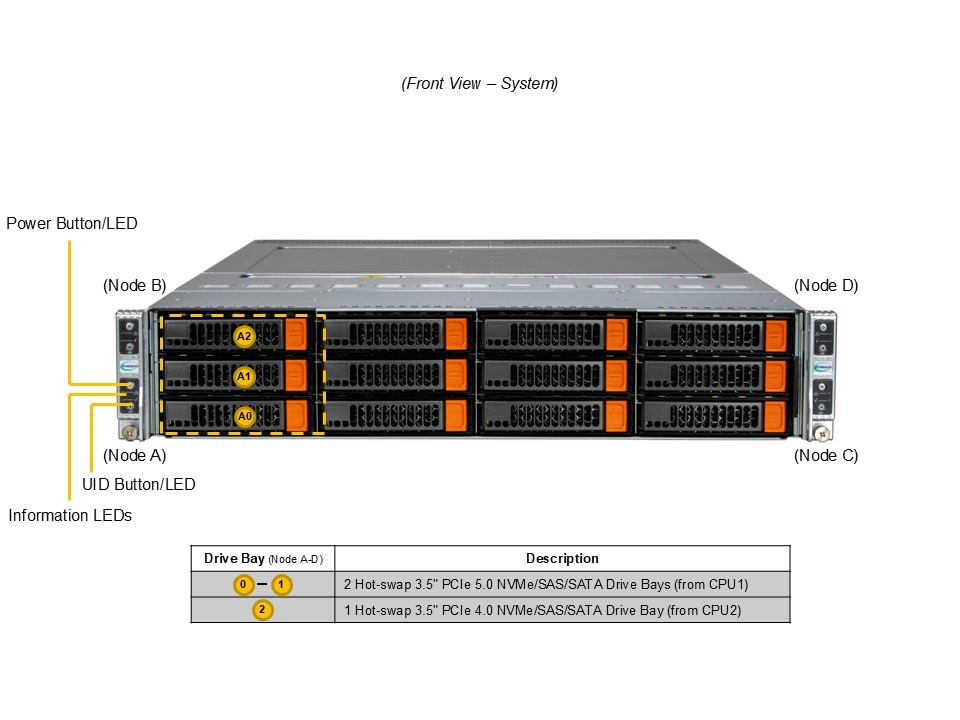

Drive Bays Configuration	Default: Total 3 bays2 front hot-swap 3.5″ PCIe 5.0 NVMe/SAS drive bays 1 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS drive bay 2 front hot-swap 3.5″ PCIe 5.0 NVMe/SAS drive bays 1 front hot-swap 3.5″ PCIe 4.0 NVMe/SAS drive bay
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110; VROC required for RAID) View M.2 Options
System Cooling
Fans	Up to 4x 14.9K RPM Heavy Duty 80x80x38mm Fan(s)
Air Shroud	2 Air Shrouds
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)	45 x 40 x 480 mm
Input	1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only)
+12V	Max: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac)
12V SB	Max: 4.5A / Min: 0A
Output Type	Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)
2x 3600W 2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)45 x 40 x 480 mm Input1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz 3600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 112A / Min: 0A (100Vac-127Vac)Max: 240A / Min: 0A (200Vac-207.9Vac)Max: 248A / Min: 0A (208Vac-219.9Vac)Max: 260A / Min: 0A (220Vac-229.9Vac)Max: 276A / Min: 0A (230Vac-237.9Vac)Max: 288A / Min: 0A (238Vac-240Vac) 12V SBMax: 4.5A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
