ASUS EG500-E11-RS4-R

Favorite
Compara

1U Intel single-socket compact edge server with rear I/O access, 3 FHHL cards, 4 SATA with short PSU, redundant AC PSU and 2 M.2

Pretul afisat contine TVA (21%).

EG500-E11-RS4-R

1U Intel single-socket compact edge server with rear I/O access, 3 FHHL cards, 4 SATA with short PSU, redundant AC PSU and 2 M.2

Key Features

  • Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training
  • Short-depth chassis and rear access design for space-limited edge environments
  • Scalable expansion with support for 3 FHHL cards for GPUs, 2 internal SATA with short PSU in the front, 2 external SATA in the rear, and optional two E1.S SSDs
  • Redundant AC PSU for datacenter or server room environments

Specifications

Processor / System Bus
  • 1x Socket E (LGA 4677)
  • Intel®Xeon® Processor Scalable Family (Air cool with EVAC Up to 350W)
  • *Refer to support page for more information
Core Logic
  • Intel® C741 Chipset
Memory
  • 8 x DIMM slots
  • (8-channel,1 DIMM per channel)
  • 4th:DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
  • 5th:DDR5 5600 MHz RDIMM/3DS RDIMM (1DPC)
  • Maximum 2048GB
  • * Refer to support page for more information
Expansion Slots
  • Up to 3 slots
  • 3 x PCIe G5 x16 link (FHHL)
Storage
  • 2x 2.5” Front Hot-swap drive bays (SATA/NVME)+ 2x 2.5” Int. SATA + 2x E1.S Hot-swap drive bays
  • 2x M.2 (22110/2280,Gen5 x4 Link)
  • *E1.S is optional and only supported for E1.S SKU, cannot be purchased separately
  • *Internal SATA SSD is optional for 650W PSU/ short PSU and only for internal bay SKU, cannot be purchased separately
Networking
  • 2 x X710 10G LAN Ports+
  • 1 x Dedicated management port
Graphic
  • Up to 3 GPU cards
  • Please find the latest GPU support from https://servers.asus.com/support/GPU

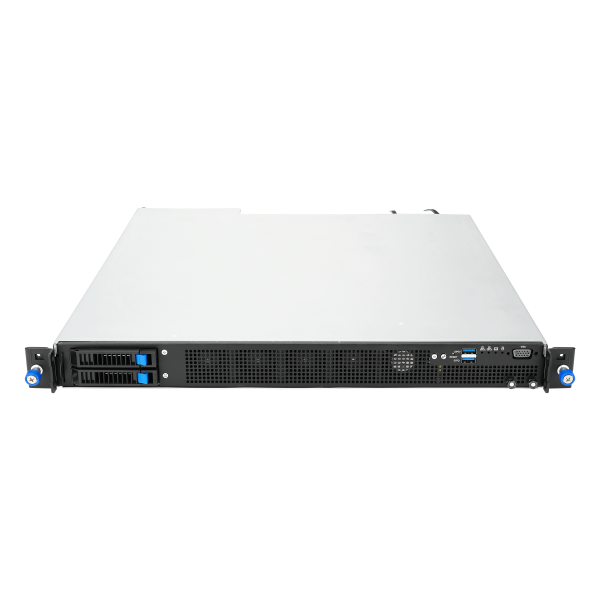

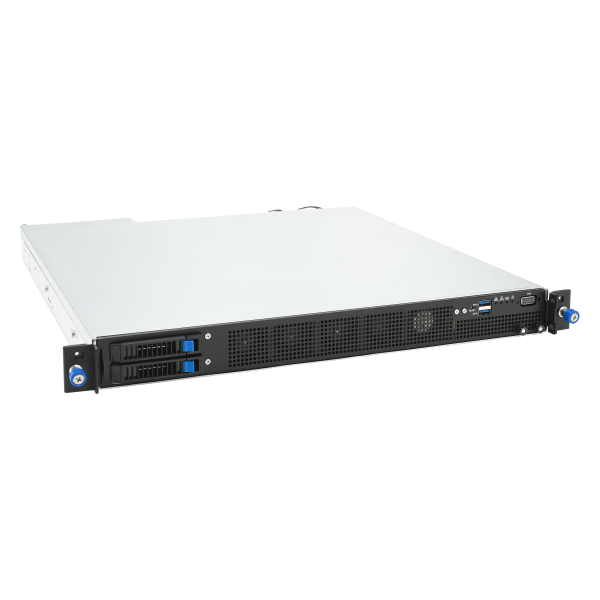

Front I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port

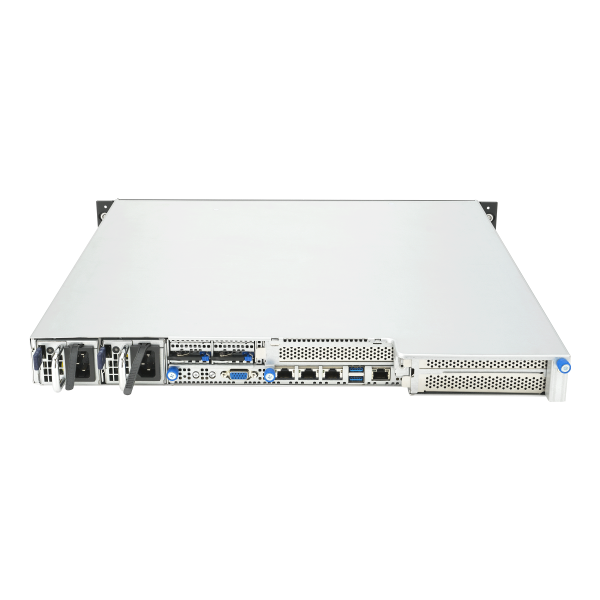

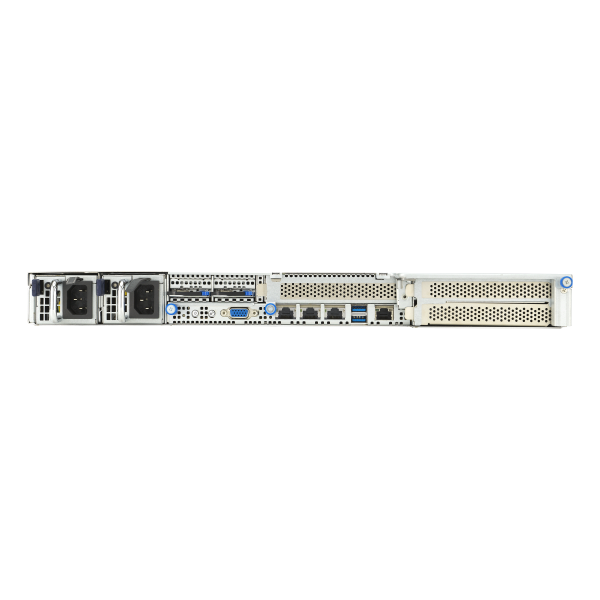

Rear I/O Ports
  • 1 x VGA port
  • 2 x USB 3.2 Gen1 ports
  • 2 x RJ-45 10G LAN port
  • 1 x RJ-45 Mgmt LAN port
  • 1 x RJ-45 Console port
Switch/LED
  • Front Switch/LED:
  • 1 x Power Switch w/ LED
  • 1 x Location Switch w/ LED
  • 1 x Message LED
  • 1 x reset button
  • Rear Switch/LED:
  • 1 x Power Switch (w/ LED)
  • 1 x Location Switch (w/ LED)
  • 1 x Message LED
  • 2 x LAN LED
  • 1 x HDD LED
  • 1 x reset button
Management Solution
  • ASUS Control Center Enterprise (Optional)
  • On-Board ASMB11-iKVM for KVM-over-IP
Dimensions
  • 430mm x 438.5mm x 43.7mm  (D x W x H)
  • 16.93″ x 17.26″ x 1.72″  (D x W x H)
  • 399*mm x 438.5mm x 43.7mm  (D x W x H)  *Ear to rear wall
  • 15.71″ x 17.26″ x 1.72″  (D x W x H)
Form Factor
  • 1U
Weight
  • Net Weight Kg (CPU, DRAM & HDD not included):
  • 15kg (approximate)
  • Gross Weight Kg (CPU, DRAM & HDD not included, Packing include):
  • 17 kg (approximate)
Power Supply
  • 1+1 Redundant AC PSU
  • 650W 50.5MM SLIM Platinum Power Supply
  • 1300W 50.5MM SLIM Platinum Power Supply
  • *Titanium Power Supply is planning
  • *Different PSU may not swap for each other directly, please contact ASUS Technical Support for more detail.
Note
  • Certain high TDP CPUs and GPU card may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 60℃
  • Non operation humidity: 20% ~ 90% ( Non condensing)
  • Note:Operating Temperature based on configurations
FRU Part List
  • 90SB0BV0-M1XBN0   MB (Z13PP-U8)
  • 90SC0NI0-M0XBN1   PCIe Riser (RE16LX2-R1PE)
  • 90SC0NJ0-M0XBN1   PCIe Riser (RE16LX1-R1PE)
  • 90SC0NN0-M0XBN1   PDB_1300W PSU (PDB-R1PE)
  • 90SC0QW0-M0XBN1   PDB_650W&800W PSU (PDB-R1PE/S)
  • 90SC0NS0-M0XBN1   FPB (FPB-R1PE)
  • 90SC0P20-M0XBN1   External 2.5″ SSD BP (BP2LE12G-25-R1PE)
  • 90SC0PL0-M0XBN1   M.2 Riser (M.2-R1PE)
  • 90SKS000-M96AN0   4056 FAN
  • 90SKS000-M97AN0   4028 FAN
  • 90SKH000-MQLAN0   2.5″_HDD TOOLLESS ASY//MOQ:10
  • 90SKS000-M98AN0   EG500-E11 1U EVAC
  • 90SKP000-M0CAN0   EG500-E11/ACBEL 1300W AC FORWARD/SLIM 50.5mm
  • 90SKP000-M0FAN0   EG500-E11/GOSPOWER 650W AC FORWARD/SLIM 50.5mm
  • 90SKR000-M0HAN0   EG500-E11/FRICTION RAIL KIT 1.0M
  • 90SKR000-M0IAN0   EG500-E11/BALL-BEARING RAIL KIT 1U & 2U/FULL-EXTENDED
