Supermicro SuperServer SYS-122C-TN

Favorite
Compara

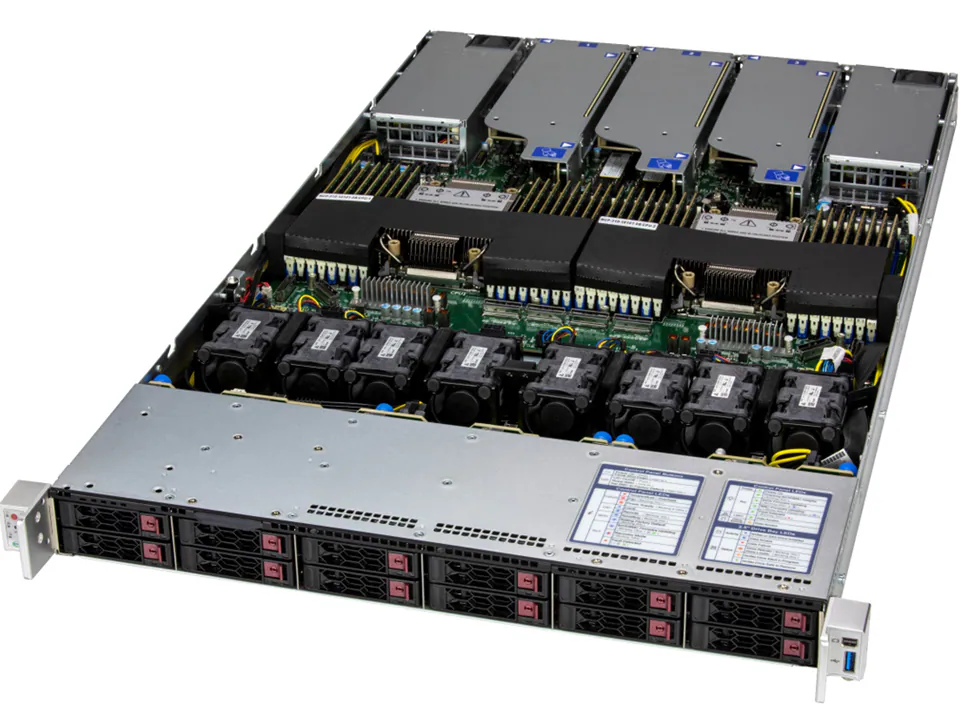

1U CloudDC with DC-MHS, 12 hot-swap 2.5†NVMe/SATA/SAS bays, 3 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots

Pretul afisat contine TVA (21%).

SuperServer SYS-122C-TN

1U CloudDC with DC-MHS, 12 hot-swap 2.5†NVMe/SATA/SAS bays, 3 PCIe 5.0 x16/x8 slots and 2 PCIe 5.0 x16 AIOM slots

Key Features

  1. Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
  2. Optimized power & balanced performance for cloud applications
  3. Server management flexibility with OpenBMC

Specifications

Product SKUs
  • SuperServer SYS-122C-TN
  • SuperServer SYS-122C-TN-01-G2 Gold Series version with pre-configured components

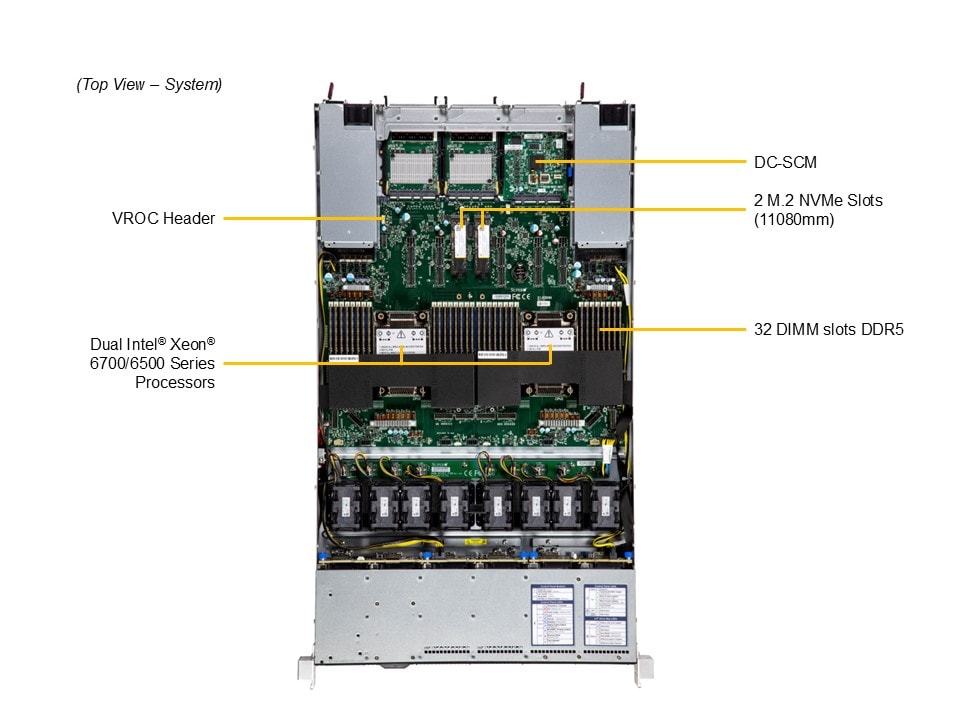

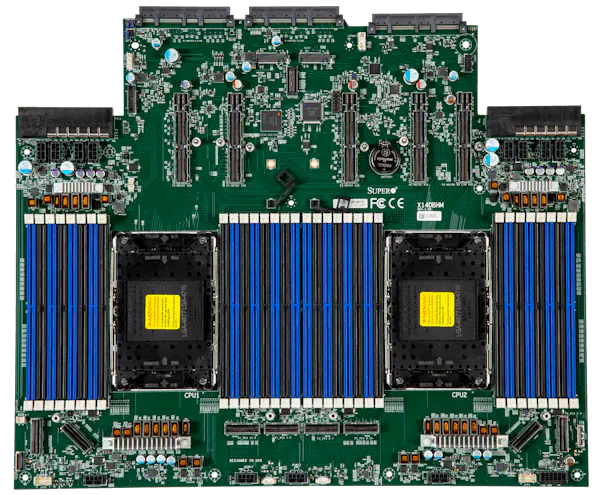

Motherboard
  • Super X14DBHM
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 86C/172T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)*
  • *Air Cooled CPUs with TDP over 250W only supported under specific conditions. Contact a Supermicro representative for details.
GPU
Max GPU Count
  • Up to 3 single-width GPUs
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
Network Connectivity
  • Via AIOM

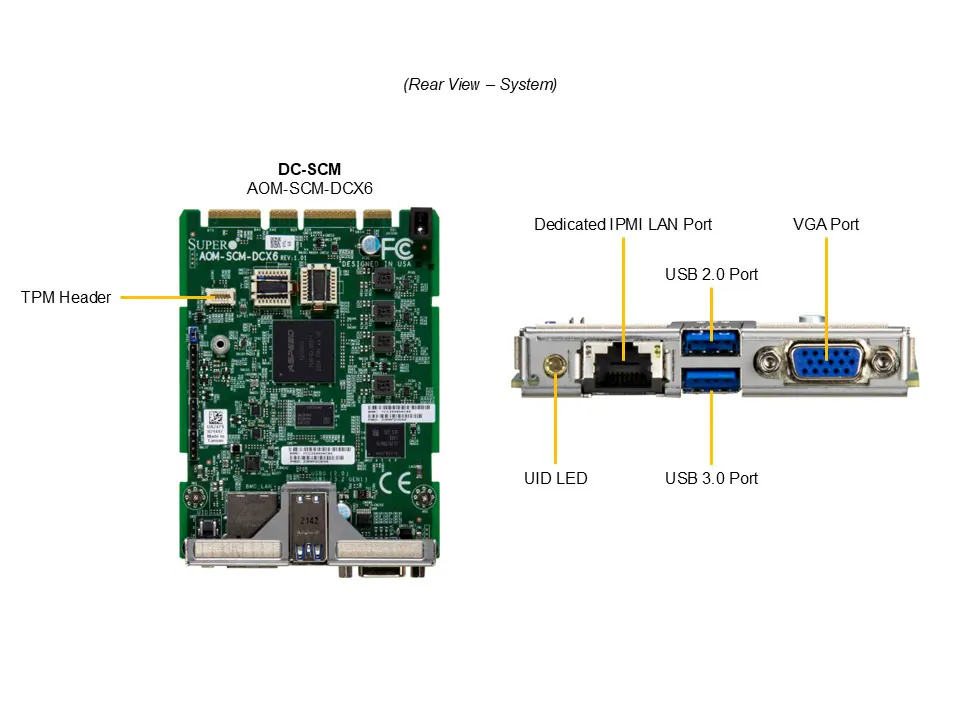

Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 1 USB 2.0 Type-A port(Rear)
  • 1 USB 3.2 Gen1 Type-A port(Rear)
Video
  • 1 VGA port(Rear)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 64MB SPI Flash ROM
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
  • SuperServer SYS-122C-TN
  • SuperServer SYS-122C-TN-01-G2 Gold Series version with pre-configured components
  • Super X14DBHM
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-DC101TS-R000NP
Dimensions and Weight
Height
  • 1.7″ (43.6 mm)
Width
  • 17.2″ (438.4 mm)
Depth
  • 29.7″ (755.1 mm)
Package
  • 7.28″ (H) x 22.83″ (W) x 42.5″ (D)
Weight
  • Gross Weight: 41 lbs (19 kg)
  • Net Weight: 31 lbs (17 kg)
Palletized Packing (W x H x L)
  • 49.6″ (1260 mm) x 4.7″ (120 mm) x 44.5″ (1130 mm)
Available Color
  • Silver

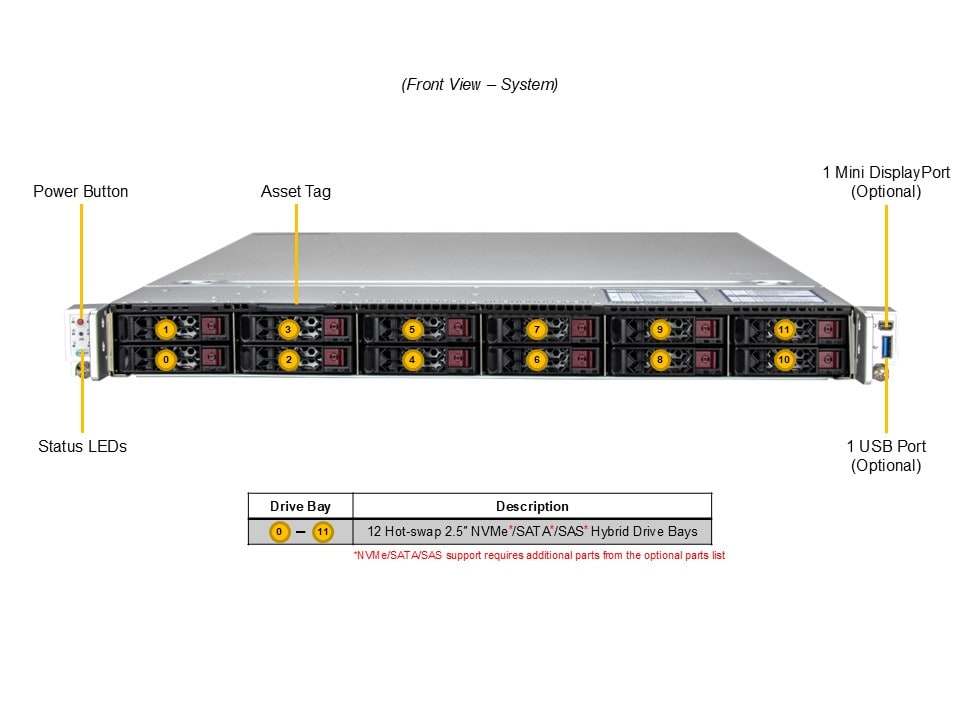

Front Panel
Buttons
  • Power On/Off
  • UID button
LED
  • HDD activity
  • LAN1 activity
  • LAN2 activity
  • Power Fail LED
  • Power status
  • System information

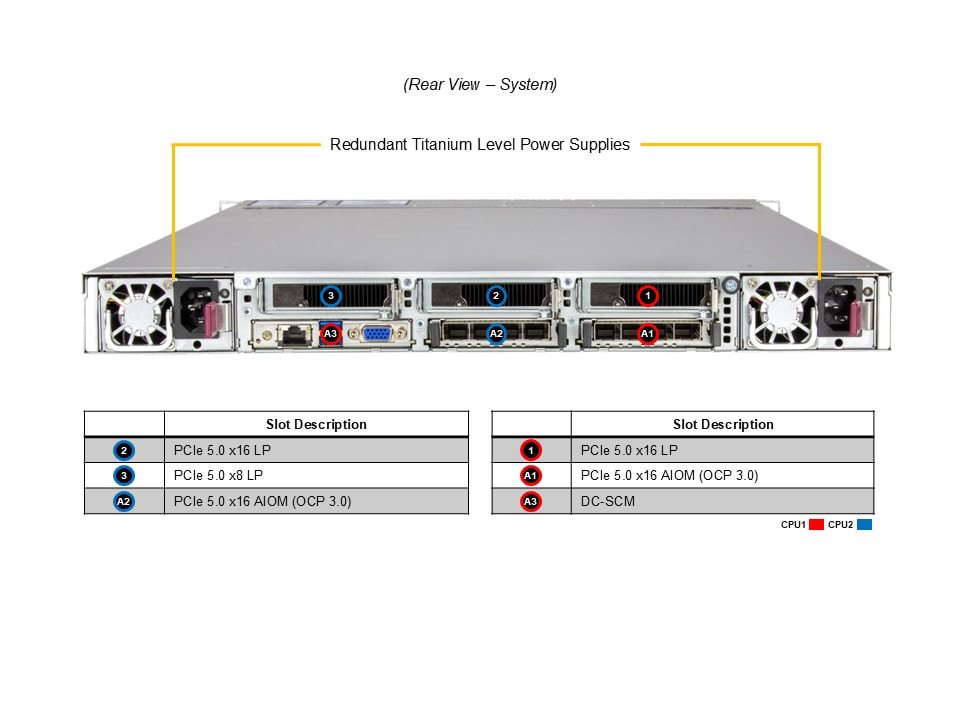

Expansion Slots
PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x8 LP slot 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)
  • 2 PCIe 5.0 x16 LP slots
  • 1 PCIe 5.0 x8 LP slot
  • 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible)

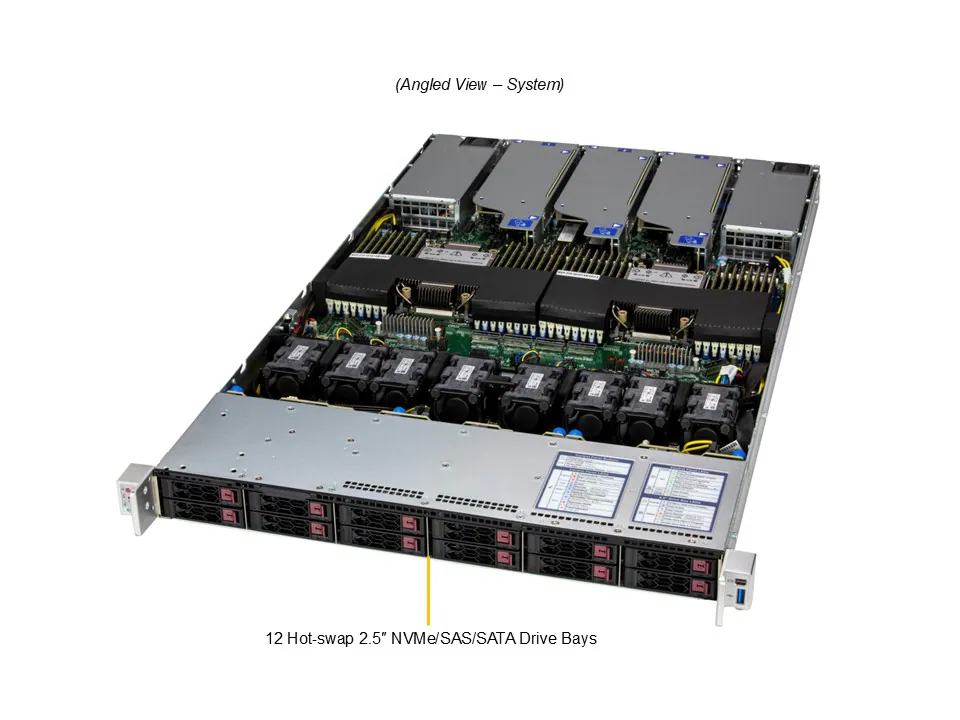

Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 12 bays12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • 12 front hot-swap 2.5″ NVMe*/SAS*/SATA* drive bays
  • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
  • View M.2 Options

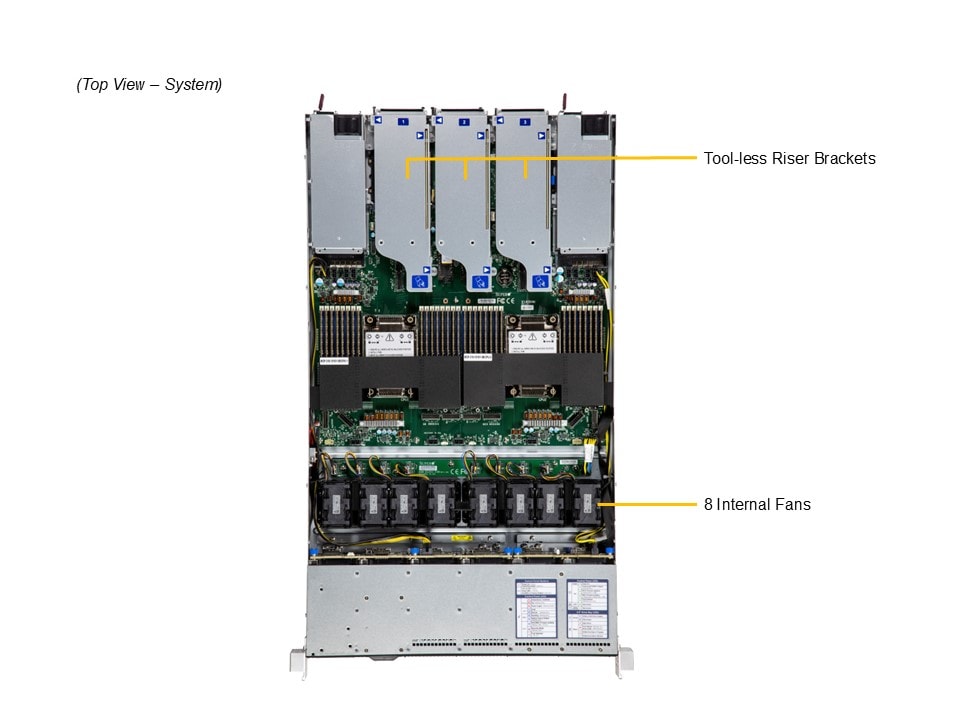

System Cooling
Fans
  • Up to 8x 4cm heavy duty fans with optimal fan speed control
Air Shroud
  • 2 Air Shrouds
Power Supply
  • 2x 1000W 2x 1200W 2x 1600W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1200W: 100-240Vac / 50-60Hz 1200W: 0240Vdc / 50-60Hz (for CCC only) +12VMax: 100A / Min: 0A (100Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1200W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz 1600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 73.5 x 40 x 185 mm
Input
  • 800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz
+12V
  • Max: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac)
12V SB
  • Max: 2.1A
Output Type
  • Backplanes (gold finger)
Certification
  • Titanium Level [ Test Report ]
Input
  • 1200W: 100-240Vac / 50-60Hz 1200W: 0240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 100A / Min: 0A (100Vac-240Vac)
12V SB
  • Max: 4A / Min: 0A
Input
  • 1200W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz 1600W: 0240Vdc / 50-60Hz (for CQC only)
+12V
  • Max: 100A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac)
12V SB
  • Max: 3A / Min: 0A
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (Non-Condensing)
  • Non-operating Relative Humidity: 8% to 90% (Non-Condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 1000W 2x 1200W 2x 1600W 2x 1000W 2x 1000W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input800W: 100-127Vac / 50-60Hz 1000W: 200-240Vac / 50-60Hz +12VMax: A (100Vdc-240Vdc)Max: 66.7A (100Vac-127Vac)Max: 83A (200Vac-240Vac) 12V SBMax: 2.1A Output TypeBackplanes (gold finger) Certification Titanium Level [ Test Report ] 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1200W: 100-240Vac / 50-60Hz 1200W: 0240Vdc / 50-60Hz (for CCC only) +12VMax: 100A / Min: 0A (100Vac-240Vac) 12V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger) 2x 1600W 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)73.5 x 40 x 185 mm Input1200W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz 1600W: 0240Vdc / 50-60Hz (for CQC only) +12VMax: 100A / Min: 0A (100Vac-127Vac)Max: 133.3A / Min: 0A (200Vac-240Vac) 12V SBMax: 3A / Min: 0A Output TypeBackplanes (gold finger)
Optional Parts List
