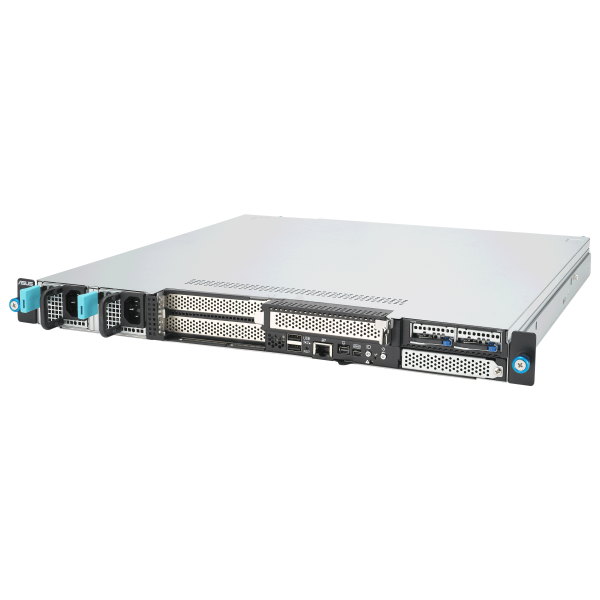

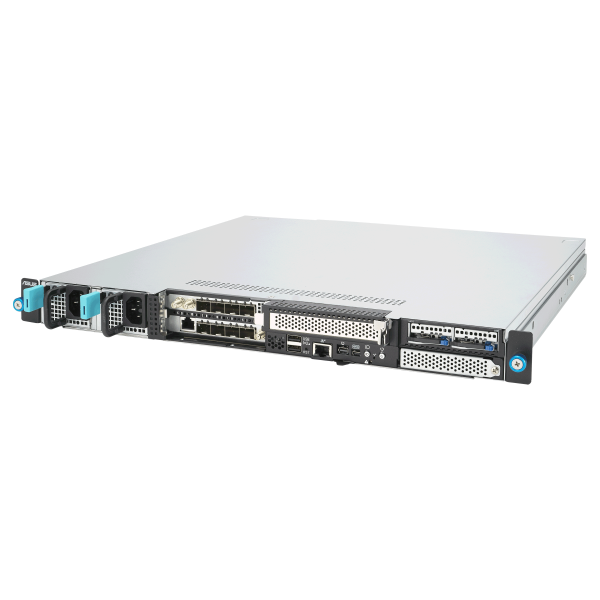

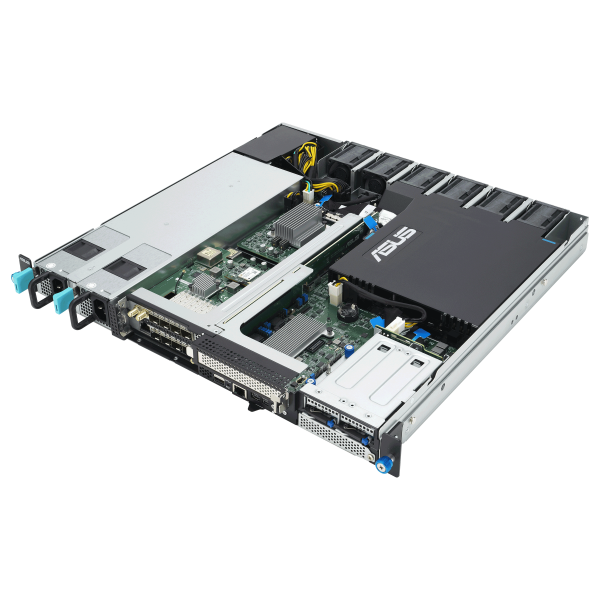

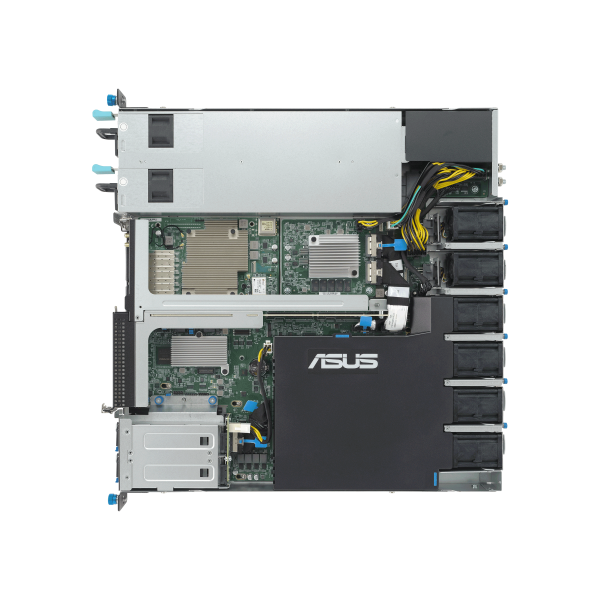

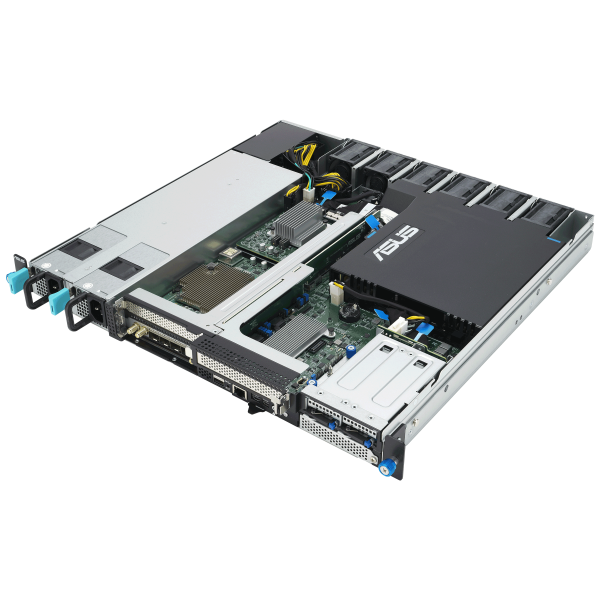

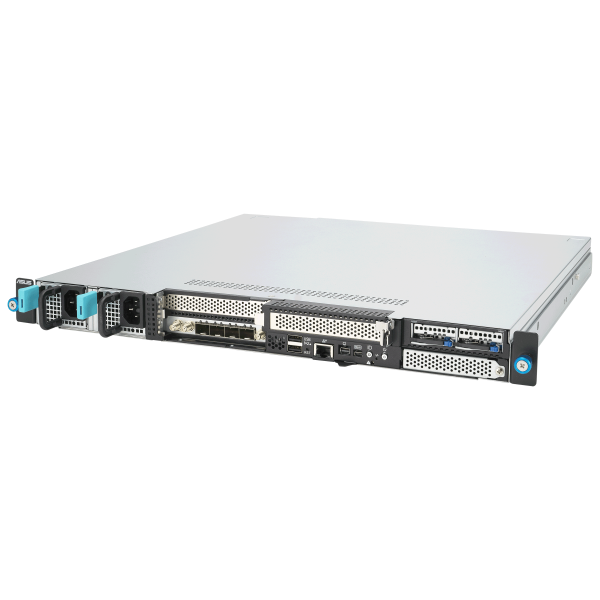

ASUS ESR1-511-X4TF
High-performance and cost-effective 1U single-socket compact server with multiple SKUs for edge computing and 5G O-RAN CU/DU deployment. ESR1-511-X4TF integrates Intel® vRAN accelerator ACC100 and ASUS E810 time-synchronization module. NEBS level 3 compliance with front I/O access and wide temperature. Supporting up to 2 FH3/4L PCIe expansion slots for networking FPGA accelerators.
Key Features
- Support diverse Intel® Xeon® Scalable processor SKUs with either Intel® Quick Assist Technology or Intel® vRAN Boost function.
- Highly integrated time-sync module and FEC module, dedicating for 5G O-RAN DU/CU solution (integrated SKU).
- TCO-optimized by delivering integrated acceleration with 2X capacity gains within the same power envelope, and up to twice the performance-per-watt.
- Carrier-grade design compliant with NEBS Level 3, supporting a wide operating temperature range of -5°C to 65°C.
- Short-depth chassis and front access design for space limited edge environment.
- Easy service with multiple networking front I/O ports and hot-swappable fans.
Specifications
| Processor / System Bus | 1x Socket E (LGA 4677) Intel® Xeon® Processor Scalable Family |
| Core Logic | Intel® C741 Chipset |
| Memory | 8 (8 channels per CPU, 1 DIMM per channel) Capacity: Maximum up to 2TB Memory Type: 4th: DDR5 4800 MHz RDIMM/3DS RDIMM 5th: DDR5 5600 MHz RDIMM/3DS RDIMM |
| Expansion Slots | Integrated SKU (8 Ports): 1 x PCIe x16 slot (Gen5 x8 link, FHHL) 1 x OCP 3.0 slot (Gen5 x16 link) Integrated SKU (4 Ports): 1 x PCIe x16 slot (Gen5 x16 link, FHHL) 1 x PCIe x16 slot (Gen5 x8 link, FHHL) 1 x OCP 3.0 (Gen5 x16 link) PCIe SKU: 2 x PCIe x16 slot (Gen5 x16 link, FH3/4L) 1 x PCIe x16 slot (Gen5 x16 link, FHHL) 1 x OCP 3.0 (Gen5 x16 link) |
| Storage | 2 x E1.S hot-swap drive bays 2 x M.2 22110/2280 (PCIe Gen3 x4 link) |
| System Fan | 6 |
| Networking | 1 x 1GbE management port (Intel® I210) 1 x OCP 3.0 NIC supported |
| Graphic | Up to 2 GPU cards (Only PCIe SKU supports GPU cards) |

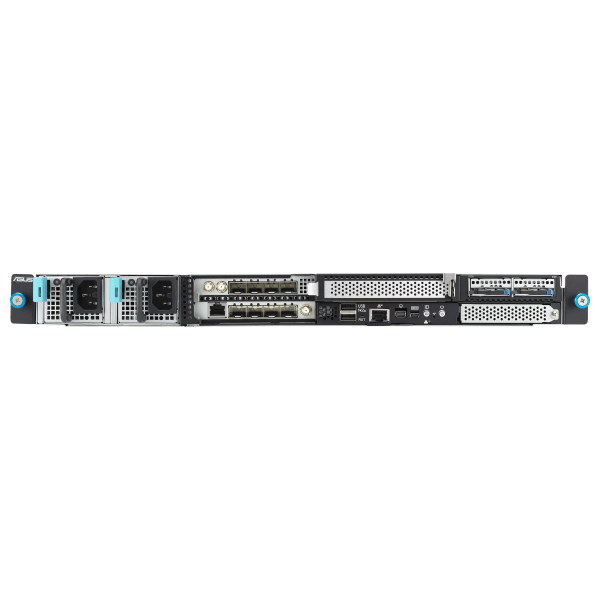

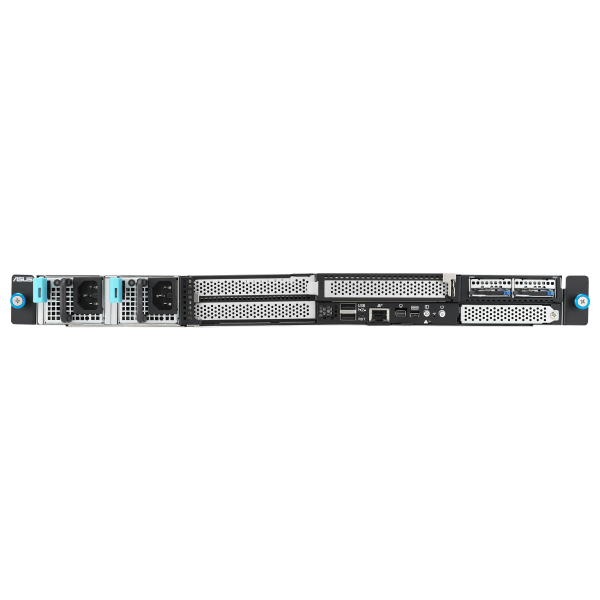

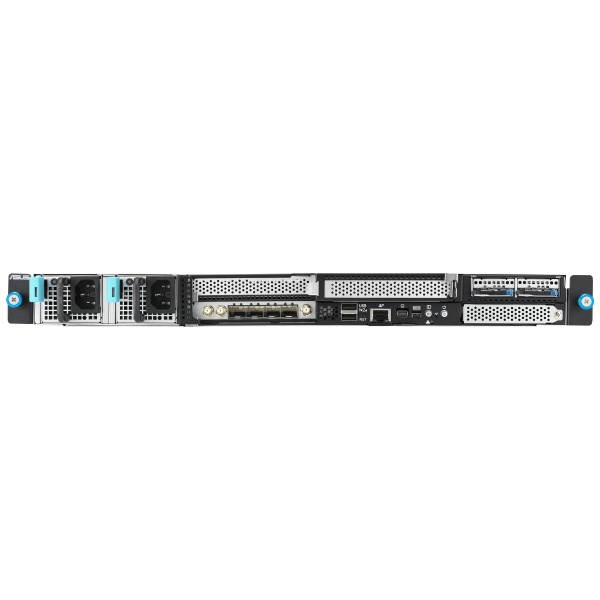

| Front I/O Ports | 1 x Management LAN port 2 x USB 3.2 Gen1 port 1 x Mini USB 2.0 port 1 x Display port Up to 8 x 25G Time-Sync ports (Integrated SKU only) 1 x RJ45 port for G.703 (Integrated SKU only) |
| Switch/LED | 1 x System Status LED 1 x Drive Power LED (per tray) 1 x Drive Activity/Fail LED (per tray) 1 x Power Button with LED 1 x UID Button with LED |
| Dimensions | 440mm x 44mm x 430mm (W x H x D) |
| Form Factor | 1U |
| Power Supply | 1+1 Redundant 1300W 50.5MM SLIM Platinum AC/DC Power Supply |
| Environment | Operating Temperature: -5℃~65℃ Non-Operating Temperature: -40℃~85℃ Operation Humidity: 10%~90% (non-condensing) Non-Operating Humidity: 5% ~ 95% (non-condensing) |
| Note | Please contact ASUS Technical Support for additional information and thermal solution about specialized system optimization. |
