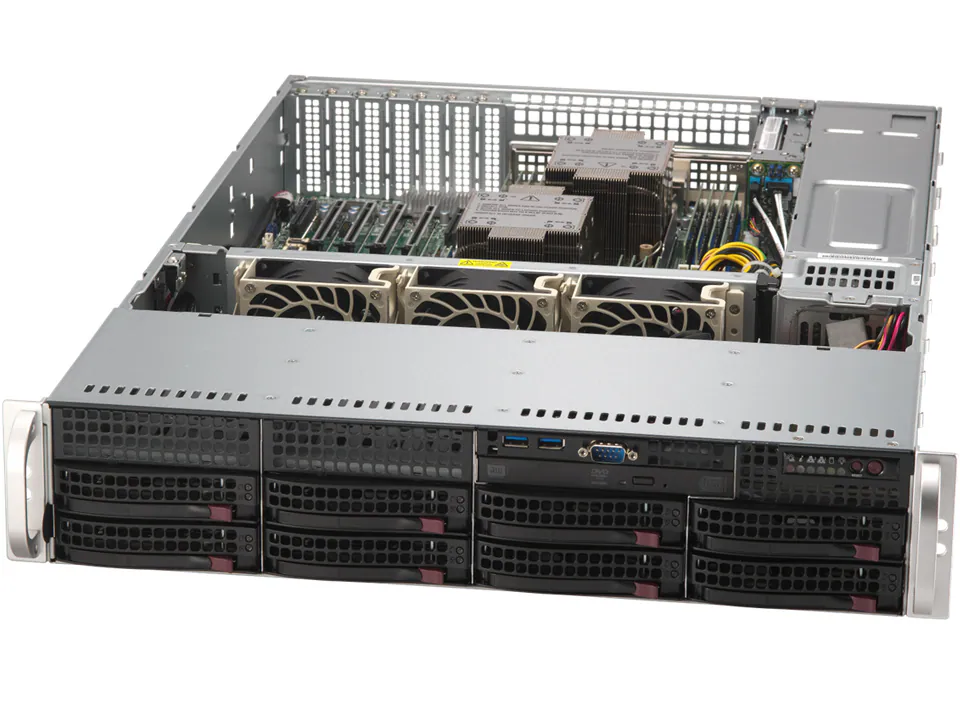

Supermicro SuperServer SYS-622B-TRT

Favorite
Compara

2U Mainstream with 6 PCIe 5.0 slots and dual 10GbE LAN

Pretul afisat contine TVA (21%).

SuperServer SYS-622B-TRT

2U Mainstream with 6 PCIe 5.0 slots and dual 10GbE LAN

Key Features

  1. Dual Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores, up to 350W TDP (air cooled)
  2. Up to 2TB 6400MT/s ECC DDR5 RDIMM in 16 DIMM slots
  3. 2 RJ45 10GbE ports
  4. Up to 2 PCIe 5.0 x8 LP + 4 PCIe 5.0 x16 LP slots

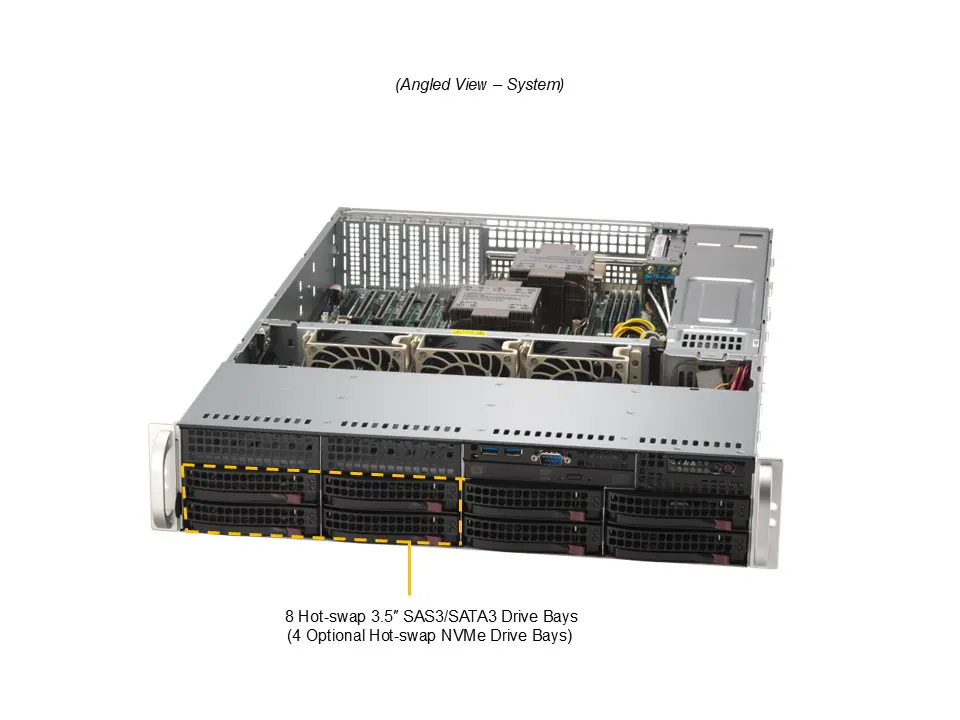

  5. Up to 4 front hot-swap 3.5″ NVMe/SAS/SATA + 4 front hot-swap 3.5″ SAS/SATA drive bays
  6. 2 Redundant 1200W Titanium Level power supplies
  7. 2U Rackmount chassis with 25.5″ (647mm) depth

Specifications

Product SKUs
  • SuperServer SYS-622B-TRT
Motherboard

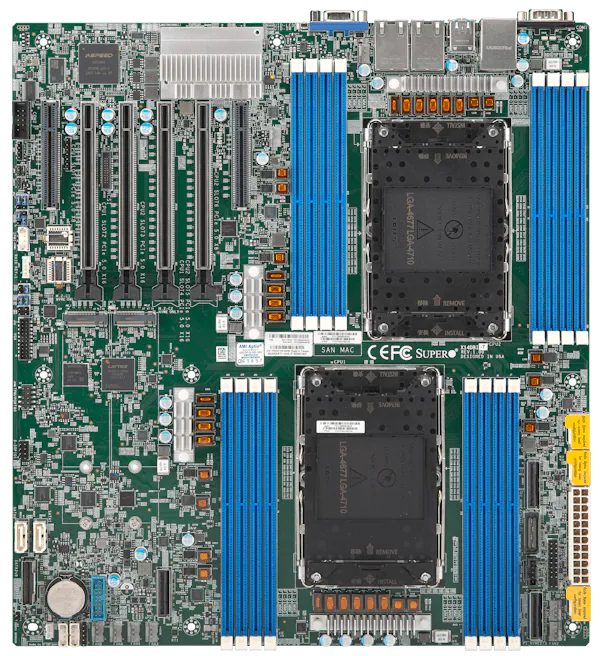

  • Super X14DBI-T
Processor
CPU
  • Dual Socket E2 (LGA-4710)
  • Intel® Xeon® 6700/6500 series processors with P-cores or 6700 series processors with E-cores
Core Count
  • P-cores: Up to 128C/256T; Up to 336MB Cache per CPU
  • E-cores: Up to 144C/144T; Up to 108MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)

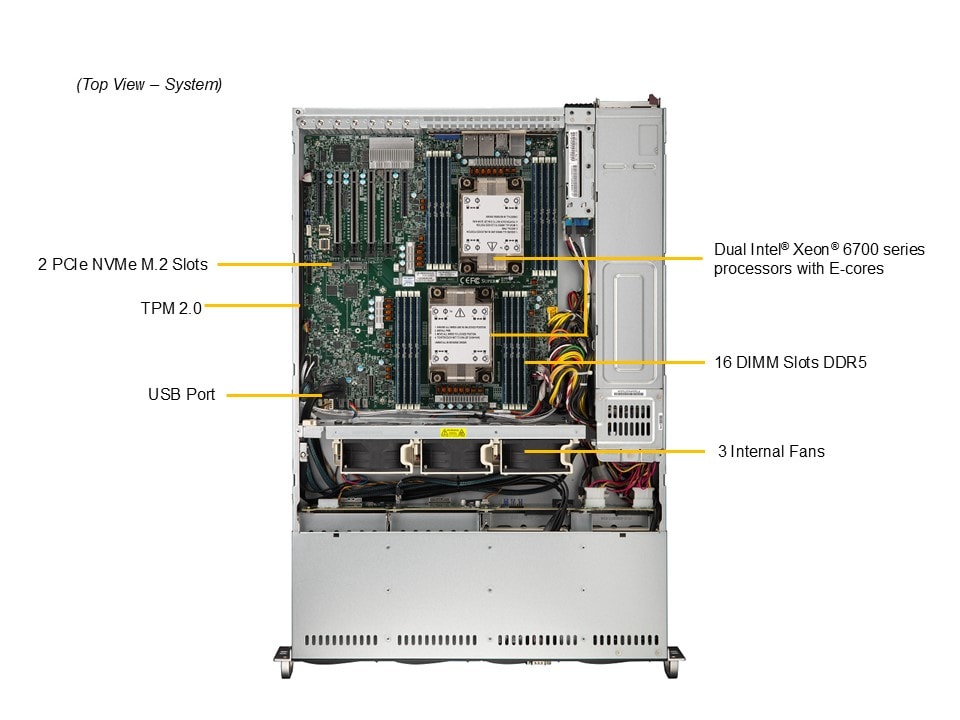

System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Network Connectivity
  • 2 RJ45 10GbE
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated BMC LAN port
USB
  • 2 USB 3.0 ports(front)
  • 4 USB 3.0 ports(rear)
Video
  • 1 VGA port
Serial
  • 1 COM port(Rear)
  • 1 COM port(Front)
TPM
  • 1 TPM Onboard/port 80
Management
Software
  • SuperCloud Composer®
  • Supermicro Server Manager (SSM)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Pulse Width Modulated (PWM) fan connectors
  • Status monitor for speed control
  • SuperServer SYS-622B-TRT
  • Super X14DBI-T
Chassis
Form Factor
  • 2U Rackmount
Model
  • CSE-825BTS-R1K23LPP1
Dimensions and Weight
Height
  • 3.5″ (89 mm)
Width
  • 17.2″ (437 mm)
Depth
  • 25.5″ (647 mm)
Package
  • 11.4″ (H) x 26.7″ (W) x 34.5″ (D)
Weight
  • Gross Weight: 69 lbs (31.2 kg)
  • Net Weight: 36.38 lbs (16.5 kg)
Available Color
  • Black

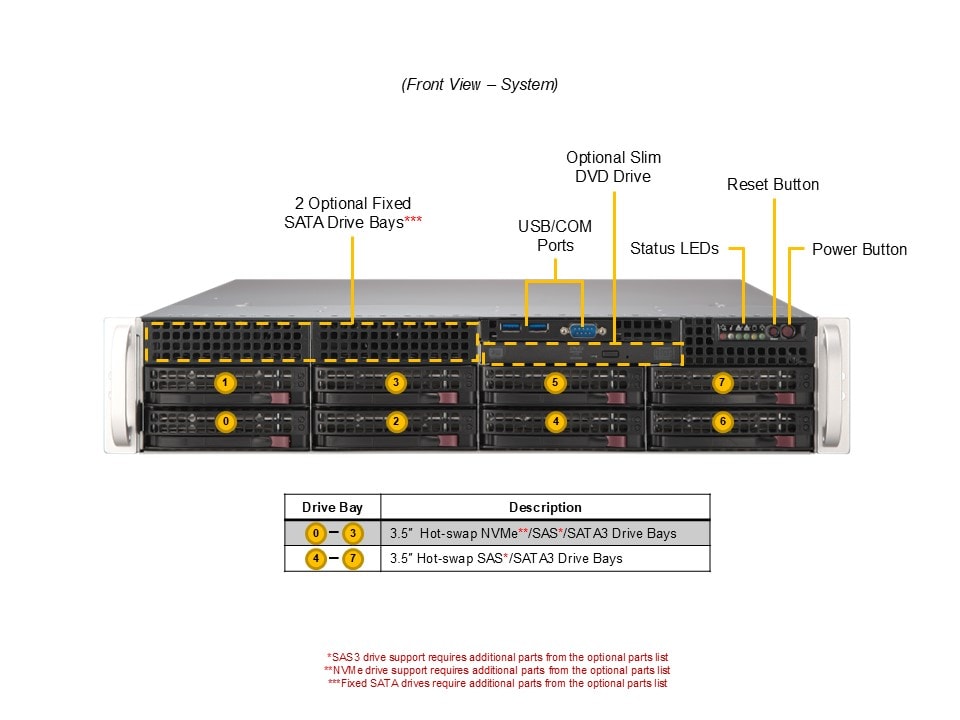

Front Panel
Buttons
  • Power On/Off
  • System Reset
LED
  • HDD activity
  • Network activity
  • Power status
  • System information (overheat/UID)
Expansion Slots

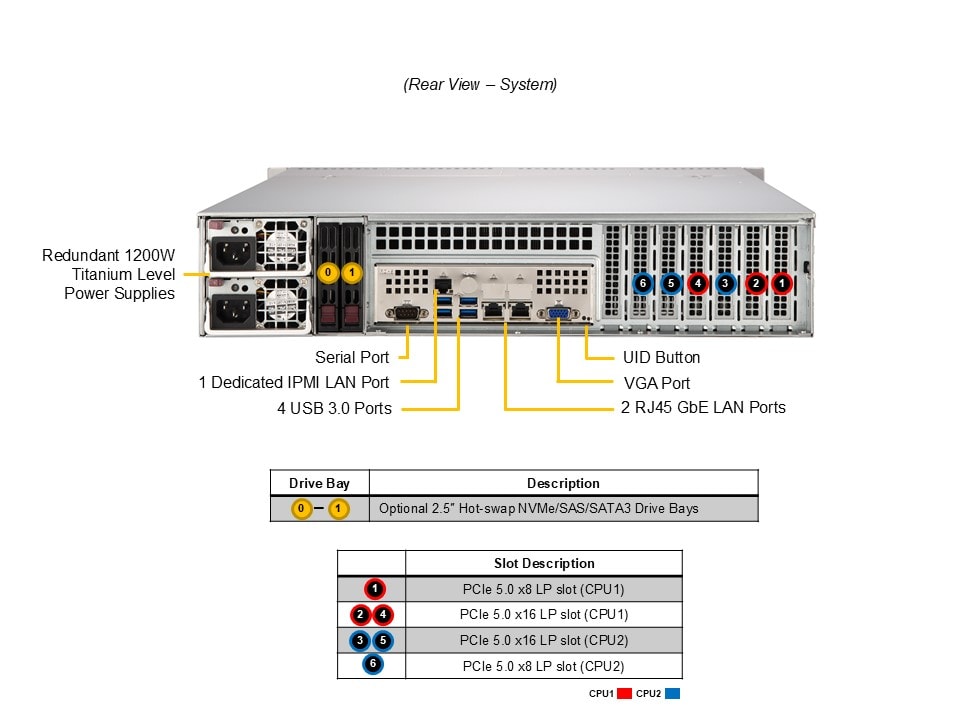

PCI-Express (PCIe) Configuration
  • Default2 PCIe 5.0 x8 LP slots 4 PCIe 5.0 x16 LP slots
  • 2 PCIe 5.0 x8 LP slots
  • 4 PCIe 5.0 x16 LP slots
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
Drive Bays / Storage
Drive Bays Configuration
  • Default: Total 8 bays4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ NVMe*/SAS*/SATA drive bays
  • 4 front hot-swap 3.5″ SAS*/SATA drive bays
  • (*NVMe/SAS support may require additional storage controller and/or cables)
M.2
  • 2 M.2 PCIe 5.0 x4 NVMe slots (M-key)
  • View M.2 Options
Peripheral Bays
  • 1 slim DVD bay (optional)
System Cooling
Fans
  • Up to 3 middle 8cm Fan(s)
Power Supply
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
Dimension (WxHxL)
  • 76 x 40 x 336 mm
Input
  • 1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only)
+12V
  • Max: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc)
5V SB
  • Max: 4A / Min: 0A
Output Type
  • Backplanes (gold finger)
Operating Environment
ROHS
  • RoHS Compliant
Environmental Spec.
  • Operating Temperature: 10°C to 35°C (50°F to 95°F)
  • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
  • Operating Relative Humidity: 8% to 80% (non-condensing)
  • Non-operating Relative Humidity: 8% to 90% (non-condensing)
Environmental / Recycling
Recycle
  • Return Server-End of Life Product
  • 2x 1200W 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies Dimension (WxHxL)76 x 40 x 336 mm Input1000W: 100-127Vac 1000W: 100-127Vac / 50-60Hz 1200W: 200-240Vac 1200W: 200-240Vac / 50-60Hz 1200W: 200-240Vdc / 50-60Hz (for CCC only) +12VMax: 83A / Min: 0A (100Vac-127Vac)Max: 100A / Min: 0A (200Vac-240Vac)Max: 100A / Min: 0A (200Vdc-240Vdc) 5V SBMax: 4A / Min: 0A Output TypeBackplanes (gold finger)
