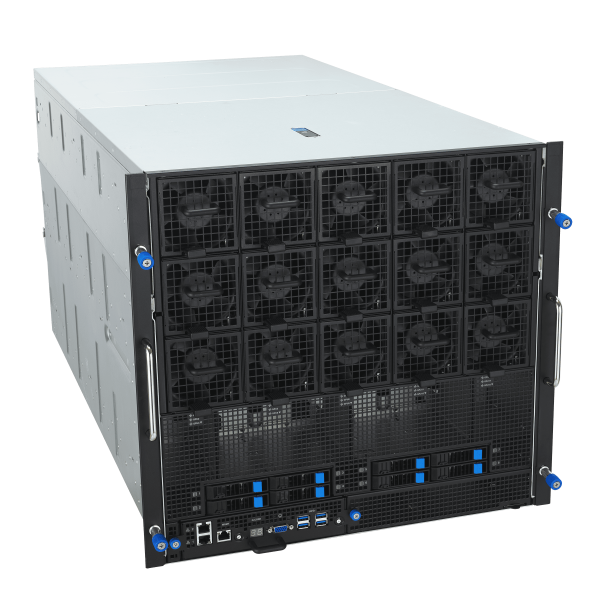

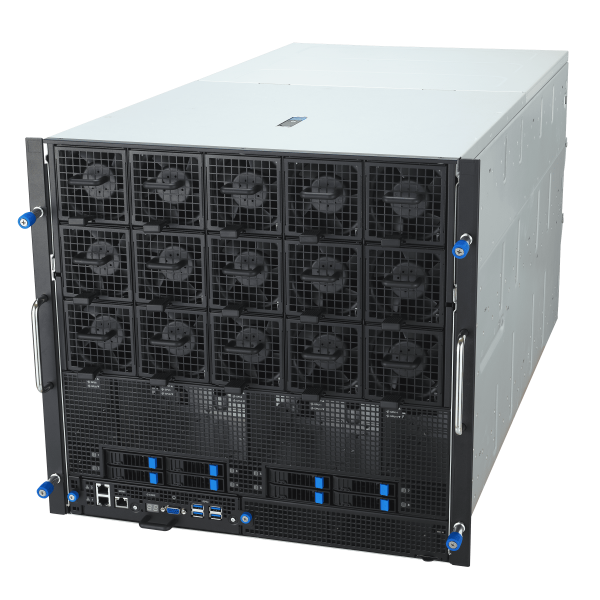

ASUS ESC NB8-E11
ASUS ESC NB8-E11 - imagine 2
ASUS ESC NB8-E11 - imagine 3
ASUS ESC NB8-E11 - imagine 4
ASUS ESC NB8-E11 - imagine 5
ASUS ESC NB8-E11 - imagine 6
ASUS ESC NB8-E11 - imagine 7
ASUS ESC NB8-E11 - imagine 8
ASUS ESC NB8-E11 - imagine 9
ASUS ESC NB8-E11 - imagine 10
, , , , Configureaza acest server →

ASUS ESC NB8-E11

Favorite
Compara

10U NVIDIA® Blackwell HGX™ B200 eight-GPU server with dual 5th Gen Intel® Xeon® Scalable processors, designed for Enterprise AI Factory application with up to 11 PCIE slots, 32 DIMM, 10 NVMe, dual 10Gb LAN

Pretul afisat contine TVA (21%).

ESC NB8-E11

10U NVIDIA® Blackwell HGX™ B200 eight-GPU server with dual 5th Gen Intel® Xeon® Scalable processors, designed for Enterprise AI Factory application with up to 11 PCIE slots, 32 DIMM, 10 NVMe, dual 10Gb LAN

Key Features

  • Equipped with NVIDIA Blackwell HGX B200 8-GPU and fueled by dual 5th Gen Intel Xeon Scalable processors, supporting 350W TDP.
  • Direct GPU-to-GPU interconnect via NVIDIA NVLink™, offering 1,800GB/s bandwidth for optimized scaling.
  • Dedicated one-GPU-to-one-NIC topology, supporting up to eight NICs for maximum throughput in compute-intensive workloads.
  • Advanced NVIDIA technologies, including full integration of NVIDIA GPUs, NVIDIA BlueField®-3 DPUs, NVIDIA NVLink, NVSwitch, and networking
  • High level of power efficiency, with 5+1 80 PLUS® Titanium power supplies.
  • Optimized thermal design with air-cooled solution, and featuring dedicated CPU and GPU airflow tunnels for efficient heat dissipation
  • Designed for enterprise IT, it recommends accelerated computing, networking, storage, and software to help deliver faster time-to-value AI factory deployments while mitigating deployment risks.

Specifications

Processor / System Bus
  • 2 x Socket
  • 4th Intel® Xeon® Processor Scalable Family (Up to 350W)
  • 5th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory
  • Total Slots:
  • 32 (8 channel per CPU, 16 DIMM per CPU)
  • Capacity:
  • Maximum up to 4TB per CPU socket
  • Memory Type:
  • 4th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
  • 5th: DDR5 5600 RDIMM/ 3DS RDIMM (2DPC)
  • Memory Size:
  • 64GB, 32GB, 16GB RDIMM
  • 256GB, 128GB RDIMM 3DS
  • * Refer to support page for more information
Expansion Slots
  • SKU1: 10 x PCIe Gen5 slots + 1 x PCIe Gen4 slot
  • [PCIe Switch directly]
  • – 8 x PCIe Gen5 x16 link (LP, HL)
  • [CPU directly]
  • -1 x PCIe Gen5 x16 link (FH, HL)* +
  • -1 x PCIe Gen5 x16 link  (FH, HL)*+
  • -1 xPCIe Gen4 x8 link from CPU2 DMI (FH, HL)**
  • *Support PCIe x16 link support DPU
  • **For Raid card to connect storage
  • SKU2: 10 x PCIe Gen5 slots
  • [PCIe Switch directly]
  • – 8 x PCIe Gen5 x16 link (LP, HL)
  • [CPU directly]
  • -1 x PCIe Gen5 x16 link (FH, HL)* +
  • -1 x PCIe Gen5 x16 link (FH, HL)*
  • *SupportPCIe x16 link for DPU
  • [BF3 operation temperature 30℃ when using transceiver]
Storage
  • Optional Kits:
  • -Broadcom MegaRAID 9560-16i
Networking
  • 2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
  • 1 x Management Port
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 4 x USB3.2 Gen1 ports
  • 1 x VGA port
  • 2 x 10Gb RJ45 LAN module (Intel-x710 Based)
  • 1 x Mgmt LAN
  • 1 x locate button
  • 1 x power button
Rear I/O Ports
  • 1 x locate button
  • 1 x power button
Switch/LED
  • Front :
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
  • 1 x Q-Code/Port 80 LED
  • Rear :
  • 1 x Location LED
  • 1 x Power Button/LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board) EDIT
Regulatory Compliance
  •  CB, CE, FCC
Dimensions
  • 885mm x 447mm x 435.95mm
  • *Please note that the addition of the handle will extend the overall chassis length by approximately 5 ~ 8 cm.
Form Factor
  • 10U
Weight
  • Net Weight: 121kg (excluding CPU, DRAM and HDD)
  • Gross Weight: 173kg (including packagaing, excluding CPU, DRAM and HDD)
Power Supply
  • 5+1 Redundant 3000W 80 PLUS Titanium Power Supply
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List
  • Z13PN-D32/B200:90SB0DZ0-M0XBN1
  • CBI-10G-X710-C7P-A:90SC0MR0-M1XBN0
  • RF16LX2-C10P-B:90SC0YZ0-M0XBN0
  • PDB-L-C7P-A:90SC0N00-M1XBN0
  • PDB-R-C7P-A:90SC0MZ0-M1XBN0
  • PSB-L-C7P-A:90SC0MY0-M1XBN0
  • PSB-R-C7P-A:90SC0MX0-M1XBN0
  • N8_IO-C7P-A:90SC0NB0-M1XBN0
  • BP2LE32G-25-C7P-A:90SC0N30-M1XBN0
  • RF16LX2/K-C7PA:90SC0RA0-M1XBN0
  • RF16RX2F8R-C7PA:90SC0RB0-M1XBN0
  • CB8LE-T-C10PB:90SC0YX0-M0XBN0
  • FAN-C9P-A-U:90SC0XS0-M0XBN0
  • FAN-C9P-A-M:90SC0XX0-M0XBN0
  • FAN-C9P-A-D:90SC0XU0-M0XBN0
  • CPU CARRIER KIT: 90SKS000-M4EAN0
  • HDD TRAY: 90SKH000-MPVBN0
  • HEATSINK: 90SKS000-M4JAN0
  • POWER SUPPLY: 90SKP000-M4DAN0
  • RAIL KIT: 90SKS000-MMGBN0
