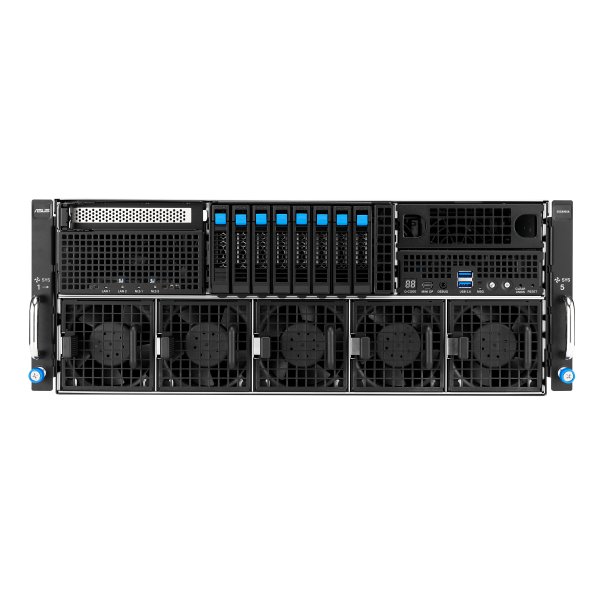

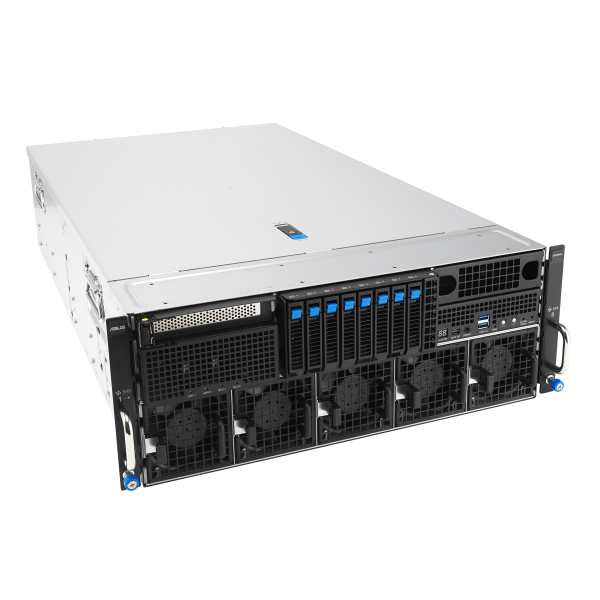

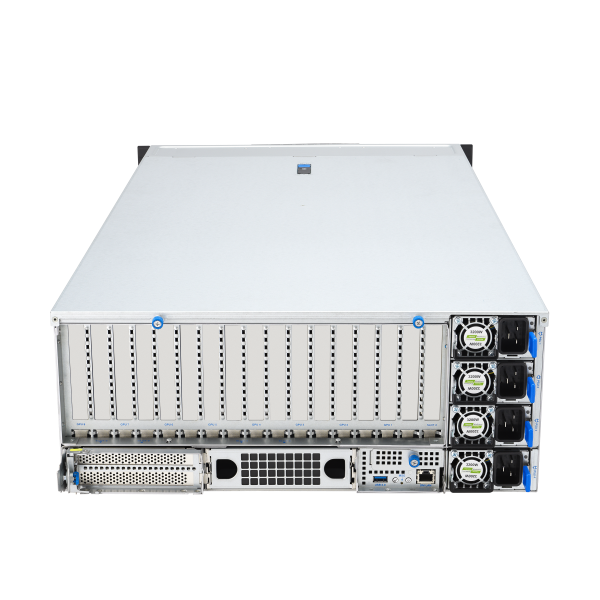

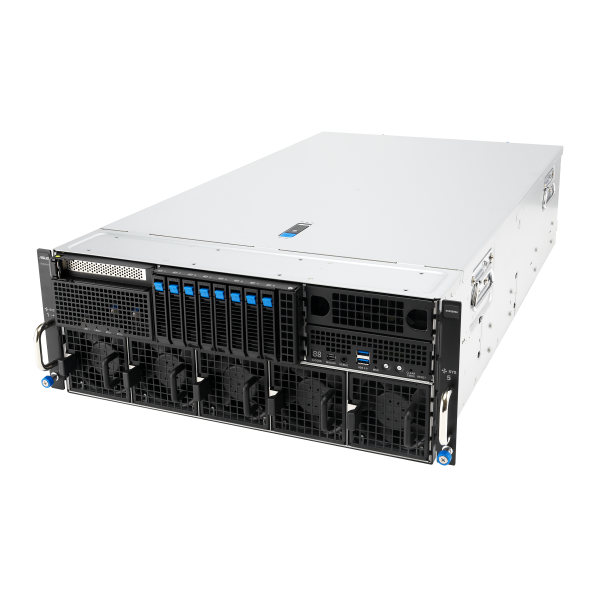

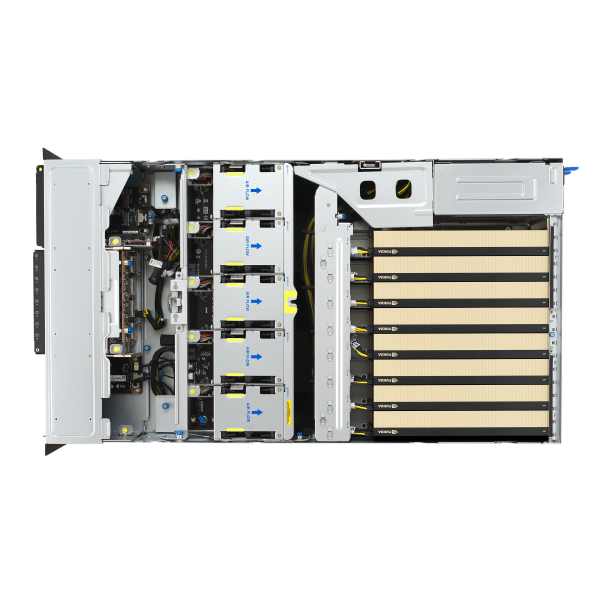

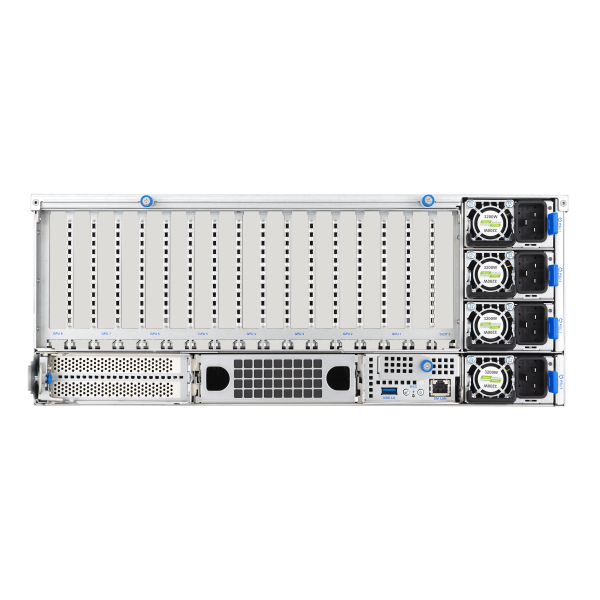

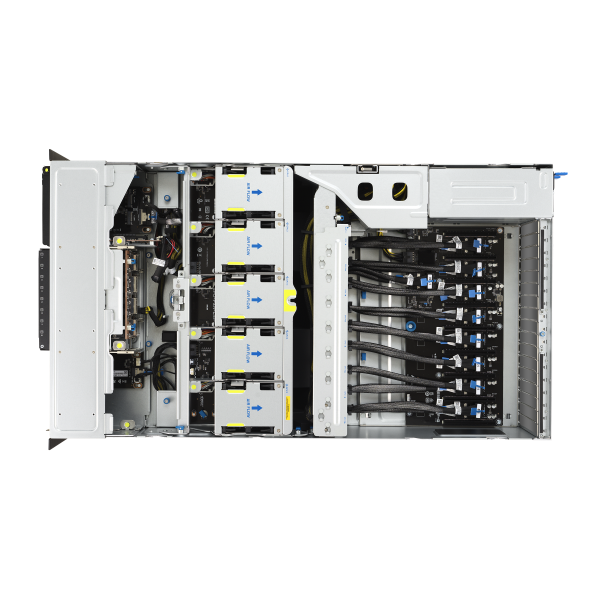

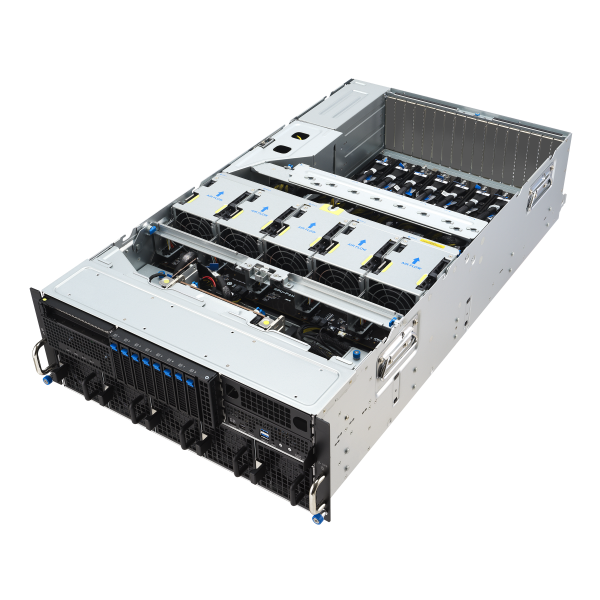

ASUS ESC8000A-E13

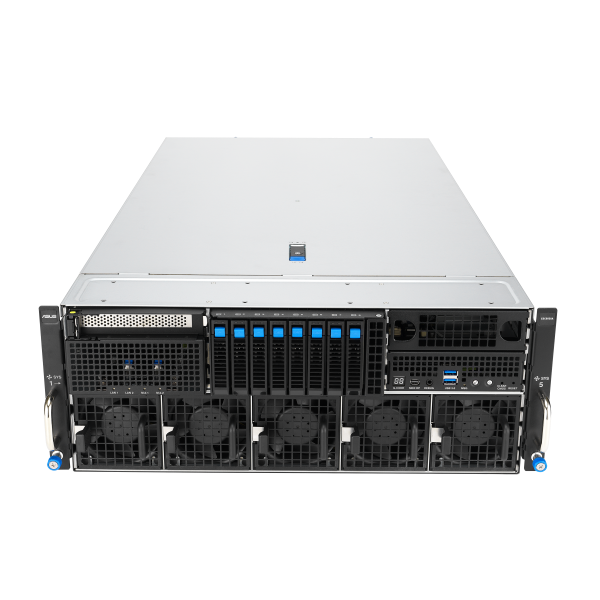

ASUS ESC8000A-E13 - imagine 2
ASUS ESC8000A-E13 - imagine 3
ASUS ESC8000A-E13 - imagine 4

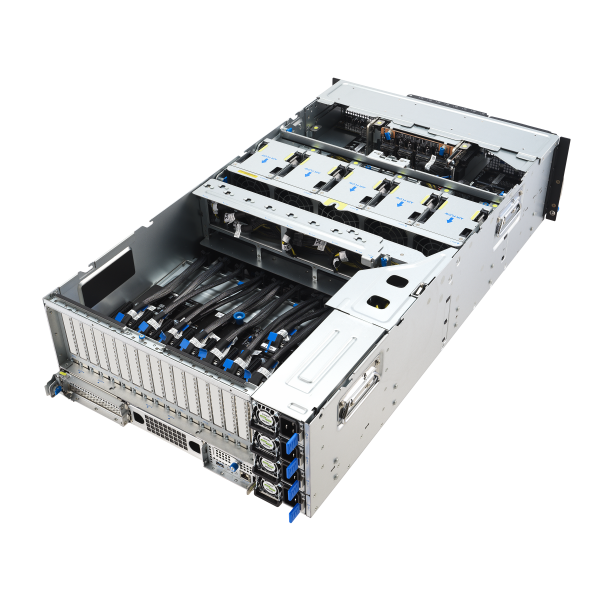

ASUS ESC8000A-E13 - imagine 5
ASUS ESC8000A-E13 - imagine 6
ASUS ESC8000A-E13 - imagine 7
ASUS ESC8000A-E13 - imagine 8
ASUS ESC8000A-E13 - imagine 9
ASUS ESC8000A-E13 - imagine 10
, , , , Configureaza acest server →

ASUS ESC8000A-E13

Favorite
Compara

AMD EPYC™ 9005 dual-processor 4U server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, up to 24 DIMM, two PCIe®5.0 slots and up to six U.2 NVMe drives.

Pretul afisat contine TVA (21%).

ESC8000A-E13

AMD EPYC™ 9005 dual-processor 4U server that supports eight dual-slot NVIDIA® H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, NVIDIA RTX PRO™ 4500 Blackwell Server Edition, up to 24 DIMM, two PCIe®5.0 slots and up to six U.2 NVMe drives.

Key Features

  • High-performance server configuration: Equipped with AMD EPYC 9005 processors featuring 192 Zen 5c cores, 12-channel DDR5 memory up to 6400MHz and a maximum TDP of 500 watts per socket.
  • Direct GPU support: Designed as a high-density 4U server capable of housing eight dual-slot NVIDIA H200 GPUs or NVIDIA RTX PRO™ 6000 Blackwell Server Edition, NVIDIA RTX PRO™ 4500 Blackwell Server Edition,each supporting up to 600 watts.
  • Optimized connectivity: Offers two PCIe 5.0 slots for high-bandwidth NICs and DPUs, connected directly to CPU to reduce latency.
  • Storage flexibility: Includes options for hardware RAID function support, configurations with additional support for up to six 2.5†U.2 NVMe drives
  • Efficient maintenance: Features ASUS-exclusive toolless design for streamlined maintenance and maximum efficiency.
  • Advanced management: Includes ASUS Control Center IT-management software and a hardware-level Root-of-Trust solution for enhanced security and control.

Specifications

Processor / System Bus
  • 2 x Socket SP5 (LGA 6096)
  • AMD EPYC™ 9005 series processors*
  • * Up to 500W cTDP, TDP support varies by configuration
Memory
  • 24 (12 channel per CPU, 12 DIMM per CPU)
  • Capacity:
  • Maximum up to 3TB
  • Memory Type:
  • DDR5 6400/5600 RDIMM
  • Memory Size:
  • 128GB, 96GB, 64GB, 32GB, 16GB RDIMM * Refer to ASUS server AVL for the latest update
Expansion Slots
  • Up to 11 slots
  • Rear:
  • 8 x PCIe x16 for dual-slot GPU cards (Gen5 x16 link, FH/FL)
  • 1 x PCIe x16 for NIC/BlueField-3 card (Gen5 x16 link, FH/HL)
  • 1 x PCIe x16 for NIC card (Gen5 x8 link, FH/HL)
  • Front:
  • 1 x PCIe x16 for HBA/RAID card  (Gen5 x8 link, FH/HL)
Storage
  • 8 x 2.5″ Front Hot-swap Storage Bays
  • *Backplane supports up to 4 or 6 NVMe drives based on HBA/Raid card model installed
Networking
  • 1 x Management Port
Multi-GPU Support
  • Please find the latest GPU support from https://servers.asus.com/support/gpu
Front I/O Ports
  • 1 x Mini DisplayPort
  • 2 x USB 5Gbps ports
  • 1 x Debug port
Rear I/O Ports
  • 1 x USB 5Gbps port
  • 1 x RJ-45 management LAN port
Switch/LED
  • Front :
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Message LED
  • 1 x Clear CMOS switch
  • 1 x Reset Switch
  • 2 x M.2 LEDs*
  • 2 x LAN LEDs*
  • 1 x Q-code/Port 80 LED
  • Rear :
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Message LED
  • *ESC8000A-E13P only
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center Enterprise (in-band)
  • ASMB12-iKVM for (out-of-band/BMC AST2600)
Regulatory Compliance
  • BSMI, CB, CE, FCC(Class A), RCM
Dimensions
  • 800mm x 439.5mm x 175mm
  • 31.5†x 17.3†x 6.9â€
Form Factor
  • 4U
Weight
  • Net Weight: 42 Kg
  • Gross Weight: 44.23 Kg
Power Supply
  • 3+1 redundant 3200W 80 PLUS Titanium power supply
  • 220-240 Vac, 16A (x4) 50/60Hz
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non-operating temperature: -40°C ~ 60°C
  • Non-operating humidity: 20% ~ 95% (Non-condensing)
  • *For operating temperatures above 30°C, please contact your local sales representative
FRU Part List
  • Motherboard: 90SB0D90-M6XBN0
  • GPU Fan module 80x80x80mm: 90SKS000-MR0BN0
  • System Fan module 80x80x80mm: 90SKS000-MR1BN0
  • 2U Standard CPU heatsink: 90SKS000-M4LAN0
  • HDD TRAY TOOLLESS ASY: 90SKH000-MPPBN0
  • 3200W TITANIUM PSU: 90SKS000-MMCBN0
  • 1M RAIL KIT: 90SKS000-MR2BN0
  • 2U RAIL KIT (support cable arm): 90SKS000-MR3BN0
  • CABLE ARM: 90SKS000-MR4BN0
  • 9670-24I RAID Cable Kit: 90SKS000-MQXBN0
  • 9560-16I RAID Cable Kit: 90SKS000-MQYBN0
  • MINIDP TO VGA DONGLE: 90SKS000-MU3BN0
SKU: esc8000a-e13 Categorii: , , , ,
