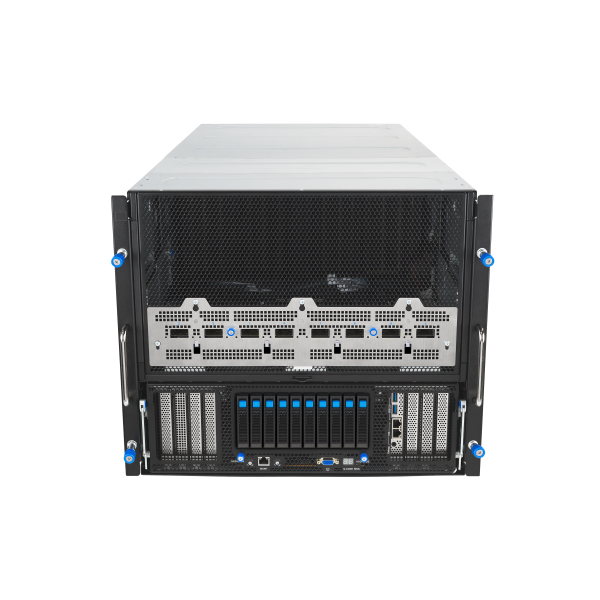

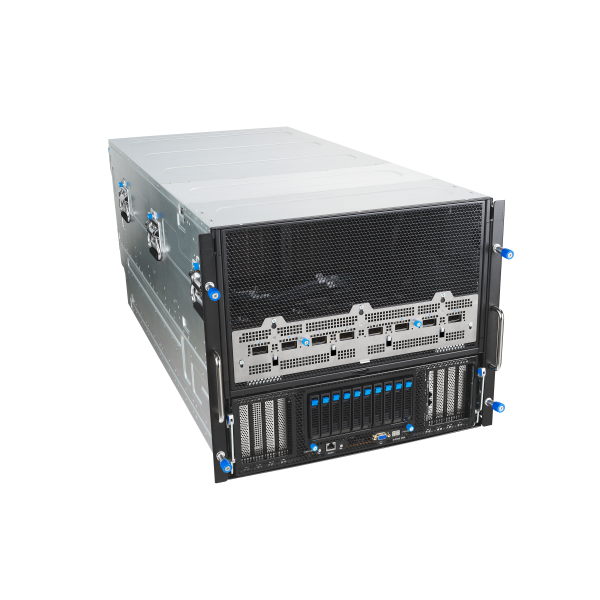

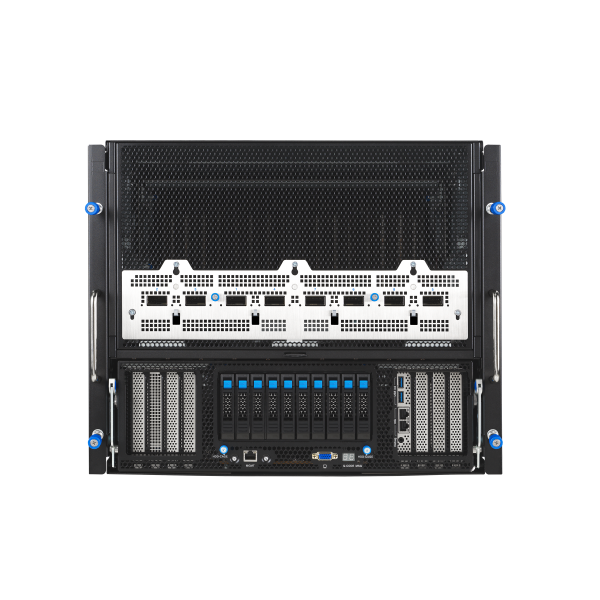

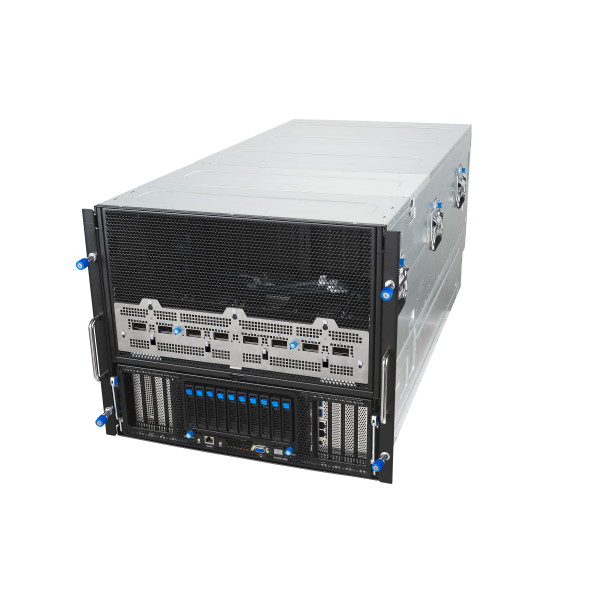

ASUS XA NB3I-E12

Favorite

Compara

9U NVIDIA HGX™ B300 8-GPU server with dual Intel® Xeon® 6 Scalable processors, designed for heavy AI workloads with 8 B300 GPU, 8 embedded CX8 Infiniband, 5 PCIe slots, 32 DIMM, 10 NVMe, dual 10Gb LAN

Pretul afisat contine TVA (21%).

XA NB3I-E12

Key Features

Powered by dual Intel® Xeon® 6700P processors, supporting a 350W TDP
Seamless GPU-to-GPU interconnect via NVIDIA® NVLink™, providing 1800GB/s bandwidth for optimized scalability
Embedded 8pcs CX8 InfiniBand on GPU, supports XDR/800G per SXM
Modular design with minimal cable usage, enhancing assembly speed and thermal efficiency
Integration of advanced NVIDIA technologies, leveraging the full capabilities of NVIDIA GPUs,
NVIDIA BlueField®-3 DPUs, NVIDIA® NVLink™, NVSwitch, and networking
Exceptional power efficiency, supported by 5+5 80 PLUS® Titanium power supplies

Specifications

Processor / System Bus	2 x Socket 6th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory	Total Slots: 32 (8 channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB per CPU socket Memory Type: DDR5 6400 RDIMM/ 3DS RDIMM (2DPC) Memory Size: 128GB, 96GB, 64GB * Refer to support page for more information
Expansion Slots	SKU1: 4 x PCIe Gen5 slots [PCIe Switch directly] -4 x PCIe Gen5 x16 link SKU2: 5 x PCIe Gen5 slots [PCIe Switch directly] -4 x PCIe Gen5 x16 link -1 x PCIe Gen5 x8 link (Raid Only) Support PCIe x16 link support DPU * For Raid card to connect storage
Storage	Optional Kits: -Broadcom MegaRAID 9540-8i
Networking	2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller) 1 x Management Port
Multi-GPU Support	NVIDIA HGX B300 288GB 8-GPU Baseboard
Front I/O Ports	2 x USB 3.2 ports 1 x VGA port 2 x 10GbE RJ45 LAN port 1 x RJ-45 Mgmt LAN port
Switch/LED	Front : 1 x Power Switch/LED 1 x Location Switch/LED 1 x Message LED 1 x Port80 LED (Q-Code) LAN 1-2 LED (on NIC module)
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center On-Board ASMB12-iKVM
Regulatory Compliance	CB, CE, FCC, BSMI
Dimensions	945mm * 447mm * 394.5 mm
Form Factor	9U
Weight	Net Weight kg (CPU, DRAM & HDD not included): 120kg Gross Weight kg(CPU, DRAM & HDD not included, Packing include): 150kg
Power Supply	5+5 3200W 80 PLUS Titanium Power Supply
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List	Z14PN-D32/N:90SB0E20-M0XBN0 PCIEX5-PLX-C9PB:90SC0YT0-M0XBN0 CB-C9PB:90SC0YP0-M0XBN0 PDB-C9PB:90SC0YU0-M0XBN0 BP10LE32G-25-C9PB:90SC0YQ0-M0XBN0 CB-FAN-C9PB:90SC0YR0-M0XBN0 FAN-G-C9PB:90SC0YS0-M1XBN0 FPB-C9PB:90SC0YW0-M0XBN0 PWRBRK-C9PB:90SC0Z00-M0XBN0 CB-OSFP-C2P-I:90SC0UG0-M1XBN0 CPU CARRIER KIT:90SKS000-M4EAN0 HEATSINK:90SKS000-M4JAN0 PSU:90SKP000-M4DAN0 RAIL KIT:90SKS000-MMGBN0

SKU: xa-nb3i-e12 Categorii: ASUS, BRAND, GPU Servers, Server&Storage, Servers

Processor / System Bus	2 x Socket 6th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory	Total Slots: 32 (8 channel per CPU, 16 DIMM per CPU) Capacity: Maximum up to 4TB per CPU socket Memory Type: DDR5 6400 RDIMM/ 3DS RDIMM (2DPC) Memory Size: 128GB, 96GB, 64GB * Refer to support page for more information
Expansion Slots	SKU1: 4 x PCIe Gen5 slots [PCIe Switch directly] -4 x PCIe Gen5 x16 link SKU2: 5 x PCIe Gen5 slots [PCIe Switch directly] -4 x PCIe Gen5 x16 link -1 x PCIe Gen5 x8 link (Raid Only) Support PCIe x16 link support DPU * For Raid card to connect storage
Storage	Optional Kits: -Broadcom MegaRAID 9540-8i
Networking	2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller) 1 x Management Port
Multi-GPU Support	NVIDIA HGX B300 288GB 8-GPU Baseboard
Front I/O Ports	2 x USB 3.2 ports 1 x VGA port 2 x 10GbE RJ45 LAN port 1 x RJ-45 Mgmt LAN port
Switch/LED	Front : 1 x Power Switch/LED 1 x Location Switch/LED 1 x Message LED 1 x Port80 LED (Q-Code) LAN 1-2 LED (on NIC module)
OS Support	Please find the latest OS support from https://servers.asus.com/support/os
Management Solution	ASUS Control Center On-Board ASMB12-iKVM
Regulatory Compliance	CB, CE, FCC, BSMI
Dimensions	945mm * 447mm * 394.5 mm
Form Factor	9U
Weight	Net Weight kg (CPU, DRAM & HDD not included): 120kg Gross Weight kg(CPU, DRAM & HDD not included, Packing include): 150kg
Power Supply	5+5 3200W 80 PLUS Titanium Power Supply
Environment	Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 70℃ Non operation humidity: 20% ~ 90% ( Non condensing)
FRU Part List	Z14PN-D32/N:90SB0E20-M0XBN0 PCIEX5-PLX-C9PB:90SC0YT0-M0XBN0 CB-C9PB:90SC0YP0-M0XBN0 PDB-C9PB:90SC0YU0-M0XBN0 BP10LE32G-25-C9PB:90SC0YQ0-M0XBN0 CB-FAN-C9PB:90SC0YR0-M0XBN0 FAN-G-C9PB:90SC0YS0-M1XBN0 FPB-C9PB:90SC0YW0-M0XBN0 PWRBRK-C9PB:90SC0Z00-M0XBN0 CB-OSFP-C2P-I:90SC0UG0-M1XBN0 CPU CARRIER KIT:90SKS000-M4EAN0 HEATSINK:90SKS000-M4JAN0 PSU:90SKP000-M4DAN0 RAIL KIT:90SKS000-MMGBN0
