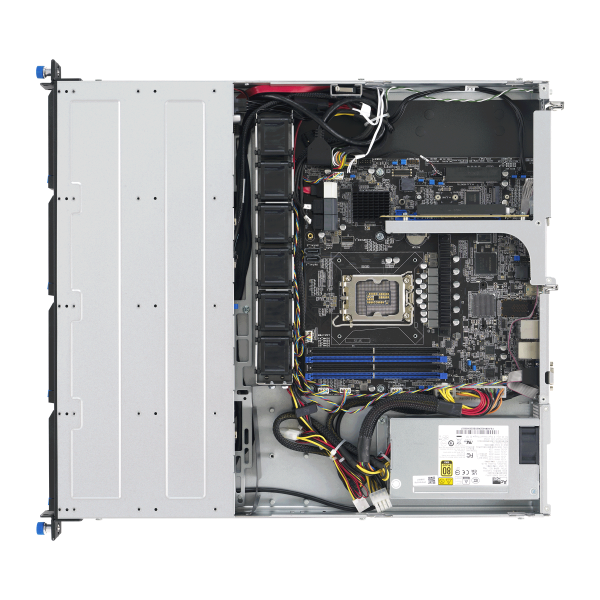

ASUS RS300-E12-PS4 - imagine 7
ASUS RS300-E12-PS4 - imagine 8
ASUS RS300-E12-PS4 - imagine 9
, , , , Configureaza acest server →

ASUS RS300-E12-PS4

Favorite
Compara

ASUS RS300-E12-PS4 is an Intel® Xeon® E-2400 and Intel®Xeon®6300 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe® 5.0 slot and one PCIe 4.0 slot, plus dual LAN , 80 PLUS® Gold power supply, Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.

Pretul afisat contine TVA (21%).

RS300-E12-PS4

ASUS RS300-E12-PS4 is an Intel® Xeon® E-2400 and Intel®Xeon®6300 1U server with support for four DDR5 ECC UDIMM, four NVMe, one M.2, one PCIe® 5.0 slot and one PCIe 4.0 slot, plus dual LAN , 80 PLUS® Gold power supply, Platform Firmware Resilience (PFR), onboard ASUS ASMB11-iKVM and chassis-intrusion alert.

Key Features

  • Powered by eight-core Intel Xeon E-2400-series processor and Intel Xeon 6300 series processor with support for up to 95 W TDP
  • Four 3.5-inch or 2.5-inch hot-swap drives on front panel and one M.2 to enable extensive storage
  • Up to one PCIe 5.0 slots and one PCIe 4.0 proprietary slot to drive higher bandwidth
  • Simplified system maintenance with a 350 W 80 PLUS Gold power supply
  • Dual Intel I210-AT gigabit Ethernet with teaming support
  • Onboard ASUS ASMB11-iKVM for out-of-band management with ASPEED AST2600 controller
  • Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
  • Chassis-intrusion for enhanced physical security

Specifications

Processor / System Bus
  • 1 x Socket LGA1700
  • Intel® Xeon® processor E-2400 family
  • Intel® Xeon® 6300 series processor
  • Intel® Pentium™ processors
  • *Refer to support page for more information
Generation
  • E12
Core Logic
  • Intel® C262 Chipset
Memory
  • Total Slots :
  • 4 (2-channel)
  • Capacity :
  • Maximum up to 128GB UDIMM
  • Memory Type :
  • DDR5 4400/4000/3600 UDIMM
  • Memory Size :
  • 32GB, 16GB, 8GB UDIMM
  • * Refer to support page for more information
Expansion Slots
  • Total PCI-E Slots: 3
  • 1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
  • 1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
  • 1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
  • (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)
Storage
  • Storage Controller :
  • Intel® C262 Chipset
  • 8 x SATA3 6Gb/s ports
  • SAS Controller :
  • ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  • ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
HDD Bays
  • 4 x 3.5†Hot-Swap HDD Bays
  • -up to (4*SATA/SAS/NVMe)
  • *SAS support only from optional SAS HBA/RAID card
  • *NVMe support only from optional NVMe upgrade kit
Auxiliary Storage FDD/CD/DVD
  • 1 x Slim-type Optical Drive Bay
  • Options: No Device / DVD-RW / DVD-ROM
Networking
  • 2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
  • Aspeed AST2600 with 64MB VRAM
Multi-GPU Support
  • lease find the latest GPU support from
  • https://servers.asus.com/support/gpu

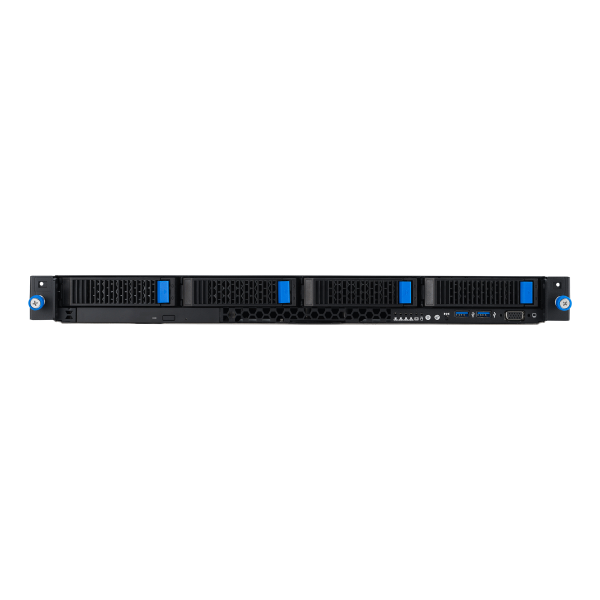

Front I/O Ports
  • 1 x VGA port
  • 2 x USB 3.2 Gen1 ports

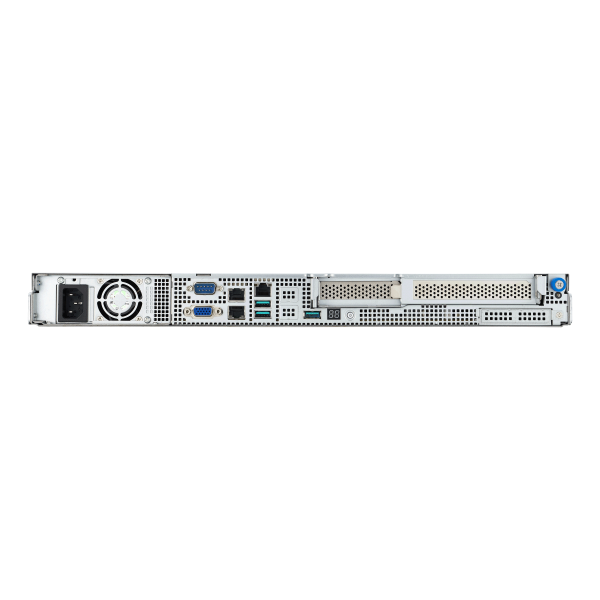

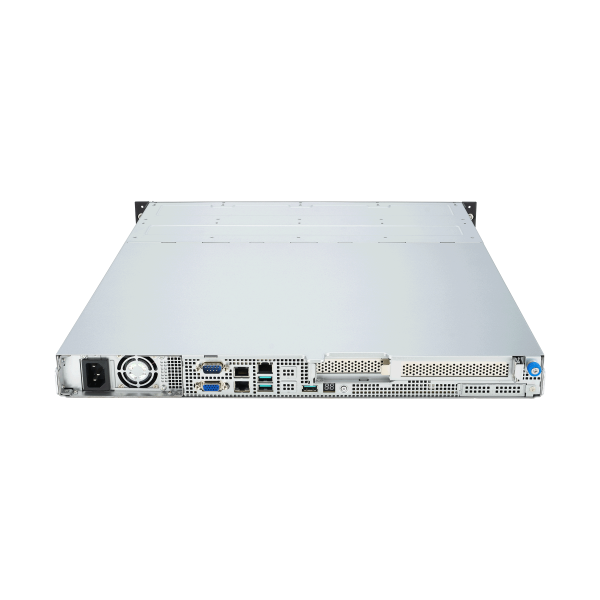

Rear I/O Ports
  • 3 x USB 3.2 Gen 2 ports
  • 1 x VGA port
  • 1 x COM port
  • 1 x RJ-45 ports
Switch/LED
  • Rear Switch/LED:
  • 1 x Q-Code/Port 80 LED
  • 1 x Power switch
  • Front Switch/LED:
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Reset switch
  • 1 x HDD Access LED
  • 1 x Message LED
  • LAN 1-2 LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet
Regulatory Compliance
  • BSMI, CE, CB, FCC(Class A)
Dimensions
  • 497mm x 439.5mm x 44mm
Form Factor
  • 1U
Weight
  • 13.47kg
Power Supply
  • Single 350W 80 PLUS Gold Power Supply
  • Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non operating temperature: -40°C ~ 70°C
  • Non operating humidity: 20% ~ 90% ( Non condensing)
FRU Part List
  • MOTHERBOARD: 90SB0CD0-M0XBN2
  • PDB BOARD: 90SC0HL0-M0XBN1
  • NETWORKING CARD 10G: 90SC0HU0-M0XBN1
  • BACKPLANE: 90SC0K90-M0XBN1
  • FRONT PANEL BOARD: 90SC0Q90-M1XBN1
  • RISER CARD: 90SC0QA0-M0XBN1
  • NETWORKING CARD 1G: 90SC0RC0-M0XBN1
  • MINI SATA 13P TO 7P+4P: 90SKS000-M6EAN0
  • Gen4 NVME RISER KIT: 90SKS000-M9EAN0
  • VGA CABLE 2*8 TO 2*8: 90SKS000-MA8AN0
  • PIKE CABLE KIT: 90SKS000-MBFAN0
  • 4028 FAN: 90SK0000-MDAAN0
  • 3.5″ HDD TRAY TOOLLESS: 90SKH000-MPRBN0
  • LGA1700 1U PASSIVE HS: 90SKS000-MA9AN0
  • 350W 80+ GOLD SINGLE PSU: 90SKP000-M37AN0
  • 450W 80+ PLATINUM RPSU: 90SKP000-M43AN0
  • TOOL-LESS RAIL KIT: 90SK0000-M0TAN0
SKU: rs300-e12-ps4 Categorii: , , , ,
Processor / System Bus
  • 1 x Socket LGA1700
  • Intel® Xeon® processor E-2400 family
  • Intel® Xeon® 6300 series processor
  • Intel® Pentiumâ„¢ processors
  • *Refer to support page for more information
Generation
  • E12
Core Logic
  • Intel® C262 Chipset
Memory
  • Total Slots :
  • 4 (2-channel)
  • Capacity :
  • Maximum up to 128GB UDIMM
  • Memory Type :
  • DDR5 4400/4000/3600 UDIMM
  • Memory Size :
  • 32GB, 16GB, 8GB UDIMM
  • * Refer to support page for more information
Expansion Slots
  • Total PCI-E Slots: 3
  • 1 x PCI-E x 16 (Gen5 x16 Link, switch to x8 link when slot B occupied), FH/HL
  • 1 x PCI-E x 8 (Gen5 x8 Link), HH/HL*
  • 1 x PCI-E x 4 (Gen4 x4 Link), Proprietary R/A slot
  • (optional for Intel X710 10G LAN card or PEI-1G/I210-2T/M,2 card)
Storage
  • Storage Controller :
  • Intel® C262 Chipset
  • 8 x SATA3 6Gb/s ports
  • SAS Controller :
  • ASUS PIKE II 3008-8i 8-port SAS 12G RAID card
  • ASUS PIKE II 3108-8i 8-port SAS 12G HW RAID card
HDD Bays
  • 4 x 3.5†Hot-Swap HDD Bays
  • -up to (4*SATA/SAS/NVMe)
  • *SAS support only from optional SAS HBA/RAID card
  • *NVMe support only from optional NVMe upgrade kit
Auxiliary Storage FDD/CD/DVD
  • 1 x Slim-type Optical Drive Bay
  • Options: No Device / DVD-RW / DVD-ROM
Networking
  • 2 x Intel® I210AT + 1 x Mgmt LAN
Graphic
  • Aspeed AST2600 with 64MB VRAM
Multi-GPU Support
  • lease find the latest GPU support from
  • https://servers.asus.com/support/gpu
Front I/O Ports
  • 1 x VGA port
  • 2 x USB 3.2 Gen1 ports
Rear I/O Ports
  • 3 x USB 3.2 Gen 2 ports
  • 1 x VGA port
  • 1 x COM port
  • 1 x RJ-45 ports
Switch/LED
  • Rear Switch/LED:
  • 1 x Q-Code/Port 80 LED
  • 1 x Power switch
  • Front Switch/LED:
  • 1 x Power switch/LED
  • 1 x Location switch/LED
  • 1 x Reset switch
  • 1 x HDD Access LED
  • 1 x Message LED
  • LAN 1-2 LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center Enterprise On-Board ASMB11-iKVM for KVM-over-Internet
Regulatory Compliance
  • BSMI, CE, CB, FCC(Class A)
Dimensions
  • 497mm x 439.5mm x 44mm
Form Factor
  • 1U
Weight
  • 13.47kg
Power Supply
  • Single 350W 80 PLUS Gold Power Supply
  • Rating: 100-240Vac, 6.3-3A 60-50Hz, Class 1
Environment
  • Operating temperature: 10°C ~ 35°C
  • Non operating temperature: -40°C ~ 70°C
  • Non operating humidity: 20% ~ 90% ( Non condensing)
FRU Part List
  • MOTHERBOARD: 90SB0CD0-M0XBN2
  • PDB BOARD: 90SC0HL0-M0XBN1
  • NETWORKING CARD 10G: 90SC0HU0-M0XBN1
  • BACKPLANE: 90SC0K90-M0XBN1
  • FRONT PANEL BOARD: 90SC0Q90-M1XBN1
  • RISER CARD: 90SC0QA0-M0XBN1
  • NETWORKING CARD 1G: 90SC0RC0-M0XBN1
  • MINI SATA 13P TO 7P+4P: 90SKS000-M6EAN0
  • Gen4 NVME RISER KIT: 90SKS000-M9EAN0
  • VGA CABLE 2*8 TO 2*8: 90SKS000-MA8AN0
  • PIKE CABLE KIT: 90SKS000-MBFAN0
  • 4028 FAN: 90SK0000-MDAAN0
  • 3.5″ HDD TRAY TOOLLESS: 90SKH000-MPRBN0
  • LGA1700 1U PASSIVE HS: 90SKS000-MA9AN0
  • 350W 80+ GOLD SINGLE PSU: 90SKP000-M37AN0
  • 450W 80+ PLATINUM RPSU: 90SKP000-M43AN0
  • TOOL-LESS RAIL KIT: 90SK0000-M0TAN0
