ASUS RS521A-E12-RS12U

Favorite
Compara

AMD EPYC™ 9005 single-processor 2U server that supports up to 24 DIMM, 12 NVMe, five PCIe® 5.0 slots, two M.2, OCP 3.0, two dual-slot GPUs, and ASUS ASMB11-iKVM

Pretul afisat contine TVA (21%).

RS521A-E12-RS12U

AMD EPYC™ 9005 single-processor 2U server that supports up to 24 DIMM, 12 NVMe, five PCIe® 5.0 slots, two M.2, OCP 3.0, two dual-slot GPUs, and ASUS ASMB11-iKVM

Key Features

  • Powerful performance: Powered by AMD EPYC 9005 processors with 192 Zen 5c cores, 12-channel, up to 5200 MHz DDR5 and support for a maximum TDP of up to 400 watts
  • Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two drives in the real panel, and five PCIe 5.0 slots for higher bandwidth and system upgrades
  • Flexible networking module design: On-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
  • Air cooling solution: With heatsink achieves lower power-usage effectiveness (PUE) and optimized TCO for data centers for versatile workloads
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution
  • Read for AI and HPC workloads: Up to two dual-slot GPUs, including NVIDIA A100 and A40, AMD Instinct and Xilinx

Specifications

Processor / System Bus
  • 1 x Socket SP5 (LGA 6096)
  • 5th Generation AMD EPYC Processors or 4th Generation AMD EPYC Processors
  • AMD EPYC™ 9005/9004 Series Processors (Air cool with STD HS up to 400W)
Memory
  • 24 x DIMM slots
  • with AMD EPYC™ 9005 series processors
  • DDR5 6400/5600 RDIMM/3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 5200 with “6400 RDIMM”, other 4800
  • 2DPC (2 of 2, 1R+1R ) up to 4400, with “6400 RDIMM”, other 4000
  • 2DPC (2 of 2, 2R+2R ) up to 4000, with “6400 RDIMM”, other 3600
  • with AMD EPYC™ 9004 series processors
  • DDR5 4800 RDIMM/ 3DS RDIMM
  • Maximum 3,072GB
  • 2DPC (1 of 2) up to 4800,
  • 2DPC (2 of 2, 1R+1R ) up to 4000
  • 2DPC (2 of 2, 2R+2R ) up to 3600
  • * Refer to support page for more information
Expansion Slots
  • Up to 5 PCIe Gen5 slots + 1 OCP3.0
  • 2 x PCIe Gen5 x16, FHFL or 4 x PCIe Gen5 x8, FHFL
  • 1 x PCIe Gen5 x8, LP
  • 1 x OCP 3.0 Slot ( (PCIe Gen5 x16)
Storage
  • Storage Controller :
  • CPU Integrated
  • Optional kits Controller :
  • Broadcom Mega RAID 9560-16i
  • ASUS PIKE II 3008-8i 8-port SAS 12G HBA card
Drive Bays

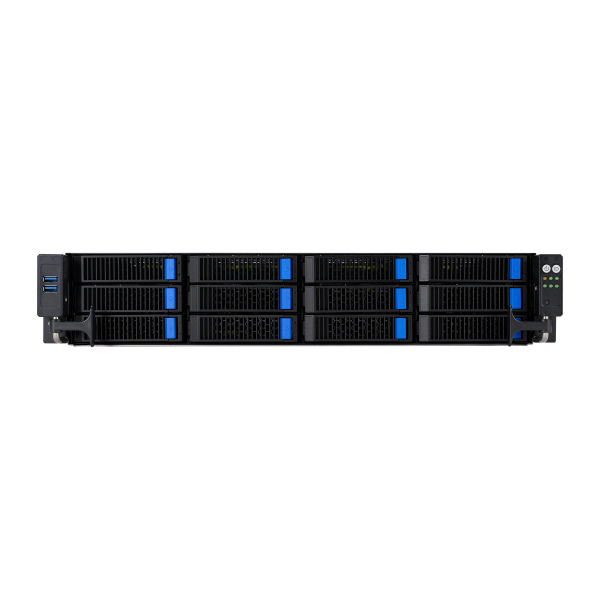

  • Front bays:
  • 12 x 3.5†hot-swap drive bays
  • Support up to 12NVMe/SAS/SATA
  • Rear bays:
  • 2 x 2.5†SATA hot-swap drive bays
  • *SAS support only from optional SAS HBA/RAID
  • card
  • 2 x M.2 connectors
Networking
  • 1 x Dual Port Intel I350-AM2 GbE LAN Controller
  • 1 x Management Port
Graphic
  • Up to 4 single-slot or 2 double-slot GPU cards
Multi-GPU Support
  • Please find the latest GPU support from
  • https://servers.asus.com/support/gpu
Front I/O Ports
  • 2 x USB 3.2 Gen1 ports

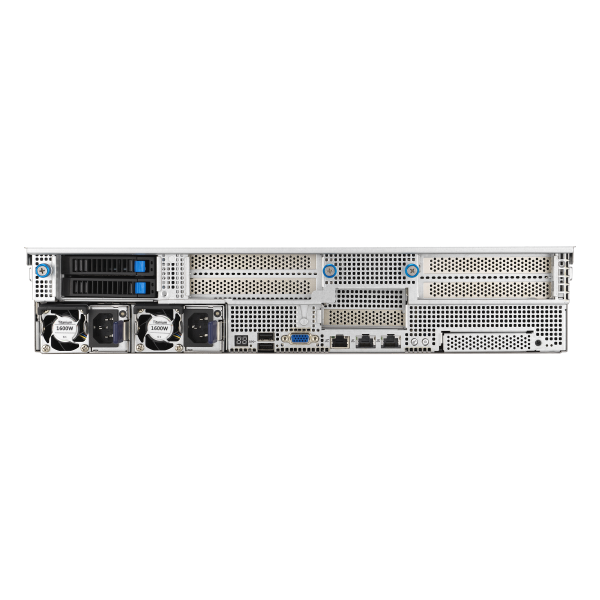

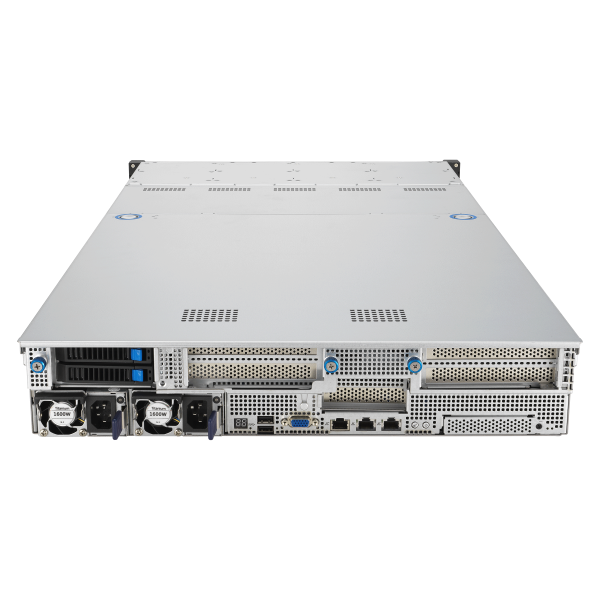

Rear I/O Ports
  • 2 x USB 3.2 Gen1 ports
  • 1 x VGA port
  • 1 x Management port
  • 2 x 1GbE LAN ports
Switch/LED
  • Front:
  • 1 x Power Button/LED
  • 1 x Reset Switch
  • 1 x Location Button/LED
  • 1 x HDD Access LED
  • 1 x Message LED
  • LAN 1-2 LED
  • Rear:
  • 1 x Port80 LED (Q-Code)
  • 1 x Power Button/LED
  • 1 x Location Button/LED
  • 1 x Message LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • ASUS Control Center
  • ASUS ASMB11-iKVM (on-board)
Regulatory Compliance
  • CB, CE, RCM, FCC(Class A), ENERGY STAR®
Dimensions
  • 840mm x 449mm x 88.1mm (2U)
  • 33.07†x 17.68†x 3.47
Form Factor
  • 2U
Weight
  • (approximate)
  • Net Weight: 17.95 kg
  • Gross Weight: 25.14 kg
Power Supply
  • 1+1 Redundant 2000W/1600W 80 PLUS Titanium
  • Power Supply
Environment
  • Operating temperature: 10°C – 35°C
  • Non operating temperature: -40°C – 70°C
  • Non operating humidity: 20% – 90% (Non condensing)
  • Note
  • Operating Temperature based on configurations
Optional Items
  • Rail Kit:
  • Tool-less Friction Rail Kit
  • 1.5U Height Full Extension Ball bearing Type Rail Kit
  • *Please consult sales if  cable arm needed.
  • 2U Front Bezel
Note
  • Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
FRU Part List
  • MOTHERBOARD: 90SB0CV0-M0XBN1
  • FRONT PANEL BOARD: 90SC0G10-M0XBN1
  • PDB BOARD: 90SC0K10-M0XBN1
  • 24BAY BACCK PLANE: 90SC0JU0-M1XBN1
  • 12BAY BACCK PLANE: 90SC0IC0-M0XBN2
  • LEFT RISER CARD: 90SC0K00-M1XBN1
  • RIGHT RISER CARD: 90SC0JZ0-M2XBN0
  • LEFT RISER CARD AND BRACKET: 90SKS000-M9DAN0
  • 24 NVME CABLE KIT: 90SKS000-MTYBN0
  • CABLE ARM: 90SKS000-M23AN0
  • 8038 FAN: 90SKS000-M4IAN0
  • 2U FRONT BEZEL: 90SK0000-MPIAN0
  • 3.5″ HDD TRAY TOOLLESS: 90SKH000-MPRBN0
  • 2.5″ HDD TRAY TOOLLESS: 90SKS000-ML5BN0
  • SP5 2U STD HEATSINK: 90SKS000-M4LAN0
  • 1600W TITANIUM RPSU: 90SKP000-M4AAN0
  • FULL EXTENSION RAIL KIT: 90SKR000-M07AN0
  • TOOL-LESS RAIL KIT: 90SK0000-M0TAN0
  • REAR HDD KIT: 90SKS000-M4FAN0
SKU: rs521a-e12-rs12u Categorii: , , , ,
