ASUS RS720Q-E11-RS8U

Favorite
Compara

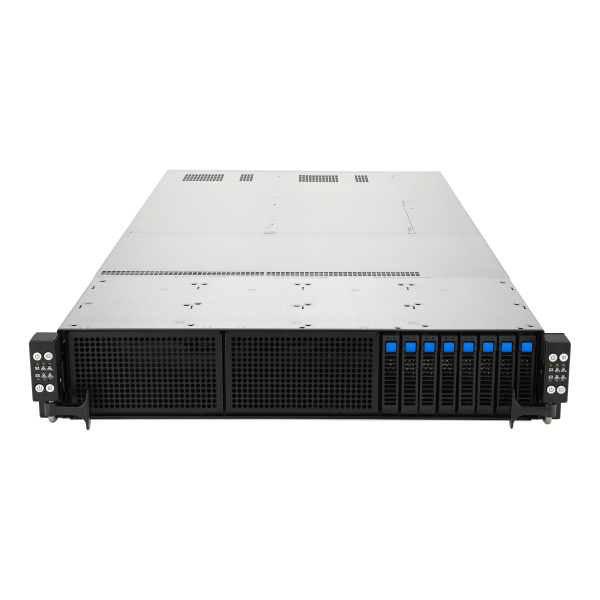

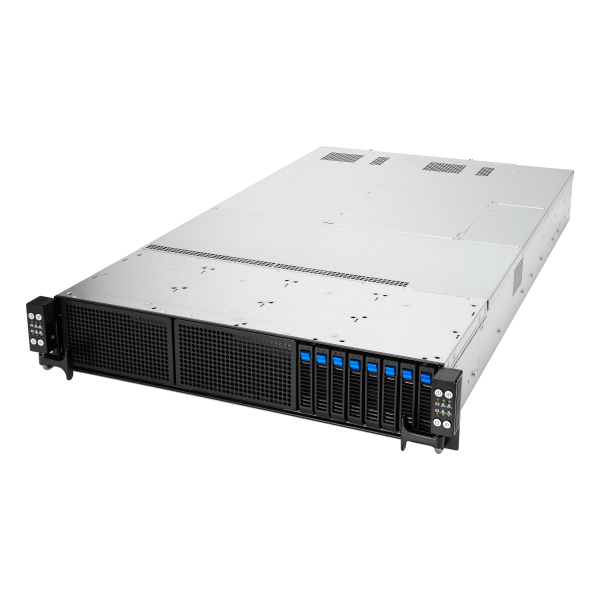

2U4N high density server powered by 5th Gen Intel Xeon Scalable processors that designed for advanced air​ cooling solutions and support up to dual processors, 16 DIMMs, 2 PCIe 5.0 slots, 8 NVMe, and two 10G LAN per node

Pretul afisat contine TVA (21%).

RS720Q-E11-RS8U

2U4N high density server powered by 5th Gen Intel Xeon Scalable processors that designed for advanced air​ cooling solutions and support up to dual processors, 16 DIMMs, 2 PCIe 5.0 slots, 8 NVMe, and two 10G LAN per node

Key Features

  • Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training

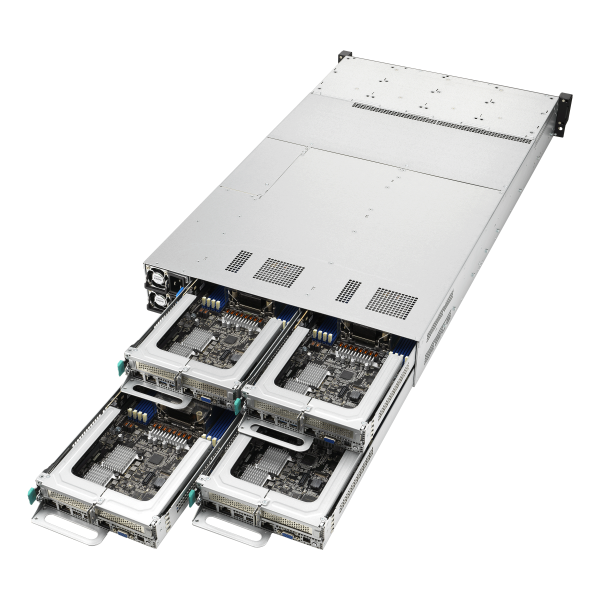

  • Scale-out infrastructure: The four-node architecture design is ideal for CDN, HCI and cloud workloads to drive IT agility and digital transformation
  • Advanced air cooling design: Fully designed for cooling integration and installation, including CPU with higher TDP to increase data center efficiency and power density

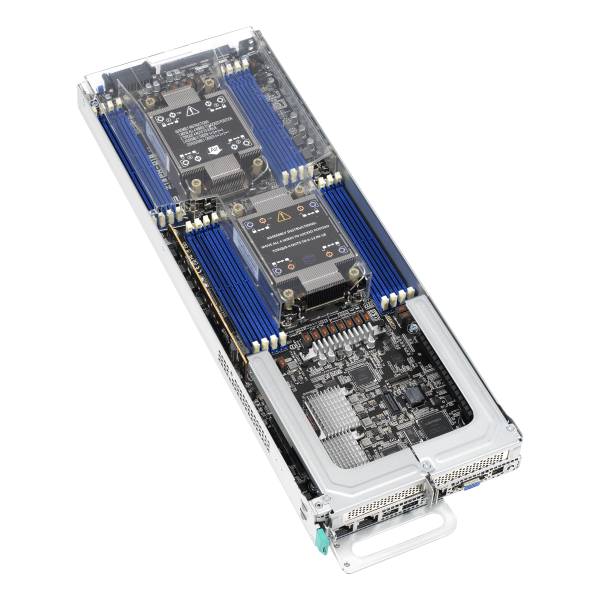

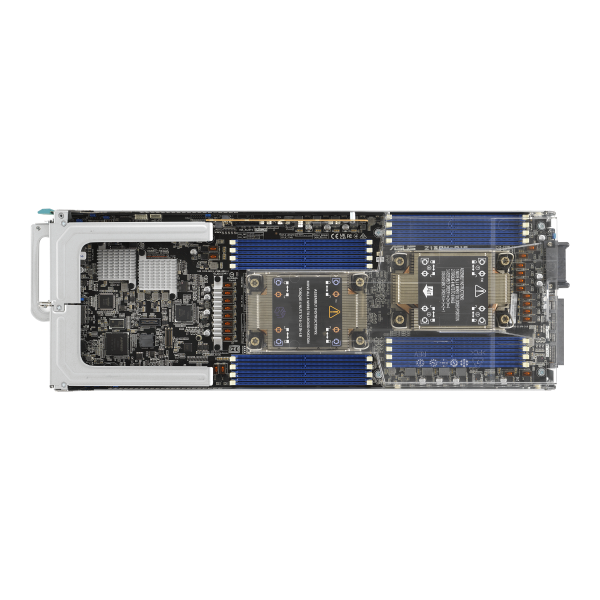

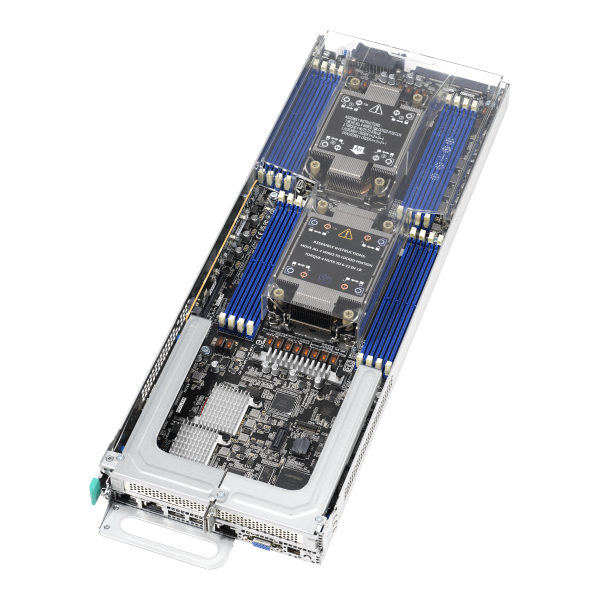

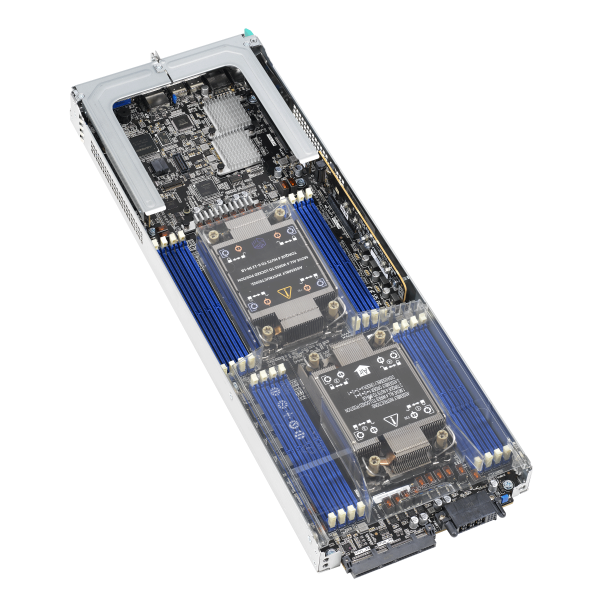

  • Scale-up node design: Each node supports for dual processors, 16 DIMMs, 8 NVMe, two PCIe 5.0 x16 slots, two M.2, and two 10G LAN
  • High power efficiency: Redundant 3000W Titanium power supplies
  • Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Specifications

Processor / System Bus
  • Per node:
  • 2 x Socket E (LGA 4677)
  • 4th Gen Intel® Xeon® Scalable processors
  • 5th Gen Intel® Xeon® Scalable processors
  • (Air cool with EVAC up to 270W, with STD HSK up to 205W)
Generation
  • E11
Core Logic
  • Intel® C741
Memory
  • Per node:
  • 16 x DIMM slots
  • 4th: DDR5 4800 MHz RDIMM/3DS RDIMM (1DPC)
  • 5th: DDR5 5600/4800 MHz RDIMM/3DS RDIMM (1DPC)
  • 512GB, 256GB, 128GB Intel® Optane™ persistent memory 300 series
Expansion Slots
  • Per node:
  • Up to 2 slots
  • 2 x PCIe x16 slot (Gen5 x16 link, HHHL)
Storage
  • Per node:
  • SAS/SATA Controller :
  • LSI 3008 8-port SAS 12G Controller (Option)

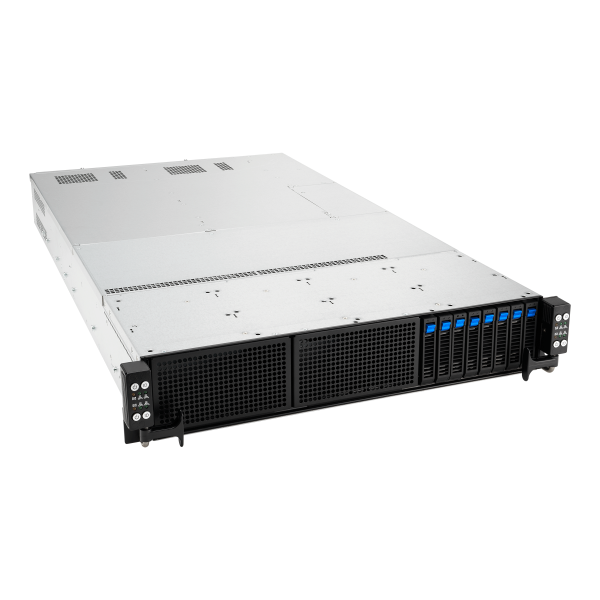

Drive Bays

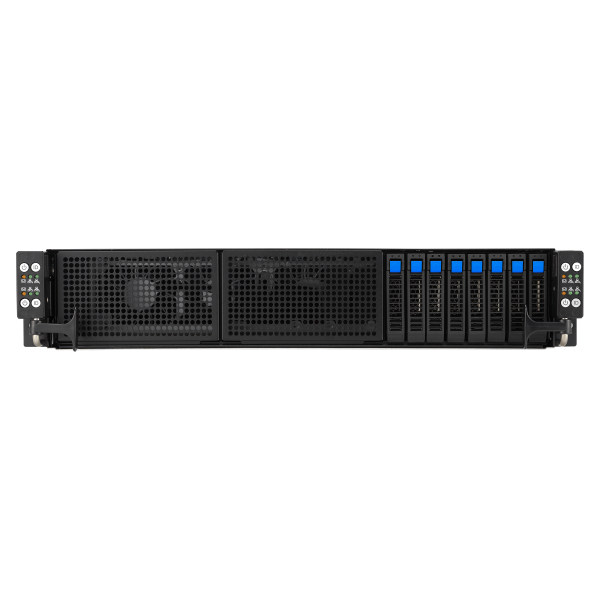

  • 8 x 2.5″ Front Hot-swap drive bays
  • (Up to 8 x NVMe/SATA/SAS)*
  • Per node:
  • 2 x M.2  (Up to 22110, SATA or Gen4 x2 link)
  • * Converter Board with SAS 3008 is required to support RAID and SATA/SAS
  • hard drives
Networking
  • Per node:
  • 2 x Intel X710
  • 1 x Management Port
Graphic
  • Aspeed AST2600 with 64MB VRAM

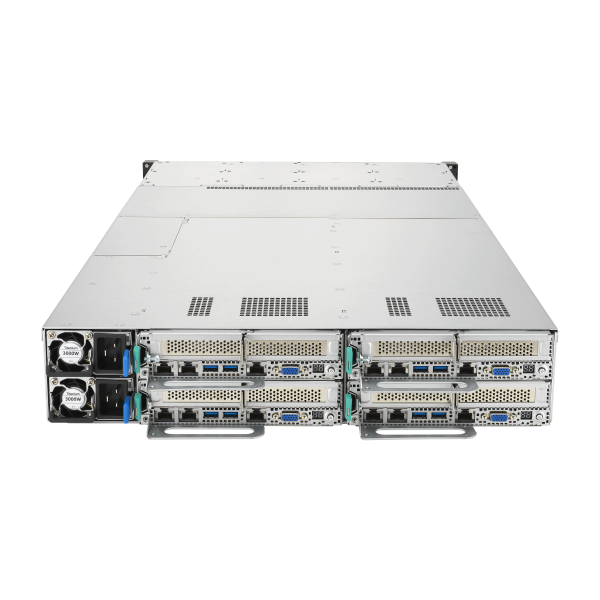

Rear I/O Ports
  • Per Node:
  • 2 x USB 3.1 ports
  • 1 x VGA port
  • 1 x RJ-45 GbE LAN ports
  • 1 x RJ-45 Management port
Switch/LED
  • Per Node:
  • Rear:
  • 1 x Power Switch/LED
  • 1 x Q-Code/Port 80 LED
  • Front:
  • 1 x Power Switch/LED
  • 1 x Location Switch/LED
  • 1 x Message LED
  • 2 x LAN LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
  • Optional ASUS Control Center Enterprise
  • On-Board ASMB11-iKVM
Dimensions
  • 800 x 444 x 88mm
  • 31.5″ x 17.48″ x 3.46″
Form Factor
  • 2U
Weight
  • Net Weight: 35.50 kg
  • Gross Weight: 41.50 kg
Power Supply
  • 1+1 Redundant 3000W 80 PLUS Titanium Power Supply
  • *1+1 redundant mode only supports CPUs under 205W
Environment
  • Operation temperature: 10℃ ~ 35℃
  • Non operation temperature: -40℃ ~ 70℃
  • Non operation humidity: 20% ~ 90% (Non
  • condensing)
Note
  • 1. For the full function of the system, please install both CPUs on each node.
  • 2. Certain high TDP CPUs may be supported only with specific conditions. Please contact ASUS Technical Support for additional information and Thermal solution about specialized system optimization.
FRU Part List
  • Motherboard: 90SB0AW0-M0XBN1
  • Converter Board: 90SC0C50-M0XBN1
  • Backplane: 90SC0K70-M0XBN1
  • Riser Card Right: 90SC0KI0-M0XBN3
  • Riser Card Left: 90SC0KH0-M0XBN3
  • NVME CABLE KITS: 90SKS000-M3XAN0
  • SATA/SAS CABLE KITS Cable: 90SKS000-M3YAN0
  • 2.5″ HDD Tray: 90SKH000-MPPBN0
  • EVAC HSK Kit: 90SK0000-MPXBN0
  • STD HSK Kit: 90SKS000-M4WAN0
  • M.2 RISER KIT: 90SC0LE0-M0XBN0
  • CRPS 3000W TITANIUM: 90SKP000-M1AAN0
  • R40C Rail: 90SK0000-M0TAN0
