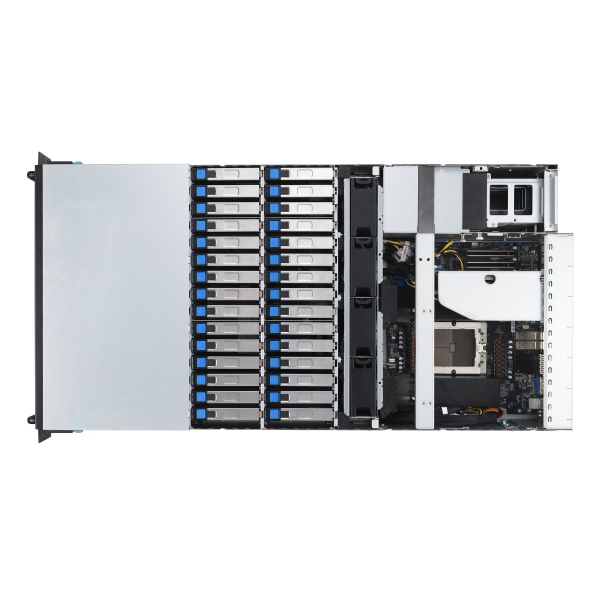

ASUS OJ340A-RS60

Favorite
Compara

4U single-socket high-density storage server powered by AMD EPYC™ 9004-series processor, supporting up to 12 × DDR5 DIMMs, 2 × SATA and 6 × NVMe SSD hot-swap bays, 60 tool-less 3.5-inch hot-swap bays, 2 × PCIe 5.0 x16 and 2 × PCIe 5.0 x8 slots, and onboard ASUS ASMB11-iKVM management for enterprise AI/HPC workloads.

Pretul afisat contine TVA (21%).

OJ340A-RS60

4U single-socket high-density storage server powered by AMD EPYC™ 9004-series processor, supporting up to 12 × DDR5 DIMMs, 2 × SATA and 6 × NVMe SSD hot-swap bays, 60 tool-less 3.5-inch hot-swap bays, 2 × PCIe 5.0 x16 and 2 × PCIe 5.0 x8 slots, and onboard ASUS ASMB11-iKVM management for enterprise AI/HPC workloads.

Key Features

  • Outstanding performance: Ready for up to 96-core AMD EPYC™9004-series CPU (360W TDP), supporting 12 × DDR5 4800 RDIMMs for a maximum of 3TB RAM, and 6-bay NVMe high-performance storage pool for low-latency data access.
  • High-density storage: 60 tool-less, top-loading 3.5-inch SAS/SATA drive trays, supporting up to 1.4PB raw capacity. 6 × NVMe SSDs and 2 × SATA SSDs, and SED drive compatibility for flexible deployment.
  • Versatile connectivity: Built-in dual 25GbE (SFP28), optional quad 25GbE. Supports 2 × dual-port 100GbE/200GbE NICs and SAS H/W RAID or HBA with PCIe 5.0 expansion slots for future-proof networking and storage upgrades.
  • Modern simplicity: Integrated ASUS ASMB11-iKVM out-of-band management with ASPEED AST2600 controller. Intuitive, browser-compatible ASUS Control Center (ACC) for streamlined IT infrastructure management.
  • Enterprise reliability: 800W 2+2 redundant (80 PLUS® Platinum) power supplies, hot-swappable drive bays, and robust system cooling for maximum uptime.
  • Broad application support: Ideal for big data and analytics, data lake, HPC, AI/ML cold data storage, and cloud service providers.
  • SDS-ready node: Supports CEPH, open infrastructure storage, virtualization, data lake, and Tier2 hybrid storage system.

Specifications

Processor / System Bus
  • 1 x Socket SP5 (LGA 6096P)
  • AMD EPYC™ 9004 processors (Up to TDP 360W)
  • *TDP support by configuration.
Memory
  • Total Slots :
  • 12 (12-channel, 1 DIMM per Channel)
  • Capacity :
  • Total Maximum up to 3TB
  • Memory Type :
  • DDR5 4800 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 32GB RDIMM
  • 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Total 4 expansion slots
  • 2 x PCIE Gen5 x16 (FHHL)
  • 2 x PCIE Gen5 x8 (HHHL)
Storage
  • M.2
  • 1 x M.2 (PCIe Gen5x4, support 2280) (SATA Mode support)
Drive Bays
  • 60x 2.5â€/3.5″ SATA/SAS hot-swap drive bays
  • 8x 2.5″ NVMe hot-swap drive bays (6x NVMe+2x SATA)
  • *HBA/ RAID card is required to support SAS hard drives
System Fan
  • 4
Networking
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB

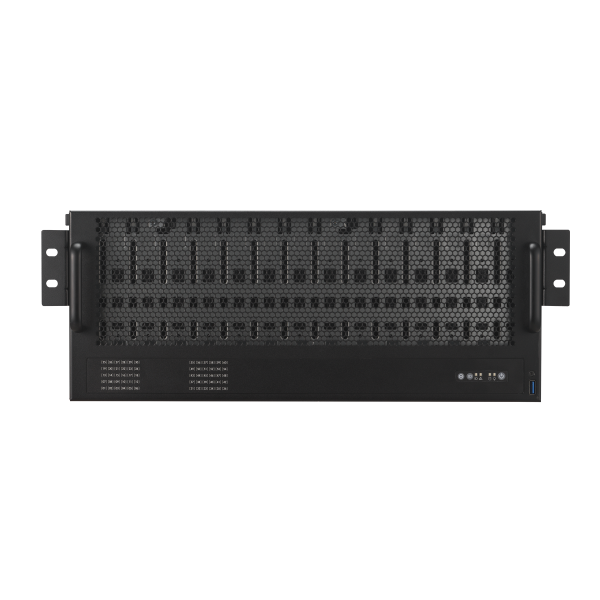

Front I/O Ports
  • 1 x USB 3.2 ports
  • 2 x NIC ports
  • 1 x System Reset Button
  • 1 x System ID Button
  • 1 x Power Button

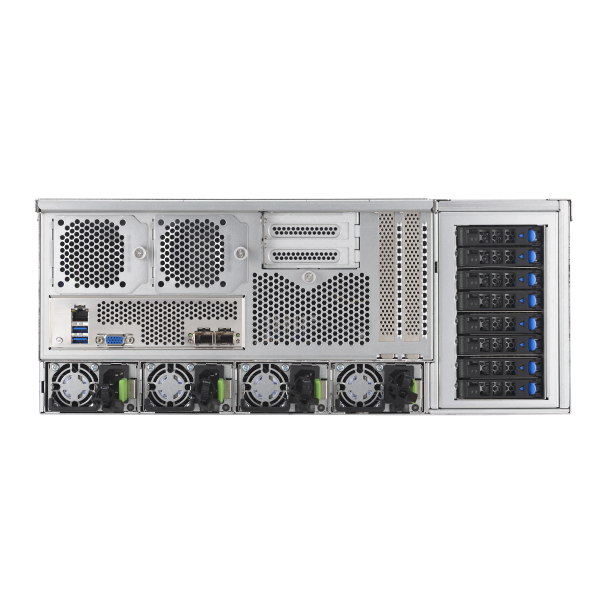

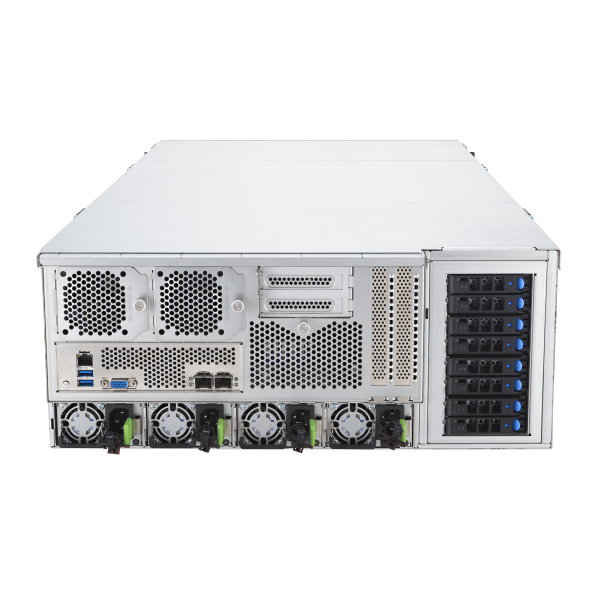

Rear I/O Ports
  • 2 x USB 3.2 ports
  • 2 x SFP28 25Gb/s
  • 1 x VGA port
  • 1 x RJ-45 Management LAN port
Switch/LED
  • Front Switch/LED:
  • 60 xHDD States LED (1-60)
  • 1 x Power LED
  • 1 x HDD (only M2/SATA) Active LED
  • 1 x FAIL LED
  • 1 x ID LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Regulatory Compliance
  • BSMI, CE, CB, RCM, FCC(Class A)
Dimensions
  • 878.5(L) x 434(W) x 176(H) mm
  • 34.6(L) x 17.1(W) x 6.9(H) inch
Form Factor
  • 4U
Weight
  • Net Weight : 33.3KG
  • Gross Weight : 59.1KG
Power Supply
  • 2+2 Redundant 800W 80 PLUS Platinum PSU
  • Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz
SKU: oj340a-rs60 Categorii: , , , ,
Processor / System Bus
  • 1 x Socket SP5 (LGA 6096P)
  • AMD EPYCâ„¢ 9004 processors (Up to TDP 360W)
  • *TDP support by configuration.
Memory
  • Total Slots :
  • 12 (12-channel, 1 DIMM per Channel)
  • Capacity :
  • Total Maximum up to 3TB
  • Memory Type :
  • DDR5 4800 RDIMM/ 3DS RDIMM
  • Memory Size :
  • 32GB RDIMM
  • 32GB 3DS RDIMM
  • * Refer to www.asus.com/support for more information
Expansion Slots
  • Total 4 expansion slots
  • 2 x PCIE Gen5 x16 (FHHL)
  • 2 x PCIE Gen5 x8 (HHHL)
Storage
  • M.2
  • 1 x M.2 (PCIe Gen5x4, support 2280) (SATA Mode support)
Drive Bays
  • 60x 2.5â€/3.5″ SATA/SAS hot-swap drive bays
  • 8x 2.5″ NVMe hot-swap drive bays (6x NVMe+2x SATA)
  • *HBA/ RAID card is required to support SAS hard drives
System Fan
  • 4
Networking
  • 1 x Management Port
Graphic
  • Aspeed AST2600 64MB
Front I/O Ports
  • 1 x USB 3.2 ports
  • 2 x NIC ports
  • 1 x System Reset Button
  • 1 x System ID Button
  • 1 x Power Button
Rear I/O Ports
  • 2 x USB 3.2 ports
  • 2 x SFP28 25Gb/s
  • 1 x VGA port
  • 1 x RJ-45 Management LAN port
Switch/LED
  • Front Switch/LED:
  • 60 xHDD States LED (1-60)
  • 1 x Power LED
  • 1 x HDD (only M2/SATA) Active LED
  • 1 x FAIL LED
  • 1 x ID LED
OS Support
  • Please find the latest OS support from https://servers.asus.com/support/os
Regulatory Compliance
  • BSMI, CE, CB, RCM, FCC(Class A)
Dimensions
  • 878.5(L) x 434(W) x 176(H) mm
  • 34.6(L) x 17.1(W) x 6.9(H) inch
Form Factor
  • 4U
Weight
  • Net Weight : 33.3KG
  • Gross Weight : 59.1KG
Power Supply
  • 2+2 Redundant 800W 80 PLUS Platinum PSU
  • Rating: 100-127V~/220-240V~, 12A/10A (x2), 50/60Hz
