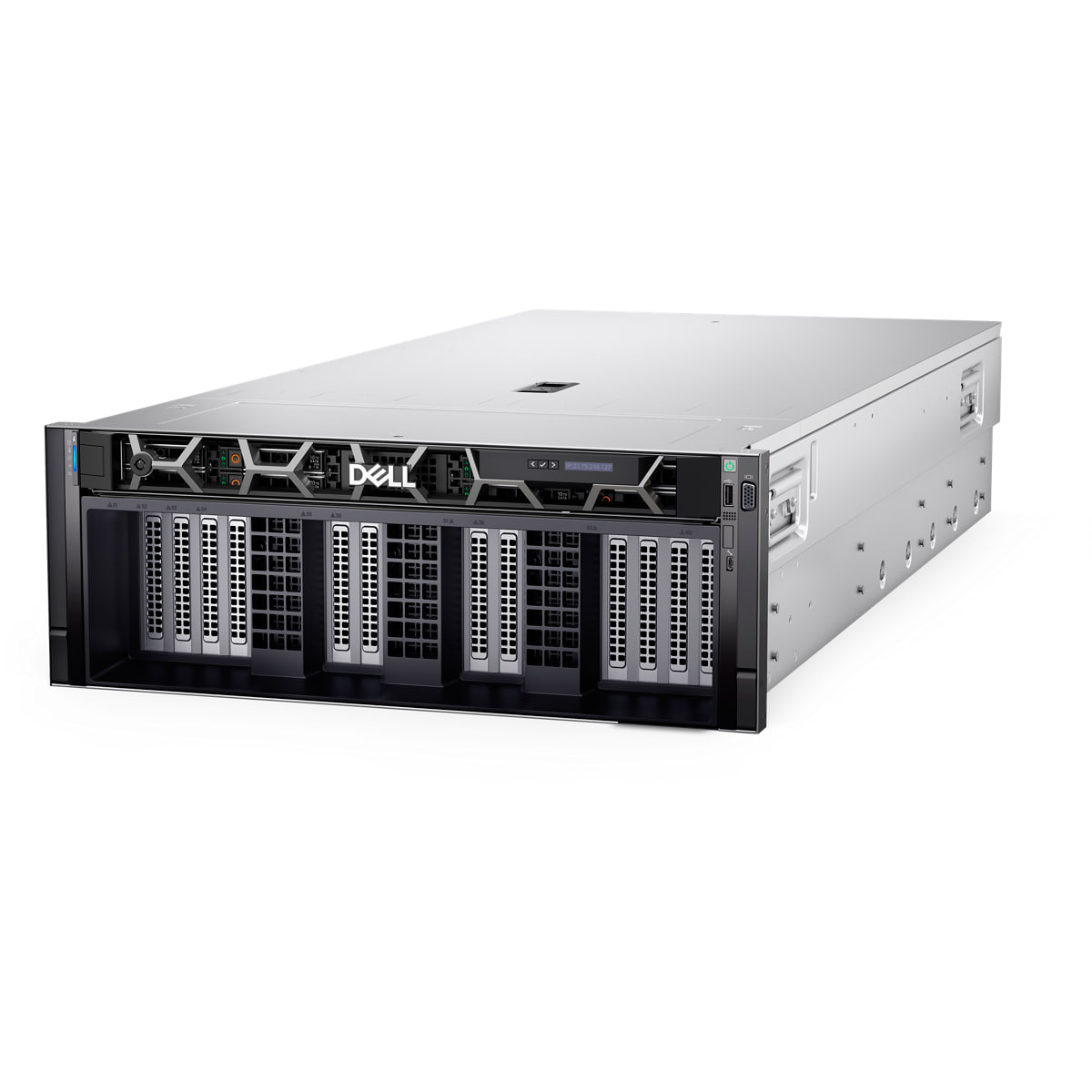

Dell PowerEdge XE9685L
Unmatched performance for AI excellence in a 4U liquid cooled chassis.
PowerEdge XE9685L
Unmatched performance for AI excellence in a 4U liquid cooled chassis.
Key Features
High-performance AI inferencing and model fine-tuning
Unmatched performance for AI excellence in a 4U liquid cooled chassis.
PowerEdge XE9685L rack server resources
Featuring 24 DIMM slots for up to 3TB DDR5 ECC memory and NVMe drives optimized for NVIDIA GPUDirect storage, it accelerates data processing, ensuring faster insights and superior business outcomes.
Next level performance
Featuring 24 DIMM slots for up to 3TB DDR5 ECC memory and NVMe drives optimized for NVIDIA GPUDirect storage, it accelerates data processing, ensuring faster insights and superior business outcomes.
Scalable architecture for future growth
Factory assembly and deployment integration simplify setup, reducing costs and time-to-value. Together, these features make the XE9685L a sustainable, forward-thinking choice for modern enterprises.
Specifications
| Processor | Two AMD EPYC™ 9005 Series processors with up to 192 cores per processor Cooling options Liquid cooled CPUs, GPUs, and NVLink Switches |
| Operating System | Canonical Ubuntu Server LTS |
| Accelerators | 8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slots Maximum RAM RDIMM 3 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe drives max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1) HWRAID 1: 2 x M.2 SSDs Internal controllers NA |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OME APEX AIOps Observability OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers |
| Power Supplies | 3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant for B200 GPU Fans Up to six high performance (HPR) gold grade fans installed on the top layer Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system |
| Ports | Network Options 1 x OCP 3.0 (x8 PCIe lanes) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x iDRAC Direct ethernet port |
| Slots | PCIe Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length Bezel Optional LCD bezel or security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.3 mm) Width Upper 2U: 17.59 in. (447 mm) Lower 2U: 17.08 in. (434 mm) Depth 40.82 in. (1037.57 mm) with bezel 40.37 in. (1025.62 mm) without bezel Weight 208.55 lbs. (Up to 94.6 kg) |
| Rack Support | Your system supports the Generic Tool-less stab-in sliding rail. The Generic Tool-less stab-in sliding rail supports tool-less installation in 19″ EIA-310-E compliant square hole and unthreaded round hole 4-post racks. It allows for the partial extension of the system out of the rack, enabling serviceability of key internal components. |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
| Processor | Two AMD EPYCâ„¢ 9005 Series processors with up to 192 cores per processor Cooling options Liquid cooled CPUs, GPUs, and NVLink Switches |
| Operating System | Canonical Ubuntu Server LTS |
| Accelerators | 8 x NVIDIA HGX B200 180GB 1000W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 24 DDR5 DIMM slots Maximum RAM RDIMM 3 TB max |
| Storage | Front Bays Up to 8 x 2.5-inch NVMe drives max 122.88 TB |
| Storage Controllers | Internal Boot Boot Optimized Storage Subsystem (NVMe BOSS-N1) HWRAID 1: 2 x M.2 SSDs Internal controllers NA |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles OME APEX AIOps Observability OpenManage Enterprise OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell System Update Dell Repository Manager Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations OpenManage Integration with ServiceNow Red Hat Ansible Modules Terraform Providers |
| Power Supplies | 3000W Titanium 200-240 VAC or 240 VDC, hot swap redundant for B200 GPU Fans Up to six high performance (HPR) gold grade fans installed on the top layer Up to six high performance (HPR) gold grade fans installed on the bottom layer of the system |
| Ports | Network Options 1 x OCP 3.0 (x8 PCIe lanes) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 1 x USB 2.0 1 x VGA Rear Ports 1 x USB 2.0 1 x USB 3.0 1 x iDRAC Direct ethernet port |
| Slots | PCIe Up to 12 x16 Gen5 (x16 PCIe) full-height, half-length Bezel Optional LCD bezel or security bezel |
| Form Factor | 4U rack server |
| Dimensions & Weight | Height 6.86 in. (174.3 mm) Width Upper 2U: 17.59 in. (447 mm) Lower 2U: 17.08 in. (434 mm) Depth 40.82 in. (1037.57 mm) with bezel 40.37 in. (1025.62 mm) without bezel Weight 208.55 lbs. (Up to 94.6 kg) |
| Rack Support | Your system supports the Generic Tool-less stab-in sliding rail. The Generic Tool-less stab-in sliding rail supports tool-less installation in 19″ EIA-310-E compliant square hole and unthreaded round hole 4-post racks. It allows for the partial extension of the system out of the rack, enabling serviceability of key internal components. |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. For more information, visitwww.delltechnologies.com/Services. |
