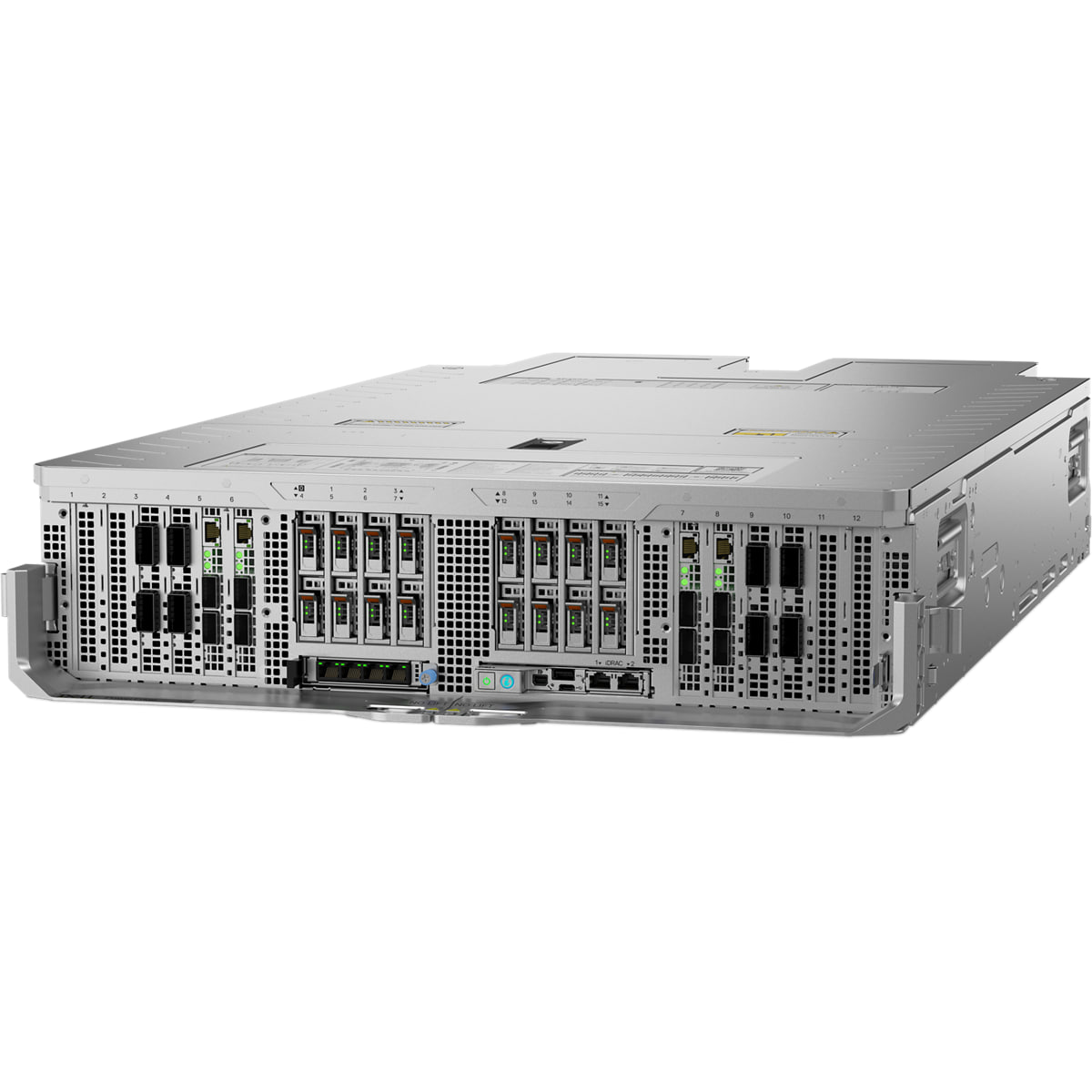

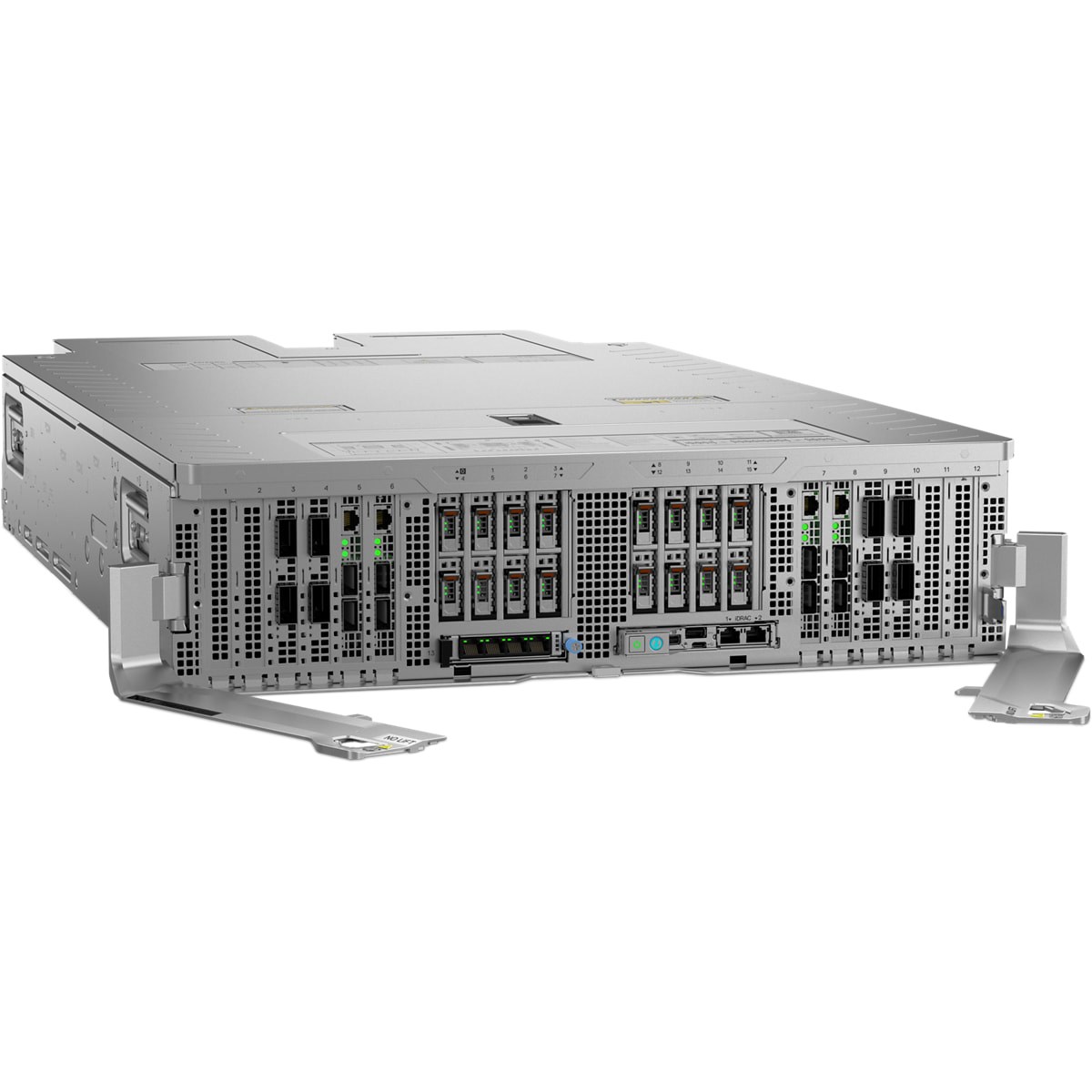

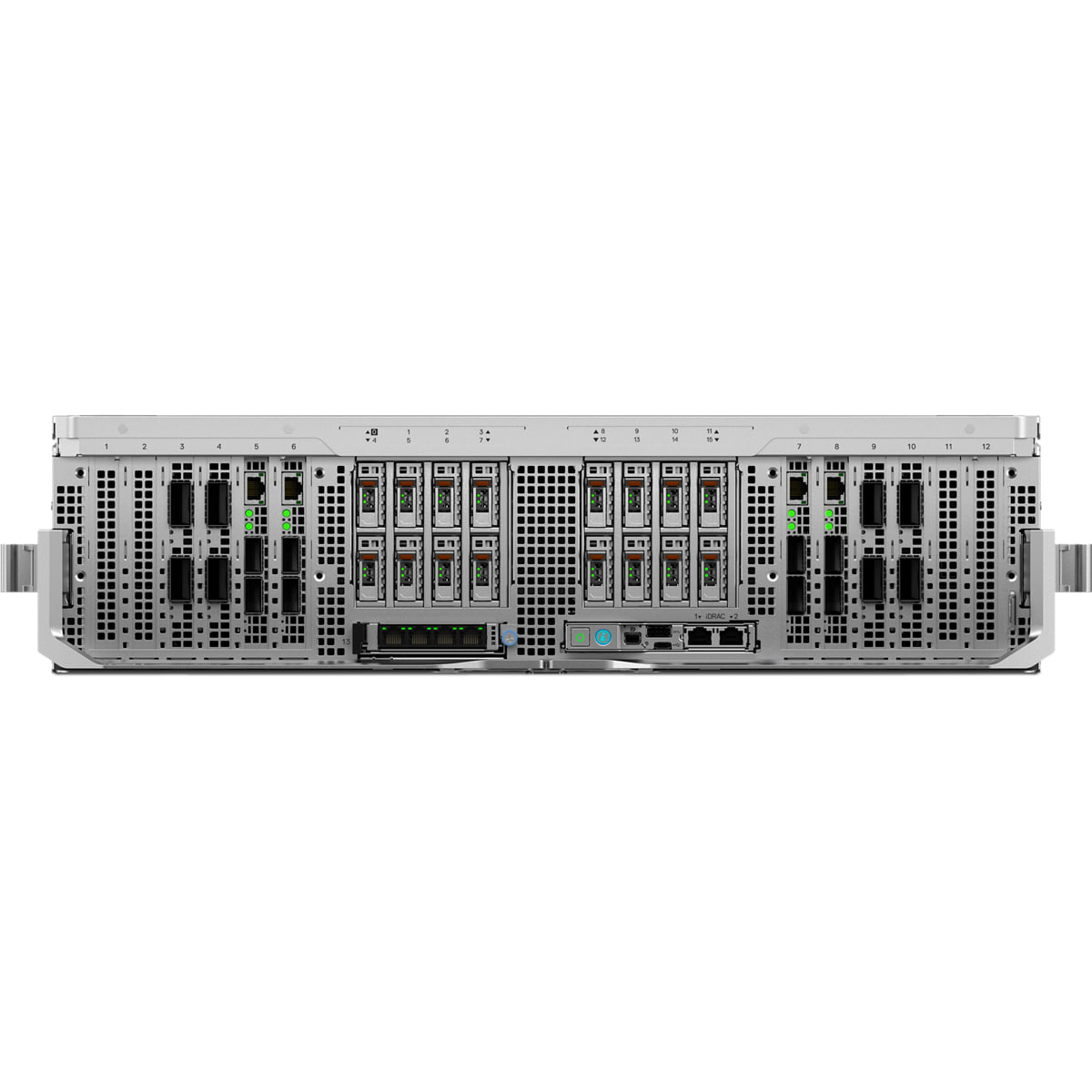

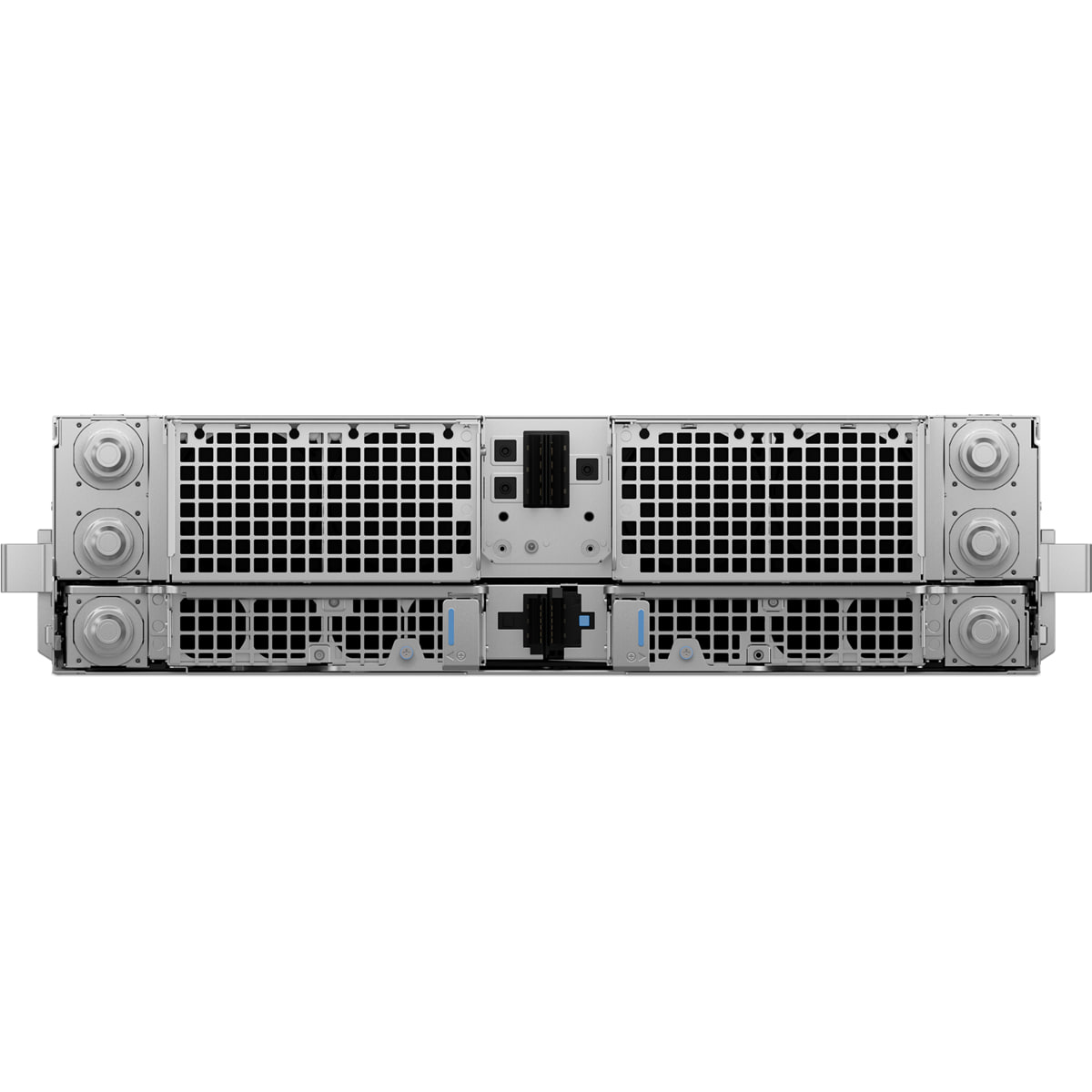

Dell PowerEdge XE9780L
Redefine AI performance with liquid cooling, high-density compute, and flexible power—built for the demands of your data center.
PowerEdge XE9780L
Redefine AI performance with liquid cooling, high-density compute, and flexible power—built for the demands of your data center.
Key Features
Scalable, optimized liquid-cooled AI servers
Redefine AI performance with liquid cooling, high-density compute, and flexible power—built for the demands of your data center.
Specifications
| Processor | Two Intel Xeon 6 Processors with up to 72 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux |
| Accelerators | 8 x NVIDIA HGX B300 1100W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32x 256GB DIMMs = up to 8TB Maximum RAM 4 TB max |
| Storage | Front Bays: Up to 16 x E1.S max 122.88 TB Up to 8 x U.2 NVMe drives + 2 x U.2 NVMe drives by PCIe CEM max 307.2 TB |
| Storage Controllers | Internal Controllers N/A Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 with 2 x 2280 M.2 SSDs)) |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown Soldered down TPM on Mezzanine DC-SCM Chassis Intrusion Detection |
| Management | Embedded / At-the-Server iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish RACADM CLI Tools IPMI RACADM CLI Dell System Update Dell Repository Manager Enterprise Catalogs OpenManage Integrations Red Hat Ansible Modules Terraform Providers |
| Power Supplies | 33kW Powershelf comprised of 6x5500w AC PSUs Cooling Options Liquid cooled CPUs, GPUs, and NVLink Switches Fans 4 x High-Performance Gold Fans for UBB 8 x High-Performance Gold Fans for HPM |
| Ports | Network Options 1 x OCP NIC card 3.0 Gen5 x16 Front Ports 1 x USB 2.0 Type – A port 1 x USB 2.0 Type – C port 1 x Mini-DisplayPort 1 x RJ45 dedicated iDRAC Ethernet port Note: All front ports are located on the DC-SCM module Rear Ports N/A Internal Ports 1 x USB 3.1 Type-A (optional) |
| Slots | PCIe Up to 4×16 Gen5 (x16 PCIe) full-height, half-length Bezel N/A |
| Form Factor | IR7000 = 44 or 50 OU (Open Rack Units) XE9780L is 3 OU Note: 1 OU = 48 mm (1.88 inch) height, and 538.98 mm (21.22 inch) width. |
| Dimensions & Weight | Height 140.5 mm (5.53 inches) Width 537 mm (21.14 inches) Depth (Top) 974.15 mm (38.35 inches) for UBB Depth (Bottom) 834.18 mm (32.84 inches) for HPM Weight 203.57 lbs (92.6 kg) |
| Rack Support | Static rail for ORv3 rack |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Processor | Two Intel Xeon 6 Processors with up to 72 cores per processor |
| Operating System | Canonical Ubuntu Server LTS RedHat Enterprise Linux |
| Accelerators | 8 x NVIDIA HGX B300 1100W SXM6 GPUs, fully interconnected with NVIDIA NVLink technology |
| Memory | DIMM Speed Up to 6400 MT/s Memory Type RDIMM Memory Module Slots 32x 256GB DIMMs = up to 8TB Maximum RAM 4 TB max |
| Storage | Front Bays: Up to 16 x E1.S max 122.88 TB Up to 8 x U.2 NVMe drives + 2 x U.2 NVMe drives by PCIe CEM max 307.2 TB |
| Storage Controllers | Internal Controllers N/A Internal Boot Boot Optimized Storage Subsystem (BOSS-N1 with 2 x 2280 M.2 SSDs)) |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secured Component Verification (Hardware integrity check) Secure Erase Silicon Root of Trust System Lockdown Soldered down TPM on Mezzanine DC-SCM Chassis Intrusion Detection |
| Management | Embedded / At-the-Server iDRAC10 iDRAC Direct iDRAC RESTful API with Redfish RACADM CLI Tools IPMI RACADM CLI Dell System Update Dell Repository Manager Enterprise Catalogs OpenManage Integrations Red Hat Ansible Modules Terraform Providers |
| Power Supplies | 33kW Powershelf comprised of 6x5500w AC PSUs Cooling Options Liquid cooled CPUs, GPUs, and NVLink Switches Fans 4 x High-Performance Gold Fans for UBB 8 x High-Performance Gold Fans for HPM |
| Ports | Network Options 1 x OCP NIC card 3.0 Gen5 x16 Front Ports 1 x USB 2.0 Type – A port 1 x USB 2.0 Type – C port 1 x Mini-DisplayPort 1 x RJ45 dedicated iDRAC Ethernet port Note: All front ports are located on the DC-SCM module Rear Ports N/A Internal Ports 1 x USB 3.1 Type-A (optional) |
| Slots | PCIe Up to 4×16 Gen5 (x16 PCIe) full-height, half-length Bezel N/A |
| Form Factor | IR7000 = 44 or 50 OU (Open Rack Units) XE9780L is 3 OU Note: 1 OU = 48 mm (1.88 inch) height, and 538.98 mm (21.22 inch) width. |
| Dimensions & Weight | Height 140.5 mm (5.53 inches) Width 537 mm (21.14 inches) Depth (Top) 974.15 mm (38.35 inches) for UBB Depth (Bottom) 834.18 mm (32.84 inches) for HPM Weight 203.57 lbs (92.6 kg) |
| Rack Support | Static rail for ORv3 rack |
| Recommended Support | Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
