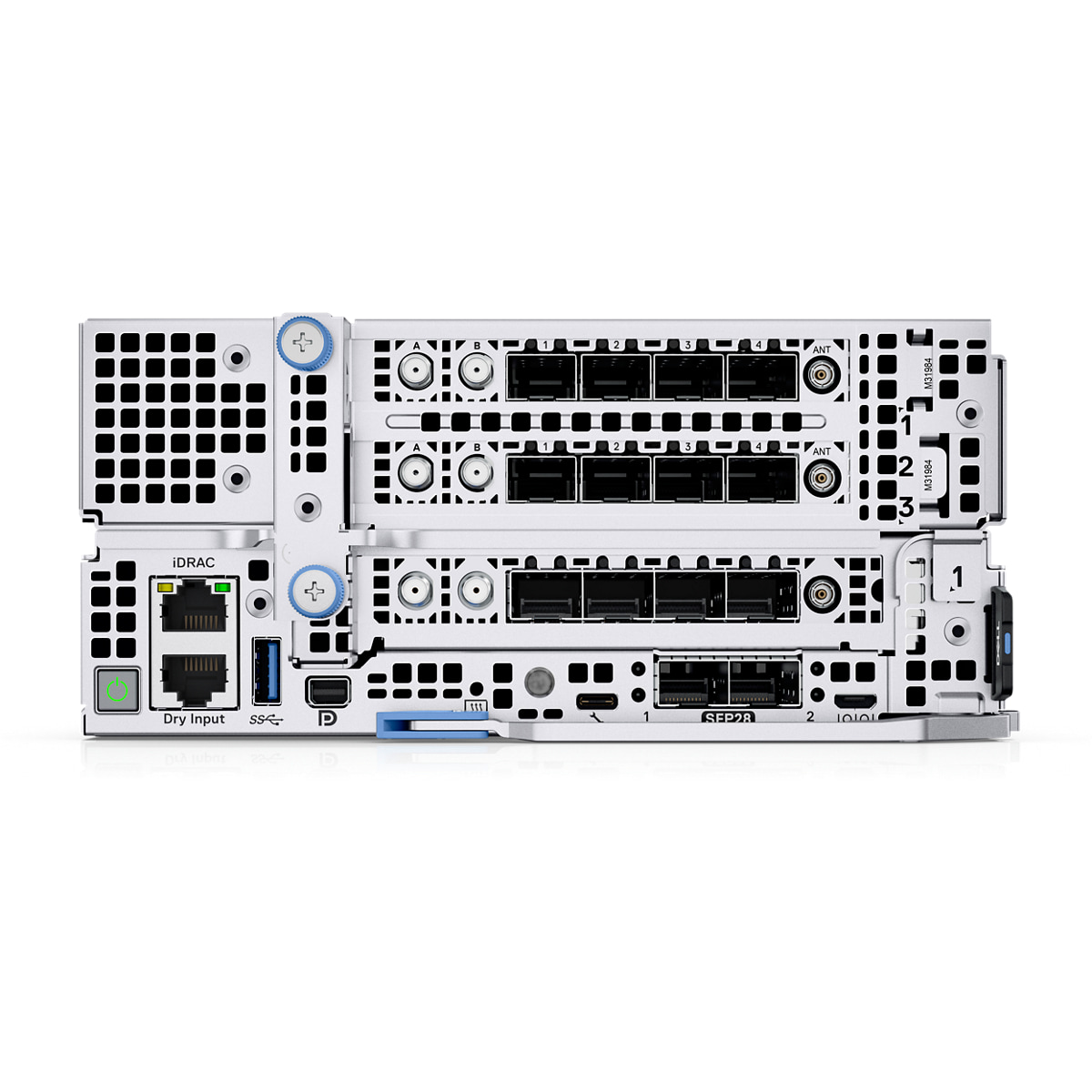

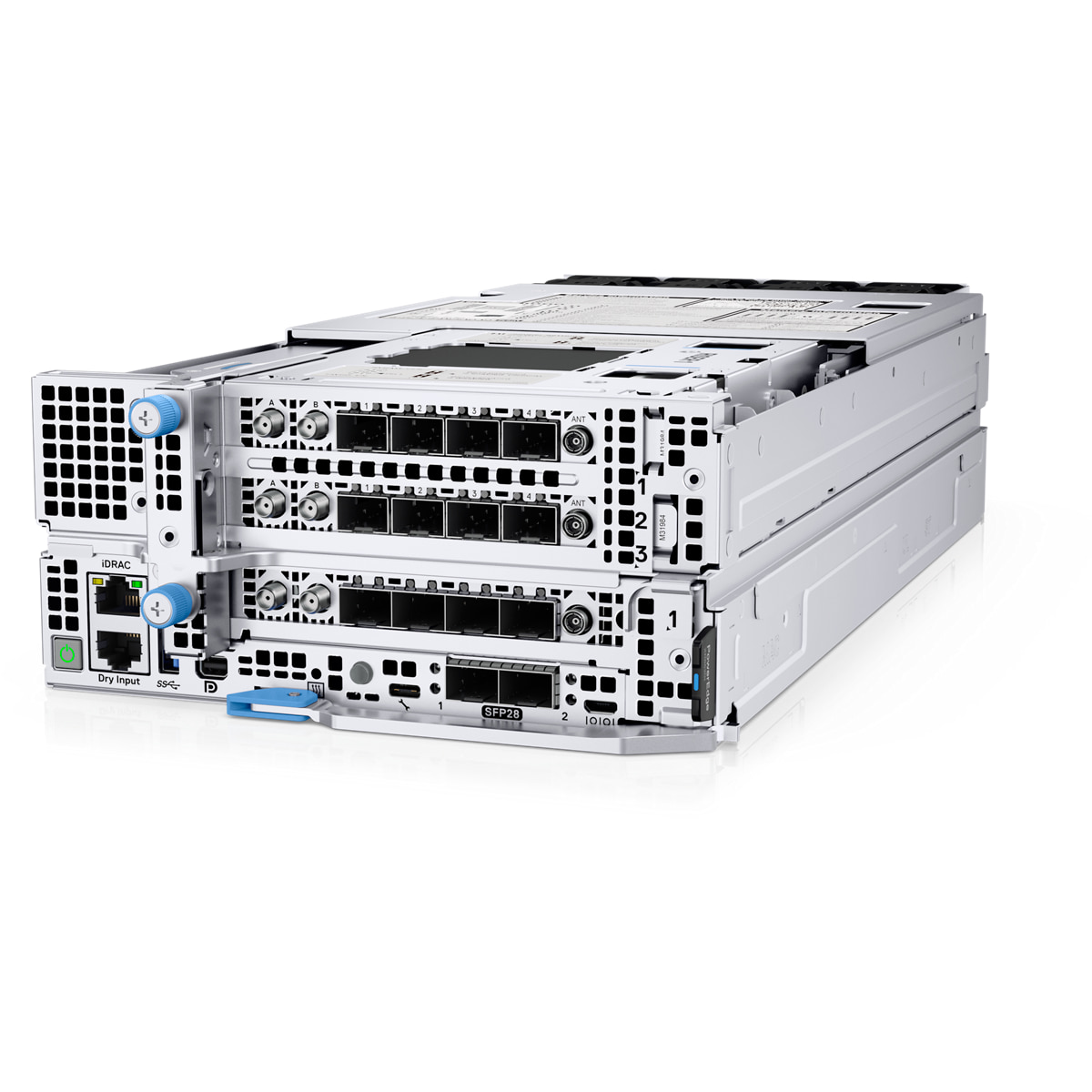

Dell PowerEdge XR8620t
Handle a wide range of workloads on the far edge with this half-width, 2U server sled; for use in the XR8000 chassis.
PowerEdge XR8620t
Handle a wide range of workloads on the far edge with this half-width, 2U server sled; for use in the XR8000 chassis.
Key Features
2U server sled for XR8000 chassis
Handle a wide range of workloads on the far edge with this half-width, 2U server sled; for use in the XR8000 chassis.
Specifications
| Processor | 1 x 4th Generation Intel®Xeon®Scalable processor or 1 x 4th Generation Intel®Xeon®Edge Enhanced processor (vRAN boost) with up to 32 cores |
| Operating System | Red Hat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® Wind River |
| Accelerators | NA |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 8 x DDR5 DIMM slots Maximum RAM RDIMM 512 GB max |
| Storage | 2 x M.2 2280 or 22110 direct connect NVMe drives with dual M.2 NVME direct riser module (non-RAID) (XR8620t) 2 x M.2 2280 or 22110 on ROR-N1 (RAISER) with RAID 0/1 (XR8620t) 2 x M.2 2280 BOSS-N1 with RAID 0/1 |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | Power Supplies 1800W Titanium 200-240 VAC hot swap redundant 1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant 1400W DC/ -48-(-60) V 1100W DC/ -48-(-60) V 800W DC/ -48-(-60) V Fans Standard (STD) fans Up to 8 cable fans |
| Ports | Network Options 2 x 25 GbE SFP 28 on board LOM (Optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port 1 x RJ45 AlertDry contact input connector Internal Ports NA |
| Slots | PCIe 1 CPU configuration: Up to 3 PCIe slots: 3 x16 Gen5 slots |
| Bezel | No bezel |
| Form Factor | 2U |
| Dimensions & Weight | Height 3.27 inches (83.28 mm) Width 7.27 inches (184.8 mm) Depth 17.06 inches (433.5 mm) Weight 13.27 lbs (6.02 kg) |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
| Processor | 1 x 4th Generation Intel®Xeon®Scalable processor or 1 x 4th Generation Intel®Xeon®Edge Enhanced processor (vRAN boost) with up to 32 cores |
| Operating System | Red Hat®Enterprise Linux SUSE®Linux Enterprise Server VMware®ESXi® Wind River |
| Accelerators | NA |
| Memory | DIMM Speed Up to 4800 MT/s Memory Type RDIMM Memory Module Slots 8 x DDR5 DIMM slots Maximum RAM RDIMM 512 GB max |
| Storage | 2 x M.2 2280 or 22110 direct connect NVMe drives with dual M.2 NVME direct riser module (non-RAID) (XR8620t) 2 x M.2 2280 or 22110 on ROR-N1 (RAISER) with RAID 0/1 (XR8620t) 2 x M.2 2280 BOSS-N1 with RAID 0/1 |
| Security | Cryptographically signed firmware Data at Rest Encryption (SEDs with local or external key mgmt) Secure Boot Secure Erase Secured Component Verification (Hardware integrity check) Silicon Root of Trust System Lockdown (requires iDRAC9 Enterprise or Datacenter) TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ |
| Management | Embedded / At-the-Server iDRAC9 iDRAC Direct iDRAC RESTful API with Redfish iDRAC Service Module Consoles CloudIQ for PowerEdge plug in OpenManage Enterprise OpenManage Enterprise Integration for VMware®vCenter™ OpenManage Integration for Microsoft®System Center OpenManage Integration with Windows Admin Center OpenManage Power Manager plugin OpenManage Service plugin OpenManage Update Manager plugin Tools Dell Repository Manager Dell System Update Enterprise Catalogs iDRAC RESTful API with Redfish IPMI RACADM CLI OpenManage Integrations BMC Truesight Microsoft®System Center OpenManage Integration with ServiceNow RedHat®Ansible®Modules Terraform Providers VMware®vCenter™ and vRealize Operations Manager |
| Power Supplies | Power Supplies 1800W Titanium 200-240 VAC hot swap redundant 1400W Platinum 100-240 VAC or 240 HVDC, hot swap redundant 1400W DC/ -48-(-60) V 1100W DC/ -48-(-60) V 800W DC/ -48-(-60) V Fans Standard (STD) fans Up to 8 cable fans |
| Ports | Network Options 2 x 25 GbE SFP 28 on board LOM (Optional) Front Ports 1 x iDRAC Direct (Micro-AB USB) port 2 x USB 3.0 1 x Serial port 1 x Mini-DisplayPort 1 x RJ45 iDRAC9 ethernet port 1 x RJ45 Alert\Dry contact input connector Internal Ports NA |
| Slots | PCIe 1 CPU configuration: Up to 3 PCIe slots: 3 x16 Gen5 slots |
| Bezel | No bezel |
| Form Factor | 2U |
| Dimensions & Weight | Height 3.27 inches (83.28 mm) Width 7.27 inches (184.8 mm) Depth 17.06 inches (433.5 mm) Weight 13.27 lbs (6.02 kg) |
| Recommended Support | Choose Dell ProSupport Plus or Dell ProSupport for premium hardware and software support. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region. |
| Regulatory | Product Safety and Environmental Datasheets Dell Regulatory Compliance Home Page Dell and the Environment |
