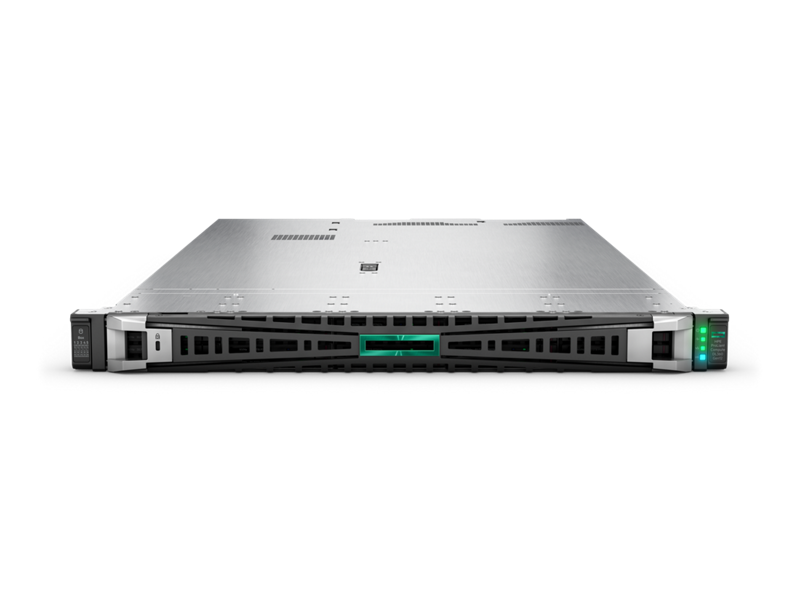

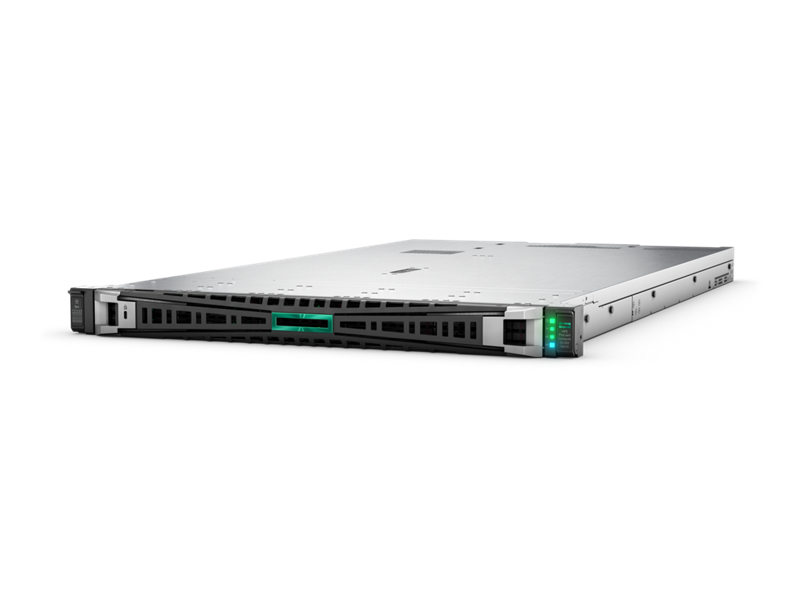

HPE ProLiant Compute DL360 Gen12
HPE ProLiant Compute DL360 Gen12 - imagine 2
HPE ProLiant Compute DL360 Gen12 - imagine 3
HPE ProLiant Compute DL360 Gen12 - imagine 4
HPE ProLiant Compute DL360 Gen12 - imagine 5
HPE ProLiant Compute DL360 Gen12 - imagine 6
HPE ProLiant Compute DL360 Gen12 - imagine 7
HPE ProLiant Compute DL360 Gen12 - imagine 8
HPE ProLiant Compute DL360 Gen12 - imagine 9
, , , Configureaza acest server →

HPE ProLiant Compute DL360 Gen12

Favorite
Compara

Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads?

Pretul afisat contine TVA (21%).

HPE ProLiant Compute DL360 Gen12

Are you looking for a compact, rack-optimized two-socket server that supports hybrid cloud workloads?

Key Features

Maximize your HPE ProLiant Compute DL360 Gen12

  • Intel® Xeon® 6 processors that support up to 144 cores, up to 8 TB of DDR5 memory at speeds up to 6400 MT/s, and up to 2x average higher performance for general compute versus previous generations.
  • Optional front accessible boot device for quicker access and redesigned intake on front of chassis for optimal airflow and enhanced thermal efficiency.

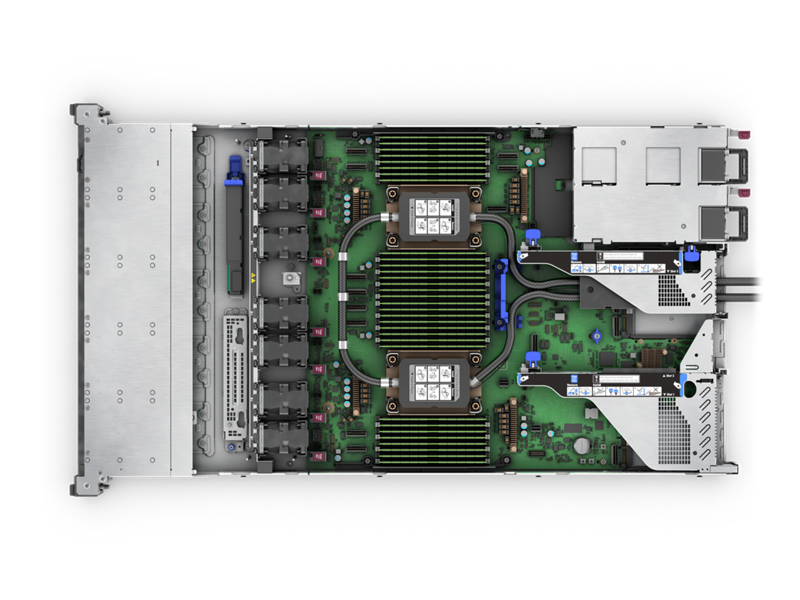

  • Three cooling options — air-cooling (including air baffle), closed-loop liquid cooling, and direct liquid cooling for performance/energy efficiency to support sustainability initiatives.

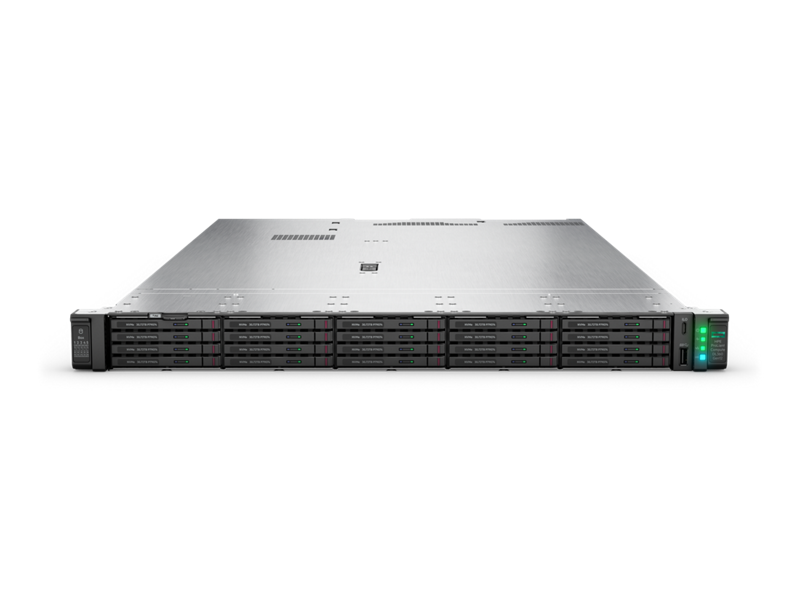

  • Ability to use up to 10 SFF or 20 EDSFF E3.S drives as well an OS Boot device and OCP NICs in the front cage.
  • Up to three single-wide (SW) GPUs.
  • HPE Integrated Lights-Out 7 (iLO 7) server management software with streamlined manageability through a redesigned GUI, Redfish API, and increased security via patented secure enclave technology.

Specifications

HPE ProLiant Compute DL360 Gen12
Processor type
  • Intel
Processor family
  • Intel® Xeon® 6 Scalable processors
Processor number
  • 1 or 2
Processor core available
  • 8 to 144 core, depending on processor
Processor speed
  • 4.0 GHz maximum, depending on processor
Processor cache
  • 48 MB to 336 MB L3 cache, depending on processor
Memory type
  • HPE DDR5 Smart Memory
Maximum memory
  • 8 TB with 256 GB DDR5
Memory slots
  • 32 DDR5 DIMM slots (16 per processor)
Memory protection features
  • On-Die ECC (Error Correction Code) designed to correct bit errors within the DRAM
Accelerators
  • 3 Single-wide GPU in rear
System fan features
  • Standard Fan Kit (Q’ty 5), Standard Fan Kit (Q’ty 2) for 2nd Processor, High performance Fan Kit (Q’ty 7), Close Loop Liquid Cooling Heatsink & Fan kit, Direct Liquid Cooling Solution.
Expansion slots
  • Maximum 3 PCIe Gen5 slots (x16 lanes/each) & Maximum 2 OCP3.0 slots (x16 lanes/each)
Form factor
  • 1U Rack
Network controller
  • Optional – Minimum 1 to be selected. Wide range of speeds, cabling, chipsets and form factors (PCIe stand-up adapter and OCP3.0 in rear/front). Please see QuickSpecs for network card choices.
Storage controller
  • Optional – HPE ProLiant Compute Smart Array Gen12 Storage Controller in Variety of protocols – including PCIe Gen5, NVMe, port count, array utilities, and form factors (PCIe stand-up adapter and OCP3.0). Optional – Intel® VROC Hybrid RAID for NVMe. Optional – HPE ProLiant Compute Gen12 OS Boot Device, in rear or front accessible or internal. Please see QuickSpecs for storage controllers selection.
Drive supported
  • Up to 4 LFF SAS/SATA HDDs or SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 8+2 SFF SAS/SATA HDDs or SATA/SAS/NVMe U.3 SSDs, optional 1 OS Boot device (Internal, external accessible from rear wall); Up to 10 SFF/20 E3.S to be mixed, optional 1 OS Boot Device (Internal, external accessible from rear wall or front cage), Optional 2 front OCP NICs
Optical drive type
  • Optional – HPE 9.5 mm SATA DVD-RW Optical Drive, HPE Mobile USB DVD-RW Drive.
Power supply type

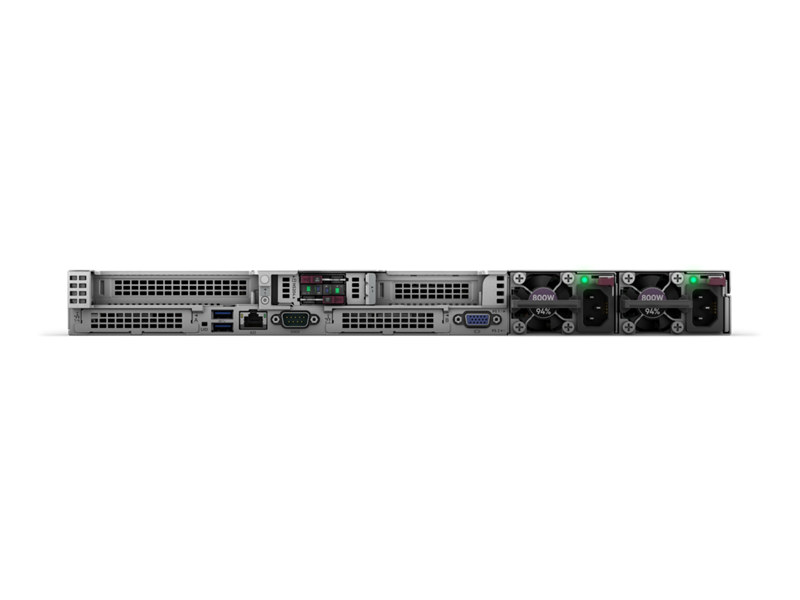

  • HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit; HPE 1000W Flex Slot Titanium Hot Plug Power Supply Kit; HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit; HPE 1600W Flex Slot -48 VDC Hot Plug Power Supply Kit; HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit
Infrastructure management
  • Included – HPE iLO7 Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download). Optional – HPE iLO7 Advanced, and HPE OneView Advanced. Refer to the iLO 7 User Guide
Security
  • UEFI Secure Boot and Secure Start support. Intel® Software Guard Extensions (SGX) support. Immutable Silicon Root of Trust. Optional Trusted Supply Chain, iLO Security modes, Chassis Intrusion detection and Bezel Locking kits. For full security features refer to the QuickSpecs.
Warranty
  • 3/3/3: Server Warranty includes three years of parts, three years of labor, and three years of on-site support coverage. Additional information regarding worldwide limited warranty and technical support is available at: https://support.hpe.com/hpesc/public/docDisplay?docId=sd00004309en_us. Additional HPE support and service coverage, to supplement the product warranty, is available. For more information, visit: https://www.hpe.com/emea_europe/en/support.html.
Processor
Server Memory
Server Accelerator
Server Cooling
Server Expansions
Server Form Factor
Server Controllers
Server Drives
Server Power
Management Software
Security
Warranty
