HPE ProLiant Compute XD685

Favorite
Compara

Do you need a highly performant, secure, and energy-efficient large AI cluster?

Pretul afisat contine TVA (21%).

HPE ProLiant Compute XD685

Do you need a highly performant, secure, and energy-efficient large AI cluster?

Key Features

Maximize your HPE ProLiant Compute XD685

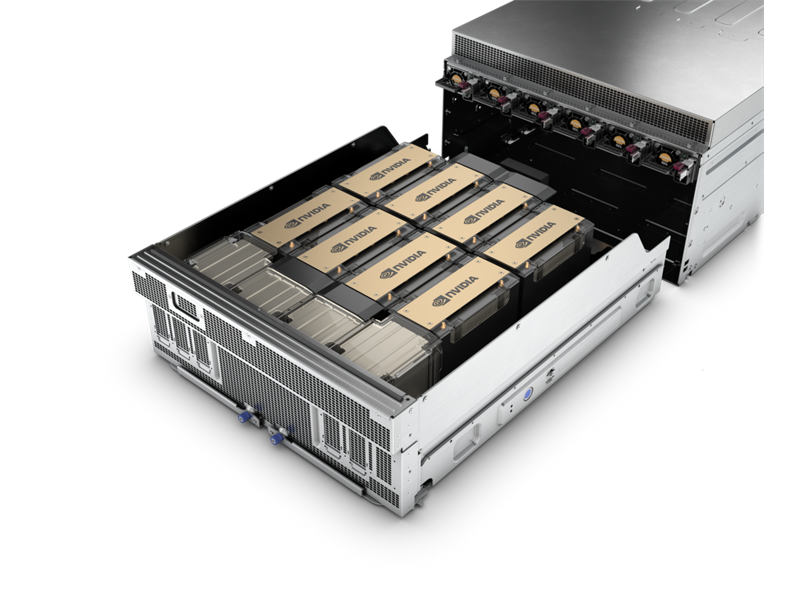

  • Support for eight NVIDIA® Blackwell Ultra (B300 HGX) GPUs, eight NVIDIA Blackwell (B200) GPUs, eight NVIDIA H200 Tensor Core GPUs, or eight AMD Instinct™ MI355X accelerators.

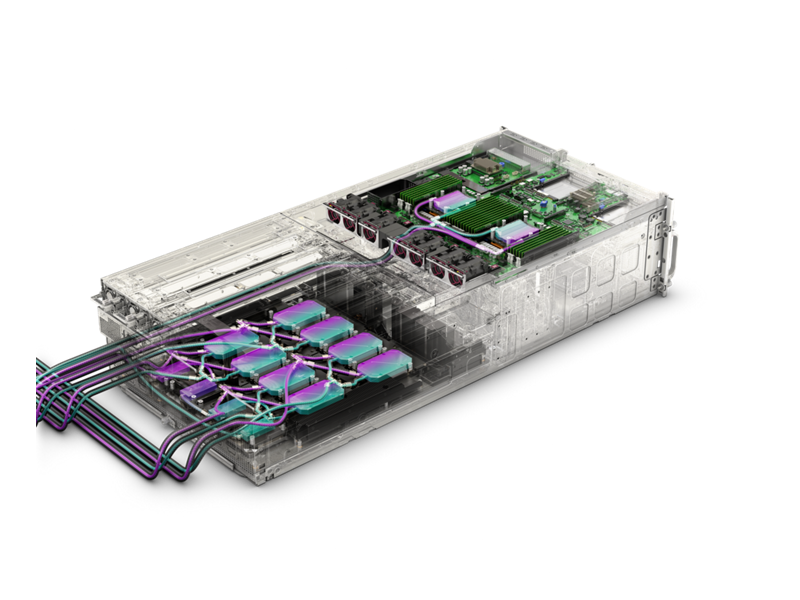

  • Direct liquid cooling (DLC) available for all GPU options. Air-cooling available for NVIDIA H200 GPUs.
  • Modular 5U chassis for direct liquid cooling environments or 6U chassis for air cooled configurations.
  • 24x DDR5 6400 RDIMMs and 12 channels per CPU DDR5 with ECC
  • Seamless management and built-in security features from HPE iLO 6
  • 2x 5th Generation AMD EPYC™ Processors

Specifications

HPE ProLiant Compute XD685
Processor type
  • AMD
Processor family
  • 5th Generation AMD EPYC™ Processors
Processor number
  • 2 processors
Processor core available
  • 32-160 cores, depending on the processor
Processor speed
  • Up to 5.0 GHz, depending on the processor
Processor cache
  • 128-512 MB, depending on the processor
Memory type
  • HPE DDR5 Standard Memory
Maximum memory
  • 6.1 TB with 256 GB DDR5
Memory slots
  • 24 DIMM Slots
Accelerators
  • NVIDIA® Blackwell Ultra (B300 HGX), NVIDIA Blackwell (B200), NVIDIA H200, AMD Instinct™ MI355X
System fan features
  • Air and DLC
Expansion slots
  • 8x HHHL PCIe Gen5 x16, 3 x FHHL PCIe Gen5 x16
Form factor
  • 5U Rack DLC Chassis, 6U Rack Air Chassis
Network controller
  • 1 HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller
Storage controller
  • 1 HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
Drive supported
  • 8 E3.S hot-swappable NVMe, additional drives available when storage controller is installed
Optical drive type
  • N/A
Power supply type
  • 6x 3000W @54V Titanium Plus (N+1), 200-277 VAC input
Infrastructure management
  • Server: HPE iLO6, BMC, Redfish APIs, 1GbE LAN (for BMC only) Cluster: HPE Performance Cluster Manager
Security
  • HPE iLO 6
Warranty
  • This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners and resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup are available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details. Note: Server warranty includes three-year parts, three-year labor, and three-year on-site support with next-business-day response.
Processor
Server Memory
Server Accelerator
Server Cooling
Server Expansions
Server Form Factor
Server Controllers
Server Drives
Server Power
Management Software
Security
Warranty
SKU: hpe-proliant-compute-xd685 Categorii: , , ,
HPE ProLiant Compute XD685
Processor type
  • AMD
Processor family
  • 5th Generation AMD EPYCâ„¢ Processors
Processor number
  • 2 processors
Processor core available
  • 32-160 cores, depending on the processor
Processor speed
  • Up to 5.0 GHz, depending on the processor
Processor cache
  • 128-512 MB, depending on the processor
Memory type
  • HPE DDR5 Standard Memory
Maximum memory
  • 6.1 TB with 256 GB DDR5
Memory slots
  • 24 DIMM Slots
Accelerators
  • NVIDIA® Blackwell Ultra (B300 HGX), NVIDIA Blackwell (B200), NVIDIA H200, AMD Instinctâ„¢ MI355X
System fan features
  • Air and DLC
Expansion slots
  • 8x HHHL PCIe Gen5 x16, 3 x FHHL PCIe Gen5 x16
Form factor
  • 5U Rack DLC Chassis, 6U Rack Air Chassis
Network controller
  • 1 HPE SR932i-p Gen11 x32 Lanes 8GB Wide Cache PCI SPDM Plug-in Storage Controller
Storage controller
  • 1 HPE MR416i-p Gen11 x16 Lanes 8GB Cache PCI SPDM Plug-in Storage Controller
Drive supported
  • 8 E3.S hot-swappable NVMe, additional drives available when storage controller is installed
Optical drive type
  • N/A
Power supply type
  • 6x 3000W @54V Titanium Plus (N+1), 200-277 VAC input
Infrastructure management
  • Server: HPE iLO6, BMC, Redfish APIs, 1GbE LAN (for BMC only) Cluster: HPE Performance Cluster Manager
Security
  • HPE iLO 6
Warranty
  • This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE Authorized Channel Partners and resellers. Hardware diagnostic support and repair are available for three years from the date of purchase. Support for software and initial setup are available for 90 days from the date of purchase. Enhancements to warranty services are available through HPE Services operational services or customized service agreements. Hard drives have either a one-year or three-year warranty; refer to the specific hard drive QuickSpecs for details. Note: Server warranty includes three-year parts, three-year labor, and three-year on-site support with next-business-day response.
