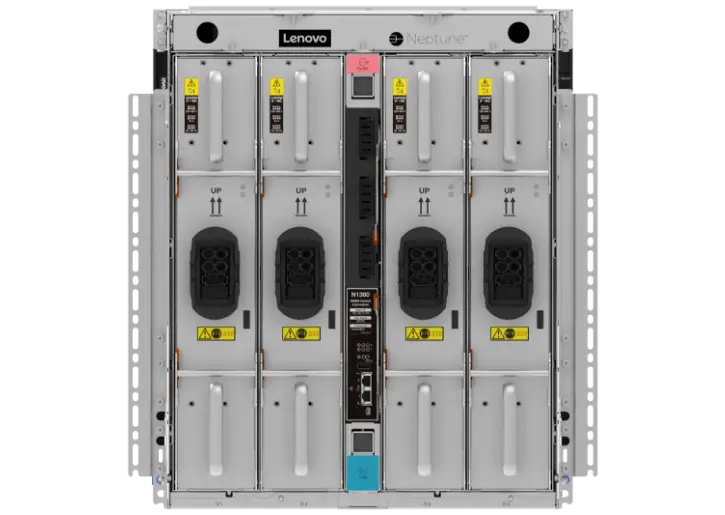

Lenovo ThinkSystem N1380 Neptune Chassis
, , ,

Lenovo ThinkSystem N1380 Neptune Chassis

Favorite
Compara

Scalable HPC and AI SupercomputerLenovo Neptune® – fully cooled with up to 45°C direct water cooling Meticulously engineered with highest quality materials for cooling with treated water Fully balanced, N+1 redundant, direct to data center power with four 15kW Power Conversion Stations (PCS)Adhering to data center standards through 13U Enclosure for 8 ThinkSystem SC-Series Trays

Pretul afisat contine TVA (21%).

Lenovo ThinkSystem N1380 Neptune Chassis

Scalable HPC and AI SupercomputerLenovo Neptune® – fully cooled with up to 45°C direct water cooling Meticulously engineered with highest quality materials for cooling with treated water Fully balanced, N+1 redundant, direct to data center power with four 15kW Power Conversion Stations (PCS)Adhering to data center standards through 13U Enclosure for 8 ThinkSystem SC-Series Trays

Key Features

Exascale technology available to everyone

Experience the scalability of the new ThinkSystem N1380 Neptune, meticulously engineered for HPC and AI Supercomputing customers from ExaScale to EveryScale™. It scales from a compact 13U enclosure to full racks, rows, and data centers. Adhering to rack data center standards, it uses standard 19-inch formfactor racks, avoiding specialized forms. Featuring eight tray slots, four 15kW Power Conversion Stations (PCS), and sophisticated Neptune water flow distribution, it is elegantly packaged for optimal space, power, and cooling efficiency in a groundbreaking solution.

Lenovo Neptune® – Market-Leading Innovation

Experience the energy-efficiency of the new ThinkSystem N1380 Neptune®, introducing the latest generation Lenovo Neptune®. It provides full direct warm-water cooling up to 45° C, eliminating the need for internal airflow and power-consuming fans. Its integrated manifold offers a patented blind-mate mechanism with aerospace-grade stainless steel connectors to SC-Series trays for safe and seamless operation. With the market’s lowest pressure drop, the N1380 is engineered to cool the highest power technologies with maximum efficiency.

With Great Power Comes Great Performance

Experience the power of the new ThinkSystem N1380 Neptune®, unlocking the future of high-performance computing. The innovative Power Conversion Stations (PCS) are engineered to drive unparalleled performance density. Imagine harnessing more than 160kW of power on just two data center floor tiles. The PCS provide fully balanced, N+1 redundant, direct to data center power, purpose-built to fuel the highest performing processors and accelerators. With its integrated 48V busbar design, the N1380 minimizes transformation losses providing best-in-class energy efficiency.

Specifications

Form Factor
  • 13U enclosure (N1380) designed for 19†rack cabinets Up to 3 enclosures per rack
Technologies
  • Compatible with ThinkSystem SC-Series Supports general purpose and acceleration compute technologies from Intel(r), AMD, & NVIDIA
Current Available Compute Types
  • Lenovo ThinkSystem SC750 V4 SC750 V4 datasheet
Power Management
  • Advanced power monitoring, management, and power capping capabilities via Lenovo XClarity Energy Manager (LXEM) or Confluent open-source software, paired with Energy Aware Runtime (EAR) for energy optimization
Systems Management
  • Features System Management Module (SMM3) in the enclosure, supports daisy-chaining and BMC pass-through, integrates with Lenovo XClarity and Confluent
Front access
  • Compute trays Cable management
Rear access
  • Water connection, Power and System Management Module (SMM3) 2x RJ45 on the SMM for XCC with daisy-chain support, USB-A for SMM FFDC log collection
Power Supply
  • Up to 4x HS 15kW Titanium Power Conversion Stations (PCS) with fully balanced phases, N+1 redundancyEach PCS provides a 32A 380-480V – or two PCS sharing a 63A 380-480V, 3-Phase IEC 60309 3P+N+E IP67 connection to data center power
Cooling Design
  • Direct Water Cooling at the heat source with treated clean water supporting inlet temperature from dew point to up to 45°CServers connected through blind mate quick disconnect to manifold in Enclosure. Each enclosure provides an inlet and outlet connection with dual-interlock FD83 ball valve
Limited Warranty
  • 3-year customer replaceable unit and onsite limited warranty Next business day 9 to 5 Service extensions and upgrades available
SKU: thinksystem-n1380-neptune Categorii: , , ,
Form Factor
  • 13U enclosure (N1380) designed for 19†rack cabinets Up to 3 enclosures per rack
Technologies
  • Compatible with ThinkSystem SC-Series Supports general purpose and acceleration compute technologies from Intel(r), AMD, & NVIDIA
Current Available Compute Types
  • Lenovo ThinkSystem SC750 V4 SC750 V4 datasheet
Power Management
  • Advanced power monitoring, management, and power capping capabilities via Lenovo XClarity Energy Manager (LXEM) or Confluent open-source software, paired with Energy Aware Runtime (EAR) for energy optimization
Systems Management
  • Features System Management Module (SMM3) in the enclosure, supports daisy-chaining and BMC pass-through, integrates with Lenovo XClarity and Confluent
Front access
  • Compute trays Cable management
Rear access
  • Water connection, Power and System Management Module (SMM3) 2x RJ45 on the SMM for XCC with daisy-chain support, USB-A for SMM FFDC log collection
Power Supply
  • Up to 4x HS 15kW Titanium Power Conversion Stations (PCS) with fully balanced phases, N+1 redundancyEach PCS provides a 32A 380-480V – or two PCS sharing a 63A 380-480V, 3-Phase IEC 60309 3P+N+E IP67 connection to data center power
Cooling Design
  • Direct Water Cooling at the heat source with treated clean water supporting inlet temperature from dew point to up to 45°CServers connected through blind mate quick disconnect to manifold in Enclosure. Each enclosure provides an inlet and outlet connection with dual-interlock FD83 ball valve
Limited Warranty
  • 3-year customer replaceable unit and onsite limited warranty Next business day 9 to 5 Service extensions and upgrades available
