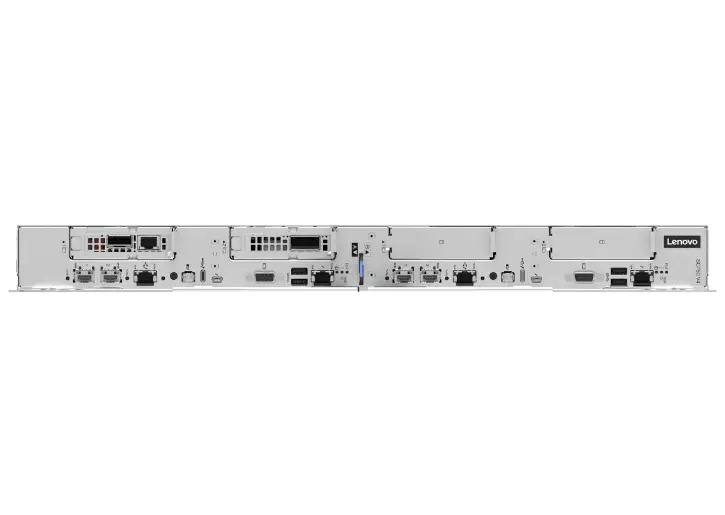

Lenovo ThinkSystem SC750 V4 Neptune®

Lenovo ThinkSystem SC750 V4 Neptune®

Up to 2x Intel® Xeon® 6900-series processorsUp to 24x 128GB TruDDR5 DIMMs or 64GB TruDDR5 MRDIMMsUp to 6x E3.S NVMe drives local storageSupport for NVIDIA NDR InfiniBand, Cornelis Omnipath 5000 & 400Gb EthernetDC-SCM with Lenovo XClarity on OpenBMCFeaturing Lenovo Neptune® with 100% heat removal through direct water cooling

Key Features

Lenovo Neptune® – Market-Leading Innovation

Experience the innovation of the ThinkSystem SC750 V4 Neptune®, utilizing direct warm-water cooling (up to 45°C). This advanced design effectively removes all heat from all components such as CPUs, memory, I/O, local storage, and voltage regulators, maintaining a system devoid of air flow. The use of water for cooling provides superior heat removal compared to air, allowing critical components to operate at lower temperatures. This results in enhanced performance, increased reliability, and higher density, all packaged in a quiet, energy-efficient system.

Superior Performance, Extreme Core Density

Experience the performance of the ThinkSystem SC750 V4 Neptune®, driven by two Intel® Xeon® 6 processors. With Lenovo Neptune water cooling, it operates Intel® Xeon® 6900-series at 550W with MRDIMMs and up to 128 cores, all in a compact form-factor. Using the Intel® Xeon® 6900P-series with MRDIMMs, it delivers unparalleled memory bandwidth. All this power and efficiency fits into less than a square meter of datacenter space, redefining compact general purpose supercomputing.

Efficient Supercomputer for the Next Decade

Experience the efficiency of the ThinkSystem SC750 V4 Neptune®. This new Supercomputer infrastructure is engineered for customers from ExaScale to EveryScale®, promising a decade of top-tier performance. Scaling from a compact 13U enclosure to full racks, rows, and datacenters, it features eight tray slots, four 15kW Power Conversion Stations (PCS), and a sophisticated Neptune water flow distribution, all elegantly packaged for optimal space, power, and cooling efficiency in a groundbreaking solution.
